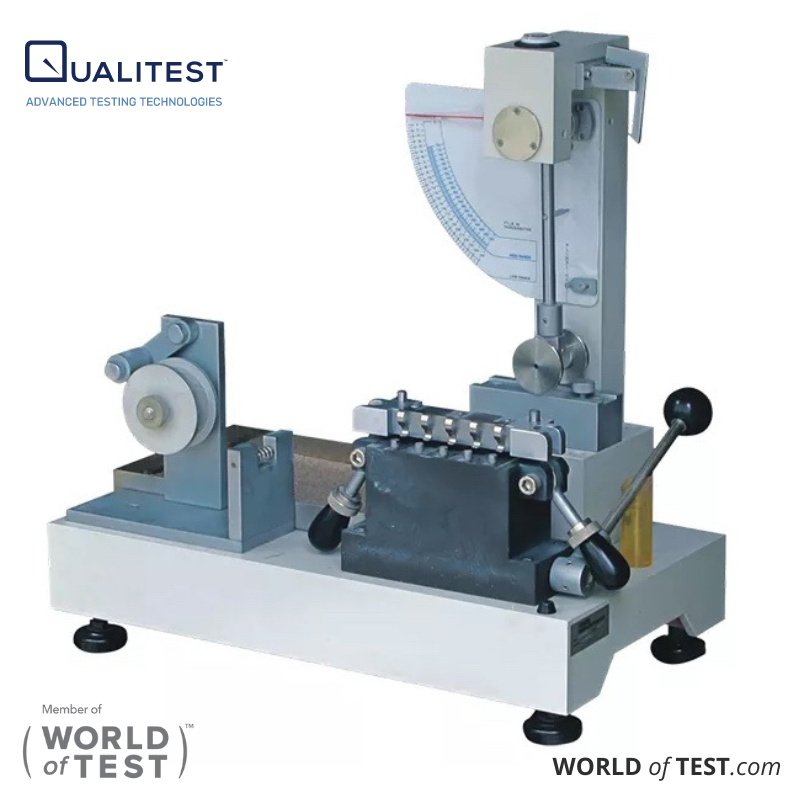

Internal Bond Tester for Paper and Cardboard

Internal Bond Tester for Paper and Cardboard
  • Our Internal Bond Tester is mainly used for peeling strength tests between cardboard layers.
  • The energy absorbed by the sample after being impacted by a certain angle and a certain weight shows the peeling strength of the cardboard layers.

Our Internal Bond Tester plays a key role in paperboard-related industries, ensuring that products meet standards, providing reliable paperboard internal bond strength data, and contributing to product quality control and improvement.



Manual Operation

It is simple and easy to use, does not require electricity, and has more advantages in saving energy.
Internal Bond Tester for Paper and Cardboard

Durable Construction

Durable materials and structures are used to ensure long-term stable operation of the internal bond testing machine.
Internal Bond Tester for Paper and Cardboard

Affordable

For some small-scale production or research laboratories where the budget is limited, this equipment is an affordable choice.



Features of Internal Bond Tester for Paper and Cardboard

  • INTERNAL BOND TESTING-PRINCIPLE: Internal Bond Tester is an instrument used to evaluate the internal peel strength of cardboard under certain conditions.
  • WIDE RANGE OF APPLICATIONS: It is suitable for different types and thicknesses of cardboard and is widely used in various industries, such as packaging, printing and paper manufacturing.
  • CARDBOARD QUALITY CONTROL:In the paperboard manufacturing process, Internal Bond Tester is used for quality control to ensure that the product meets specific ply peel strength standards and specifications.
  • NEW PRODUCTS DEVELOPMENT:In the development stage of new paperboard products, it is used to evaluate the impact of different adhesives, material combinations or production conditions on inter-layer peel strength to optimize product design.
  • PACKAGING MATERIAL EVALUATION:Internal Bond Tester is used to evaluate the interlayer peel strength of packaging cardboard to ensure that packaging materials have sufficient stability and durability during transportation, storage and use.
  • PRINTING QUALITY CONTROL:For cardboard used in printed matter, it can be used to evaluate its inter-layer peel strength to ensure the quality and durability of printed matter.
  • DURABILITY EVALUATION:The interply peel strength of paperboard is tested under specific conditions to evaluate its durability and permanence in practical applications.
  • MEET INDUSTRY STANDARDS AND REGULATIONS:Internal Bond Tester can ensure that products comply with relevant industry standards and regulations, reduce risks, and improve product compliance in the market.

Internal Bond Tester for Paper and Cardboard Technical Specifications:

Sample Quantity

5 sets

Capacity

0~0.25 ft-Lb, 0~0.50 ft-Lb

Minimum Reading Value

0.005 ft-Lb

Impact Angle

90°

Impact Head Diameter

8mm

Pressure Tolerance

10%

Distance from the swing arm axis to the center line of the impact end

228.1mm

Test Area of Specimen Holder

(25.4X25.4) ± 0.05mm

Pressure Gasket Pressure value

50, 100, 150, 200psi

Volume(W×D×H)

60×32×62cm

Weight (approx.)

90kg
