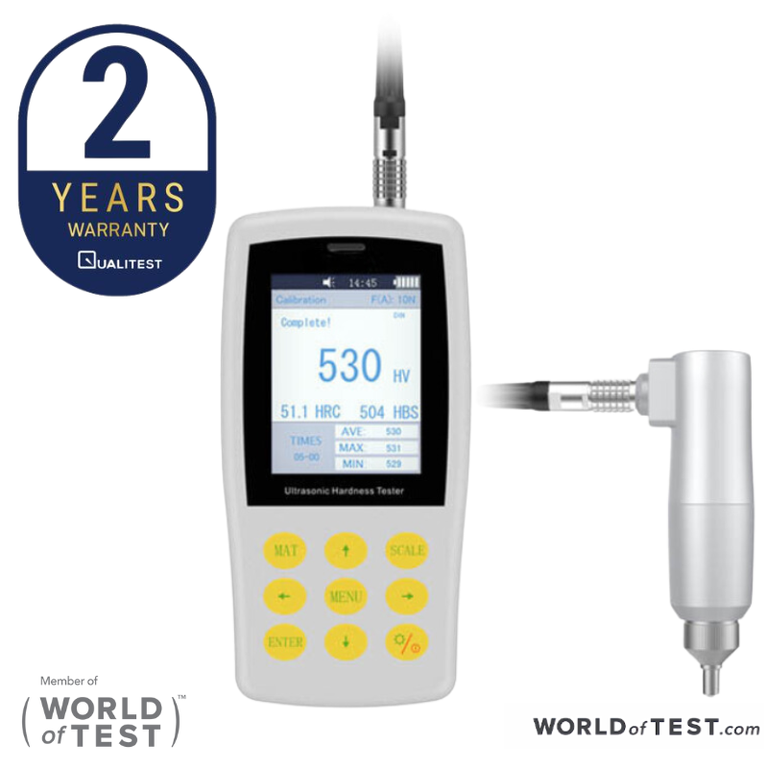

Shortened Probe Ultrasonic Hardness Tester - UCI-3400T
Parent Product
Ultrasonic Portable Hardness Tester UCI Series
Standards
ASTM A1038
DIN 50159
Download PDF Brochure
Shortened Probe Ultrasonic Hardness Tester - UCI-3400T (PDF)

Explore the Cutting-Edge Shortened Probe Ultrasonic Hardness Tester - UCI-3400T by Qualitest North America, a top-tier manual portable hardness tester designed for precise on-the-spot hardness testing. With a shortened probe HP-1T and utilizing ultrasonic contact independence, this NDT hardness tester ensures unparalleled accuracy (±3% HV, ±1.5HR, ±3%HB) and delivers results in just 2 seconds.

Witness microscopic indentation examination through the high-power microscope feature, while the large LCD display showcases measurement results, times count, maximum, minimum, average, and deviation. User-friendly and backed by a 2-year warranty (excluding probe), the UCI-3400T features mass storage for up to 1000 groups of measurement data and offers simple calibration with 20 groups for efficient recalibration.

Shortened Probe Ultrasonic Hardness Tester - UCI-3400T

Introduction:

Introducing the Shortened Probe Ultrasonic Hardness Tester - UCI-3400T: Your Portable Solution for Accurate On-the-Spot Hardness Testing

Discover the UCI-3400T, a specialized manual portable hardness tester designed by Qualitest North America, featuring a shortened probe HP-1T. This cutting-edge device utilizes the ultrasonic contact independence method, enabling precise hardness testing on the spot.The UCI-3400T is a Non-Destructive Testing (NDT) hardness tester, ideal for applications where the contact indention is too small to observe, making it an excellent solution for testing the hardness of inner walls in engines, pressure vessels, pipelines, and more.

Ultrasonic Hardness Tester



Certifications:

The UCI-3400T conforms to the following standards:

  • ASTM A1038-2005
  • DIN standard DIN50159-1-2008

Upgrade your hardness testing capabilities with the UCI-3400T – the perfect blend of accuracy, convenience, and reliability. Invest in quality assurance for your engineering, manufacturing, and inspection needs.

Application

Ultrasonic Hardness Tester



Shortened Probe Ultrasonic Hardness Tester - UCI-3400T Key Features:

  • Perfect Accuracy: Achieve ±3% HV, ±1.5HR, ±3%HB accuracy.

  • Microscopic Indentation: Examine indentations with only a high-power microscope.

  • Quick Measurement: Obtain results in just 2 seconds.

  • Large LCD Display: Directly view measurement results, times count, maximum, minimum, average, and deviation.

  • User-Friendly Operation: Easily operate the device after a short training session.

  • Promised Warranty: Benefit from a 2-year warranty for the main unit (Excludes Probe).

  • Mass Storage: Save up to 1000 groups of measurement data.

  • Simple Calibration: Effortlessly save 20 groups of calibration data for efficient recalibration.

Shortened Probe Ultrasonic Hardness Tester - UCI-3400T Technical Specifications:

Product Name Shortened Probe Ultrasonic Hardness Tester
ModelUCI-3400T
Standard Probe10N：HP-1T
Hardness Range(ASTM)HRC：20-68；HRB：55-100；HRA：37-85； HBS：100-500；HV：100-1500；Mpa：255-2180N/mm
Measuring Accuracy（%）Scales﹤250HV250~500HV500~800Hv﹥800HV
HV0.16789
HV0.36789
HV0.85567
HV15567
HV55555
HV105555
Hardness ScalesVickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB)
LCDColor Screen
Data DisplayLCD Backlight, Adjustable
LanguageEnglish, German, Portugese, Turkish, Chinese
Data OutputRS232 Hyper Terminal/Bluetooth Printer
printBluetooth
Data StorageTo save 1000-groups of measuring data and 20-groups of calibration data
Word inputLetters and numerals
Working EnvironmentTemperature: -10°C to 50°C Humidity :30%-80% R.H.
Battery VoltageRechargeable lithium battery ; Voltage :4.2V, 4800mAh
Recharger VoltageAC220V/50Hz, 110V/60Hz
Main unit Dimension and WeightMain unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
Packing Dimension and WeightPacking Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight （Standard Delivery）4.3Kg

Standard Delivery:

Product NameCode #Product NameCode #Product NameCode #
Instrument Main Body882-141T10N Manual Short  Probe882-321TAnti Vibration Case882-901
Standard Rockwell Block882-641Probe Cable882-801Screw882-951
USB Recharger882-851COM Cable882-810Operation Manual/UCI-3400T
Qualification CertificateUCI-3400TPacking ListUCI-3400TWarranty CardUCI-3400T
