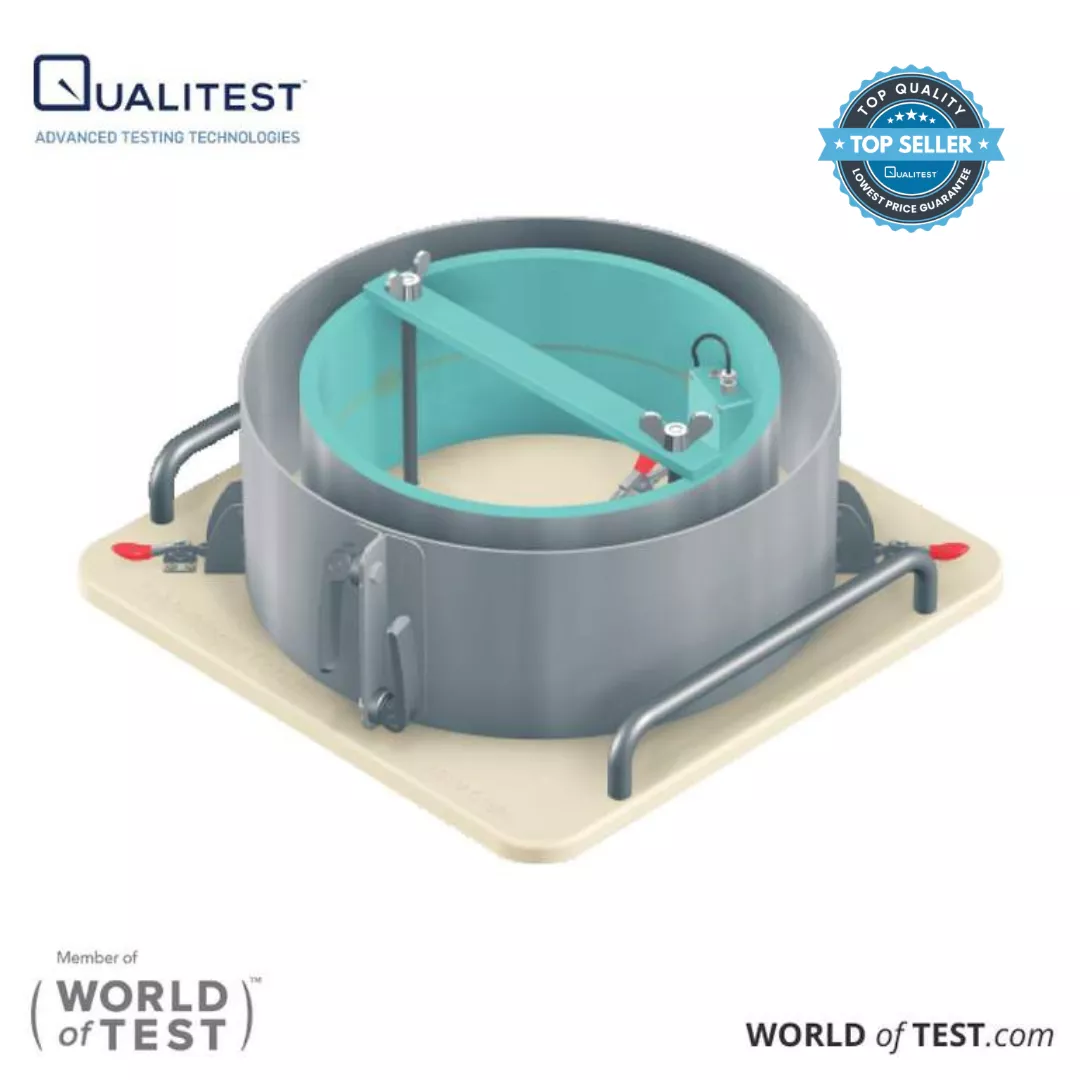

Shrinkage Ring According to ASTM & AASHTO Standard

Shrinkage Ring for Restrained Shrinkage Cracking Assessment: Evaluate Concrete Cracking Tendency Before It Reaches the Field

Early-age cracking in concrete slabs, bridge decks, and overlays leads to costly repairs and shortened service life. A shrinkage ring test gives engineers a reliable laboratory method to compare mix designs and rank their cracking tendency before concrete ever leaves the batch plant. By casting a concrete annulus around an instrumented steel ring and monitoring strain in real time, the test reveals exactly when a mixture cracks and how fast tensile stress builds under restrained conditions.

This system complies with ASTM C1581/C1581M and AASHTO T334, the two principal standards for restrained shrinkage testing of cementitious materials. Both variants use four bonded strain gauges and a type K thermocouple per ring, feeding digital data to a centralized logger that records strain, temperature, and optional ambient humidity continuously for up to one year.

How the Shrinkage Ring Test Works

A shrinkage ring test measures a concrete specimen's resistance to cracking by restraining its volumetric contraction with a rigid steel core. As the specimen loses moisture or undergoes chemical volume change, it attempts to shrink. The steel ring prevents free contraction, converting that shrinkage into hoop tensile stress within the concrete. When that tensile stress exceeds the concrete's developing tensile strength, a crack forms.

The Driving Phenomena: Why Concrete Shrinks

Three mechanisms drive the volumetric contraction that the ring restrains.

Drying shrinkage occurs when water evaporates from the hardened cement paste. Capillary tension in the pore network pulls the microstructure inward, causing the concrete to contract. Thinner specimens and lower ambient humidity accelerate this moisture loss.

Autogenous shrinkage results from the chemical consumption of water during cement hydration (a process called self-desiccation). Mixtures with a low water-to-cement ratio experience more pronounced autogenous shrinkage because less free water remains in the pore system.

Thermal contraction follows the heat of hydration. As the exothermic hydration reaction heats the concrete and the temperature subsequently drops, the material contracts. In massive pours or high-cement-content mixes, this thermal cycle can generate significant tensile stress.

How the Steel Ring Captures Cracking Data

Four strain gauges, wired in a Wheatstone bridge configuration, bond to the inner surface of the steel ring at equal circumferential intervals. As the concrete specimen shrinks around the ring, it compresses the steel, and the gauges register increasing compressive strain over time.

A sudden drop in that compressive strain signals crack formation in the specimen: the crack releases the restraint locally, and the steel ring partially unloads. The data logger records the age at cracking (in days from casting) and the strain rate leading up to the event. Engineers then calculate the net tensile stress and the stress rate at cracking, two key indicators defined by both ASTM C1581 and AASHTO T334.

A type K thermocouple inside each ring simultaneously logs specimen temperature. Because the steel ring's elastic modulus changes with temperature, this reading allows the operator to compensate strain data for thermal effects and to track heat of hydration in the early hours after casting.

The Role of Stress Relaxation

Concrete is not purely elastic. Under sustained tensile load, viscoelastic creep gradually relaxes a portion of the accumulated stress. A mixture with higher creep capacity can delay or even avoid cracking by redistributing stress over time. The restrained ring test captures this interaction automatically, because the measured strain already reflects the net result of shrinkage minus creep relaxation. For this reason, the test correlates more closely with field cracking than a simple free-shrinkage test such as ASTM C157.

Applications and Industries

1. Bridge Deck and Pavement Mix Design

Transportation agencies routinely require restrained shrinkage testing to qualify concrete mixes for bridge decks and pavements. AASHTO T334 testing helps departments of transportation screen mixes before field placement, reducing the risk of early transverse cracking that accelerates reinforcement corrosion.

2. Ready-Mix Concrete Quality Assurance

Ready-mix producers use the shrinkage ring to validate that changes in aggregate source, cement brand, or supplementary cementitious materials (SCMs) such as fly ash, slag, or silica fume do not increase cracking tendency beyond acceptable limits.

3. Research and Admixture Development

University and corporate laboratories use the test to evaluate the effectiveness of shrinkage-reducing admixtures (SRAs), internal curing agents, fiber reinforcement, and alternative binder systems. The continuous strain record provides a richer dataset than a simple pass-fail observation.

4. Concrete Overlay and Repair Specification

Repair mortars and thin overlays are particularly susceptible to restrained shrinkage cracking because they bond to a rigid substrate. The ring test helps specifiers compare candidate repair materials under controlled conditions.

How to Choose Between the ASTM and AASHTO Configuration

Selecting the correct ring configuration depends on the standard your project specification references, the maximum aggregate size in your mix, and the degree of restraint you need to simulate.

The ASTM C1581 ring produces a thinner concrete annulus (approximately 35.5 mm). This thinner section dries faster, which accelerates the test and produces results in fewer days. However, it limits the maximum nominal aggregate size to 13 mm (0.5 in.) and imposes a higher degree of restraint on the specimen.

The AASHTO T334 ring produces a thicker concrete section (approximately 76 mm). This accommodates larger aggregate and generates a lower degree of restraint that some researchers consider more representative of field conditions, particularly for bridge deck applications. The trade-off is a longer time to cracking and a larger specimen volume (approximately 13.8 L versus 6.6 L).

Consider these factors when specifying:

• Governing standard: if a DOT specification calls out AASHTO T334, use the AASHTO ring; if a materials lab follows ASTM C1581, use the ASTM ring
• Aggregate size: mixes with aggregate larger than 13 mm require the AASHTO configuration
• Test turnaround: the thinner ASTM specimen typically cracks sooner, which suits higher-throughput screening programs
• Specimen volume: the AASHTO ring requires roughly twice the concrete volume per test, a practical consideration for labs with limited mixing capacity

Both configurations share the same data logger (S0003), so a laboratory can operate ASTM and AASHTO rings on a single system.

Frequently Asked Questions

What Does a Shrinkage Ring Test Measure?

A shrinkage ring test measures the age at cracking and the induced tensile stress in a concrete or mortar specimen under restrained conditions. The steel ring prevents free shrinkage, forcing the specimen into tension. Strain gauges on the steel record the buildup and sudden release of compressive strain when the specimen cracks. This gives engineers a direct comparison of cracking tendency across different mix designs.

How Long Does a Restrained Shrinkage Ring Test Take?

Test duration depends on the mix design and the ring configuration. Highly crack-prone mixtures may crack within a few days, while mixes with low shrinkage or high creep capacity can last several weeks or longer. ASTM C1581 specifies that if a specimen does not crack within 28 days, the stress rate at 28 days characterizes the mixture instead. Most comparative studies run for 28 to 56 days.

What Is the Difference Between the ASTM and AASHTO Shrinkage Ring?

The ASTM C1581 ring has a 330 mm outer diameter and produces a concrete annulus approximately 35.5 mm thick. The AASHTO T334 ring has a 305 mm outer diameter but a larger outer mold (457 mm), producing a concrete annulus approximately 76 mm thick. The thicker AASHTO specimen accommodates larger aggregate and provides a different degree of restraint. Both use the same instrumentation approach with four strain gauges and a type K thermocouple.

Can the Shrinkage Ring Test Replace Free Shrinkage Testing?

The two tests answer different questions. Free shrinkage testing (ASTM C157/AASHTO T 160) measures unrestrained length change over time. The restrained ring test captures the interaction between shrinkage, tensile strength development, elastic modulus gain, and stress relaxation from creep. Because real structures restrain concrete movement, the ring test correlates more directly with field cracking behavior. Many specifications now require both tests for a complete shrinkage characterization.

What Data Does the System Record?

The data logger records steel ring strain and specimen temperature from each connected ring at user-defined intervals (10 seconds to 1 hour). With the optional S0016 module, it also logs ambient temperature and humidity. All data store as ASCII files accessible through any web browser over an Ethernet connection, with no proprietary software required.

How Many Rings Can One Data Logger Support?

A single S0003 data logger interfaces with up to six shrinkage rings simultaneously. This allows a laboratory to run multiple mix comparisons in parallel, which is essential for projects that require testing several candidate mixes under identical environmental conditions.
