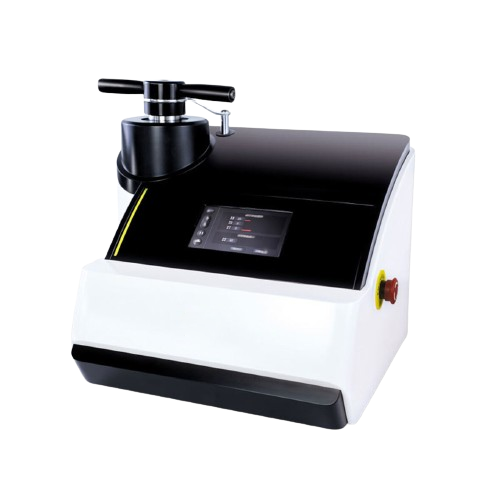

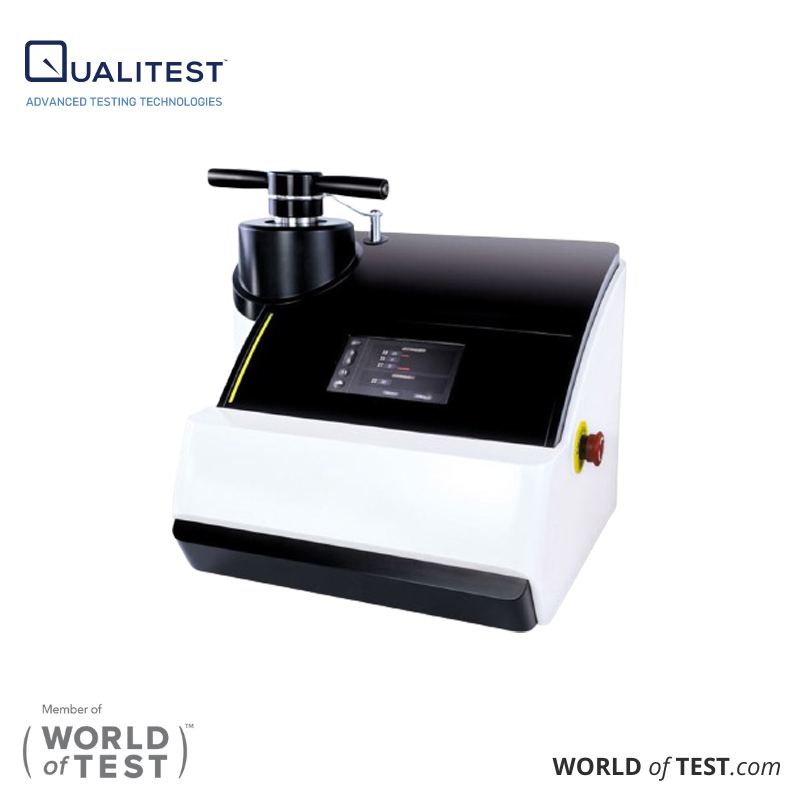

Single-Head Hot Mounting Press - QualiMount™ I

Single-Head Hot Mounting Press - QualiMount™ I is designed for laboratories requiring robust performance with a compact, single-head system. This model is ideal for those who need to process one sample at a time, making it suitable for smaller labs or specialized applications.

Single-Head Hot Mounting Press - QualiMount-ISingle-Head Hot Mounting Press - QualiMount-I

Applications:

  • Research Labs: Ideal for specialized sample preparation with precise requirements.
  • Quality Control: Perfect for facilities that need reliable results on a smaller scale.

Single-Head Hot Mounting Press - QualiMount™ I Key Features:

  • User-Friendly Interface: The intuitive control panel allows for easy operation, even for users with minimal training.
  • Precise Temperature and Pressure Control: Ensures consistent mounting results every time.
  • Quick-Cooling Mechanism: Reduces downtime between mounts, increasing productivity.
  • Compact Design: The single-head configuration makes it space-efficient, fitting easily into any lab setup.

Single-Head Hot Mounting Press - QualiMount™ I Technical Specifications

Sample Diameter

Choose one from 4 options:

φ25mm, φ30mm, φ40mm, φ50mm

System Pressure0-20MPa
Cooling Range40 ~ 90°C
Heating Temp.90 ~ 200°C
Heating Power2400W for 25,30mm
3000W for 40,50mm
Power4500W
Voltage220V, 50Hz (110V is also available)

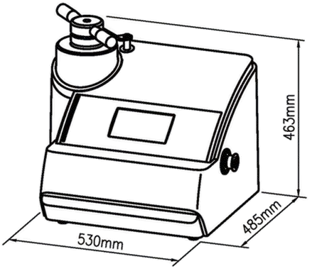

Dimensions530 x 485 x 463 mm
