Solvent Rub Resistance Tester: Verify Coating Cure in Minutes
A solvent rub resistance tester gives coating engineers and quality control teams an immediate, quantifiable answer to a critical question: has this coating cured enough for topcoating or service? Instead of waiting days or weeks for long-term exposure data, the tester delivers a rub count that correlates directly with the degree of crosslinking in the film. That single number drives pass/fail decisions on the production floor, in the lab, and in the field.

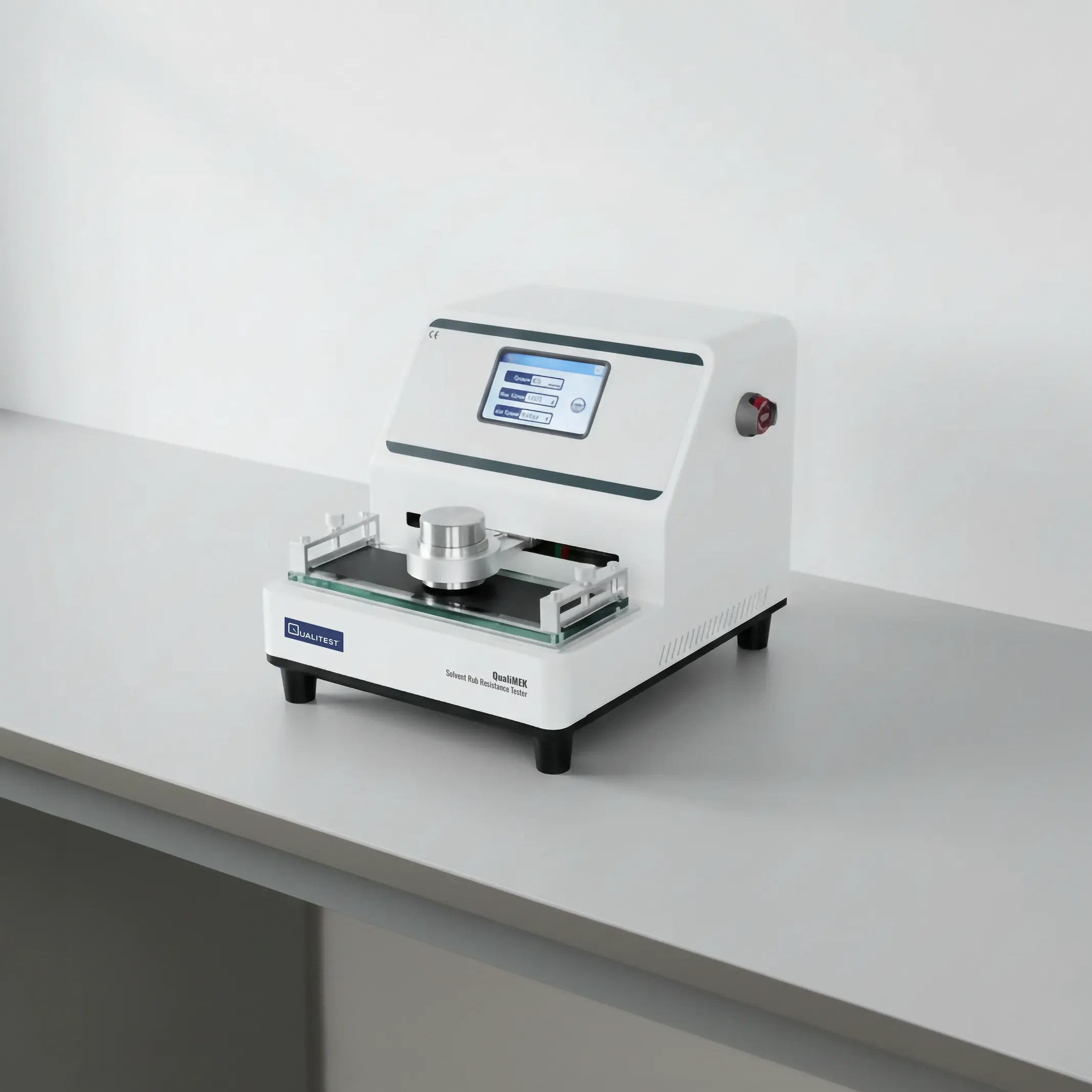

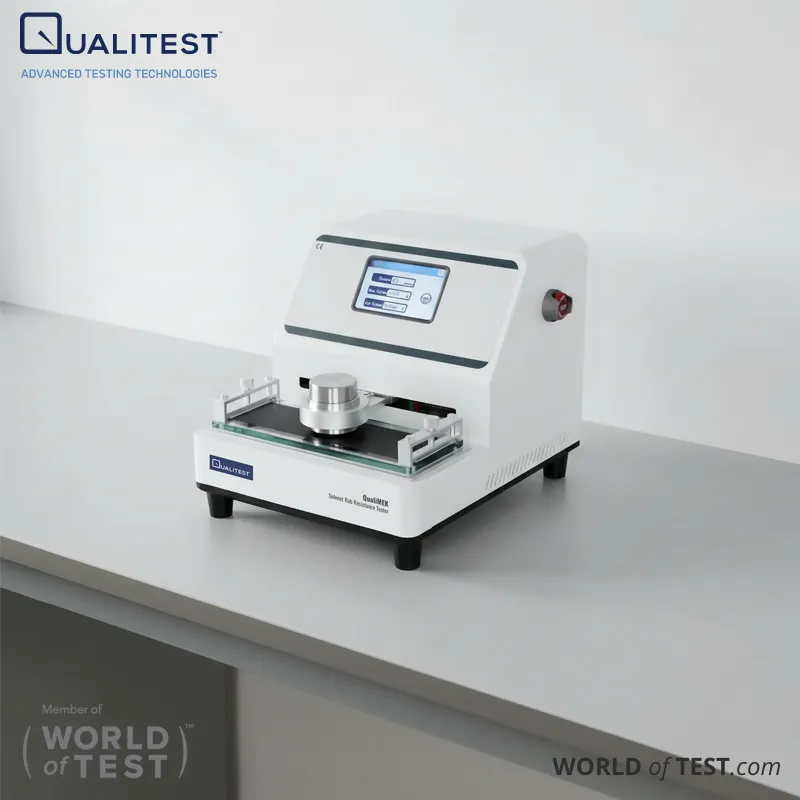

The QualiMEK solvent rub resistance tester automates this evaluation by rubbing a solvent-saturated cloth across a coated surface at controlled speed, pressure, and stroke length. It counts every double rub (one forward stroke plus one backward stroke) until the operator stops the test or the instrument reaches the preset cycle count. Because the machine eliminates human variability in stroke speed and applied force, it produces repeatable results that manual methods cannot match.
How a Solvent Rub Resistance Tester Works
A solvent rub resistance tester measures how many mechanical rub cycles a coating film withstands before the solvent breaks through or visibly damages the surface. The rub count reflects the extent of crosslinking in the cured film, because a stronger polymer network resists solvent penetration longer.
The Underlying Science: Solvent Attack on Crosslinked Polymers
Thermoset coatings (epoxies, polyesters, alkyds, urethanes, and vinyl esters) cure through a chemical reaction that links separate polymer chains into a three-dimensional network. Each bond between chains is a crosslink. A fully cured coating contains a dense web of crosslinks that locks the polymer molecules in place.
Methyl ethyl ketone (MEK) is a small, highly polar solvent molecule. When MEK contacts a cured coating, it penetrates between the polymer chains and forces them apart, a process chemists call swelling. In a well-crosslinked film, the dense network limits how far the chains can separate. The polymer swells slightly but holds together. In an under-cured film with fewer crosslinks, MEK moves freely between the chains, softens the matrix, and weakens it enough for the rubbing cloth to break through.
For this reason, the number of double rubs before film failure scales with the crosslink density. A higher rub count signals a more complete cure. A low rub count warns the coating team that curing time, temperature, or catalyst ratio needs adjustment before the coating enters service.
How the Machine Executes the Test
The operator clamps a coated test panel onto the glass work platform. A rubbing head, weighted to the standard load (1,000 g per ASTM D4752), holds a pad of cheesecloth or absorbent cotton saturated with MEK. The microcomputer controller lets the operator set three parameters: stroke speed in cycles per minute, total cycle count, and stroke distance. Once started, the motor drives the rubbing head back and forth at the set speed. Each complete forward-and-backward motion registers as one double rub on the LCD counter.
The test ends in one of two ways. The operator can stop the machine when the coating shows visible failure (softening, breakthrough, or color transfer to the cloth). Alternatively, the machine stops automatically at the preset cycle count. The operator then inspects the rubbed area against an untouched control area and records the result, either the rub count at failure or a resistance rating on a 0-to-5 scale, depending on the applicable standard.
Why Automation Matters for This Test
Manual solvent rub testing introduces variability in three areas: stroke speed, applied pressure, and solvent saturation of the cloth. Even trained operators struggle to hold a consistent one-second-per-double-rub pace over 100 or more cycles. An automated tester locks down speed and pressure mechanically, so the only variable left is the coating itself. This consistency is critical when labs compare results across shifts, sites, or suppliers.
Applications and Industries
Solvent rub resistance testing serves any industry that applies thermoset or chemically curing coatings and needs to verify cure quality before the next process step.
1. Protective Coatings and Corrosion Control
Fabrication shops apply ethyl silicate zinc-rich primers to structural steel, then topcoat after the primer cures. ASTM D4752 specifies the MEK rub test as the standard method for confirming cure of these inorganic primers. An insufficiently cured primer that receives a topcoat too early risks adhesion failure and accelerated corrosion in the field.
2. Automotive and General Industrial Finishing
Paint lines bake epoxy primers and polyester or acrylic topcoats onto body panels, chassis parts, and engine components. Quality teams perform MEK rub tests on sample panels to validate that oven temperature profiles produce full cure. Because ASTM D5402 governs solvent rub testing for organic coatings broadly, the same tester covers primers, basecoats, and clearcoats across the line.
3. Powder Coatings
Powder coating shops cure thermoset powders (epoxy, polyester, hybrid, and urethane chemistries) in convection or infrared ovens. Solvent rub counts on cured panels confirm that the oven delivers enough heat penetration to crosslink the resin fully, especially on heavy or complex parts where heat distribution varies.
4. Printing and Packaging
Printers and converters test solvent resistance of UV-cured and heat-set inks on films, foils, and paperboard. The rub count verifies that the ink layer bonds properly to the substrate and resists solvents it may contact during lamination, filling, or end-use cleaning.
5. Non-Stick and Specialty Coatings
Manufacturers of coated cookware and bakeware use MEK rub testing to verify that non-stick fluoropolymer or ceramic coatings achieve the specified cure before shipping. A minimum rub count (often 50 double rubs per industry guidelines) confirms the coating will withstand repeated use without peeling.
How to Specify a Solvent Rub Resistance Tester
Selecting the right tester depends on the standards your lab must meet, the coatings you test, and the throughput your QC program demands.
Match the Tester to Your Standard
Start with the test standard your customers or specifications require. ASTM D4752 prescribes a 1,000 g rubbing weight, a specific cheesecloth type, and a defined stroke distance for inorganic zinc-rich primers. ASTM D5402 leaves the solvent and rub count to the coating manufacturer's specification. Confirm the tester's rubbing weight, head diameter, and stroke length comply with your target standard before purchasing.
Evaluate Speed Range and Control
A tester with stepless speed regulation (for example, 5 to 95 cycles per minute on the QualiMEK) lets you match the stroke rate to any standard or internal specification. Fixed-speed testers limit flexibility when a new standard or customer specification requires a different pace.
Consider Cycle Capacity and Data Handling
High-performance coatings may require hundreds or thousands of double rubs before failure. Verify the tester's counter range covers your maximum expected rub count. A microcomputer controller with parameter storage saves time in labs that run the same test repeatedly on different production batches.
Check Practical Details
A glass work platform simplifies cleanup when MEK drips during testing. A wide input voltage range (110 to 220 V, 50/60 Hz) matters for labs operating across regions or sourcing equipment internationally.
Frequently Asked Questions
What Does a Solvent Rub Resistance Tester Measure?
A solvent rub resistance tester measures the number of solvent-soaked cloth rubs a coating film withstands before it fails. The rub count correlates with the degree of crosslinking in the cured film, which makes it a practical indicator of coating cure for quality control and standards compliance in paint, powder coating, and ink applications.
What Is the Difference Between ASTM D4752 and ASTM D5402?
ASTM D4752 specifies MEK as the solvent and defines the test parameters for ethyl silicate zinc-rich primers specifically. ASTM D5402 covers solvent rub testing for organic coatings more broadly and does not prescribe the solvent, rub count, or expected result. The coating manufacturer determines those variables based on the formulation and intended service.
How Many MEK Double Rubs Indicate a Fully Cured Coating?
The required rub count depends on the coating chemistry, film thickness, and the applicable specification. There is no universal pass/fail number. For example, some powder coating specifications require 50 or more double rubs, while heavily crosslinked industrial coatings may withstand several hundred. Always compare test results against a known cured reference sample or the coating manufacturer's stated minimum.
Can I Use Solvents Other Than MEK?
Yes. ASTM D5402 allows any agreed-upon solvent. Some coating systems respond better to acetone, xylene, or isopropyl alcohol depending on the resin chemistry. MEK remains the most common choice because its moderate evaporation rate and strong solvency provide a good balance of sensitivity and practicality for most thermoset coatings.
Why Do Manual and Automated MEK Rub Tests Give Different Results?
Manual tests vary because operators apply inconsistent pressure, speed, and cloth saturation. An automated solvent rub resistance tester controls stroke speed, applied load, and stroke distance mechanically, which removes operator-to-operator variability. Labs that switch from manual to automated testing typically see tighter result distributions and better reproducibility across test sessions.
What Maintenance Does a Solvent Rub Resistance Tester Require?
Routine maintenance involves cleaning the glass platform after each test to remove solvent residue, inspecting the rubbing head for wear, and verifying the rubbing weight with a calibrated balance periodically. Replace cheesecloth or cotton pads between tests as required by the standard. Store the tester in a ventilated area to manage solvent vapor exposure.
