Standard Dual RO Pure Water System - QualiPWS™ S-RO

QualiPWS™ S-RO is a dual pass reverse osmosis water system that sends feed water through two membrane stages before it reaches the ion-exchange bed. Qualitest North America supplies the Standard Dual RO Pure Water System to laboratories working from hard or high-conductivity municipal supply, where a single membrane pass leaves too much ionic load behind. Output covers 13 and 25 liters per hour. A 60-liter storage tank holds the finished water.

Second-pass RO water leaves the membrane stack below 5 µS/cm and above 0.2 MΩ·cm, holding that quality on feed water as conductive as 1,500 µS/cm. Deionized water from the polishing cartridges runs above 17.5 MΩ·cm at 25 °C, clearing ASTM D1193 Type II. Both grades dispense from the host at up to 2 liters per minute in general or quantitative mode. The storage tank adds a third dispensing point.

A 5-inch capacitive touchscreen carries the full system diagram: process flow, cartridge configuration, live water quality, RO rejection rate, remaining cartridge life, and tank level on one view. Ethernet and WiFi link the unit to a cloud platform for remote monitoring, alarm response, and LIMS or BMS integration. Five years of operating records stay on the host and export as PDF reports for traceability files. Multi-user accounts allocate dispensing volume and consumable cost by department.

Standard Dual RO Pure Water System - QualiPWS™ S-RO Applications

The QualiPWS™ S-RO earns its place where incoming water quality works against a conventional purification train. Common deployments include the following.

  • Laboratories on Hard or High-TDS Supply: two membrane passes hold output steady where a single pass would drift with feed conductivity
  • Glassware Washer Final Rinse: second-pass RO water below 5 µS/cm dries without film or spotting, even in scaling water regions
  • Autoclave and Steam Generator Feed: low-conductivity feed that slows scale accumulation on elements and chamber surfaces
  • Feed Water for Type I Polishing Systems: pre-polished supply that stretches ultrapure cartridge intervals well past single-pass feed
  • Buffer, Media, and Reagent Preparation: deionized water for microbiological media, standard solutions, and dilution series
  • Pharmaceutical Quality Control: purified water for wet chemistry, dissolution work, and cleaning validation rinse sampling
  • Analytical and Clinical Instruments: dilution and rinse water for automated analyzers, titrators, and spectrophotometers
  • Environmental and Stability Chambers: humidifier feed that leaves no deposit on nozzles or humidity sensors
  • Histology and Cytology Laboratories: staining and rinse water where residual minerals would shift stain behavior

Standards

Water from the QualiPWS™ S-RO is designed to align with the reagent grades set out below. Demonstrating a specific grade depends on incoming water quality, cartridge condition, and sampling practice.

  • ASTM D1193 - Standard Specification for Reagent Water (Type II)
  • ISO 3696 - Water for Analytical Laboratory Use: Specification and Test Methods (Grade 2)
  • JIS K0557 - Water Used for Industrial Water and Wastewater Analysis
  • USP - United States Pharmacopeia, Purified Water technical requirements
  • EP - European Pharmacopoeia, Purified Water technical requirements
  • JP - Japanese Pharmacopoeia, Purified Water technical requirements

Standard Dual RO Pure Water System - QualiPWS™ S-RO Key Features

The QualiPWS™ S-RO pairs a two-stage membrane train with the full monitoring, traceability, and connectivity set.

Standard Dual RO Pure Water System

Full security protection

Standard Dual RO Pure Water System

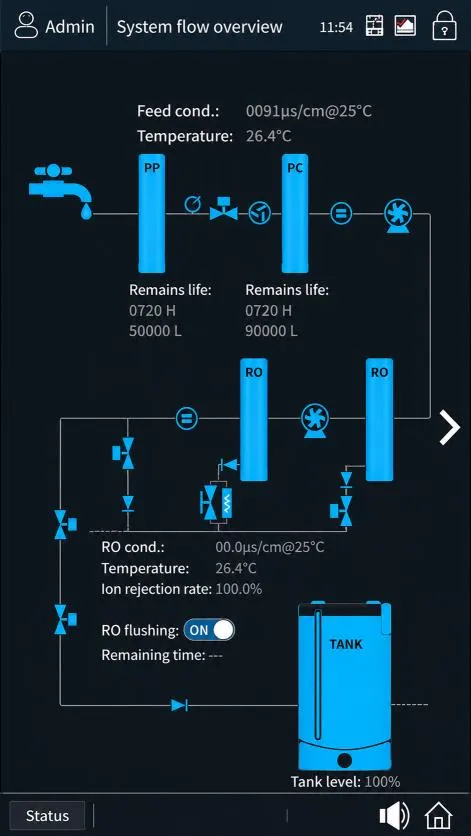

Powerful system overview diagram

  • Dual Pass RO Membrane Stack: two membrane stages in series hold RO water below 5 µS/cm on feed as conductive as 1,500 µS/cm
  • 99% Contaminant Removal at the Membrane: soluble inorganic ions, soluble organics, microorganisms, and particles all reduced by up to 99 percent before polishing
  • Automatic RO Flushing: adjustable interval and duration sweeps the membrane face to limit scaling and lengthen service life
  • Automatic Off-Spec Discharge: RO permeate that fails the quality check routes to drain instead of loading the polishing cartridges
  • Modular RO Assembly: the membrane module is packaged as one unit, which keeps installation and replacement straightforward
  • Two Production Rates: 13 or 25 L/h, sized for laboratories that value output quality over throughput
Standard Dual RO Pure Water System

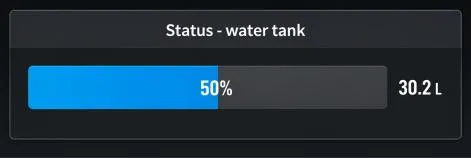

Intuitive tank storage status

Standard Dual RO Pure Water System

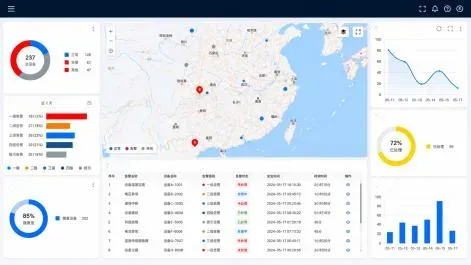

Innovative Internet of Things (IOT) and cloud platform technology

  • Two Water Grades from One Host: RO and DI outlets on the unit, with the storage tank providing a third dispensing point
  • 5-Inch Capacitive Color Touchscreen: an 800 × 480 glass-panel display with selectable interface themes and dual-language operation

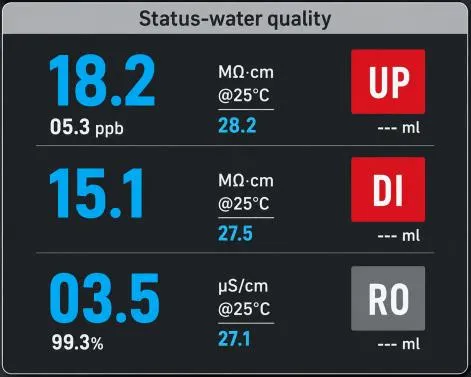

  • Live System Overview Diagram: process flow, cartridge configuration, water quality, RO rejection rate, cartridge life, and tank status on a single screen
  • Multi-Point Quality Monitoring: sensors on feed, RO, and DI water with a 0.01 cm⁻¹ electrode constant, 0.1 °C temperature sensitivity, and simultaneous readout of temperature-compensated conductivity, resistivity, and water temperature
  • Live RO Rejection Readout: membrane performance updates continuously with an alarm when rejection falls away
  • Quantitative Dispensing: flow sensors meter the RO and DI channels while a separate channel totalizes feed water consumption
Standard Dual RO Pure Water System

Perfect consumables management

Standard Dual RO Pure Water System

Comprehensive water quality monitoring and alarm

  • Inlet Pressure Sensing: supply pressure displays in real time so feed problems surface before water quality moves
  • 12-Inch Pretreatment Cartridges: a 5 μm depth-folded polypropylene stage and a catalytic activated carbon fiber stage, sized together for longer replacement intervals
  • High-Capacity DI Cartridges: a patented full-droop flow path holds the resin bed against stratification, with 1.36 liters per cartridge and up to 4.08 liters across three positions
  • Patented Three-Chamber Cartridge Housing: one body accepts pretreatment, RO, and DI packs, with a quick clamp and error-proofing that blocks wrong-position fitting
  • Encrypted Cartridge Serial Codes: confirms consumable authenticity and logs each installation and replacement

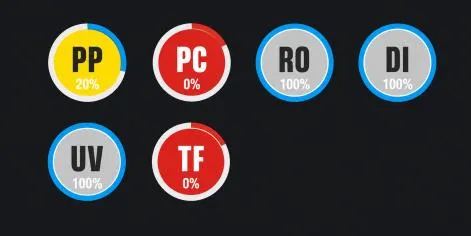

  • Consumable Life Management: remaining life shown as a percentage with blue, yellow, and red status icons, plus scan-to-reorder from the cartridge screen
  • 60-Liter PE Storage Tank: double-layer HDPE with an anti-UV outer layer to suppress algae, a pure PE inner layer to limit leaching, cone-bottom drain valve, sealed oversize cover, and a compound air filter that absorbs CO₂ and organics
  • Independent Tank Instrumentation: dedicated pressure sensor, level control module, and LCD readout of level, stored volume, and fill percentage, synchronized with the host display
Standard Dual RO Pure Water System

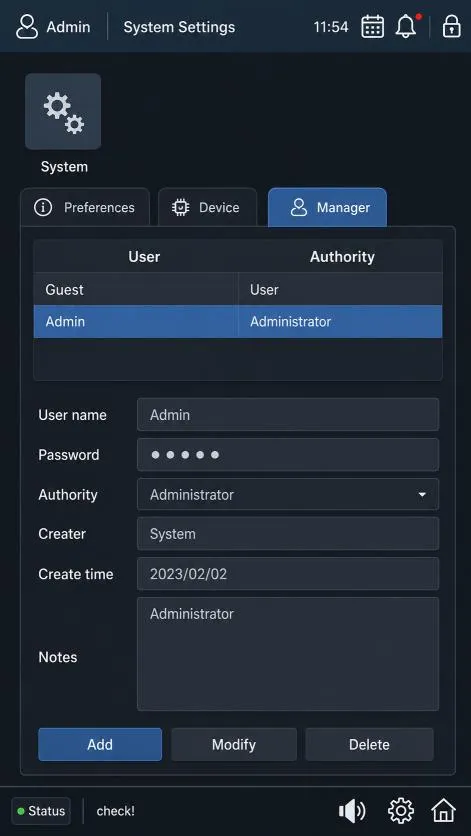

Sharing mode of multi-user management

Standard Dual RO Pure Water System

Traceable comprehensive data management

  • Optional Tank UV Disinfection: an add-on module that sterilizes the stored volume and suppresses bacterial growth

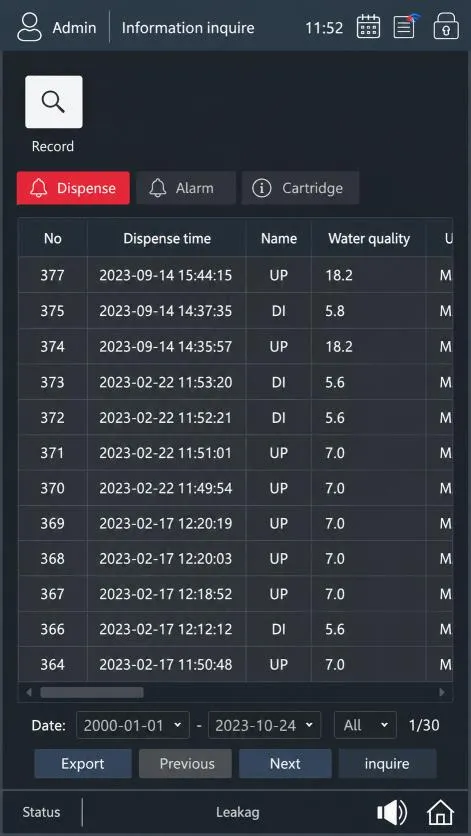

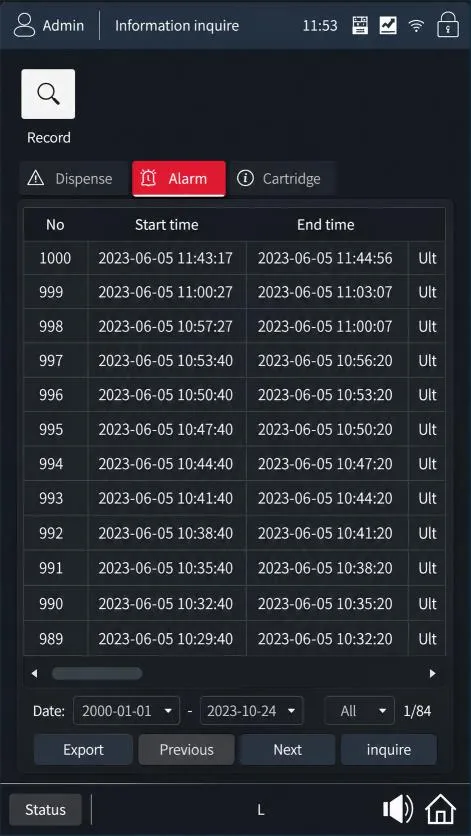

  • Five-Year Data Retention: dispensing, alarm, and cartridge history held on the host, exportable as tamper-resistant PDF reports by USB or cloud download, with each dispensing record carrying water quality, volume, and user identity
  • Cloud and IOT Connectivity: Ethernet and WiFi access for remote monitoring, alarm response, service work orders, and LIMS or BMS integration
  • Multi-User Account Control: independent IDs and passwords for secondary users, lock-screen switching, and per-ID consumable cost allocation
  • Layered Safety Design: 24 V DC control architecture, three-level permission management, dual leak sensors covering the cabinet and benchtop, and alarms for no feed water, low inlet pressure, high system pressure, full tank, out-of-spec quality, and expired cartridges
  • Optional Remote Dispensing Arms: up to five per host, each with a color readout of resistivity, temperature, flow rate, and single or cumulative volume, 360-degree horizontal positioning, host circulation, three dispensing modes, and an optional 0.2 μm terminal microfilter
  • Complete Interface Set: USB for data export and firmware updates, RJ45 or WiFi for network access, leak sensor input, dispensing arm port, tank signal port, and foot switch input
  • Injection-Molded Housing: a molded shell with sealed contours that resist splash and wipe down quickly

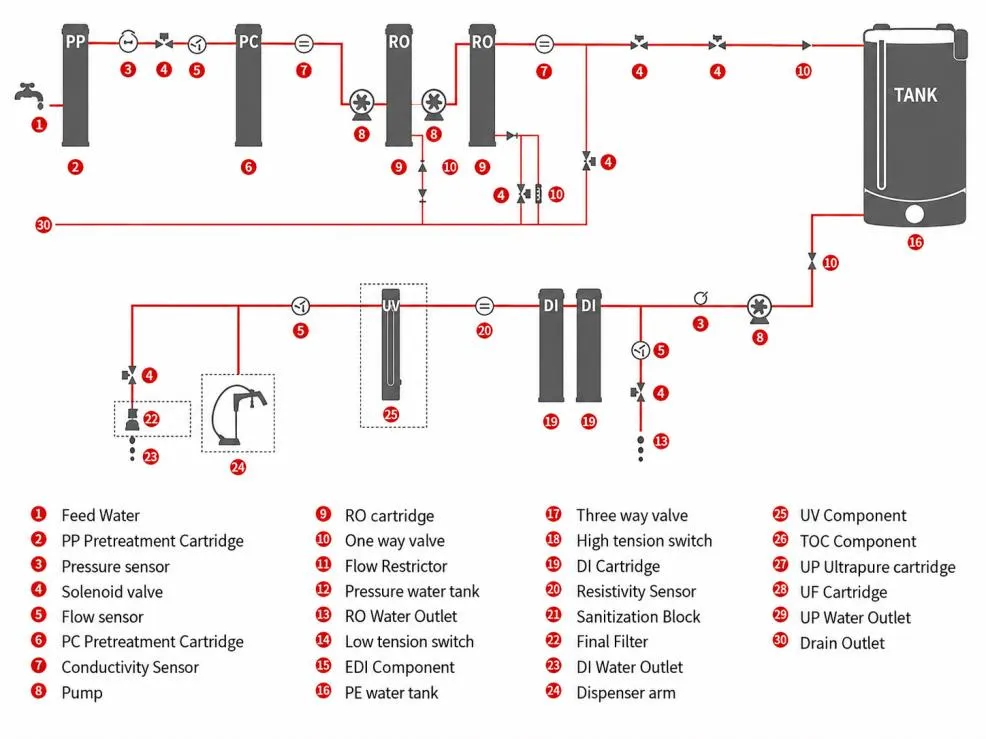

Theory and Method

A single reverse osmosis membrane rejects 98 to 99 percent of dissolved ions, which leaves one to two percent of the feed load in the permeate. Sending that permeate through a second membrane applies the same rejection to a much cleaner stream, so the two passes compound. The result holds below 5 µS/cm on feed water up to 1,500 µS/cm, a range that would push a single-pass system past its useful output. Removal of soluble organics, microorganisms, and particles reaches 99 percent.

Carbon dioxide slips past both membranes as a dissolved gas rather than an ion, converting to bicarbonate once the water leaves the stack. Ion-exchange resin therefore still does necessary work at the end of the train. The bed trades hydrogen and hydroxide ions for residual cations and anions until resistivity climbs above 17.5 MΩ·cm. Arriving at that bed below 5 µS/cm rather than at single-pass quality means far fewer ions to capture, so the resin lasts longer between changes.

Two automatic routines protect the membranes and the water downstream. Flushing runs on an adjustable interval and duration, sweeping concentrated salts off the membrane face before they precipitate as scale. A quality check at the RO outlet diverts off-spec permeate to drain rather than letting it reach the ion-exchange stage, which preserves resin capacity during startup and after a cartridge change. On the bacteria and particle build, a double-layer PES microfilter at the outlet retains organisms picked up in the tank.

Standard Dual RO Pure Water System

Standard Dual RO Pure Water System - QualiPWS™ S-RO Technical Specifications

ParameterQualiPWS™ S-RO-13 / S-RO-25QualiPWS™ S-RO-13UT / S-RO-25UT
ConfigurationStandardBacteria and particle reduction
Production Rate (1)13 L/h (S-RO-13), 25 L/h (S-RO-25)13 L/h (S-RO-13UT), 25 L/h (S-RO-25UT)
Dispensing Rate (2)Up to 2 L/minUp to 2 L/min
DI Water Resistivity at 25 °C (3)(4)>17.5 MΩ·cm>17.5 MΩ·cm
DI Water Conductivity at 25 °C (3)<0.057 µS/cm<0.057 µS/cm
DI Water Particles (5)Not applicable<1 per mL (>0.2 µm)
DI Water Bacteria (5)Not applicable<0.01 CFU/mL
Second-Pass RO Resistivity at 25 °C (4)(6)>0.2 MΩ·cm>0.2 MΩ·cm
Second-Pass RO Conductivity at 25 °C (6)<5 µS/cm<5 µS/cm
Second-Pass RO Organic Rejection Rate (6)>99% (MW >300 Dalton)>99% (MW >300 Dalton)
Second-Pass RO Particle and Bacteria Rejection Rate (6)>99%>99%
Feed Water SourceTap waterTap water
Feed Water Pressure1 to 6 bar1 to 6 bar
Feed Water Temperature5 °C to 40 °C5 °C to 40 °C
Feed Water Conductivity<2,000 µS/cm<2,000 µS/cm
Feed Water Total Hardness (as CaCO₃)<300 ppm<300 ppm
Feed Water TOC<2,000 ppb<2,000 ppb
Feed Water Free Chlorine<3 ppm<3 ppm
Feed Water pH4 to 104 to 10
Feed Water Dissolved CO₂<30 ppm<30 ppm
Display5-inch capacitive color touchscreen, 800 × 4805-inch capacitive color touchscreen, 800 × 480
DI Resin Capacity1.36 L per cartridge, up to 4.08 L per host1.36 L per cartridge, up to 4.08 L per host
Voltage200 to 240 V, 50/60 Hz (110V is also available)200 to 240 V, 50/60 Hz (110V is also available)
Total Power240 W240 W
Host Dimensions (L × W × H)370 × 623 × 600 mm (14.6 × 24.5 × 23.6 in)370 × 623 × 600 mm (14.6 × 24.5 × 23.6 in)
Tank Dimensions (L × W × H)392 × 518 × 772 mm (15.4 × 20.4 × 30.4 in)392 × 518 × 772 mm (15.4 × 20.4 × 30.4 in)
Host WeightApprox. 30 kg (66.1 lb)Approx. 30 kg (66.1 lb)
Tank WeightApprox. 16 kg (35.3 lb)Approx. 16 kg (35.3 lb)

(1) Affected by inlet water quality, pressure, temperature, and RO membrane condition. (2) Affected by tank status and terminal filter. (3) Typical values that vary with the nature and concentration of feed water contaminants. (4) Resistivity can be displayed as a non-temperature-compensated value to suit USP requirements. (5) Requires the terminal microfilter, professional operating procedures, and correct sampling conditions. (6) Affected by the type of organics present in the feed water.

Standard Configuration

ItemQuantityDescription
Main Host1 setPurification host with dual pass RO stack, control system, touchscreen, and RO and DI dispensing outlets
Cartridge Set1 setComplete pretreatment, RO, and DI cartridge complement for the configured model
Pure Water Tank1 set60-liter PE storage tank with level sensing, LCD readout, and air filter
