Standard EDI Pure Water System

Standard EDI Pure Water System - QualiPWS™ L-EDI Key Features

The QualiPWS™ L-EDI combines three purification technologies with the monitoring and traceability set from the top of the QualiPWS™ range.

Traceable comprehensive data management

Comprehensive water quality monitoring and alarm

• Continuously Regenerating EDI Module: holds output above 15 MΩ·cm with TOC under 30 ppb, with no softener, no chemical dosing, and no resin changeout for that stage
• Two-Stage RO Membrane Train: paired membranes deliver RO water below 5 µS/cm on feed as conductive as 1,500 µS/cm, protecting the EDI stack from hardness
• Up to 99% Contaminant Removal at the Membranes: soluble inorganic ions, soluble organics, microorganisms, and particles all cut before the EDI stage
• 10 or 20 L/h Output: up to 480 liters across a full day, sized for laboratories that draw steadily rather than in bulk
• Automatic Membrane Flushing: adjustable interval and duration sweeps salts off the membrane faces to limit scaling
• Automatic Off-Spec Discharge: permeate that fails the outlet check routes to drain instead of reaching the back end of the train
• Modular RO Assembly: the membrane module is packaged as a single unit for straightforward installation and replacement
• Dual Storage Arrangement: a sealed 1.8-liter pressure tank inside the cabinet plus a 60-liter external tank, giving both instant draw and bulk reserve

Innovative Internet of Things (IOT) and cloud platform technology

Perfect consumables management

• 60-Liter PE Tank Construction: double-layer HDPE with an anti-UV outer layer against algae growth, a pure PE inner layer to limit leaching, cone-bottom drain valve, sealed oversize cover, and a compound air filter that absorbs CO₂ and organics
• Tank Instrumentation: an independent pressure sensor, level control module, and LCD readout of level, stored volume, and fill percentage, mirrored on the host screen
• Optional Tank UV Disinfection: an add-on module that sterilizes the stored volume and suppresses bacterial growth
• 5-Inch Capacitive Glass Touchscreen: an 800 × 480 display with selectable themes and dual-language operation

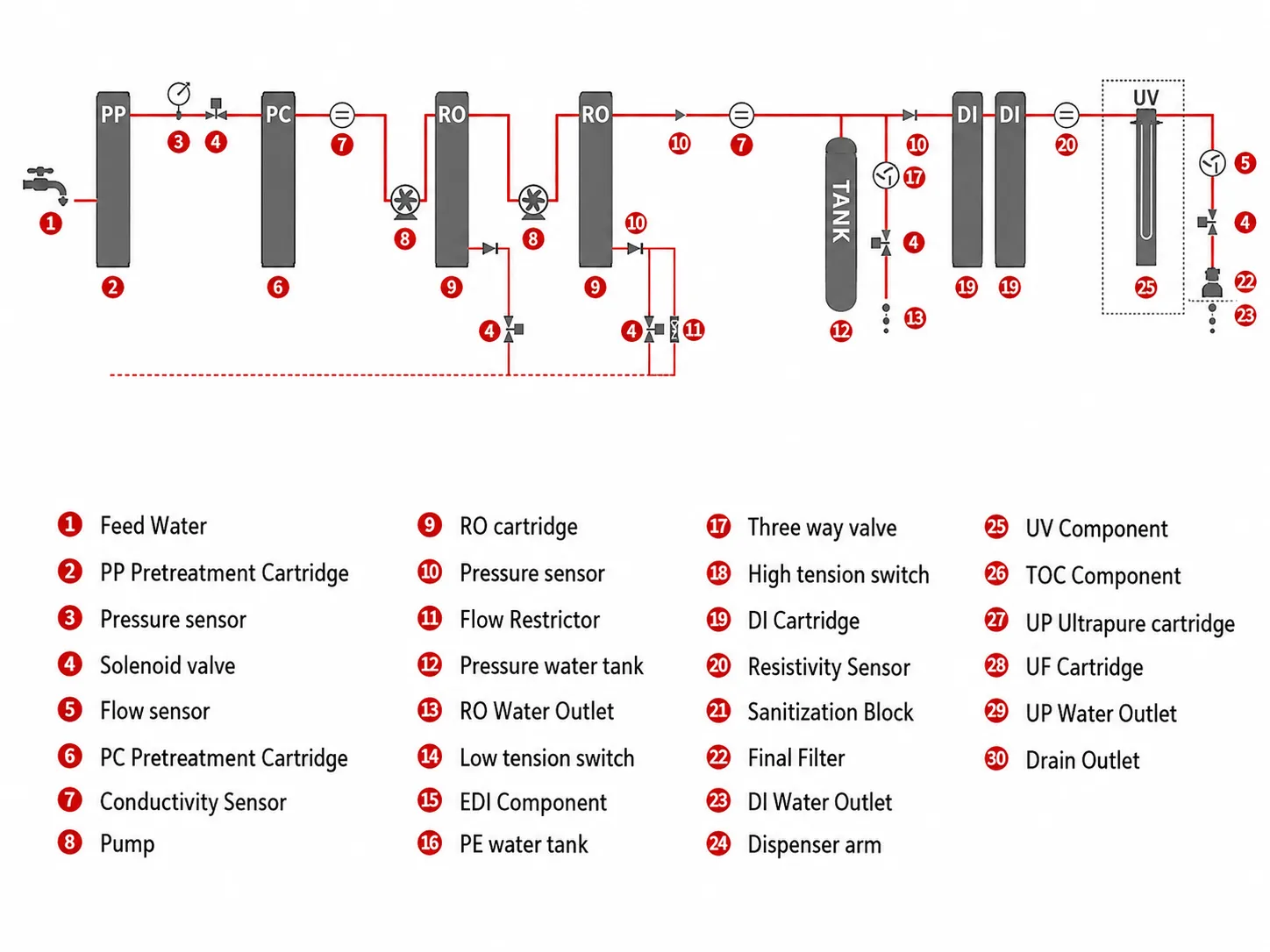

• Single-Screen System Diagram: process flow, cartridge configuration, water quality, RO rejection rate, consumable life, and tank status shown together, with a forced RO flush available from the same view
• Four-Point Quality Monitoring: sensors across the feed, RO, and product water lines using a 0.01 cm⁻¹ cell, 0.1 °C temperature sensitivity, and simultaneous compensated conductivity, resistivity, and temperature
• Live RO Rejection Alarm: ion rejection rate is tracked continuously and flagged when membrane performance falls away
• Inlet Pressure Sensing: supply pressure reads out in real time so feed faults surface before water quality moves

Full security protection

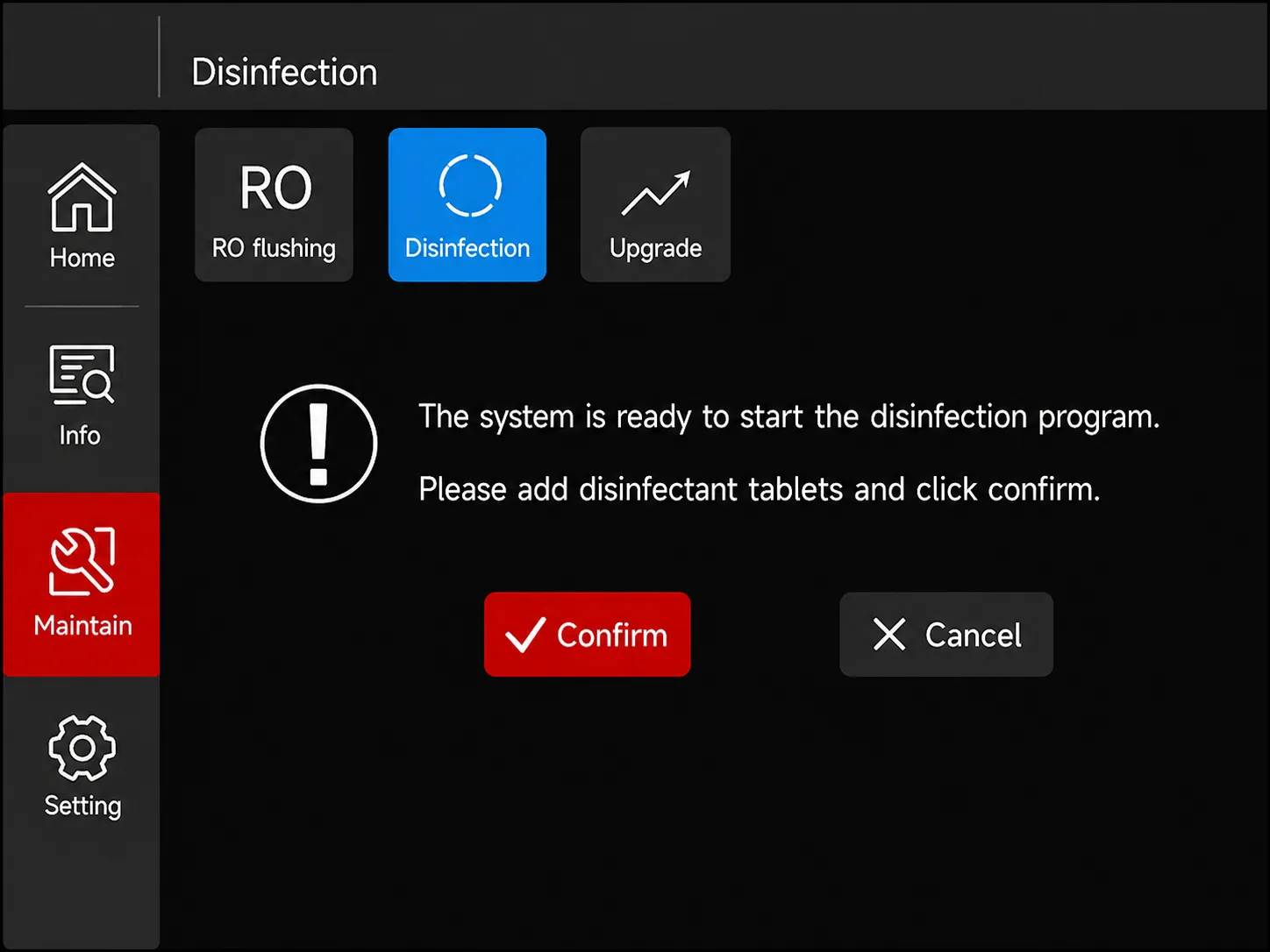

Professional ultrapure water circulation and disinfection function

• Metered Dispensing: flow sensors deliver preset volumes on the RO and product channels while a separate channel totalizes feed consumption
• Twin 12-Inch Pretreatment Cartridges: a 5 μm folded polypropylene body followed by a catalytic activated carbon fiber body, together lengthening the replacement interval
• High-Capacity Ion-Exchange Cartridges: a patented full-droop flow path holds the resin bed against stratification, with 1.36 liters per cartridge and up to 4.08 liters across three positions
• Patented Three-Chamber Cartridge Housing: one body accepts pretreatment, RO, and ion-exchange packs, with a quick clamp and error-proofing against wrong-position fitting
• Encrypted Cartridge Serial Codes: confirms consumable authenticity and records every fitting and replacement
• Consumable Status at a Glance: remaining life shown as a percentage in blue, yellow, or red, with cartridge detail one tap away and scan-to-reorder built in

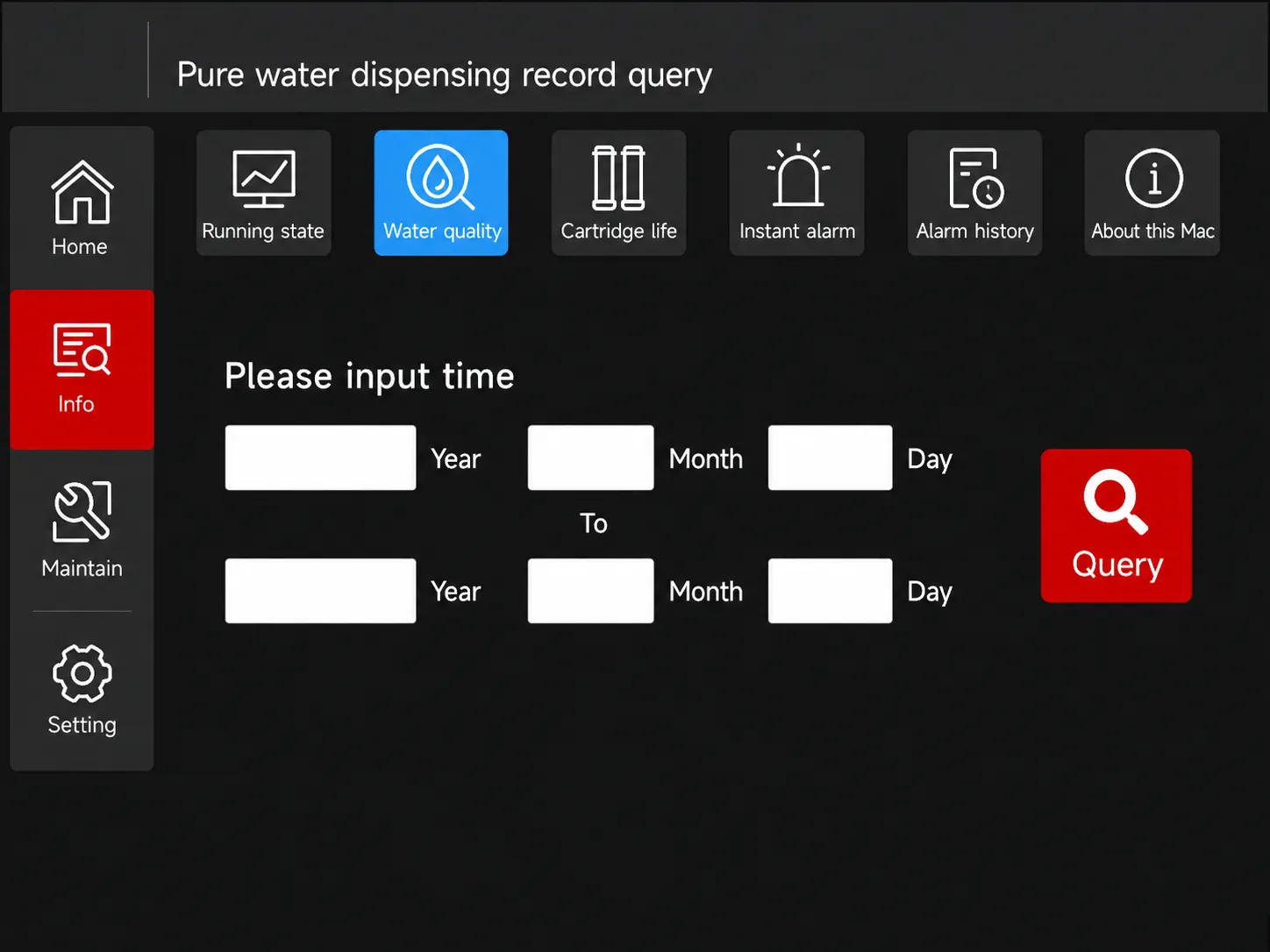

• Five-Year Record Retention: dispensing, alarm, and replacement history exportable as tamper-resistant PDF by USB or cloud download, each dispensing entry tagged by quality, volume, and user
• Cloud and IOT Access: Ethernet and WiFi for remote monitoring, alarm response, service work orders, and LIMS or BMS integration
• Shared-Device User Management: secondary accounts with their own IDs and passwords, lock-screen switching between operators, and cost allocation by ID

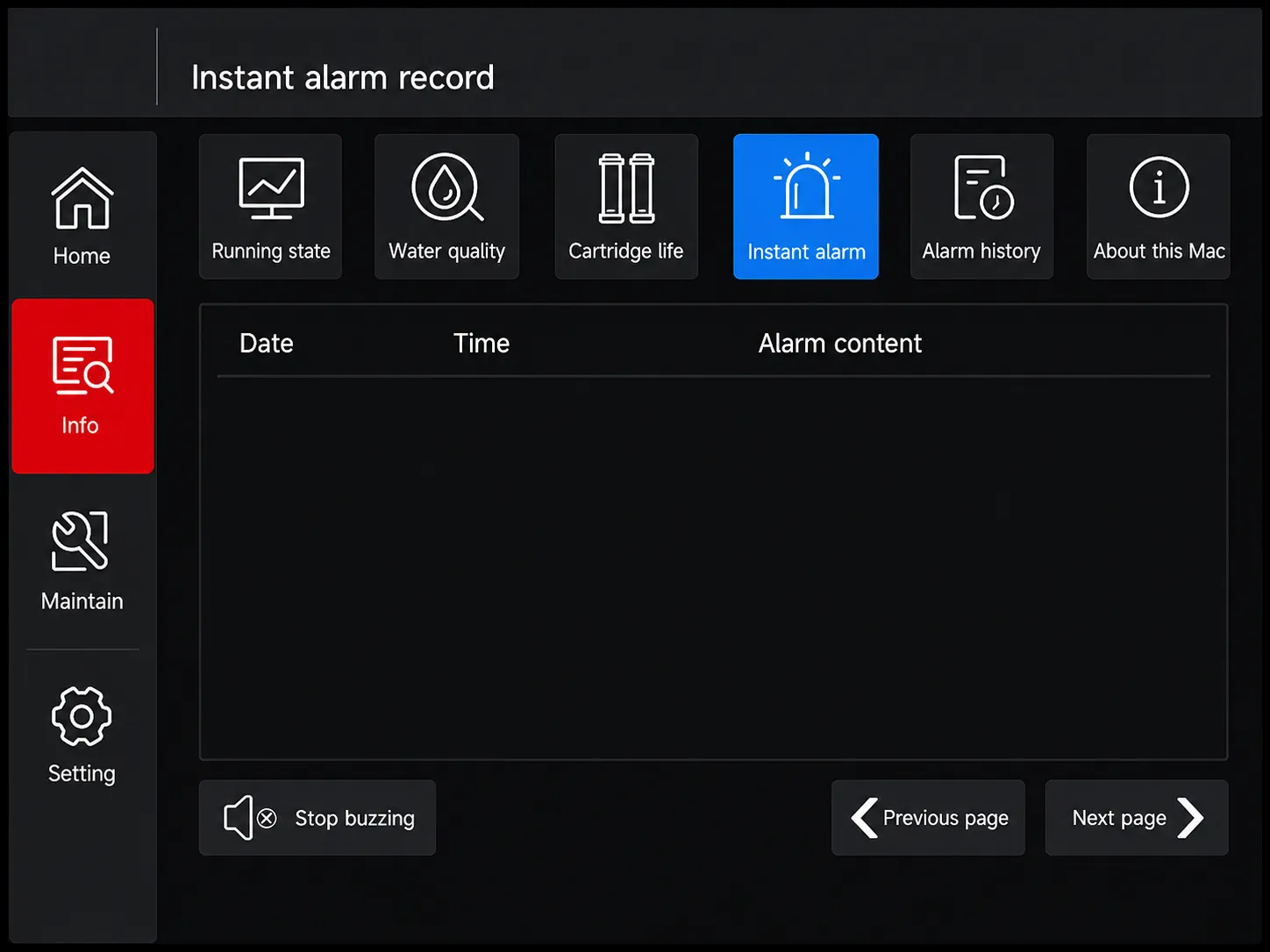

• Layered Safety Design: 24 V DC control architecture, three permission levels, integrated dual leak sensors covering the cabinet interior and the benchtop, and alarms for feed loss, low inlet pressure, high system pressure, full tank, out-of-spec quality, and expired consumables
• Optional Remote Dispensing Arms: up to five per host, each showing resistivity, temperature, flow rate, and single or cumulative volume, positionable through 360 degrees, circulating with the host, and available with a 0.2 μm terminal microfilter
• Full Interface Set: leak sensor input, USB for export and firmware updates, RJ45 or WiFi networking, plus dispensing arm, tank signal, and foot switch ports
• Injection-Molded Shell: molded contours with sealed seams that shed splashes and clean down quickly
