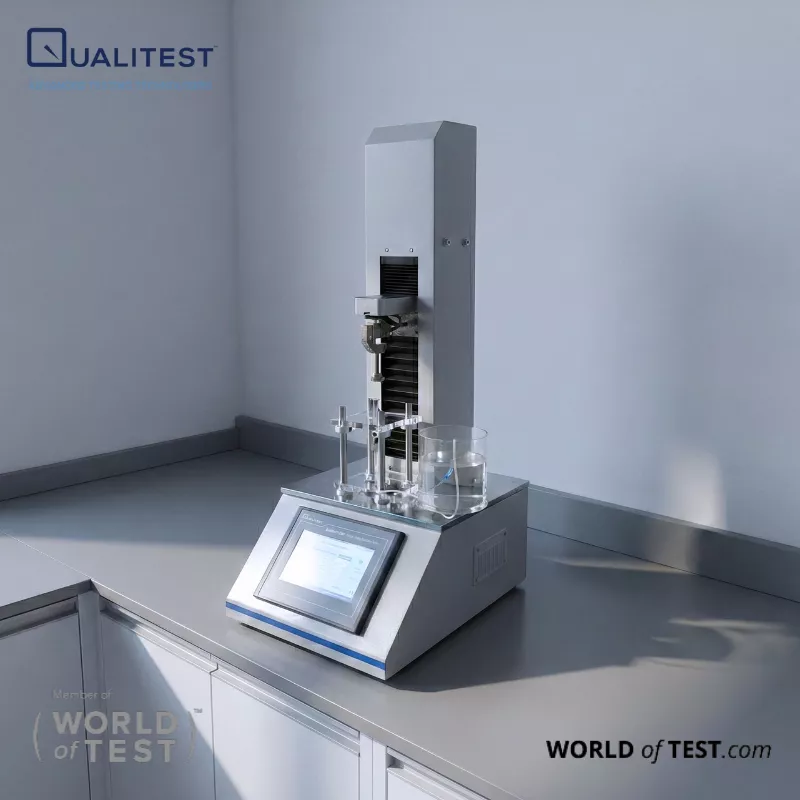

Syringe Sliding Resistance Tester – QualiMed™-SSRT

Syringe Sliding Resistance Tester – QualiMed™-SSRT is a precision instrument designed to measure the forces required to operate syringe pistons with high accuracy and repeatability.

This syringe sliding resistance tester quantifies break-loose force, glide (mean) force, and maximum operating force, providing objective evaluation of plunger motion behavior that directly impacts dosing accuracy, user comfort, and patient safety.

Engineered for medical device manufacturing and quality control laboratories, QualiMed™- SSRT delivers controlled, standards-compliant testing in accordance with international syringe performance requirements. Its automated drive system, high-resolution force measurement, and intuitive touchscreen interface ensure consistent results for routine testing and regulatory validation.

Syringe Sliding Resistance Tester – QualiMed™-SSRT

Syringe Sliding Resistance Tester – QualiMed™-SSRT Applications

The Syringe Sliding Resistance Tester – QualiMed™-SSRT is used for:

  • Disposable syringe performance evaluation, ensuring smooth and predictable plunger motion during injection
  • Manual injection usability testing, verifying ergonomic force levels for healthcare professionals
  • Auto-injector compatibility testing, validating piston resistance for automated delivery systems
  • Medical device quality control, supporting batch release and process validation
  • R&D and design verification, optimizing plunger materials, lubrication, and barrel geometry
Syringe Sliding Resistance Tester – QualiMed™-SSRTSyringe Sliding Resistance Tester – QualiMed™-SSRT
Syringe Sliding Resistance Tester – QualiMed™-SSRTSyringe Sliding Resistance Tester – QualiMed™-SSRT

Standards

The QualiMed™-SSRT is designed to meet the following international standards:

  • ISO 7886-1 Annex E – Test method for determining forces required to operate syringe pistons
  • ISO 7886-3 Annex B – Force testing method for single-use syringes with specific configurations
  • ISO 8537 Annex C – Piston operating force determination for insulin syringes
  • ISO 11040-4 Annex E – Glide force test method for prefilled syringes

Syringe Sliding Resistance Tester – QualiMed™-SSRT Key Features

  • PLC-Controlled System with 7-inch HMI Touchscreen
    • Enables intuitive operation, programmable test workflows, and real-time data visualization
  • Precision Ball-Screw Drive Mechanism
    • Ensures smooth, stable, and repeatable linear motion across all test speeds
  • Multi-Parameter Force Measurement
    • Simultaneously captures break-loose, glide, and maximum forces in a single test cycle
  • Wide Speed Control Range
    • Adjustable from 1 to 500 mm/min to accommodate different syringe standards and test protocols
  • Integrated Safety Protection
    • Includes overload protection and automatic return to reduce operator risk
  • Built-In Data Output Options
    • Equipped with a micro-printer and optional RS-232 communication for documentation and traceability

Theory and Method

The syringe sliding resistance test evaluates the mechanical forces required to initiate and maintain piston movement under controlled conditions.

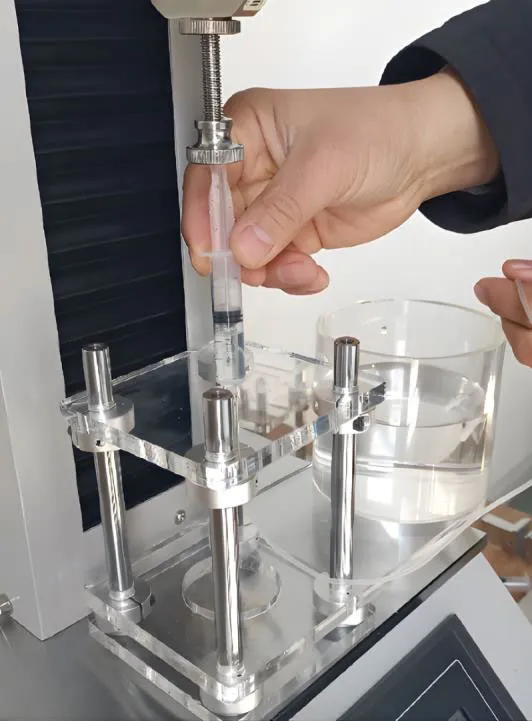

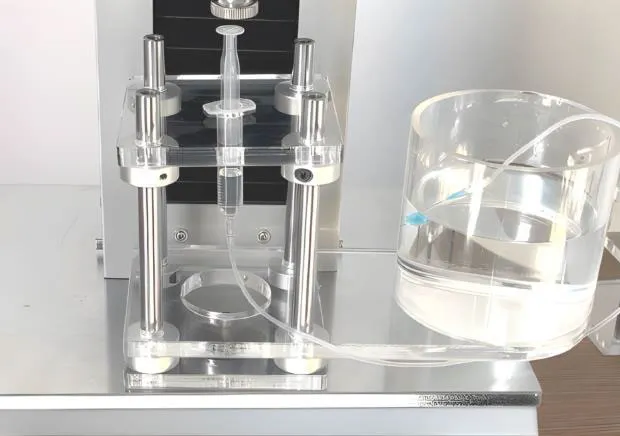

During testing, a syringe filled with a specified fluid (commonly water) is connected to a reference reservoir and mounted vertically in the test fixture.

TheQualiMed™-SSRT drives the piston at a constant linear speed, typically 100 mm/min, while a precision force sensor continuously records resistance throughout the piston stroke. The system captures three critical parameters:

  • Break-loose force – force required to initiate piston movement
  • Glide (mean) force – average force required during continuous travel
  • Maximum force – peak resistance encountered during operation

These values provide a quantitative assessment of syringe functionality, lubrication quality, and manufacturing consistency.

Syringe Sliding Resistance Tester – QualiMed™-SSRT Technical Specifications

ParameterSpecification
Product ModelQualiMed™-SSRT
Test TypeSyringe Sliding Resistance Tester
Force Range20 kg (customizable upon request)
Speed Range1 – 500 mm/min
Force Accuracy0.5% FS
Displacement Accuracy0.01 mm
Measured ParametersBreak-loose force, glide force, maximum force
Control SystemPLC with 7" HMI touchscreen
Drive MechanismPrecision ball-screw
FixturesInterchangeable syringe fixtures
Output OptionsMicro-printer, RS-232
Safety FeaturesOverload protection, automatic return
VoltageAC 110–220 V
