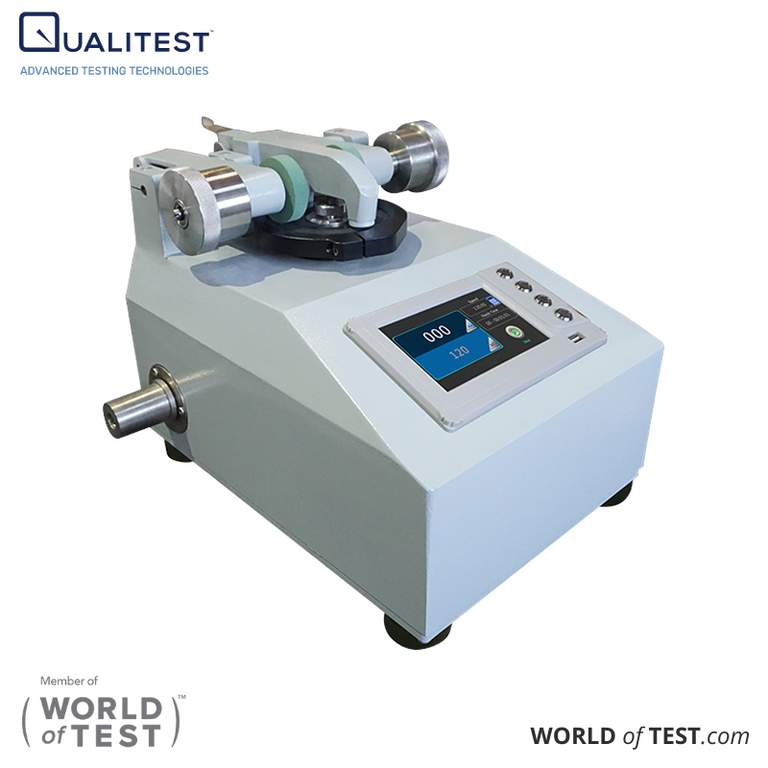

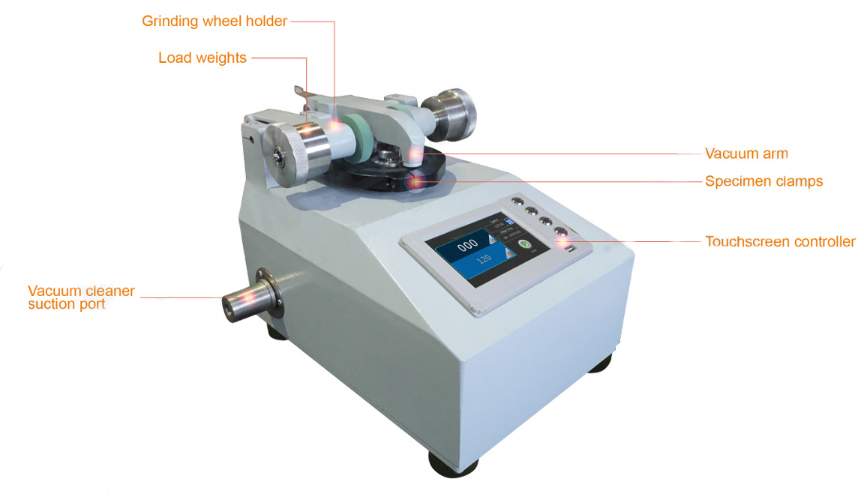

Taber-type Rotary Abrasion Tester QualiTA™ II consists of a specimen clamping disk, two grinding wheels, and two vacuum nozzles. The device's specimen clamp, positioned beneath two wheels, can be adjusted with different load weights. Users can set the desired test revolutions, and during operation, the nozzles remove dust produced by the abrasion process.

This Abrader complies with abrasion testing standards such as ISO 5470, ASTM D3884, ASTM D4060, ASTM D1044. It is suitable for testing a wide range of materials, including paper, fabric, panels, carpets, glass, rubber, plastic, and more.

Industry

Rubber, plastics, textile, paper and construction material

Accessories

Standard Accessories: Includes one Vacuum cleaner.
Reference Grinding Wheels for Different Sample.

Coating	Floor tile	Plywood	Plastic	Fabric
CS-10, CS-17	CS-17, H-18	S-32, CS-33	H-18, H-22, CS-17	H-18, H-22, CS-17

Mat, nut	Sandpaper

Cutter	Grinding wheels

Load weights	Wrench

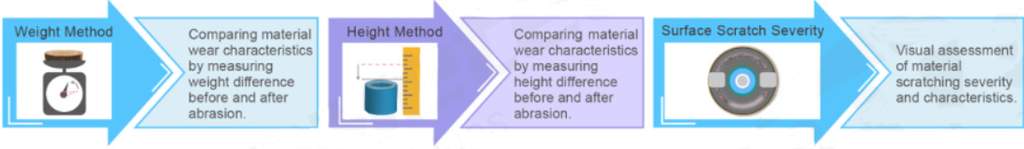

Result Analysis Method (Abrasion Method)

Taber-type Rotary Abrasion Tester QualiTA™ II Features

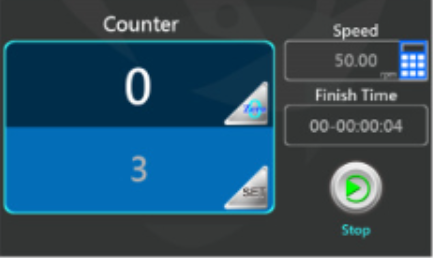

User-Friendly Touchscreen
Easily configure essential parameters such as test speed and cycle count directly from the touchscreen. Perform one-touch zeroing and track the remaining test time for a smooth testing experience.
Speed-Adaptable Configuration
- Voltage Flexibility: Supports 100V-240V input.
- Consistent Rotation Speed: Maintains uniform rotation speed despite variations in voltage and frequency across regions.
Wide Speed Adjustment Range
Test speed is adjustable from 5 to 100 rpm (±2%), allowing for a broad range of testing conditions.

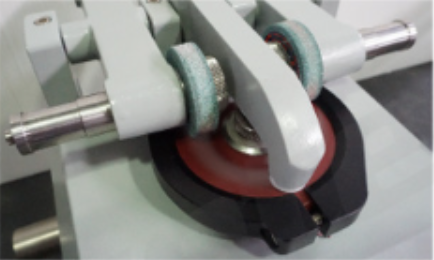

Consistent Wear Path
The superior mechanical design ensures a consistently uniform wear path throughout testing.

Taber-type Rotary Abrasion Tester QualiTA™ II Technical Specifications

Parameter	Specification
Grinding wheel	Diameter 2 inch, thickness 1/2 inch
Disk Rotary Speed	5 ~ 100 rpm ±2%, adjustable (Factory setting 60 rpm)
Weight sets	250g, 500g, 1000g
Counter	Digital display 1-99,999,999 with auto-stop
Sample Size	ø110mm, center hole ø7.5mm Thickness 1-6mm, testing available for materials of flexibility and rigidity.
Voltage	Single Phase 100 - 240V; 50/60 Hz
Dimension	55 × 38 × 47 cm
Weight	30 kg

Ultimate Guide to the Taber Abrasion Test

Premium products deserve premium durability. The Taber Abrasion Test is the industry's gold standard for verifying that surfaces—from industrial coatings to high-performance fabrics—can withstand years of use in a matter of hours. By simulating real-world mechanical wear with scientific precision, this test provides the data-driven confidence needed to launch high-quality materials that truly last. We're going to cover exactly how this
