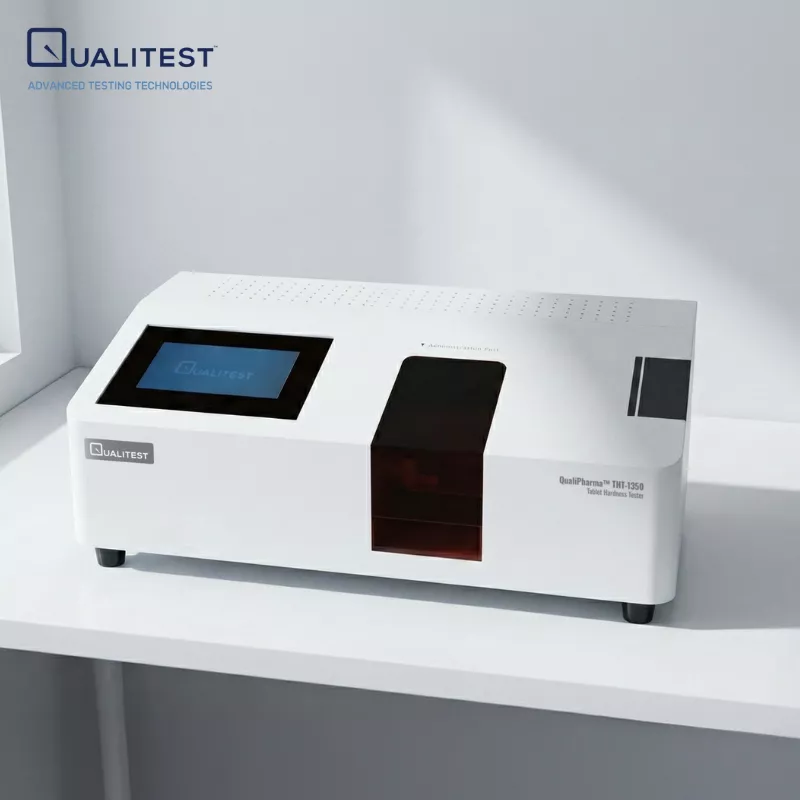

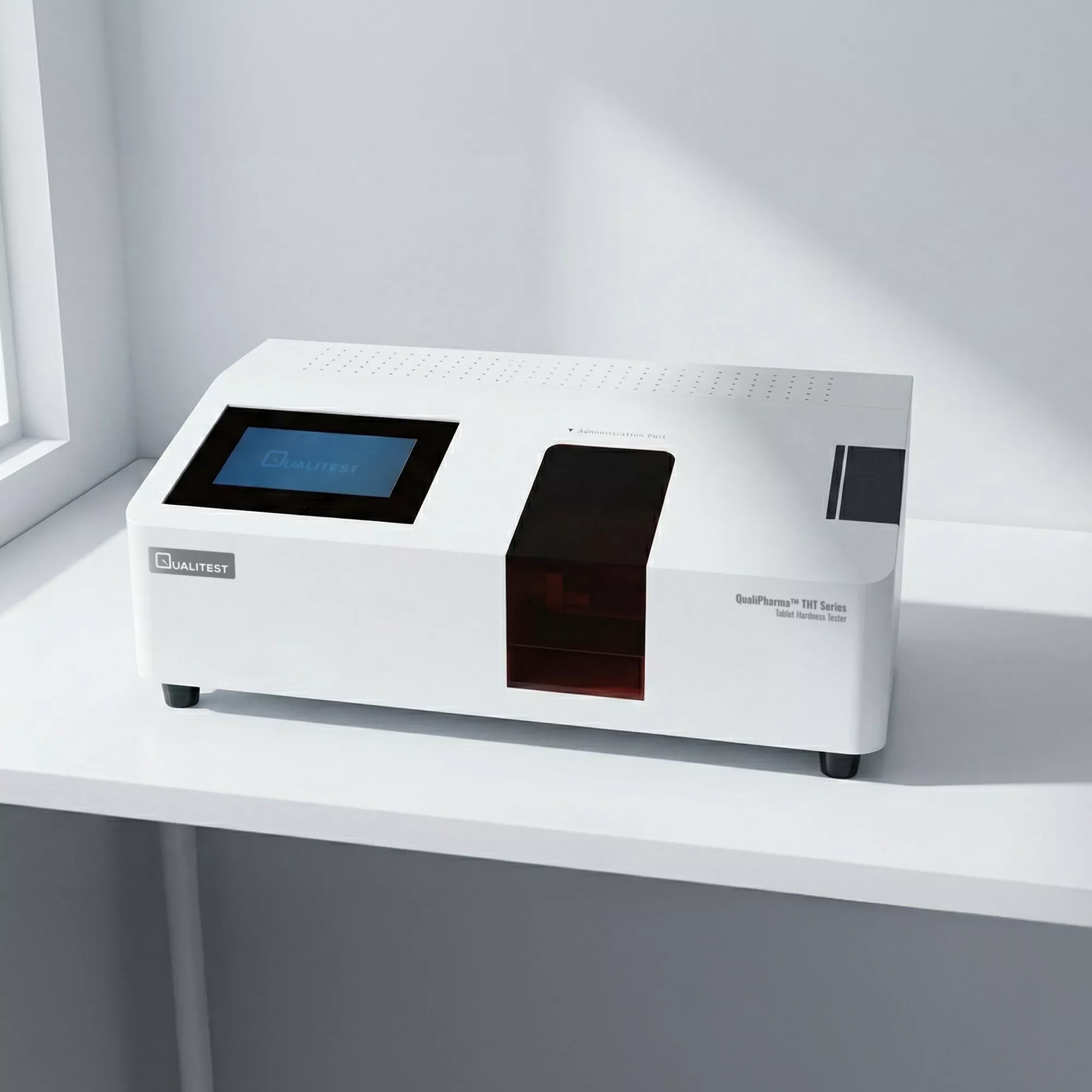

Tablet Hardness Tester - QualiPharma™ THT-1350

Tablet Hardness Tester is engineered to measure the hardness and diameter of pharmaceutical tablets with high precision and repeatability. Designed for QC laboratories, manufacturing facilities, and research environments, the system uses an advanced pressure-sensing mechanism and intelligent automation to deliver accurate mechanical strength data.

This Tablet Hardness Tester built with a 5-inch touchscreen interface, onboard data processing, calibration functions, and report printing capabilities make the QualiPharma™ THT-1350 an efficient and compliant solution for routine tablet characterization.

Tablet Hardness Tester - QualiPharma™ THT-1350 Applications

The Tablet Hardness Tester is suitable for a wide range of pharmaceutical dissolution testing scenarios, including:

  • Mechanical strength testing of pharmaceutical tablets
  • Tablet diameter measurement during formulation and production
  • Quality control and batch release testing
  • Research and development of oral solid dosage forms
  • Process validation and continuous manufacturing support
Tablet Hardness Tester

Tablet Hardness Tester - QualiPharma™ THT-1350 Key Features

  • High-Definition Touchscreen for intuitive operation and streamlined test setup.
  • High-Precision Pressure Sensor ensures reliable hardness measurements across a wide range.
  • Dual-Language Interface (Chinese/English) to support diverse laboratory environments.
  • Automated Data Handling including statistics, analysis, printing, and record display.
  • Real-Time Clock Integration for timestamped test and calibration records.
  • Intelligent Self-Diagnostic System alerts operators to abnormal conditions during testing.
  • Automatic Parameter Memory retains user settings until manually reset.
  • Built-In Calibration Functions with automated display and printout of calibration results.
  • Flexible Measurement Modes supporting manual single-piece testing or automated continuous cycles (up to 100 tablets).
  • Standard Serial Interface compatible with micro-printers for English or Chinese reporting.

Tablet Hardness Tester - QualiPharma™ THT-1350 Technical Specifications

ModelQualiPharma™ THT1350
Hardness Measuring Range0–350 N, resolution 0.1 N
Diameter Measuring Range2.0–25.0 mm, resolution 0.01 mm
Measurement MethodManual single test / Automatic continuous (max 100 tablets)
Display5-inch touchscreen
Units of MeasureHardness: N / kg / KPa
Diameter: mm / inch
InterfaceStandard serial port for micro-printing (English/Chinese output)
