Physical Theory of Tapping Compaction
Tap density (ρT) records how tightly packed bulk particulate matter becomes after submitting a vessel to controlled vertical drop impacts.
Getting tight control over how bulk powders settle makes a massive difference in final production yield, eliminating trapped air pockets that cause tablet press jams, battery slurry inconsistencies, or metal additive printing flaws. Unlike loose bulk density (ρB), which measures uncompressed material filled with random void spaces, tapped density shows what occurs when mechanical force knocks out extra inter-particle air gap volume.
Loose Fluffy Powder (Poured State) Consolidated Powder (Tapped State)
┌─────────────────────────┐ ┌─────────────────────────┐
│ o o o o o │ Controlled │ o o o o o o o o o o o │
│ o o o o o │ Mechanical │ o o o o o o o o o o o │
│ o o o o o │ Drops │ o o o o o o o o o o o │
└─────────────────────────┘ ──────────────> └─────────────────────────┘
Air-Filled Space Everywhere Minimized Void Space
Lower Bulk Density (ρB) Higher Tap Density (ρT)
How Mechanical Consolidation Works
Vertical drop impacts generate mechanical energy that breaks up inter-particle friction and sticky surface adhesion forces, such as van der Waals or static charges. Individual grains rotate, shift, and fall into open void spaces until hitting a physical packing limit.
The Kawakita Compression Equation evaluates this settling rate:
n / C = (1 / ab) + (n / a)
Where:
- n = Total number of applied vertical drops
- C = Relative volume reduction ratio [(V0 - Vn) / V0]
- a = Total compressibility parameter, correlating directly with particle size distribution and fines content
- b = Inter-particle cohesion factor
Impact Acceleration vs. Stroke Frequency
Reaching terminal packing density depends heavily on peak impact acceleration (g-force) during each drop. The QualiTAP™ Series delivers a precise 3.14 mm stroke amplitude driven by a high-reliability stepper motor rated for over 10,000 operating hours, providing consistent impact force that overcomes particle cohesion across both fine and coarse powders.
Standardized Testing Protocols (USP, Ph. Eur., ISO, ASTM)
To ensure laboratories across different facilities produce identical results, international standards groups maintain strict parameters for stroke drop height, frequency, cylinder dimensions, and tap cycle count thresholds.
| Parameter / Feature | USP <616> Method I / Ph. Eur. 2.9.34 | USP <616> Method II / Ph. Eur. 2.9.34 | ASTM B527 (Metal Powders) / ISO 3953 |
|---|
| Stroke Height | 14 ± 2 mm (higher drop) | 3 ± 0.2 mm (lower drop) | 3.0 ± 0.2 mm (short impact) |
| Tapping Rate | 300 ± 15 drops/min | 250 ± 15 drops/min | 250–300 drops/min |
| Glass Vessel | 250 mL (or 100 mL alternative) | 250 mL (or 100 mL alternative) | 100 mL heavy glass or metal cylinder |
| Mechanism | Vertical drop via rotating cam | Vertical lift via mechanical fork/cam | Direct vertical guide stroke |
| Tap Sequence | 500 → 1,250 → 1,250 until ΔV ≤ 2 mL | 500 → 1,250 → 1,250 until ΔV ≤ 2 mL | 1,000–3,000 drops to steady plateau |
| Primary Output | Tapped Density, Hausner Ratio, Carr Index | Tapped Density, Hausner Ratio, Carr Index | Final Tapped Mass Density (g/cm³) |
Throughput Scaling with the QualiTAP™ Series
To support different lab testing volumes, the QualiTAP™ Series Tap Density Testers feature continuously adjustable drop frequencies from 0 to 300 RPM across three dedicated model configurations:

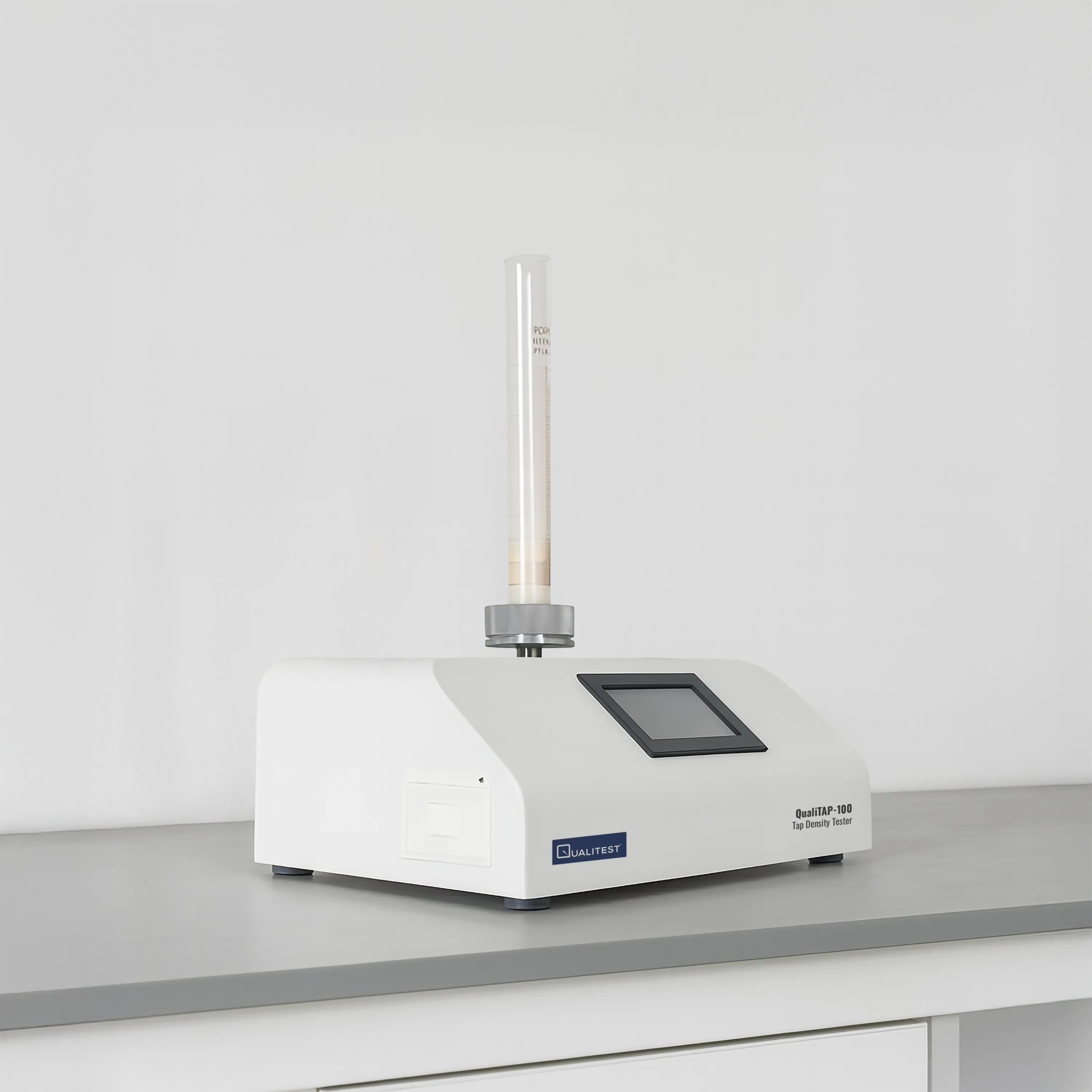

- QualiTAP™ 100: Single-station tap density tester for standard benchtop testing throughput.

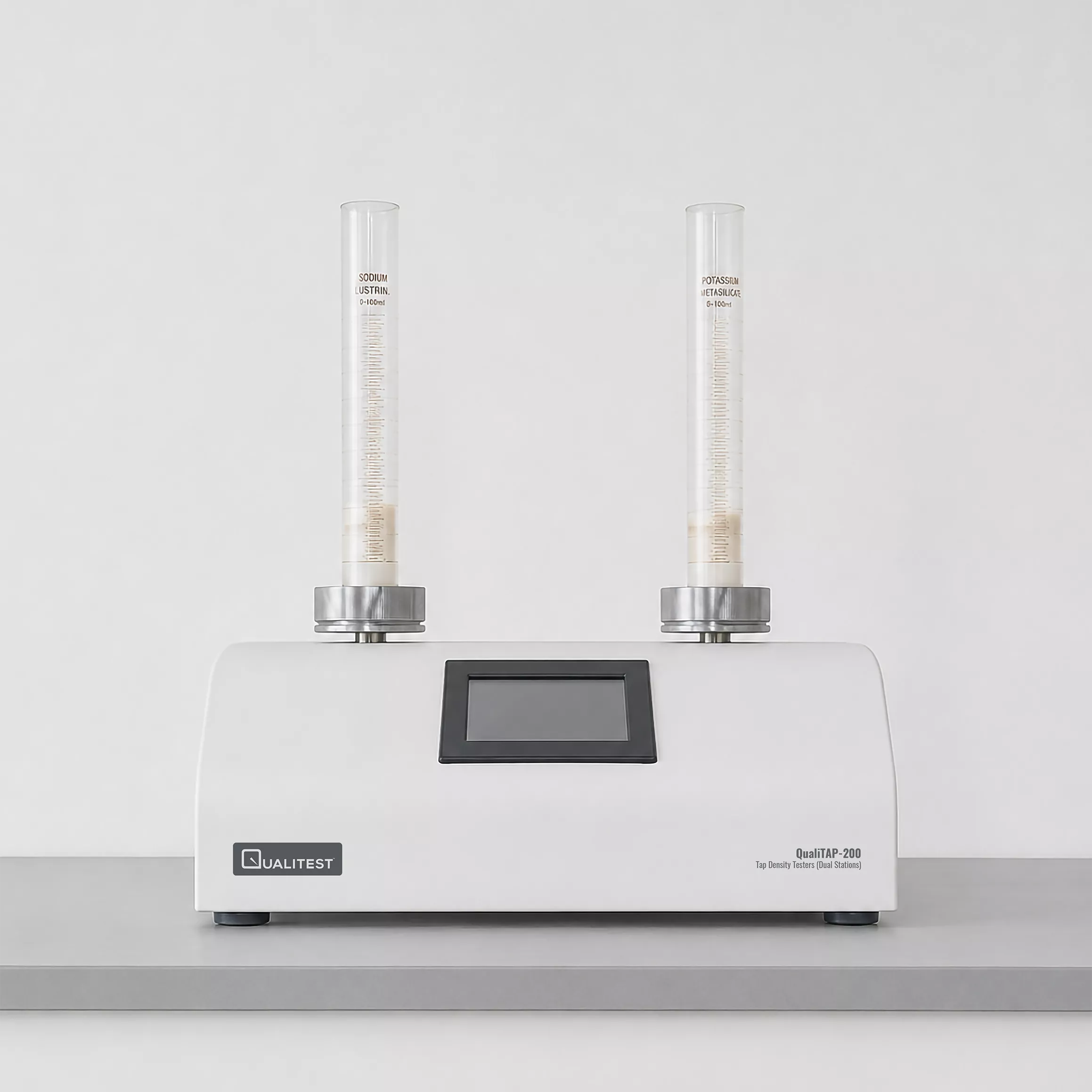

- QualiTAP™ 200: Dual-station high-efficiency model for medium-to-high throughput laboratories running parallel standard checks.

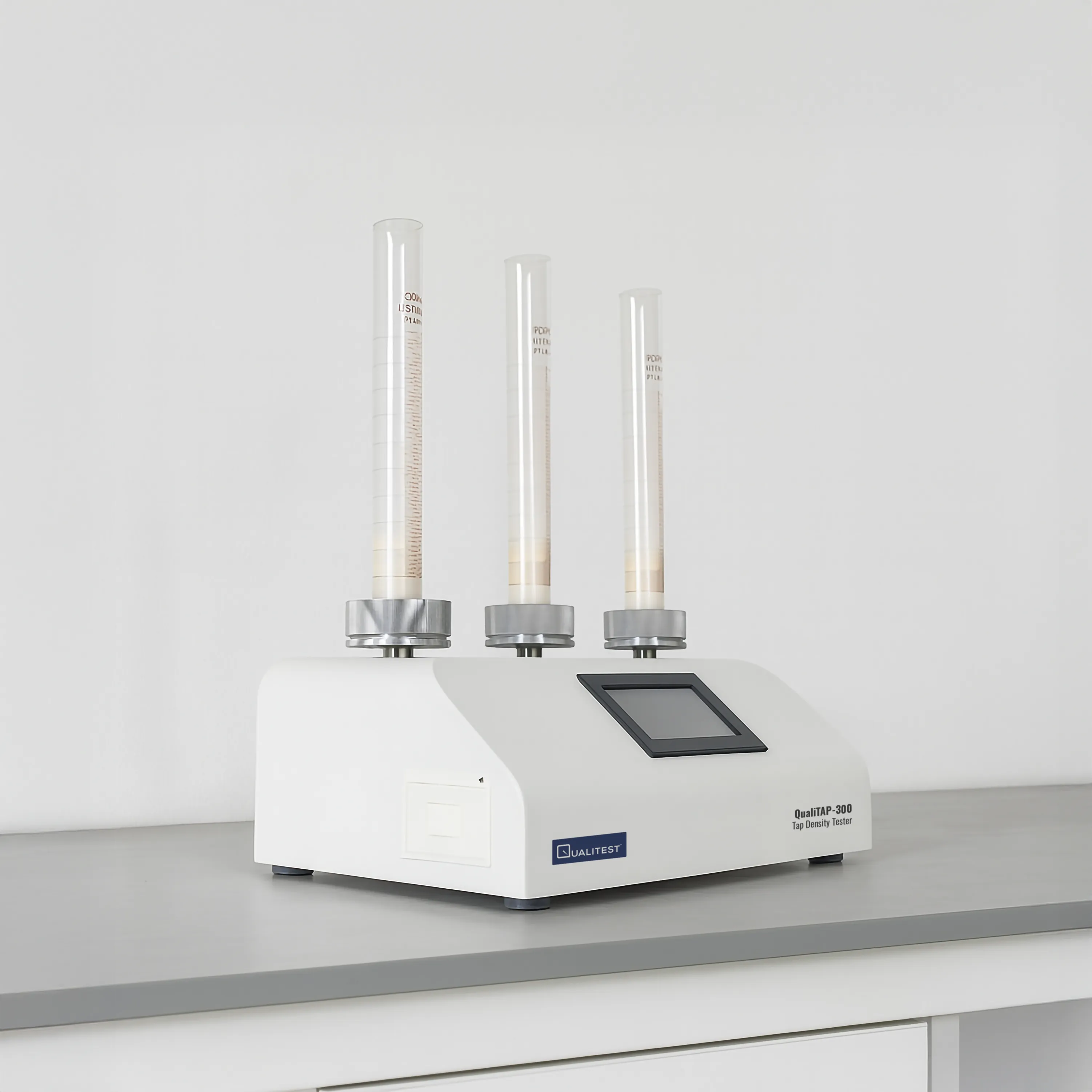

- QualiTAP™ 300: Triple-station configuration providing maximum productivity for high-volume industrial QA/QC workflows.
Derived Analytical Metrics & Flowability Scales
Raw volumetric readings convert directly into key flow performance indicators used in plant QA/QC criteria.
┌──────────────────────────────────────────────────────────────────────────┐
│ PRIMARY DATA INPUTS │
│ Sample Mass (m) │ Unsettled Volume (V0) │ Final Volume (Vf) │
└────────────────────────────────────┬─────────────────────────────────────┘
│
▼
┌──────────────────────────────────────────────────────────────────────────┐
│ DERIVED FLOW METRICS │
├────────────────────────────────────┬─────────────────────────────────────┤
│ Loose Bulk Density (ρB) │ ρB = m / V0 │
├────────────────────────────────────┼─────────────────────────────────────┤
│ Tapped Density (ρT) │ ρT = m / Vf │
├────────────────────────────────────┼─────────────────────────────────────┤
│ Carr’s Compressibility Index (CI) │ CI = 100 × (V0 - Vf) / V0 │
├────────────────────────────────────┼─────────────────────────────────────┤
│ Hausner Flow Ratio (HR) │ HR = V0 / Vf = ρT / ρB │
└────────────────────────────────────┴─────────────────────────────────────┘
Flow Character Scale (USP <1174> / Ph. Eur.)
| Carr Index (%) | Hausner Ratio | Flow Profile | Expected Material Behavior in Production |
|---|
| ≤ 10 | 1.00 – 1.11 | Excellent | Free-flowing coarse grains; zero arching |
| 11 – 15 | 1.12 – 1.18 | Good | Passes through feeds and hoppers easily |
| 16 – 20 | 1.19 – 1.25 | Fair | Minor cohesion; flows well with minor vibration |
| 21 – 25 | 1.26 – 1.34 | Passable | Prone to occasional bridging in feed chutes |
| 26 – 31 | 1.35 – 1.45 | Poor | Cohesive powder; requires hopper agitators |
| 32 – 37 | 1.46 – 1.59 | Very Poor | Very cohesive material; frequent flow stoppages |
| > 37 | > 1.60 | Extremely Poor | Non-flowing material; forms persistent arches |
Hardware Metrology & QualiTAP™ Engineering Solutions
Achieving solid consistency across QA runs means overcoming key analytical variables with purpose-built hardware.
| FIXED-MASS METHOD | FIXED-VOLUME METHOD |
|---|
- Weighed sample mass poured in
- Volume read visually off scale
- Subject to surface reading bias
| - Vessel filled to target rim
- Excess scraped, mass weighed after
- Higher repeatability on fines
|
Resolving Practical Laboratory Errors
- Powder Bed Meniscus Misreadings: Powder beds rarely consolidate into flat, even planes. While European Pharmacopoeia explicitly cautions against manual leveling to avoid altering packing structure, the QualiTAP™ Series incorporates a patented rotational tamping mechanism. By gently spinning the glass cylinder during vertical drops, the instrument creates a flat top powder surface automatically, maintaining a repeatability error of ≤ 1%.
- Audit Compliance & Data Entry Errors: Manual calculation of bulk density, tapped density, Hausner ratio, and Carr index slows down busy testing lines. QualiTAP™ Enhanced models feature an intuitive 4.3-inch color touchscreen interface, automatic sample weight acquisition, 512MB internal storage memory, network-ready LIMS connectivity, mobile smart device control, and a built-in 203 dpi micro receipt printer for instant physical audit prints.
- Bench Space & Footprint: High-performance lab space is limited. With compact dimensions of 385 × 245 × 160 mm and weighing 12.5 kg, the QualiTAP™ 100, 200, and 300 fit easily on standard laboratory benches while accommodating standard 250 mL cylinders as well as specialized micro-volume adapters.
