Temperature & Humidity Test Chambers – Energy-Saving Platinum-Series
Parent Product
Temperature & Humidity Test Chambers
Standards
IEC 60068
IEC 61747
ISO 16750-4
Temperature Chambers, Humidity Test Chambers

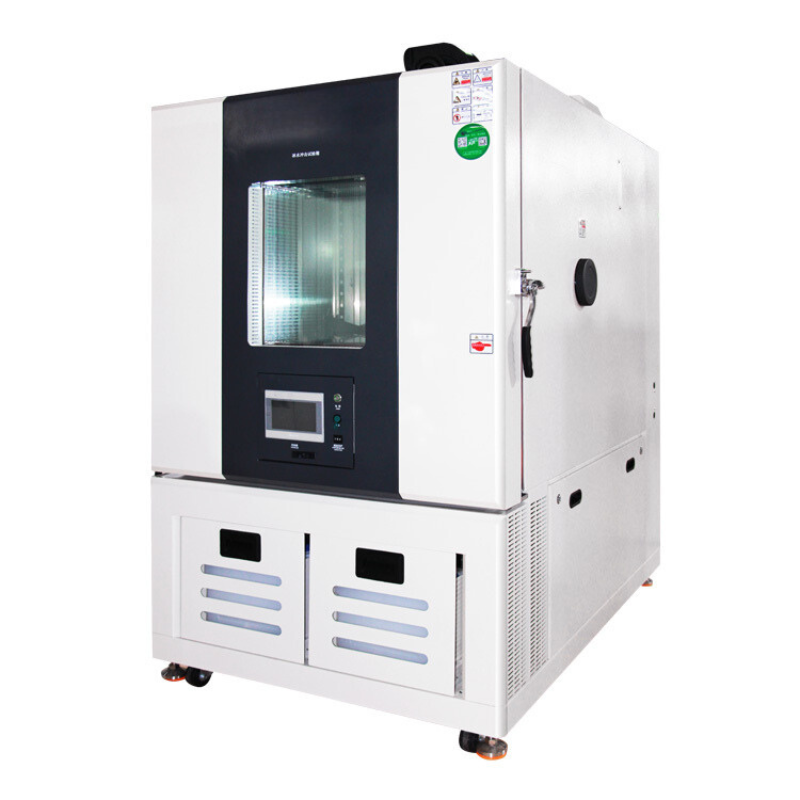

Qualitest Platinum-Series Temperature and Humidity Test Chambers are advanced Energy-saving cost-effective models and they come in standard sizes ranging from 80 Liters to 1,500 Liters. These popular temperature and humidity test chambers maintain world-class quality and meet and exceed majority of North American and International standard test methods such as IEC, ASTM, ISO, DIN, and JIS.

Temperature & Humidity Test Chambers – Energy-Saving Platinum-Series

Temperature & Humidity Test Chambers – Energy-Saving Platinum-Series



Temperature & Humidity Test Chambers – Energy-Saving Platinum-Series

QT-THC-80L

Temperature & Humidity Test Chambers – Energy-Saving Platinum-Series

QT-THC-225L

Temperature & Humidity Test Chambers – Energy-Saving Platinum-Series

QT-THC-408L

Temperature & Humidity Test Chambers – Energy-Saving Platinum-Series

QT-THC-1000L

Standards:

  • IEC 60068-2-1: Cold
  • IEC 60068-2-2: Dry heat
  • IEC 60068-2-14: Change of temperature with specified rate of change
  • IEC 60068-2-30: Damp heat, cyclic
  • IEC 60068-2-38: Composite temperature/humidity cyclic test
  • IEC 60068-2-78: Damp heat steady state
  • IEC 61747 (5.2.7): Liquid crystal and solid-state display devices. Environmental endurance and mechanical test
  • ISO 16750-4 (5.3): Road vehicles (Temperature cycling)
Temperature & Humidity Test Chambers – Energy-Saving Platinum-SeriesTemperature & Humidity Test Chambers – Energy-Saving Platinum-Series



Temperature & Humidity Test Chambers – Energy-Saving Platinum-Series Features:

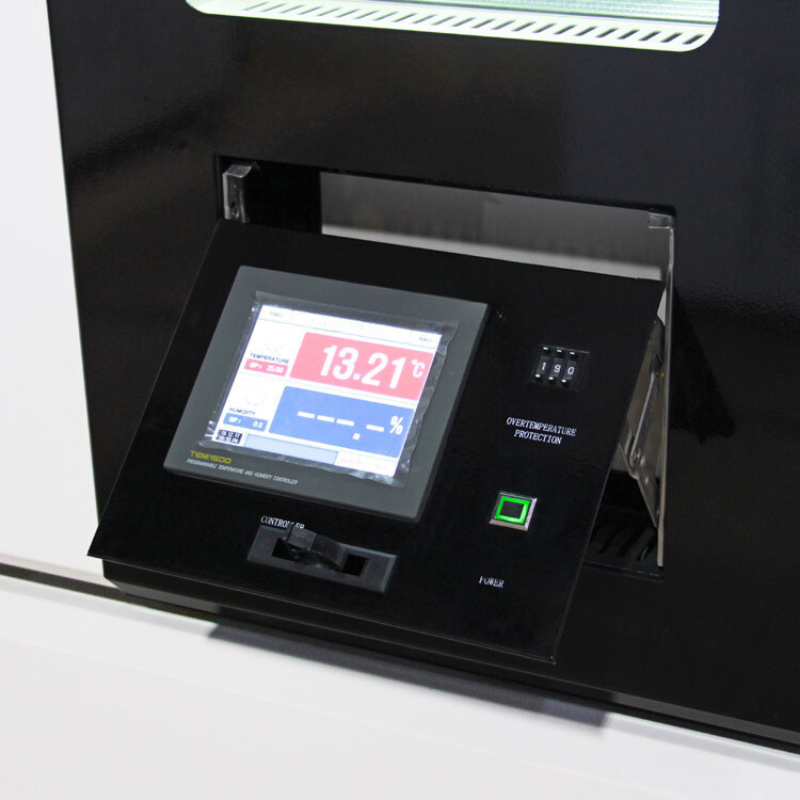

  • The touchscreen controller is user-friendly and reduces programming time.
  • Two Φ100mm test holes are located on the left and right sides to simplify cable connections.
  • With compact structure and casters, they’re easy to move around. Plus, they comes equipped with adjustable support feet to ensure the test chamber is level.
  • An anti-fog observation window and LED lighting inside the chamber allow for easy viewing of product test conditions.
  • Choose from different compressor configurations ranging from 2HP to 20HP, three cooling methods, and multiple capable components to meet your testing requirements.
  • The high air volume blowing system features a powerful air circulation motor, providing excellent airflow within the chamber. This enhances controllability, ensures more uniform temperatures, and accelerates temperature changes in the test product.

Temperature & Humidity Test Chambers – Energy-Saving Platinum-Series Technical Specifications:

ModelQT-THC-80LQT-THC-150LQT-THC-225LQT-THC-408LQT-THC-800LQT-THC-1000LQT-THC-1500L
Inner Volume80 L150 L150 L408 L800 L1000 L1500 L
Inner Chamber Size (WxHxD) mm400*500*400500*600*500500*750*600800*850*6001000*1000*8001000*1000*10001200*1000*1250
Outer Chamber Size (WxHxD) mm700*1630*1180700*1670*1275700*1880*12901000*1950*14001200*2050*15901200*2050*17801400*2050*2030
Temperature Range-70C~180C (A:0C~180C;B: -20C~180C; C: -40C~180 C;D:-70C~ 180C)
Humidity Range20.0%RH~98.0%RH
