Vacuum Thermodynamics: Eliminating Convective Heat Transfer

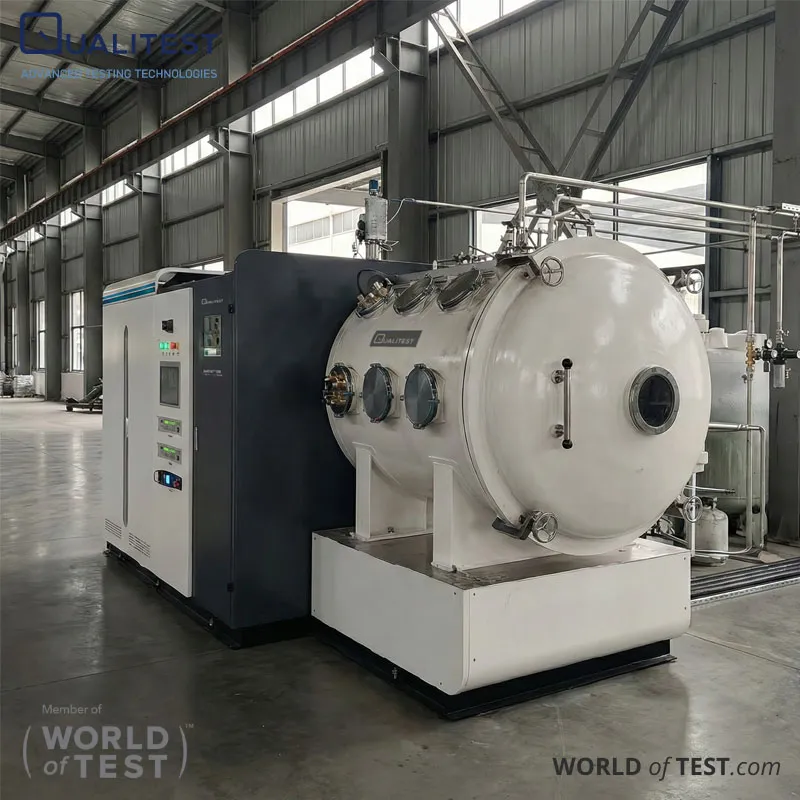

Testing satellite hardware requires eliminating convective air circulation to reproduce genuine orbital physics. In the QualiTVAC™ 1200 Series, multi-stage vacuum pumping brings operating pressures down to ≤ 5.0 × 10-3 Pa (QualiTVAC™ 1200 A), ≤ 1.3 × 10-3 Pa (QualiTVAC™ 1200 B), and ≤ 5.0 × 10-4 Pa (QualiTVAC™ 1200 C), reaching an ultimate base vacuum floor of ≤ 5.0 × 10-5 Pa.
At these deep vacuum levels, the mean free path of residual air molecules expands well beyond the Φ 1200 mm × 1500 mm S30408 stainless steel vessel. The Knudsen number (Kn) exceeds 10, establishing a molecular flow state where fluid convection completely drops to zero. Thermal transfer governs strictly through two physical paths:
- Radiative Boundary Exchange: Heat radiation moves across the line-of-sight between the test article and the Φ 1000 mm × 1500 mm cylindrical shroud, governed by the Stefan-Boltzmann equation:
qrad = ε · σ · A · (Tshroud4 - Tarticle4)
(where ε is surface emissivity, σ is the Stefan-Boltzmann constant, and T is absolute temperature in Kelvin). - Direct Conductive Exchange: Baseplate-mounted satellite components transfer thermal energy straight into the temperature-controlled platen via Fourier's conduction relationship:
qcond = -k · A · (dT/dx)
(where k is thermal conductivity and A is the contact surface area).
Vacuum Outgassing and Thermal Bake-Out Principles
Under high vacuum conditions (≤ 5.0 × 10-5 Pa), structural resins, potting compounds, and circuit coatings release trapped volatile molecules. Without a dedicated pre-flight bake-out, these gases re-condense on cold optical viewports, sensor lenses, and solar arrays, or trigger electrical corona discharge across energized electronics.
The QualiTVAC™ 1200 executes controlled thermal bake-outs to accelerate this molecular evacuation. Heating the test article under deep vacuum verifies that Total Mass Loss (TML) stays strictly below the standard 0.1% limit while Collected Volatile Condensable Material (CVCM) remains within acceptable flight boundaries.
Test Campaign Protocols and Verification Standards
The QualiTVAC™ 1200 executes qualification profiles in full conformance with ECSS-Q-ST-70-04C, ECSS-E-ST-10-03C, ISO 19683, NASA GSFC-STD-7000 (GEVS), and MIL-STD-1540 through three primary methods:
Thermal Vacuum Cycling (TVC)
Evaluates component operation and uncovers assembly flaws by repeatedly swinging the test article between hot and cold plateaus.
- Temperature Margins: Acceptance testing verifies standard mission extremes, while qualification runs apply additional margins (±10°C to ±15°C) to reveal fatigue weaknesses.
- Ramp Rate Control: Automated controllers regulate temperature transitions at 1 ± 0.5°C/min to prevent unrepresentative structural shock.
- Dwell and Stabilization: Plateau timing starts once the primary Temperature Reference Point (TRP), such as an avionics baseplate or processor chassis, stabilizes with a drift rate under 1.0 K/h.
Thermal Balance Testing (TBT)
Validates and correlates numerical Thermal Mathematical Models (TMM). The QualiTVAC™ 1200 establishes fixed boundary conditions on both the shroud and cold plate, maintaining steady-state equilibrium until temperature drift settles within ≤ 0.5 K across a continuous 5-hour window.
Dual-Mode Thermal Control and Model Correlation
The QualiTVAC™ 1200 combines direct surface conduction with surround-radiation to replicate orbital thermal dynamics:
- Liquid Nitrogen and Refrigeration Shrouds: The Φ 1000 mm × 1500 mm internal shroud creates deep-space cold sink conditions down to ≤ 100 K using liquid nitrogen (QualiTVAC™ 1200 B), or covers -150°C to +150°C (1200 A) and -70°C to +150°C (1200 C) with thermal uniformity up to ≤ ±3°C.
- Precision Conductive Cold Plates: Sized at 900 × 500 mm (1200 A), 1200 × 600 mm (1200 B), and 1100 × 700 mm (1200 C), the cold plate maintains temperature control accuracy within ≤ 0.5°C.
- Numerical Model Correlation: Live sensor telemetry feeds directly into Thermal Desktop, ANSYS, or ESATAN-TMS models, allowing engineering teams to correlate contact conductance and radiative view factors directly against empirical measurements.
- Automated Feedback: Industrial PLC closed loops adjust heater output and cryogenic flow automatically, compensating for internal electronic heat dissipation during live functional testing.
