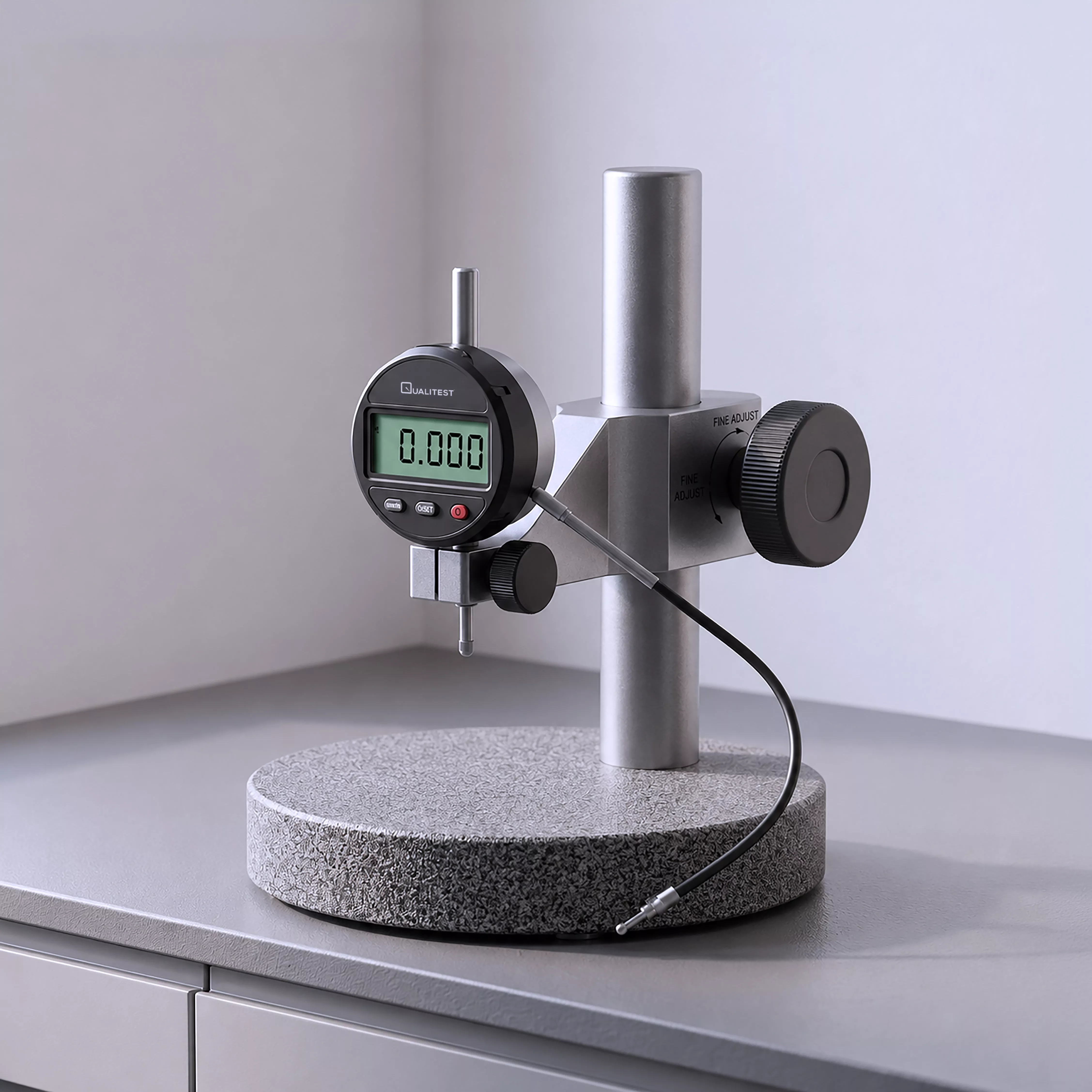

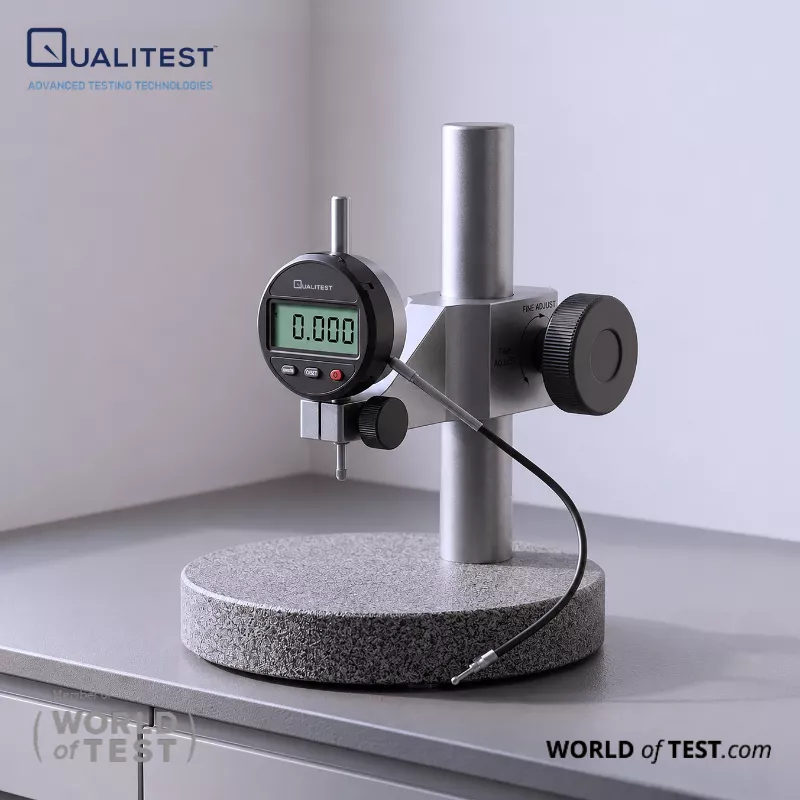

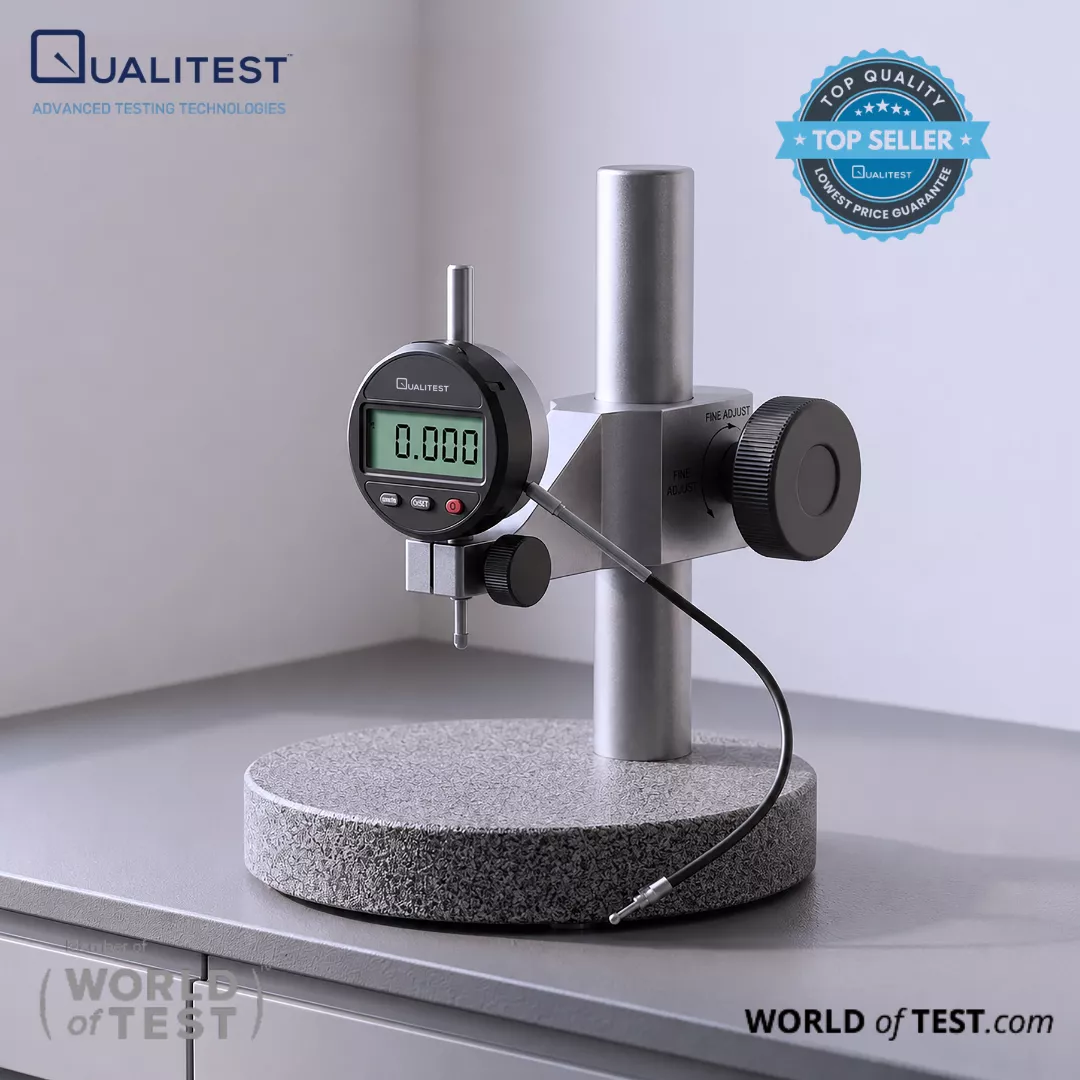

Thickness Gauge QualiTG™-A
Thickness Gauge QualiTG™-A is an affordable and user-friendly instrument designed for measuring material thickness with precision.
Its modular design features interchangeable bases with corresponding weights, allowing compatibility with multiple standards. Custom modifications are also available to meet specific requirements.
A consistent force ensures reliable and repeatable measurements.
Built with corrosion-resistant materials, thickness gauges perform well even in high-humidity environments.
Variants Thickness Gauge QualiTG™-A:
Model
Order No. | Standard | Application
Information | Foot Ø (mm) | Weight (g) | Pressure (kPa) |
|---|
QualiTG™-1
219 250 | ISO 23529, ASTM D 3767 | Rubber
| 4,0 | 28,0 | 22,0 |
QualiTG™-3
219 252 | ISO 5084 | Textiles
| 50,5 | 204,0 | 1,0 |
QualiTG™-4
219 253 | ASTM D 3767 | Rubber with hardness <35 IRHD
| 16,0 | 212,0 | 10,0 |
QualiTG™-5
219 254 | ASTM D 1777 Option 2 | Textile Materials, coated fabrics, Webbings, Tapes, Ribbons, Braids
| 9,5 | 169,0 | 23,4 |
QualiTG™-11
219 260 | DIN EN ISO 12625-3 | Tissue
| 35,7 | 204,0 | 2,0 |
QualiTG™-12
219 261 | DIN EN 1849-2 | Flexible sheets for waterproofing
| 10,0 | 160,0 | 20,0 |
QualiTG™-13
219 262 | ASTM D 1777 Option 1 | Woven fabrics, knitted fabrics, textured fabrics
| 28,7 | 273,0 | 4,14 |
QualiTG™-14
219 263 | ASTM D 1777 Option 5 | Blankets, pile fabrics, napped fabrics
| 28,7 | 46,2 | 0,7 |
QualiTG™-15
219 264 | DIN EN ISO 2286-3 Teil 3 | Rubber- or plastics-coated fabrics
| 10,0 | 16,0 | 2,0 |
QualiTG™-16
219 265 | DIN EN ISO 2286,3 Teil 3 | Rubber- or plastics-coated fabrics
| 10,0 | 192,2 | 24,0 |
QualiTG™-18
219 267 | ASTM F 2251 | Flexible packaging material
| 6,35 | 10...150 | --- |
