Soil Confinement Mechanics & Effective Stress Theory
Triaxial compression testing captures authentic three-dimensional ground stress states (σ1, σ2, σ3) without the unmeasured edge distortion common in standard direct shear boxes.
The cylindrical soil specimen receives a uniform, pressurized hydraulic hug inside the QualiTriaxial-YLS50 cell, while the QualiTriaxial-5T load frame drives the vertical piston downward with butter-smooth displacement control to measure genuine shear resistance deep below the surface.
Axial Drive Force from Piston -> Deviator Push (q = σ1 - σ3)
│
┌───┴───┐
│ Top │
│ Cap │
┌──┴───────┴──┐
│ Cylindrical │
Confining Fluid ──────────>│ Soil Sample │<────────── Confining Fluid
Grip (σ3) │ (In Rubber │ Grip (σ3)
│ Membrane) │
└──┬───────┬──┘
│ Base │
│ Ped. │
└───┬───┘
│
Pore Fluid Pressure (u) / Back-Pressure Drainage Line
Terzaghi’s Effective Stress Principle: The Impact of Internal Water Pressure
Solid soil particles generate friction and mechanical interlock only when they physically touch. When internal pore water becomes pressurized, it pushes outward against adjacent soil particles, reducing inter-granular contact force and weakening shear resistance. The governing equation:
σ' = σ - u
- σ' = True skeletal grain-to-grain contact push (Effective stress)
- σ = Total externally applied confinement and axial load
- u = Internal pore fluid counter-pressure
By independently controlling the confining cell fluid (σ3) and the back-pressure fluid line (ub) via dual-channel Advanced Pressure Volume Controllers (APVC) while monitoring pore water feedback at the base, the system traces authentic effective stress paths to determine the effective shear strength envelope (c', φ').
The Mohr-Coulomb Failure Criterion
When an axial load drives a confined specimen to failure, the ultimate shear capacity conforms to the Mohr-Coulomb strength envelope:
τf = c' + σ'n tan(φ')
- τf = Shear resistance along the internal failure plane
- c' = Effective cohesion intercept (particle adhesive bonding)
- σ'n = Effective normal stress acting perpendicular to the failure plane
- φ' = Effective angle of internal friction (inter-particle mechanical interlock)
During standard compression testing:
- Major Principal Total Stress: σ1 = σ3 + (Axial Force / Corrected Area) = σ3 + q
- Minor & Intermediate Principal Stresses: σ2 = σ3 = σc (Chamber fluid pressure)
- Deviator Stress (q): q = σ1 - σ3 (Net vertical stress driving shear failure)
Plotting multiple Mohr circles across varying effective confining pressures defines the failure line for calculating foundation bearing capacity, deep excavation retention, and embankment slope safety.
Testing Methodologies: Saturation, Consolidation, and Shearing
The automated V3.11 Software Test-Control Modules run the complete testing sequence across three structured stages: Saturation, Consolidation, and Shear Loading.
┌─────────────────────────────────────────────────────────────────────────────┐
│ 1. SPECIMEN SATURATION STAGE │
│ • Increment cell fluid pressure and back water pressure simultaneously │
│ • Confirm Skempton's B-value ≥ 0.95 (Eliminate trapped air bubbles) │
└──────────────────────────────────────┬──────────────────────────────────────┘
│
▼
┌─────────────────────────────────────────────────────────────────────────────┐
│ 2. CONSOLIDATION STAGE │
│ • Apply isotropic (K0 = 1) or anisotropic (K0 ≠ 1) pre-shear stress │
│ • Dissipate excess pore pressure until Δu drops to zero │
└──────────────────────────────────────┬──────────────────────────────────────┘
│
▼
┌─────────────────────────────────────────────────────────────────────────────┐
│ 3. SHEAR LOADING STAGE │
├───────────────────────┬─────────────────────────────┬───────────────────────┤
│ Unconsolidated │ Consolidated │ Consolidated │
│ Undrained (UU) │ Undrained (CU) + PWP │ Drained (CD) │
│ • Swift shear run │ • Industry standard │ • Controlled pace │
│ • Drain valves shut │ • Drain valves shut tight; │ • Continuous drainage;│
│ • Total strength only │ measure pore pressure live│ zero pore pressure │
└───────────────────────┴─────────────────────────────┴───────────────────────┘
Stage 1: Saturation & Skempton's B-Value Verification
Air is forced into solution by steadily raising chamber pressure (σ3) and back pressure (u) in parallel using the APVC syringe actuators while keeping a small, constant effective stress. Saturation quality is verified using Skempton’s B-coefficient:
B = Δu / Δσ3
When an increment of cell pressure produces an immediate, equivalent jump in internal pore pressure (B ≥ 0.95, or ≥ 0.90 for stiff clays), the specimen is fully saturated.
Stage 2: Consolidation Stage
Chamber fluid pressure is elevated above the back pressure, and the drainage valves are opened. The software executes either isotropic consolidation (equal stress in all directions, K0 = 1) or directional anisotropic consolidation (K0 ≠ 1). As excess pore water bleeds out into the APVC cylinder, internal excess pressure drops to zero (Δu → 0), the soil specimen settles and compresses, and the target initial effective consolidation stress (σ'c = σ3 - u) is established.
Stage 3: Shearing Configurations
| Test Configuration | Drainage During Consolidation | Drainage During Shear | Pore Pressure (Δu) Tracking | Primary Output Parameters | Practical Engineering Applications | Relevant Standards |
|---|
| UU (Unconsolidated Undrained) | Closed | Closed | No | Total undrained shear strength (Su or cu, φu = 0) | Short-term stability, quick placement of fills on saturated clay layers | ASTM D2850, AASHTO T 296, BS 1377-7, ISO 17892-8 |
| CU (Consolidated Undrained with PWP) | Open | Closed | Yes (Continuous transducer monitoring) | Effective parameters (c', φ'), total parameters (ccu, φcu), Skempton A-value | Rapid drawdown in reservoirs, slope stability following consolidation, dynamic seismic checks | ASTM D4767, AASHTO T 297, BS 1377-8, ISO 17892-9 |
| CD (Consolidated Drained) | Open | Open (Slow strain rate) | No (Δu ≈ 0; measures volume change ΔV) | Drained parameters (c'd, φ'd), drained modulus (E'), volumetric strain (εv) | Long-term slope stability, deep basement excavations, permanent foundation settlements | ASTM D7181, BS 1377-8, ISO 17892-9 |
System Execution & Mechanical Control
┌────────────────────────────────────────┐
│ Central PC & Data Acquisition Hub │
│ (V3.11 Software: Real-Time Plotting) │
└───┬───────────────────────────────┬────┘
│ USB / High-Speed Digital Feed │
▼ ▼
┌──────────────────────────────────┐ ┌──────────────────────────────────┐
│ QualiTriaxial-5T Load Frame │ │ Advanced Pressure-Volume Pumps │
│ • 50 kN force (±0.1% F.S.) │ │ (APVC Units: 2 MPa / 3 MPa) │
│ • Stepper motor + worm gear │ │ • Regulated & displayed to 1 kPa│
│ • 25 mm LVDT (0.01 mm accuracy) │ │ • Volume tracking to 0.001 ml │
│ • 0.00001 - 9.99999 mm/min speed│ │ • Built-in 16-key keypad & LCD │
└────────────────┬─────────────────┘ └────────────────┬─────────────────┘
│ │
└──────────────────┬───────────────────┘
▼
┌──────────────────────────┐
│ QualiTriaxial-YLS50 Cell │
│ • 2000 kPa rated chamber │
│ • Quick-clamp rod lock │
│ • 3-Port base platen │
│ • Automatic water refill │
└──────────────────────────┘

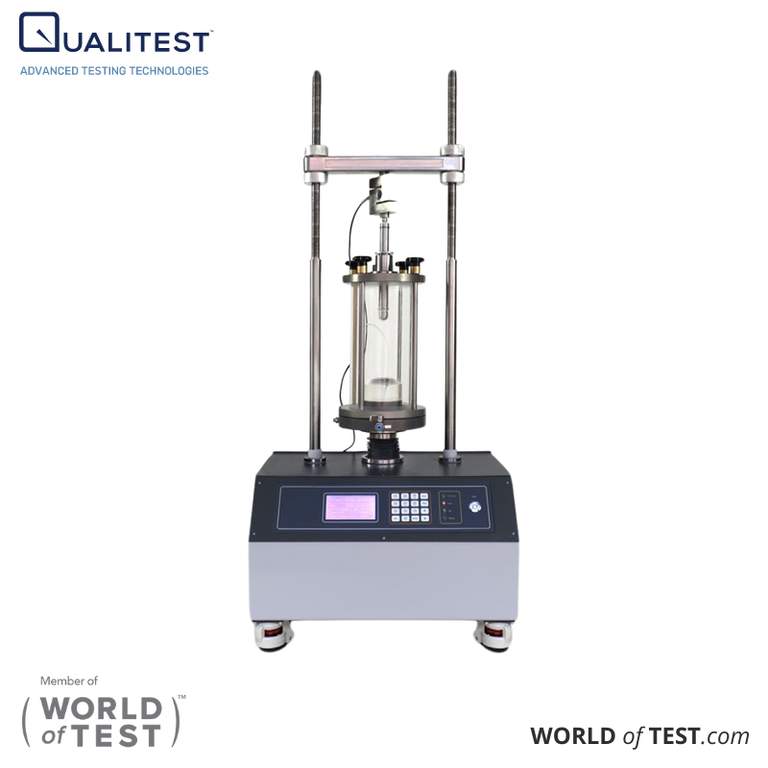

QualiTriaxial-5T Loading Frame Mechanics
The QualiTriaxial-5T provides a rigid test bench driven by a high-torque stepper motor and precision worm-gear transmission:
- Force Capacity & Precision: High-accuracy load sensor rated to 50 kN with a precision of ±0.1% Full Scale.
- Displacement-Controlled Speed: Delivers continuous platen displacement from 0.00001 to 9.99999 mm/min, capturing both post-peak strain-softening and slow plastic shear.
- Deformation Tracking: High-precision displacement transducer with a 25 mm measuring range and 0.01 mm accuracy.
- Working Clearances: Generous 500 mm vertical clearance and 300 mm horizontal clearance across a 148 mm diameter platen, allowing smooth insertion and removal of pressurized cells.
- Safety Stops & Cutoffs: Built-in upper and lower travel limit switches paired with automated electronic force cutoff mechanisms that shut down the motor instantly if load thresholds are exceeded.
- Physical Footprint: Compact bench dimensions of 580 mm (L) × 380 mm (W) × 1140 mm (H) with a total frame weight of 105 kg.
Advanced Pressure Volume Controllers (APVC)
The system employs motorized syringe actuators that operate under automated PC control via USB or as completely independent standalone units:
- Direct Digital Interface: Equipped with an on-board 192 × 64 LCD graphical display and a 16-key tactile keypad for direct manual configuration.
- Pressure Regulation: Generates and maintains confining cell pressure and back pressure up to 2.0 MPa (Standard) or 3.0 MPa (Premium), displayed and regulated to 1 kPa.
- Volume Change Measurement: High-precision liquid displacement measurement up to 180 to 200 cc (Standard) or 260 cc (Premium), tracked down to 1 cu.mm (0.001 ml).
- Safety Logic: Built-in automated over-pressure and over-volume cutoff thresholds safeguard internal seals and connected sensors.
QualiTriaxial-YLS50 Triaxial Cell & Tooling Options
- Pressure Enclosure: Rated for working cell pressures up to 2000 kPa (2 MPa) with an outer diameter of Ø 180 mm and a body weight of 12 kg.
- Specimen Tooling Compatibility: Accommodates standard specimen diameters:
- Standard Package: Tooling sets (split moulds, saturators, membrane stretchers, O-ring tools) for Ø 50 mm and Ø 70 mm specimens.
- Premium Package: Complete tooling sets for Ø 50 mm, Ø 70 mm, and Ø 100 mm specimens.
- Quick-Clamp Assembly: Engineered with a rapid-clamping tie rod setup for swift sample placement and teardown between test runs.
- Tri-Port Base Block: Features dedicated fluid circuits for:
- Confining Chamber Pressure Port: Direct connection to the cell APVC line.
- Back-Pressure & Top Drainage Port: Connects directly to the specimen top cap.
- Pore Water Pressure (PWP) Port: Direct connection between the lower porous disc and the piezoresistive pore pressure sensor.
- Automated Water Refill System: Includes an integrated de-aired water storage tank, heavy-duty water pump, and 3.5 MPa rated high-pressure tubing (6 m) for rapid cell filling and vacuum bleeding.
International Standard Compliance
The QualiTriaxial Series load frames, automated cells, and pressure volume controllers comply with all primary international testing specifications:
- ASTM D2850: Standard Test Method for Unconsolidated-Undrained Triaxial Compression Test on Cohesive Soils.
- ASTM D4767: Standard Test Method for Consolidated Undrained Triaxial Compression Test for Cohesive Soils.
- ASTM D7181: Standard Test Method for Consolidated Drained Triaxial Compression Test for Soils.
- AASHTO T 296: Standard Method of Test for Unconsolidated, Undrained Compressive Strength of Cohesive Soils in Triaxial Compression.
- AASHTO T 297: Standard Method of Test for Consolidated, Undrained Triaxial Compression Test on Cohesive Soils.
- BS 1377: Part 7: Methods of Test for Soils for Civil Engineering Purposes: Shear Strength Tests (Total Stress).
- BS 1377: Part 8: Methods of Test for Soils for Civil Engineering Purposes: Shear Strength Tests (Effective Stress).
- BS 1924-2: Hydraulically Bound and Stabilized Materials for Civil Engineering Purposes.
- ISO 17892-8: Geotechnical Investigation and Testing: Laboratory Testing of Soil: Part 8: Unconsolidated Undrained Triaxial Test.
- ISO 17892-9: Geotechnical Investigation and Testing: Laboratory Testing of Soil: Part 9: Consolidated Triaxial Compression Tests on Water-Saturated Soils.
