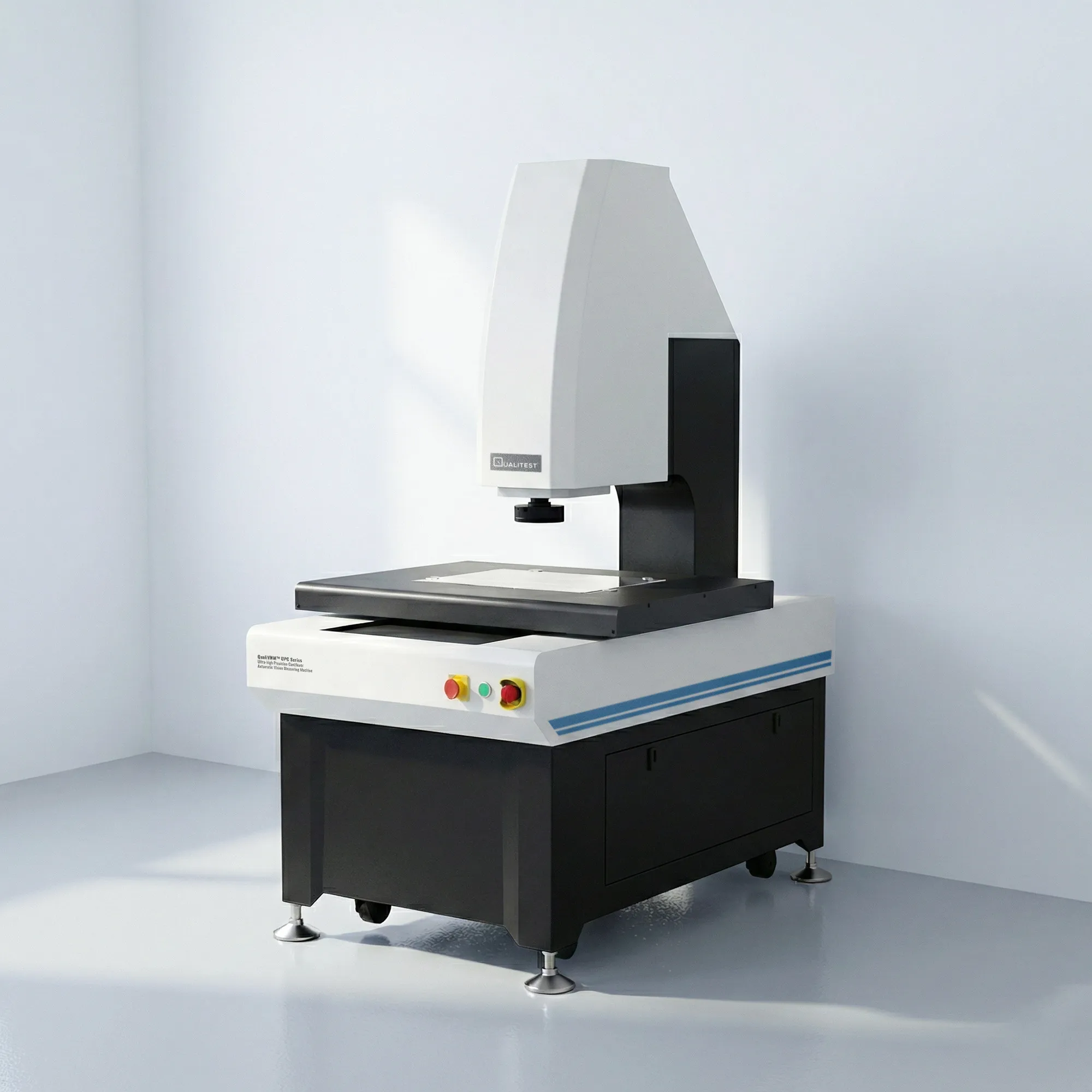

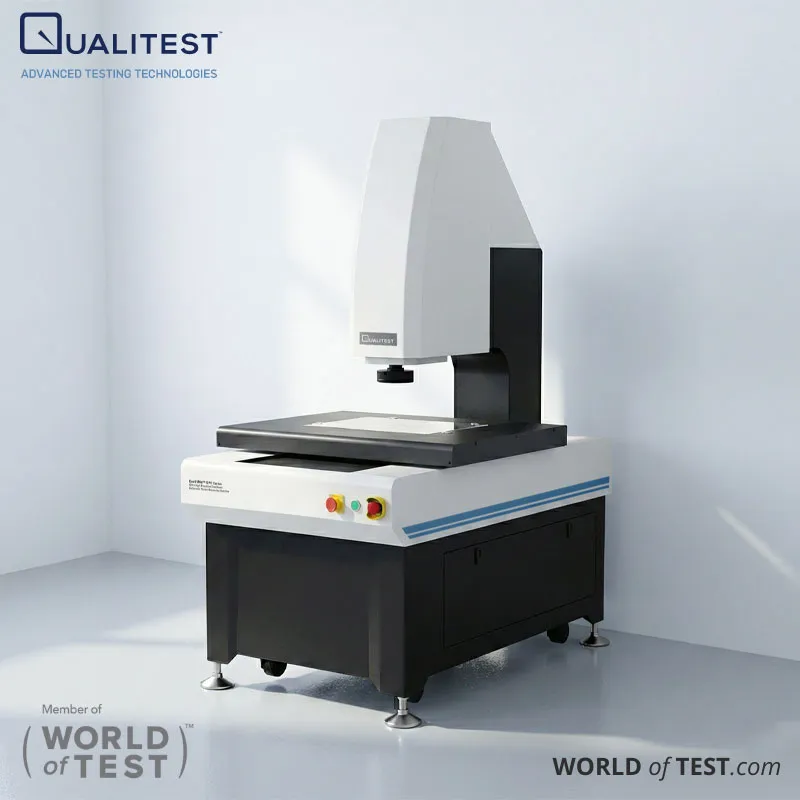

Ultra-high Precision Cantilever Automatic Vision Measuring Machine

Ultra-high Precision Cantilever Automatic Vision Measuring Machine – QualiVMM™ UPC Series Applications

• GD&T inspection for precision machined parts
  • Programs can verify form and feature geometry where GD&T reporting is required. The platform supports automated routines that reduce operator-to-operator variation for repeated checks. This is useful for incoming inspection, in-process verification, and final QA documentation.
• High-precision measurement for small features and tight tolerances
  • Ultra-fine scale resolution supports measurement tasks where small deviations impact fit, sealing, or assembly alignment. Auto zoom and pixel correction help maintain consistent scaling across magnifications. A high-resolution camera supports clear observation during edge capture and measurement.
• Mixed-finish surfaces that need controlled illumination
  • Edge detection quality often depends on contrast control. Program-controlled 5-ring, 8-area LED surface lighting plus parallel contour illumination enables 256-level brightness adjustment for consistent imaging. This helps with reflective metals, dark materials, and coated parts.
• 2.5D and 3D measurement with optional sensors
  • Some inspections require height, surface, or 3D element checks beyond 2D imaging. The UPC Series supports configurations that add a contact probe and/or a laser module, depending on the model type. This supports more advanced workflows when 2D images alone are not enough.

Standards

• ISO/IEC 17025: traceability and measurement system competence for calibration and QA labs
• ISO 10360 (imaging/CMM concepts): acceptance and reverification concepts used in coordinate metrology programs
• ASME B89 series: dimensional metrology practices widely used in North America
• ISO 1101 (ISO GPS): GD&T definitions for form, orientation, location, and run-out reporting
