Ultrapure Water Polisher - QualiUWP™ S Series

QualiUWP™ S Ultrapure Water Polisher produces Type I reagent water at 18.2 MΩ·cm for laboratories that already run a reverse osmosis, deionization, EDI, or distillation system upstream. The polisher draws pretreated feed and delivers finished water on demand at up to 2 liters per minute. A 7-inch capacitive color touchscreen drives the control system, and the HiDis dispenser arm places the outlet wherever the bench layout requires. Water is polished on demand, so no ultrapure volume sits in storage losing quality between uses.

Four configurations share the same host, control platform, and dispensing hardware. The QualiUWP™ S covers analytical chemistry and general laboratory work. The QualiUWP™ S-UV adds dual-wavelength photooxidation to bring TOC down to 2 ppb. The QualiUWP™ SUF adds an ultrafiltration module for endotoxin, nuclease, and protease removal, and the QualiUWP™ S-UVF combines both. Selecting a model comes down to whether the workload is organics-sensitive, biologically sensitive, or both.

Laboratories running HPLC, ICP-MS, ion chromatography, and trace-level spectrometry need water that adds no background ions or organics to the result. Every QualiUWP™ Smodel holds conductivity at 0.055 µS/cm, particle counts below 1 per milliliter above 0.2 µm, and bacteria below 0.01 CFU/mL. Two sensors monitor the incoming feed and the polished output separately, so operators see feed quality drift before it reaches the analysis.

Ultrapure Water Polisher - QualiUWP™ S Series Applications

The QualiUWP™ Series serves laboratories where an existing pure water supply needs a final polishing stage at the point of use.

  • Liquid Chromatography and Mass Spectrometry: mobile phase preparation and system flushing for HPLC, UPLC, and LC-MS, where background organics raise baseline noise and suppress low-level peaks
  • Trace Elemental Analysis: blank, standard, and sample dilution water for ICP-MS, ICP-AES, and AAS, where sub-ppb ionic contamination shifts calibration curves
  • Ion Chromatography and TOC Analysis: eluent and blank water for IC and organic carbon determination, where the water itself sets the detection floor
  • Gas Chromatography and MALDI-TOF-MS: sample preparation and matrix solutions for GC-MS and time-of-flight mass spectrometry
  • Electrochemical and Spectrophotometric Determination: electrolyte and reagent preparation for potentiometry, voltammetry, and UV-Vis measurement
  • Cell Culture, PCR, and IVF: media and buffer water free of pyrogens and nucleases, supported by the UF and UVF configurations
  • Protein Purification, Electrophoresis, and Biochemistry: buffer preparation for separation and assay workflows sensitive to protease and endotoxin carryover, supported by the UF and UVF configurations
  • Proteomics, Genomics, and Immunoassay: sample and reagent water for nucleic acid and protein workflows where RNase or DNase contamination degrades yield
  • Quality Control and Cleanroom Support: reagent water for QC laboratories, controlled environments, and routine batch release testing
  • Microbial Media and Reagent Preparation: buffer, media, and reagent makeup water for routine microbiology work
  • Laboratory Instrument Feed Water: supply water for autoclaves, glassware and bottle washing machines, environmental test chambers, and water baths

Standards

The QualiUWP™ Series is designed to align with recognized reagent water specifications used across analytical, clinical, and pharmaceutical laboratories in North America. Output water quality meets or exceeds the Type I definitions in the following references.

  • ASTM D1193 - Standard Specification for Reagent Water, Type I
  • USP - United States Pharmacopeia requirements for purified water and TOC system suitability
  • EP - European Pharmacopoeia requirements for purified water
  • JP - Japanese Pharmacopoeia requirements for purified water
  • CLSI - Clinical and Laboratory Standards Institute guidance on clinical laboratory reagent water
  • CAP - College of American Pathologists laboratory water quality requirements

Ultrapure Water Polisher - QualiUWP™ S Series Key Features

The QualiUWP™ Series combines a Linux-based touchscreen controller, cloud connectivity, and dual-point water quality monitoring in a benchtop footprint.

Ultrapure Water Polisher

Full security protection

Ultrapure Water Polisher

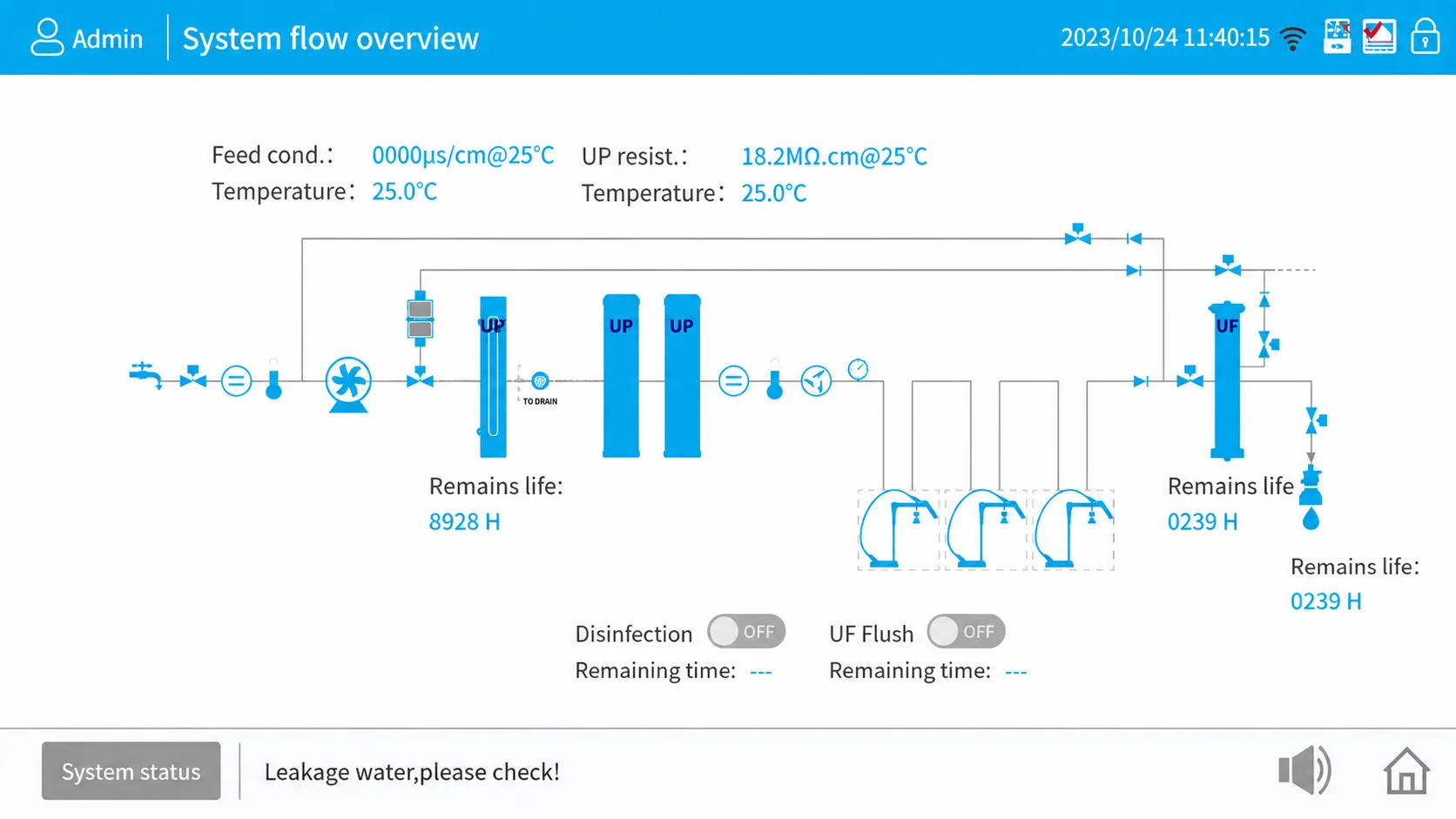

Powerful system overview diagram

Ultrapure Water Polisher

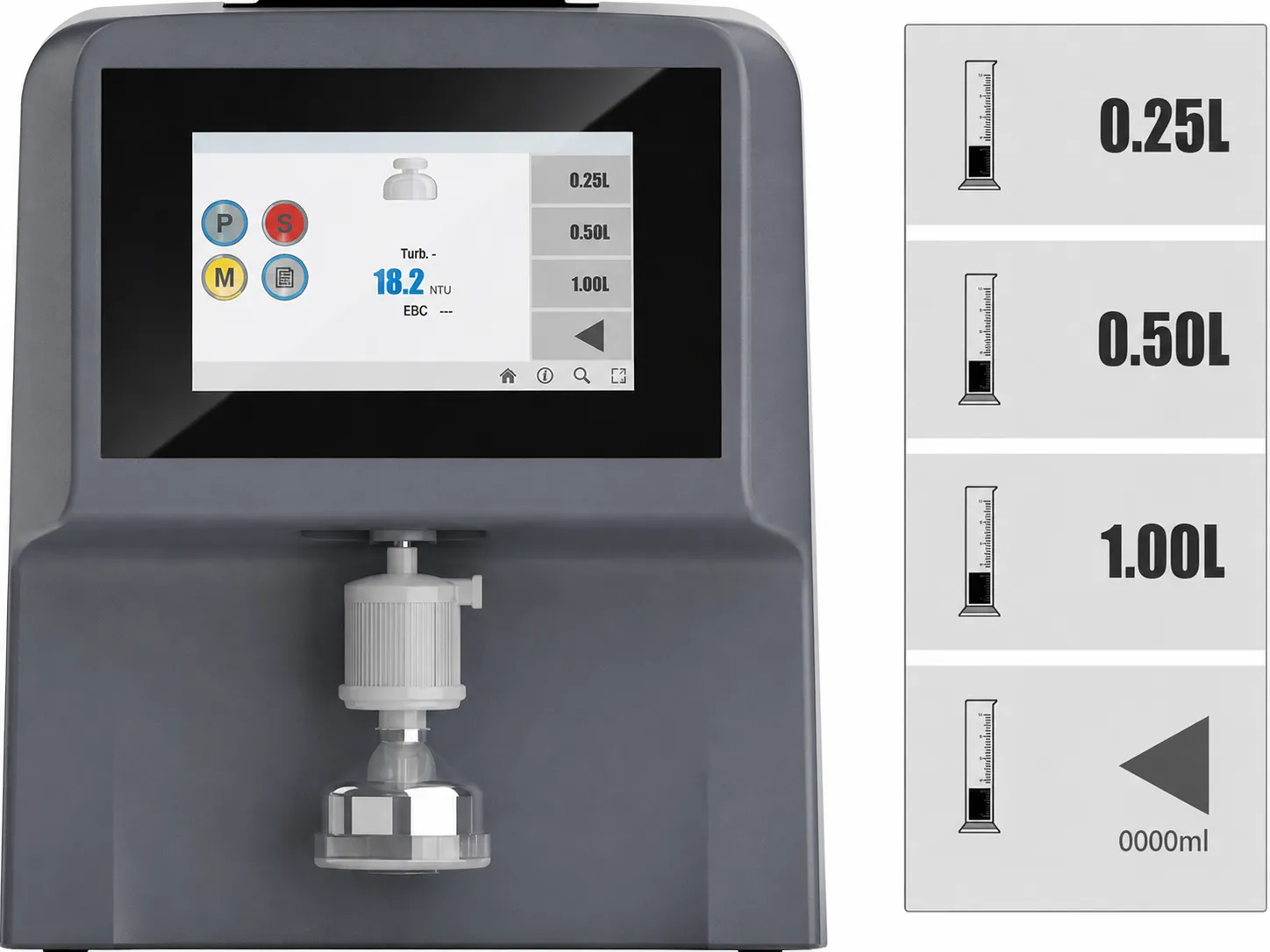

Flexible and diverse water dispensing mode

  • 7-Inch Capacitive Color Touchscreen: 1024 × 600 glass-panel display with mobile-phone style touch response, dual-language interface, and three selectable themes for at-a-glance status reading
  • Dual-Point Water Quality Monitoring: separate sensors on the feed and ultrapure lines with a 0.01 cm⁻¹ cell constant and 0.1°C temperature sensitivity, plus automatic temperature compensation on conductivity and resistivity readings
  • Full Down-Flow Purification Cartridge: patented three-chamber structure holding up to 1.36 L of DuPont resin per cartridge and 2.72 L across two cartridges, with a down-flow path that stops the bed from stratifying and keeps exchange sites available across the full column
  • Dual-Wavelength UV Module (UV and UVF models): 185 nm and 254 nm output in a SUS316L flow shell that lowers TOC to 2 ppb and suppresses bacterial growth in the polishing loop

Innovative Internet of Things (IOT) and cloud platform technology

Ultrapure Water Polisher

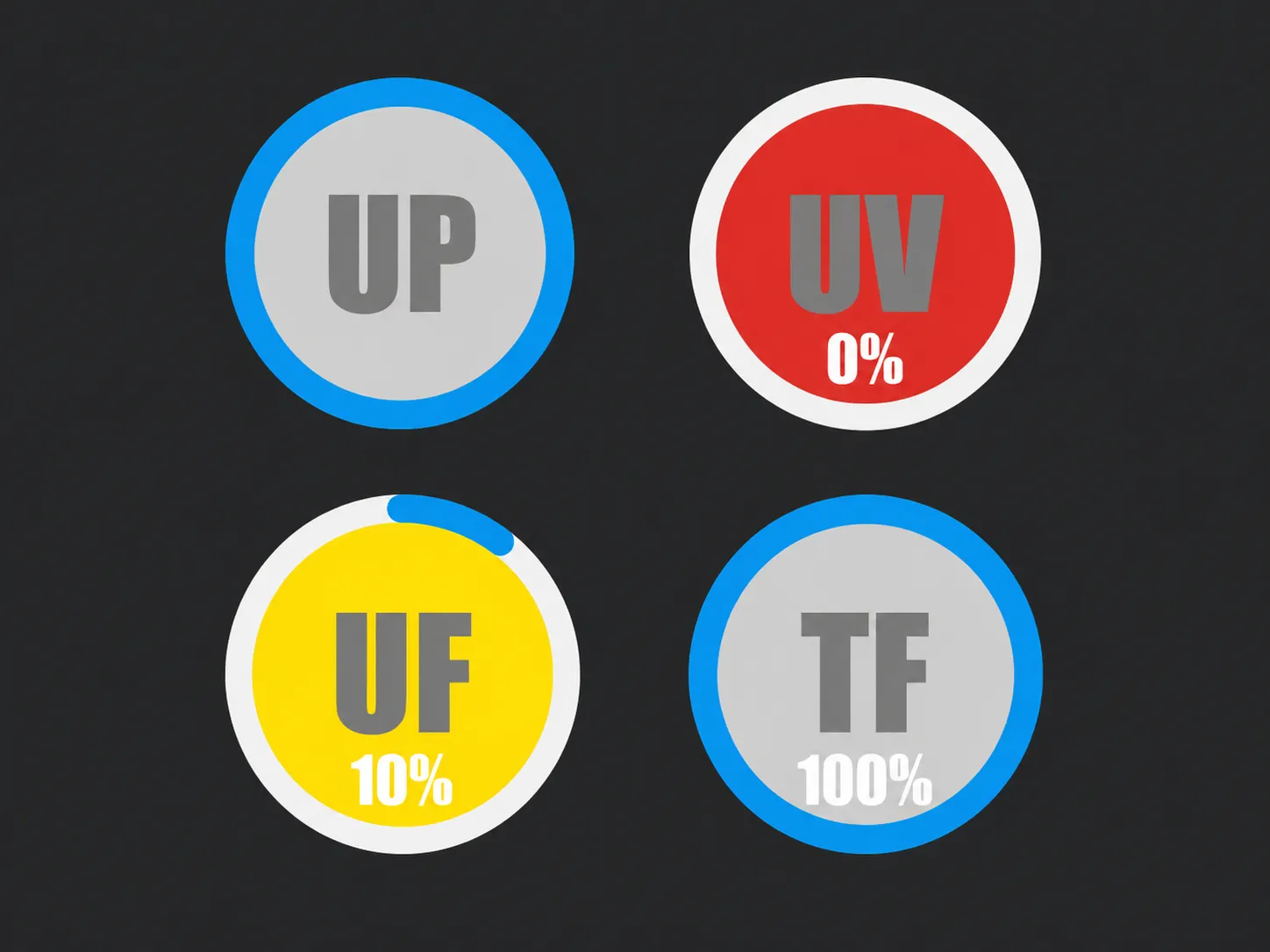

Perfect consumables management

Ultrapure Water Polisher

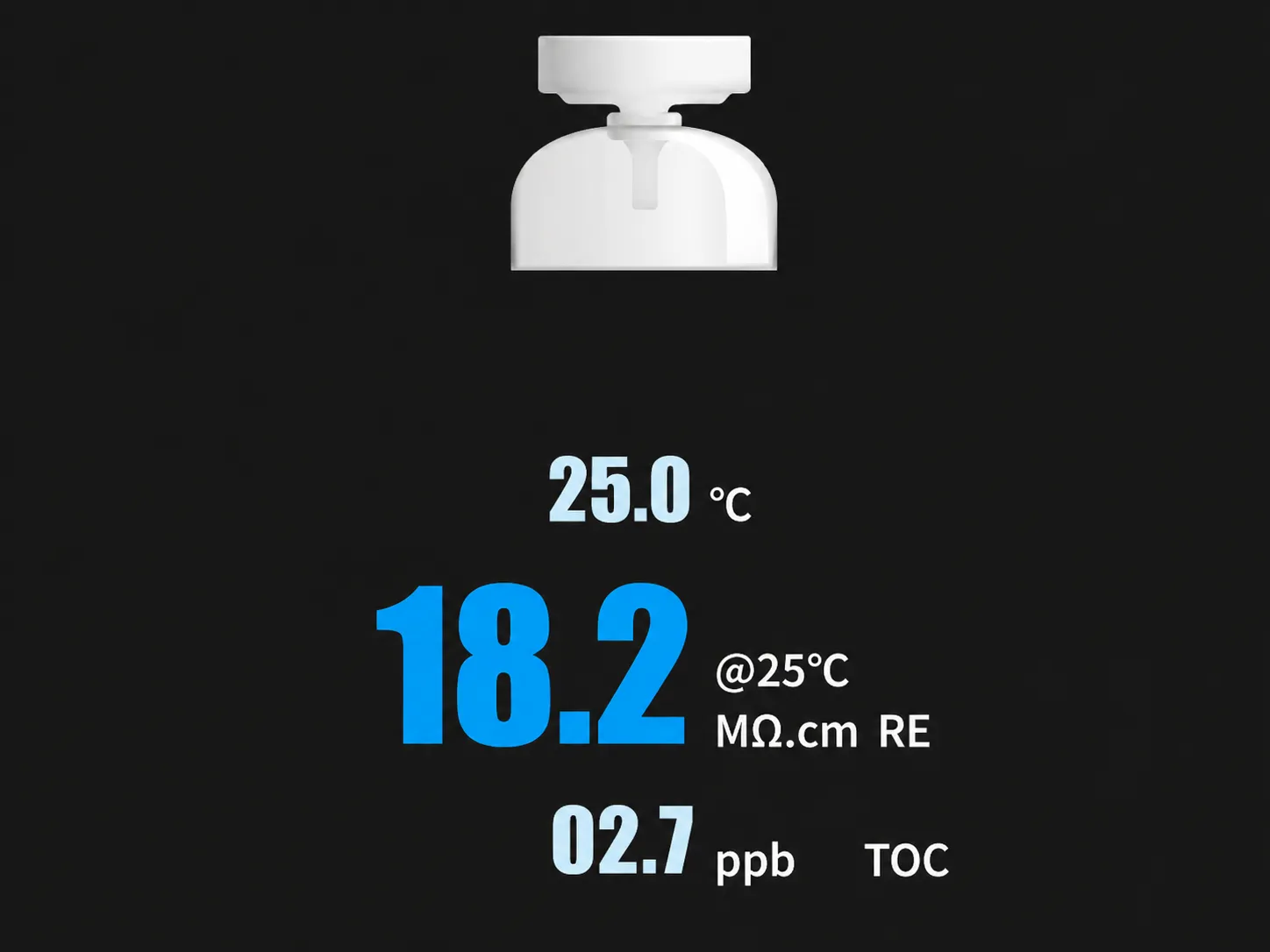

Comprehensive water quality monitoring and alarm

  • Ultrafiltration Module (UF and UVF models): PES membrane above 5,000 MWCO with an automatic back-flush cycle that clears retained pyrogens and endotoxin from the membrane face and extends module life
  • Terminal Filtration Choice: 0.45 plus 0.2 µm dual-layer PES microfilter on standard models, or a PES terminal ultrafilter above 15,000 MWCO on life-science configurations
  • HiDis Dispenser Arm: color display showing resistivity, water temperature, flow rate, and single and cumulative volume, with 360-degree horizontal positioning and up to five arms per host
  • Three Dispensing Modes: general, quantitative, and instant dispensing from the arm, plus quick-volume buttons on the touchscreen at 0.25 L, 0.50 L, and 1.0 L multiples
  • Traceable Data Management: five years of on-board records covering dispensing, alarms, and cartridge changes, exportable to PDF through USB or the cloud platform for audit and regulatory review
  • Multi-User Access Control: independent user IDs with three permission levels, screen lock and fast user switching, and per-user cost allocation across shared departments and projects
  • IoT and Cloud Connectivity: Ethernet and WiFi access for remote monitoring from PC, WAP, or mobile, with connection to LIMS or BMS for laboratory-wide data integration
Ultrapure Water Polisher

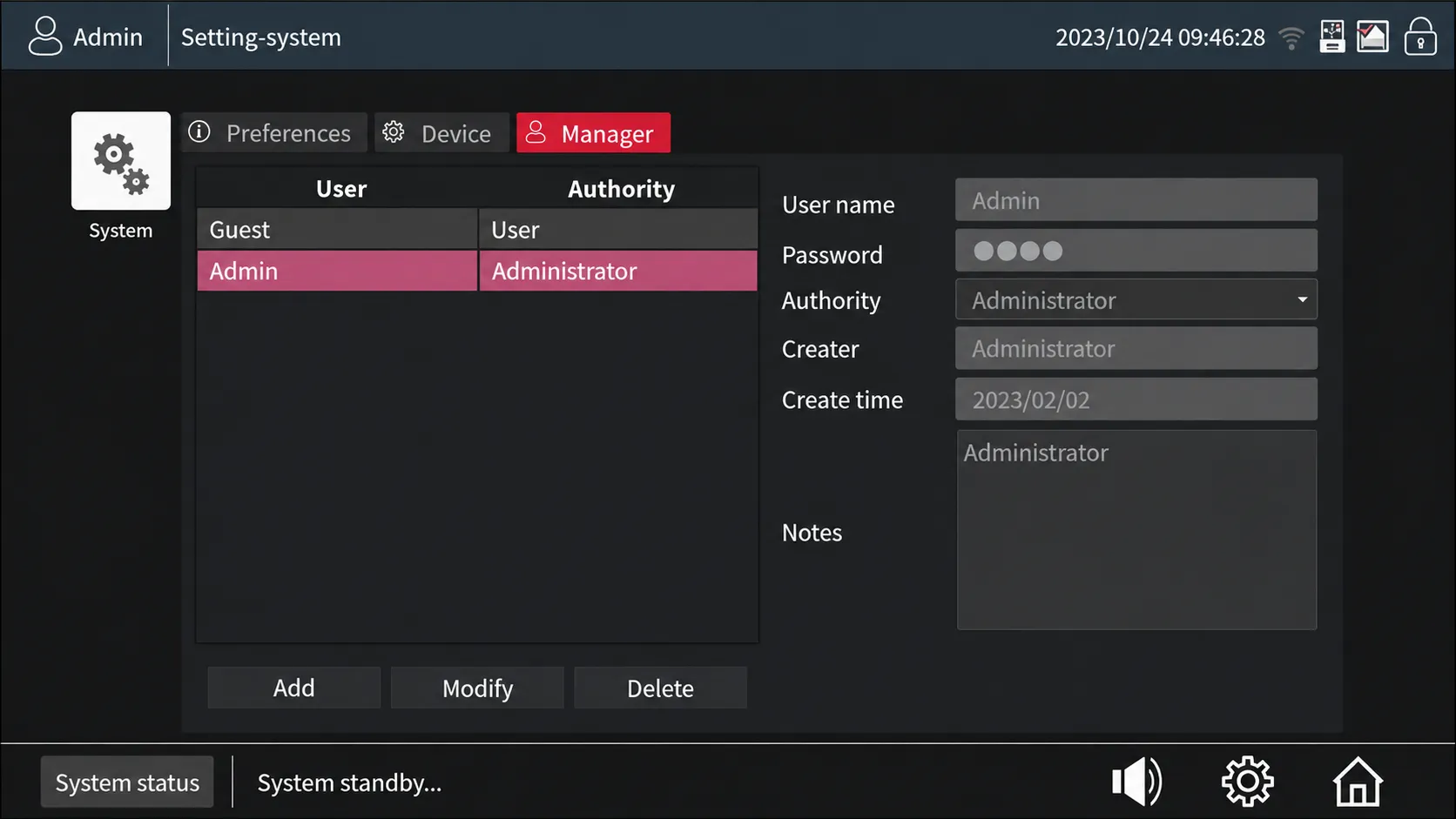

Sharing mode of multi-user management

Ultrapure Water Polisher

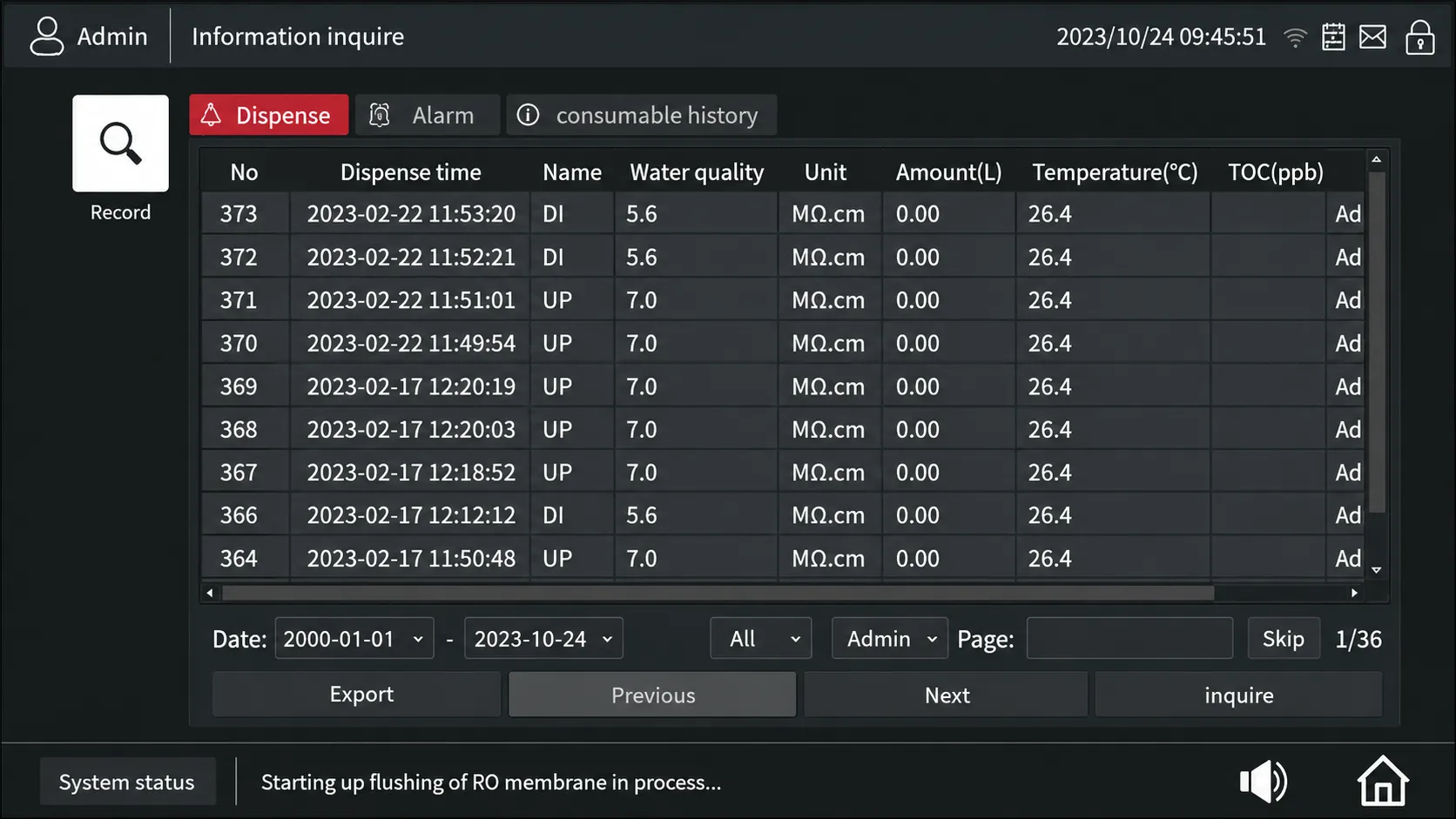

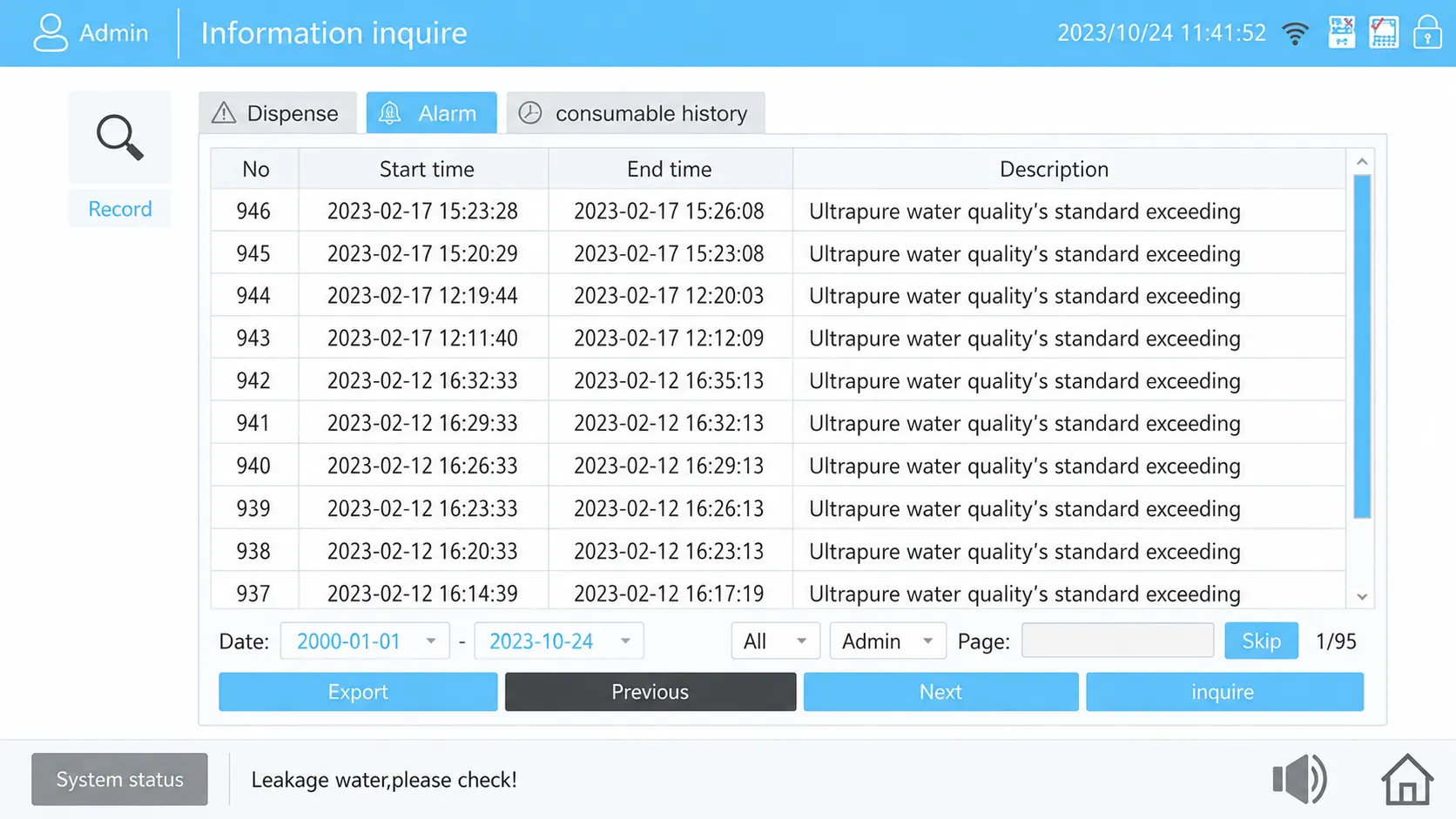

Traceable comprehensive data management

  • Cartridge Life Management: dynamic icons that shift from blue to yellow to red as consumable life depletes, with encrypted serial number verification that confirms cartridge authenticity and logs replacement
  • Interval Recirculation: adjustable idle-period circulation through the polishing loop that limits bacterial growth in stagnant water and holds down standby energy use
  • Chemical Disinfection Cycle (UF and UVF models): timed dosing routine that sanitizes the pure water pipeline and returns the system to service after a two-stage flush
  • Layered Safety Protection: DC 24 V weak-current architecture, dual water leakage detection inside and outside the host, and alarms for feed water loss, high system pressure, out-of-spec water quality, and cartridge expiry
  • Multiple Communication Interfaces: RJ45, USB, and WiFi for network access, plus dedicated ports for the leakage sensor, dispenser arm, pure water tank level signal, and foot switch
  • Injection Molded Housing: single-piece molded panels with geometric surfaces that wipe down cleanly and resist chemical splash on a working bench

Theory and Method

Pure water is never fully non-conductive. Water self-ionizes, so at 25°C hydrogen and hydroxide ions each sit at 1 × 10⁻⁷ mol/L, giving a conductivity of 0.055 µS/cm and a resistivity of 18.2 MΩ·cm. That figure is a physical ceiling. Mixed-bed ion exchange drives water toward it: cation resin in the hydrogen form captures sodium and calcium, anion resin in the hydroxide form captures chloride and sulfate, and the released H⁺ and OH⁻ recombine into water instead of accumulating as acid or base.

Ion exchange strips ions but leaves neutral organic molecules untouched, which is why the standard configuration holds TOC at 5 ppb rather than 2 ppb. The UV module attacks that fraction directly. A 185 nm photon carries enough energy to split water into hydroxyl radicals, which oxidize dissolved organics into carbon dioxide and short-chain organic acids. Those products carry charge, so the downstream resin bed captures them. The 254 nm output on the same lamp inactivates bacteria in the flow shell.

Endotoxins, nucleases, and proteases are large molecules carrying little or no net charge, so neither resin nor UV removes them reliably. Ultrafiltration separates by size instead. The PES membrane passes water molecules while retaining anything above its molecular weight cut-off, holding back pyrogens, RNase, DNase, and protease. Placing the module at the outlet puts that barrier downstream of every other stage, so material shed by the resin bed cannot reach the dispense point.

Ultrapure Water Polisher - QualiUWP™ S Series Technical Specifications

Model Overview

ModelConfigurationSelected For
QualiUWP™ SIon exchange polishing, MF terminal filterAnalytical chemistry, QC, general laboratory work
QualiUWP™ S-UVAdds dual-wavelength UV moduleOrganics-sensitive analysis at 2 ppb TOC
QualiUWP™ SUFAdds ultrafiltration module and terminal ultrafilterEndotoxin, nuclease, and protease sensitive work
QualiUWP™ S-UVFAdds both UV and ultrafiltrationCombined low-TOC and life-science requirements

Output Water Quality

ParameterQualiUWP™ SQualiUWP™ S-UVQualiUWP™ SUFQualiUWP™ S-UVF
Production RateUp to 2 L/minUp to 2 L/minUp to 2 L/minUp to 2 L/min
Resistivity at 25°C18.2 MΩ·cm18.2 MΩ·cm18.2 MΩ·cm18.2 MΩ·cm
Conductivity at 25°C0.055 µS/cm0.055 µS/cm0.055 µS/cm0.055 µS/cm
Total Organic Carbon5 ppb2 ppb5 ppb2 ppb
Particles<1 per mL (>0.2 µm)<1 per mL (>0.2 µm)<1 per mL (>0.2 µm)<1 per mL (>0.2 µm)
Bacteria<0.01 CFU/mL<0.01 CFU/mL<0.01 CFU/mL<0.01 CFU/mL
EndotoxinNot specifiedNot specified<0.001 EU/mL<0.001 EU/mL
RNaseNot specifiedNot specified1 pg/mL1 pg/mL
DNaseNot specifiedNot specified5 pg/mL5 pg/mL
ProteaseNot specifiedNot specified0.15 µg/mL0.15 µg/mL

Feed Water Requirements

ParameterSpecification (all models)
Feed Water TypePurified water treated by RO, DI, EDI, or distillation
Feed Pressure0 to 6 bar
Feed Temperature5 to 40°C
Feed Conductivity<100 µS/cm
Feed TOC<50 ppb

System and Utilities

ParameterSpecification (all models)
Display7-inch capacitive color touchscreen, 1024 × 600
Control SystemLinux-based, dual-language interface, three display themes
Water Quality Sensors2 (feed line and ultrapure line), cell constant 0.01 cm⁻¹
Temperature Sensitivity0.1°C
Flow Sensors2
Purification CartridgeUp to 1.36 L resin per cartridge, up to 2 cartridges (2.72 L total)
UV Module185 nm and 254 nm, SUS316L flow shell (UV and UVF models)
Ultrafiltration ModulePES membrane, MWCO above 5,000 D (UF and UVF models)
Terminal Filter0.45 + 0.2 µm dual-layer PES microfilter, or PES ultrafilter above 15,000 MWCO
Dispensing ModesGeneral, quantitative, instant
Quick Dispense Volumes0.25 L, 0.50 L, 1.0 L multiples
Dispenser Arms per HostUp to 5
Data RetentionUp to 5 years on-board, with cloud export
Communication InterfacesRJ45, USB, WiFi, leakage sensor, dispenser arm, tank level, foot switch
Voltage100 to 240 V, 50/60 Hz
Total Power72 W
Dimensions, Main Host (L × W × H)276 × 319 × 570 mm
Dimensions, Dispenser Arm (L × W × H)181 × 626 × 795 mm
Weight, Main HostApprox. 15 kg
Weight, Dispenser ArmApprox. 4 kg

Standard Configuration

ItemQuantityDescription
Main Host1 setBenchtop polisher with 7-inch touchscreen controller
Purification Cartridges1 setFull down-flow mixed-bed ion exchange cartridges
HiDis Dispenser Arm1 setColor-display dispenser with 360-degree horizontal positioning

Optional Accessories

ItemDescription
PE Pure Water TankDouble-layer HDPE tank with anti-UV outer layer, cone-bottom drainage valve, sealed enlarged cover, compound air filter with CO₂ absorption and microporous membrane, pressure-sensor level control with LCD volume and percentage display
Tank UV Disinfection ModuleIn-tank UV module that suppresses bacterial growth during storage
UF Terminal UltrafilterPES membrane above 15,000 MWCO for pyrogen-free and nuclease-free dispensing on ultrapure systems
Additional HiDis Dispenser ArmsUp to five arms per host for multi-station bench coverage
Foot SwitchHands-free dispensing through the dedicated FS interface
Leakage SensorExternal water leakage detection linked to the host alarm system
