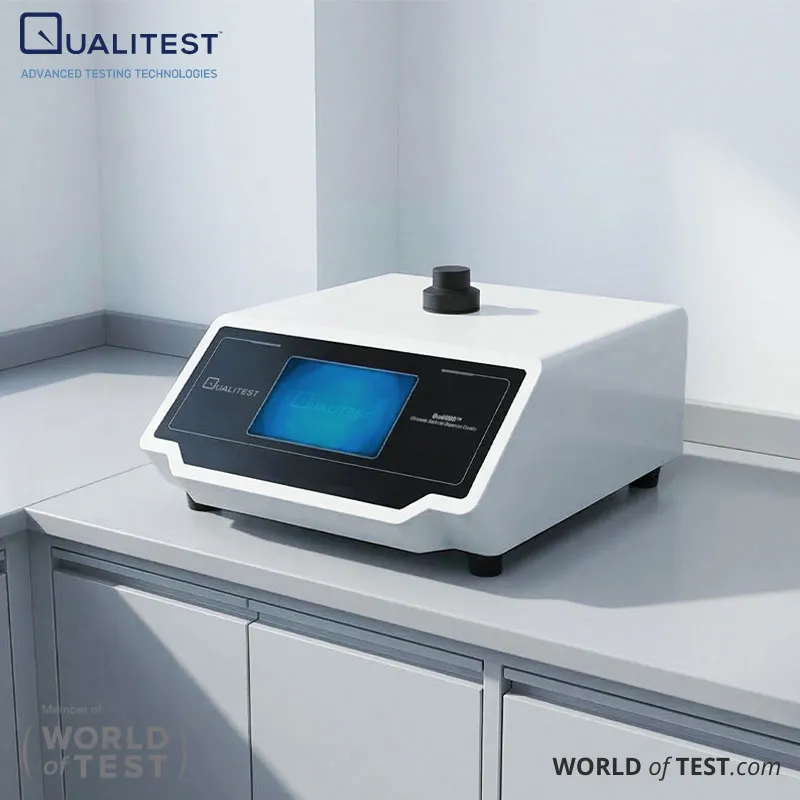

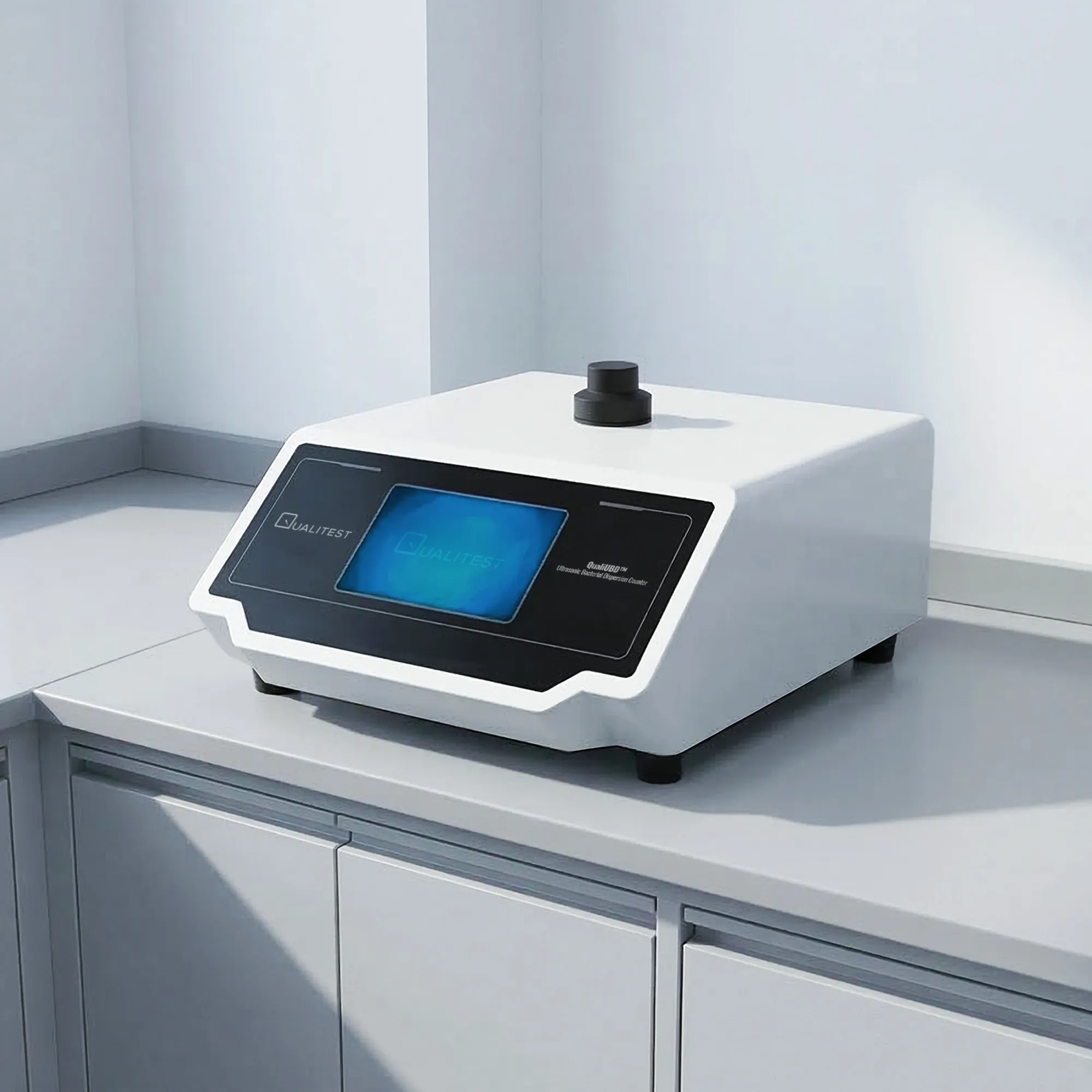

Ultrasonic Bacterial Dispersion Counter – QualiUBD™

An Ultrasonic Bacterial Dispersion Counter helps standardize microbial turbidity by combining controlled ultrasonic dispersion with nephelometric turbidity measurement in one workflow.

QualiUBD™ is designed to break up bacterial clumps using programmed ultrasound cycles and then quantify sample turbidity with high resolution, supporting faster, more repeatable prep for microbiology and QC routines. Adjustable ultrasonic cycles, working time, and interval time let you tune dispersion strength to match different organisms and media types. The instrument uses a cuvette-based cell and supports multi-point calibration to improve day-to-day comparability.

It fits labs that want a simple, bench-friendly tool for improving consistency before optical density or other downstream measurements. The system is also useful when aggregation changes turbidity readings and makes trend tracking harder.

Ultrasonic Bacterial Dispersion Counter – QualiUBD™ Applications

  • Microbial turbidity standardization for QC trending Ultrasound helps disperse aggregates that can distort turbidity values. That makes it easier to compare turbidity between shifts, batches, or sites.
  • Sample preparation for microbiology workflows Dispersion cycles can reduce clumping before plating, dilution series, or other analytical steps where uniform suspension matters.
  • R&D screening of culture conditions Track how changes in media, mixing, or incubation affect turbidity while keeping dispersion settings consistent across experiments.
  • Training and SOP-driven lab operation Programmable cycles and multi-point calibration support standardized methods, reducing operator-to-operator variation.
Ultrasonic Bacterial Dispersion Counter – QualiUBD™

Standards

Turbidity measurement is commonly referenced to widely used nephelometric methods for water and aqueous samples:

  • ISO 7027-1 – Water quality—determination of turbidity using nephelometry or turbidimetry.
  • US EPA Method 180.1 – Determination of turbidity by nephelometry.

Ultrasonic Bacterial Dispersion Counter – QualiUBD™ Key Features

  • Integrated dispersion + turbidity reading to streamline sample prep and measurement in one instrument.
  • Programmable ultrasound cycles (0–99) for controlled, repeatable dispersion strength.
  • Adjustable ultrasound timing for both working time and intermittent time (0–99 seconds).
  • High display resolution for turbidity with 0.01 MCF display accuracy.
  • Defined measurement and linear ranges to support consistent QC interpretation.
  • Cuvette sealing design with a fluorosilicone seal to help reduce leakage risk.
  • Multi-point calibration (up to 6 points) to support stable long-term measurement performance.

Theory and Method

Ultrasonic dispersion uses high-frequency vibration to generate localized shear that helps separate clumped cells into a more uniform suspension. A more uniform suspension improves repeatability because turbidity depends on how particles scatter light through the sample. Nephelometric turbidity measurement evaluates scattered light intensity under controlled geometry, then reports a turbidity value based on calibration. QualiUBD™ combines both steps so you can disperse, measure, and record results using one consistent workflow.

Typical workflow

  1. Load the sample into the cuvette cell.
  2. Set ultrasound cycles, working time, and interval time.
  3. Run dispersion to reduce clumping.
  4. Measure turbidity, then store results and calibration as needed.

Ultrasonic Bacterial Dispersion Counter – QualiUBD™ Technical Specification (Full Version)

ItemQualiUBD™ 100
Power100 W
Frequency40 kHz
Total Ultrasonic Cycles0–99 cycles, adjustable
Ultrasonic Working Time0–99 s, adjustable
Ultrasonic Intermittent Time0–99 s, adjustable
Nephelometric Turbidity Display Accuracy0.01 MCF
Nephelometric Turbidity Measurement Range0.00–6.00 MCF
Nephelometric Turbidity Detection Linear Range0.20–4.00 MCF
Cuvette Sample Capacity1.5–4.0 mL
Nephelometric Turbidity CalibrationMulti-point calibration, up to 6 points
Cuvette FeatureFluorosilicone seal for leak prevention

Comparison of bacterial liquid preparation process

StepUltrasonic Dispersion CounterDispersion in Grinding Bottle
1Set parameters (0.5 min)Vortex shaking (1–2 min)
2Pick bacteria (1 min)Pick bacteria (1 min)
3Ultrasonic dispersion (1–5 min)Let suspension stand, then transfer to assay tube (15 min)
4Add saline based on dilution prompt (0.5 min)Add saline (≈1 min)
5Prepare the target bacterial suspensionRepeated liquid addition and turbidity adjustment (2–5 min)
6Prepare a standardized turbidimetric bacterial suspensionPrepare a standardized turbidimetric bacterial suspension
Total time~3 min~23–27 min
