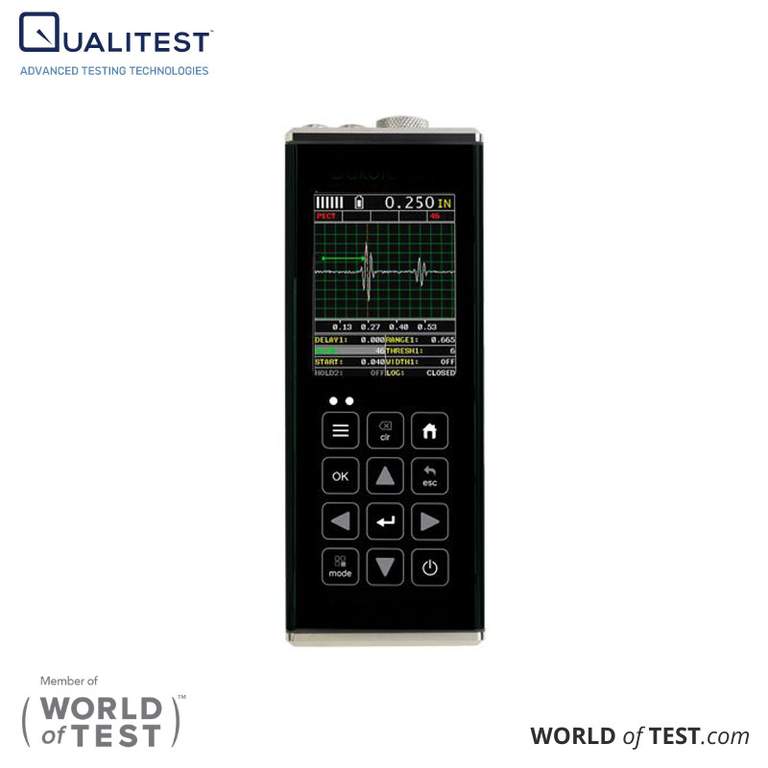

| Weight: | 13.5 ounces (with batteries). |
| Size: | Width (2.5 in / 63.5 mm)
Height (6.5 in / 165 mm)
Depth (1.24 in / 31.5 mm) |
| Operating Temperature: | 14 to 140°F (-10 to 60°C). |
| Case: | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed). |
| Keypad: | Membrane switch pad with twelve tactile-feedback keys. |
| Data Output: | USB-C port. Windows PC interface software. |
| Display (Two Options): | CMX2-DL: 1/8in VGA grayscale display (240 x 160 pixels). Viewable area 2.4 x 1.8in (62 x 45.7mm). EL backlit (on/off/auto). 25Hz screen refresh rate.
CMX3-DL: 1/4 VGA AMOLED color display (320 x 240 pixels). Viewable area 1.7 x 2.27in (43.2 x 57.6mm). 60Hz screen refresh rate. |
| TRANSDUCER |
| Transducer Types: | Dual/Single Element (1 to 20MHz). Contact, matching layer, delay line, and pencil configurations.
Locking quick disconnect "00" LEMO connectors.
Standard 4 foot cable.
Custom transducers & cables lengths available for special applications. |
| POWER SOURCE |
| Batteries: | Three AA cells
Alkaline - Grayscale 35 hours. Color 12 hours.
Nicad - Grayscale 10 hours. Color 5 hours.
NI-MH - Grayscale 35 hours. Color 12 hours.
Power saving DIM (color), auto off 5 minutes. Battery status icon. |
| Line power: | USB-C connected to PC or power outlet |
| ULTRASONIC SPECIFICATIONS |
| Measurement Modes: | Coating Off: Pulse-Echo (P-E)
Coating On: Pulse-Echo Coating (PECT)
Temp Comp: Pulse-Echo Temperature Compensation (PETP)
Thru-Paint: Echo-Echo (E-E)
Thru-Paint Verify: Echo-Echo Verify (E-EV)
Coating Only: Coating (CT) |
| Pulser: | Dual square wave pulsers. |
| Receiver: | Dual receivers - manual or AGC gain control with 110dB range (limited).
Adjustable damping (50-1500 ohms). |
| Timing: | Precision TCXO timing with single shot 100MHz 8 bit ultra low power digitizer. |
| DISPLAY |
| Large Digits: | Standard thickness view.
Digit Height: 0.700 inches (17.78mm).
Color 0.565 in (14.35mm). |
| A-Scan: | Rectified +/- (flaw view), RF (full waveform view). Portrait & landscape views (CMX3-DL only). |
| Pulse Repetition Frequency: | 250Hz |
| A-Scan Refresh Rate: | B&W 25Hz, color 60Hz. |
| B-Scan: | Time based cross section view.
Display speed variable (10 to 200 readings per second). |
| Scan Bar Thickness: | Speed 33Hz.
Viewable In B-Scan and Large Digit views. |
| Repeatability Bar Graph: | Bar graph indicates stability of reading. |
| Feature Status Bar: | Indicates features currently active. |
| MEMORY |
| Log Formats: | Grid (Alpha Numeric), or Sequential (Auto Identifier). |
| Capacity: | 4Gb internal memory. |
| Screen Capture: | Bitmap graphic capture for quick documentation (.tif).
OBSTRUCT to indicate inaccessible locations. |
| REPLACEMENT |
| Replacement Models: | CMX2-DL replaces CMXDL+ & CG100ABDL
CMX3-DL replaces CMXDL+ Color & CG100ABDL+ |
| MEASURING |
| Pulse-Echo Mode (P-E): | (Pit & Flaw Detection) measures from 0.025 to 100ft. (0.63 to 30.48M). |
| Pulse-Echo Coating Mode (PECT): | (Material, Coating, Pit & Flaw Detection)
Material: 0.025 to 100ft. (0.63 to 30.48M).
Coating: 0.001 to 0.100in (0.01 to 2.54mm). |
| Pulse-Echo Temp Comp Mode (PETP): | (Pit & Flaw Detection) Auto temperature compensation - measures from 0.025 to 100ft. (0.63 to 30.48M). |
| Echo-Echo Mode (E-E): | (Thru Paint & Coatings) measures from 0.100 to 6.0in (2.54 to 152.4mm). Range will vary +/- depending on the coating. |
| Echo-Echo Verify Mode (E-EV): | (Thru Paint & Coatings) measures from 0.100 to 1.0in (2.54 to 102mm). Range will vary +/- depending on the coating. |
| Coating Only Mode (CT): | (Coating Thickness) measures from 0.0005 to 0.100in (0.0127 to 2.54mm). Range will vary +/- depending on the coating. |
| Resolution: | +/- 0.001 in (0.01mm).
+/- 0.0001 in (0.001mm) |
| Velocity Range: | 0.0122 to 0.7300 in/μs (309.88 to 18542 m/sec) |
| Calibration: | Single and Two point calibration option for material & coating, or selection of basic material types. |
| Units: | English & Metric |
| CONNECTIONS |
| Output: | Direct USB-C 1.1 PC connectivity. |
| Transducer Connectors: | Two LEMO 00 connectors. |
| CERTIFICATION |
| Calibration: | Factory calibration traceable to NIST & MIL-STD-45662A. |
| WARRANTY |
| Warranty Period: | 2 year limited. |
