Transit-Time Technology — One, Two, or Four-Channel Configurations for Every Application
Ultrasonic Flow Meters are precision instruments that measure the volumetric flow rate of liquids through closed pipes using transit-time ultrasonic technology — one of the most accurate, durable, and operationally efficient flow-measurement methodologies available in modern industry. Two ultrasonic transducers mounted on (or in) the pipe send ultrasonic pulses both with and against the direction of fluid flow; the time difference between the upstream-traveling pulse and the downstream-traveling pulse is directly proportional to fluid velocity.
Multiplied by the pipe cross-sectional area, this transit-time difference delivers high-precision volumetric flow rate independent of the liquid's acoustic properties — supporting process-control, production-measurement, trade-settlement, regulatory-billing, and energy-monitoring applications worldwide. Unlike traditional mechanical flow meters (orifice plates, paddlewheels, turbines), ultrasonic meters have no moving parts in the fluid stream — meaning no pressure drop, no maintenance-prone bearings, no wear-and-replace cycles, and dramatically lower lifecycle cost across multi-decade service deployments.

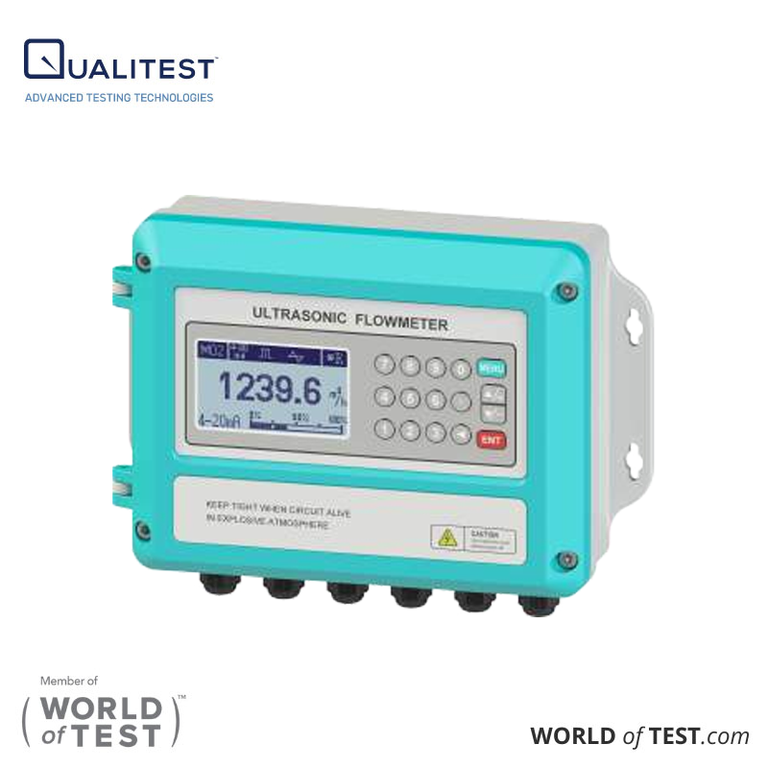

Qualitest's Ultrasonic Flow Meter Multi-channel Series brings transit-time ultrasonic precision to every installation environment through three complementary platforms, each engineered for specific operational scenarios. The Clamp-on Ultrasonic Flow Meter mounts transducers externally on the pipe surface — completely non-invasive, requiring no pipe cutting, no flow interruption, and zero damage to existing infrastructure, making it the ideal solution for retrofit installations on operational water-distribution networks, large-diameter pipes (where inline alternatives become prohibitively expensive), and temporary metering surveys.
The Flange-type Ultrasonic Flow Meter is the inline-installed precision platform — a flanged metering spool plumbed directly into the pipeline during scheduled shutdown or new-construction, delivering the highest permanent-installation accuracy required for trade-settlement, custody-transfer, and regulatory-billing applications. And the Insertion-type Ultrasonic Flow Meter combines direct-fluid-contact accuracy with non-stop installation — the transducer inserts into the pipe through a specialized opening tool without shutting off the water flow, providing stable, reliable, wetted-transducer measurement for medium-to-large diameter water mains, energy monitoring retrofits, and applications where flow interruption is operationally unacceptable.
All three Qualitest ultrasonic flow meter platforms share a common engineering foundation: advanced intelligence + integrative mixed signal processing technology delivering high-precision measurement results, IP-protected housings engineered for industrial-environment durability, and flexible multi-channel architecture supporting one-channel, two-channel, or four-channel configurations through user-selected converter-and-transducer combinations.
The multi-channel architecture is the defining advantage of the Qualitest portfolio — enabling redundant measurement paths (when one channel encounters an obstruction or signal abnormality, the system automatically continues operation through alternate channels), improved measurement accuracy across complex flow profiles, and the flexibility to match every installation site's precision and reliability requirements without specifying a different meter family for each project. Whether you need a non-invasive temporary survey, a permanent custody-transfer billing platform, or a wetted-transducer water-main installation, the Qualitest Ultrasonic Flow Meter Multi-channel Series delivers the precision, durability, and operational flexibility modern water-management and industrial-process operations demand.
Applications in Industries
- Water Supply & Distribution — Municipal water-mains flow monitoring, district-metering-area (DMA) measurement, leak-detection programs, water-loss reduction initiatives, and water-balance auditing across utility networks.
- Wastewater & Sewage Treatment — Treatment-plant inlet/outlet flow measurement, effluent-discharge monitoring, lift-station flow verification, and process-control flow data for STP and ETP operations.
- Petrochemical & Refining — Custody-transfer flow measurement, refinery process-control, terminal loading/unloading metering, and pipeline-transport flow monitoring across crude, refined-product, and chemical-feedstock applications.
- Metallurgy & Heavy Industry — Cooling-water flow monitoring, process-water management, plant utility metering, and energy-efficiency programs across steel, aluminum, and metals-processing operations.
- Energy Monitoring & Utilities — BTU and energy-metering applications, district heating/cooling flow measurement, chilled-water systems, hot-water distribution, and building-level energy submetering programs.
- Water Resource Management — Watershed flow gauging, irrigation-canal monitoring, dam-outflow measurement, groundwater-extraction quantification, and water-rights compliance verification programs.
- HVAC & Building Services — Chiller-loop flow measurement, boiler-water monitoring, cooling-tower makeup-water tracking, and commercial-building energy-management programs.
- Mining & Mineral Processing — Process-water management, tailings-line monitoring, mine-dewatering flow measurement, and operational water-balance programs across surface and underground mining operations.
- Power Generation — Cooling-water intake/outfall monitoring, boiler-feedwater flow measurement, steam-system condensate metering, and plant water-balance verification across thermal and nuclear plants.
- Trade Settlement & Custody Transfer — Regulatory-grade billing measurement, inter-utility transfer metering, and contract-flow verification supporting commercial water and energy transactions worldwide.
Product Comparison Table
Specification | Clamp-on Ultrasonic Flow Meter | Flange-type Ultrasonic Flow Meter | Insertion-type Ultrasonic Flow Meter |
Installation Method | Non-invasive — transducers clamp onto pipe exterior surface; no pipe cutting, drilling, or flow disruption required | Inline — flow meter spool installed via flanged pipe connection during scheduled shutdown or new construction | Insertion — transducers inserted into pipe through specialized opening tool; no flow shutoff required |
Pipe Contact | External clamp-on — no pipe penetration, no contact with fluid | Inline spool — fluid passes directly through metering body | Direct contact — transducer wetted by process fluid for stable, reliable measurement |
Technology | Advanced intelligence + integrative mixed signal processing for high-precision ultrasonic transit-time measurement | Advanced intelligent integrated mixed signal processing for high-precision flow measurement | Advanced intelligence + integrative mixed signal processing — high-precision flow analysis |
Channel Configurations | One, two, or four-channel configurations — converter + clamp-on transducers in flexible combinations | One, two, or four-channel configurations — converter + flange-type transducers in flexible combinations | One, two, or four-channel configurations — converter + insertion transducers in flexible combinations |
Protection Class | IP68 after gluing — full ingress protection against dust + immersion | Robust flange-mounted housing — industrial-grade IP protection | Robust insertion housing — protected against environmental ingress |
Installation Disruption | Zero — water flow does not need to be interrupted during installation; quick lossless install | Pipe cutting + flanging required; planned shutdown or new-pipe installation needed | Zero — specialized opening tool installs insertion transducer without water-flow shutoff |
Best Pipe Size Range | Excellent for medium-to-very-large diameter pipes; cost-effective vs inline alternatives on large bores | Best for small-to-medium pipe diameters where high accuracy & permanent installation justifies inline meter cost | Ideal for medium-to-large pipe diameters where direct-fluid contact accuracy matters and shutoff is impractical |
Maintenance Access | Easy — external clamps readily accessible without pipe shutdown | Standard inline maintenance — requires planned shutdown for transducer service | Insertion-point access — supports non-stop maintenance via opening tool |
Acoustic Coupling | Couplant gel/glue at pipe-transducer interface; reapplication after extended service | Direct acoustic path through process fluid in metering spool | Direct acoustic path through process fluid via wetted transducer |
Primary Strengths | Quick installation, lossless retrofit, no pipe damage, ideal for large-diameter & temporary measurement | Highest-accuracy permanent inline solution; ideal for trade-settlement and custody-transfer applications | Direct-fluid measurement stability + non-stop installation — best balance of accuracy and operational continuity |
Best Suited For | Water supply & drainage retrofits, large-diameter water distribution, temporary surveys, energy monitoring on existing infrastructure | Petrochemical custody transfer, metallurgy permanent process metering, new-build water-distribution metering stations, regulatory billing applications | Water resource management, large municipal water mains, energy-monitoring retrofits where stable wetted measurement is required without flow interruption |
Why Choose Qualitest for Your Ultrasonic Flow Metering Needs
Qualitest is a globally recognized supplier of advanced flow-measurement, water-quality, and analytical instruments, serving customers worldwide with one of the most comprehensive Ultrasonic Flow Meter Multi-channel Series portfolios available — engineered for the precision, durability, and installation flexibility that modern water-utility and industrial-process operations demand.
Three-Platform Portfolio — One Trusted Source
From the non-invasive Clamp-on Ultrasonic Flow Meter for retrofit and large-diameter installations, through the high-accuracy Flange-type Ultrasonic Flow Meter for permanent custody-transfer applications, to the direct-fluid-contact Insertion-type Ultrasonic Flow Meter for non-stop installations on operational water mains — Qualitest offers a coordinated portfolio matching every installation environment, pipe size, and accuracy requirement.
Multi-Channel Architecture — 1, 2, or 4 Channels
The defining advantage of the Qualitest Multi-channel Series is flexible converter-and-transducer combinations supporting one-channel, two-channel, or four-channel configurations across every platform. Multi-channel installations deliver redundant flow paths (when one channel encounters obstruction or signal abnormality, the system automatically continues operation through alternate channels), improved measurement accuracy across complex flow profiles, and matched precision-to-application without requiring different meter families.
Advanced Mixed-Signal Processing Technology
Every Qualitest ultrasonic flow meter incorporates advanced intelligence + integrative mixed signal processing technology — delivering the high-precision transit-time differential measurements that custody-transfer, trade-settlement, and regulatory-billing applications require. Combined with sophisticated signal-quality monitoring and automatic-fault-tolerance algorithms, the result is reliable measurement data even in challenging acoustic environments.
Zero-Disruption Installation Options
Both the Clamp-on and Insertion-type platforms enable installation without shutting off water flow — the Clamp-on through external pipe-surface mounting requiring no pipe penetration, and the Insertion-type through a specialized opening tool that installs the wetted transducer while flow continues. This eliminates costly production shutdowns, retrofit construction interruptions, and customer-service disruptions across utility installations.
IP68 Protection & Industrial Durability
The Clamp-on Ultrasonic Flow Meter delivers IP68 protection after gluing — full ingress protection against dust and water immersion, enabling reliable operation in buried installations, submerged locations, and aggressive outdoor environments. Combined with industrial-grade housings across the Flange-type and Insertion-type platforms, the Qualitest portfolio is engineered for multi-decade outdoor and harsh-environment service.
Versatile Across Industries & Liquids
Qualitest ultrasonic flow meters serve every industry where accurate liquid flow measurement matters — water supply and drainage, metallurgy, petrochemicals, water resource management, energy monitoring, HVAC, mining, power generation, and trade-settlement applications. Various liquids can be accurately measured — clean water, treated effluent, refined fuels, chemicals, glycol mixtures, and a wide range of process fluids — without specifying separate meter technologies.
Cost-Effective Value & Global Support
Qualitest delivers premium ultrasonic flow metering performance at a transparent, competitive price point — backed by global service, training, calibration support, transducer-coupling-gel replacements, and stocked accessories worldwide. With offices and authorized partners across the world, expert installation, operator training, and ongoing service are always within reach.
Measure Every Flow. Optimize Every Operation.
In every water utility, every wastewater treatment plant, every petrochemical refinery, every power station, every mining operation, and every district-heating network worldwide, accurate flow measurement is the silent foundation of operational efficiency, regulatory compliance, and commercial billing accuracy. A failed mechanical flow meter means undetected water loss, unbilled custody transfers, hidden energy waste, and missed contamination events; an inaccurate orifice plate means production-blending errors, regulatory non-compliance, and lost revenue across multi-year operating periods. The water utilities, industrial operators, energy networks, and commercial-billing organizations that consistently deliver precise, regulator-compliant, audit-ready flow data are the ones equipped with ultrasonic flow meters built for transit-time precision, multi-channel architecture, and full operational-deployment flexibility — and the Qualitest Ultrasonic Flow Meter Multi-channel Series gives you exactly that.
Whether you are commissioning a new municipal water-distribution metering station, retrofitting district-metering-area flow measurement across a buried utility network, supporting petrochemical custody-transfer for regulatory billing, installing large-diameter water-main metering without service interruption, or building energy-monitoring submetering programs for commercial buildings, Qualitest has the ultrasonic flow meter engineered to meet your exact needs. From the non-invasive Clamp-on platform to the precision Flange-type spool and the non-stop Insertion-type wetted-transducer system, every Qualitest ultrasonic flow meter delivers world-class performance backed by industry-leading service and support.
