QualiUVCure™ Series UV Curing Solidifying Machine

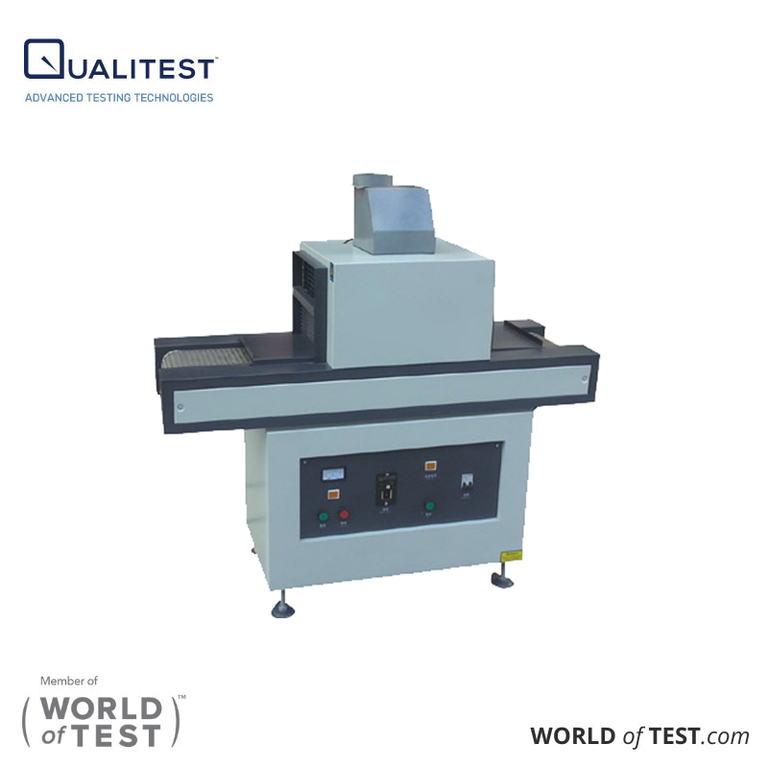

UV Curing Solidifying Machine

The QualiUVCure-Series UV Curing Solidifying Machine is widely utilized for curing UV paint, UV glue, UV inks, and UV gloss ink. Its compact size, cost-effectiveness, and practicality are its standout features, making it ideal for small batches, trial production, or for use in small enterprises. It's also highly favored by painting and glue manufacturers for research and development purposes.

Available Models:

  1. QualiUVCure™ 100
  2. QualiUVCure™ 200
  3. QualiUVCure™ 300
  4. QualiUVCure™ 400
  5. QualiUVCure™ 500

UV Curing Solidifying Machine Features

  • Portability and Compact Design: Equipped with a single UV lamp, suitable for both assembly lines and manual work.
  • User-Friendly Operation: Designed for mass production, featuring standardized components for simplified operation and maintenance at a low cost.
  • Efficient Cooling System: Incorporates a reasonable exhaust design coupled with an effective cooling mechanism.
  • Adjustable Speed: Offers flexibility in speed settings within the effective range.

UV Curing Solidifying Machine Technical Specifications:

Parameters

QualiUVCure™ 100QualiUVCure™ 200QualiUVCure™ 300QualiUVCure™ 400QualiUVCure™ 500
Power supply

220VAC/50HZ

380VAC/50HZ---
Total power

2.2KW

2.2KW3.5KW5.0KW7.2KW
UV lamp Power

2KW

2KW3KW2KW3KW
Number of Lamp

1 pc

1 pc1 pc2 pc2 pc
Speed range

0-10 m/min

----
Belt Material

Stainless steel or TEFLON

----
Cooling System

Air Cooling

----
Main Wavelength

365 nm


Lamp Life

600 hours, over 75% intensity

----
UV lamp type/Unit power

High-pressure mercury lamp；100w/m

----
Entrance Height

0～100mm

----
Belt Width

300mm

300mm300mm300mm300mm
Dimensions (L×W×H), cm

125×44×120

125×54×120150×60×122180×60×132180×60×132
Weight, KG

80

90150180250
