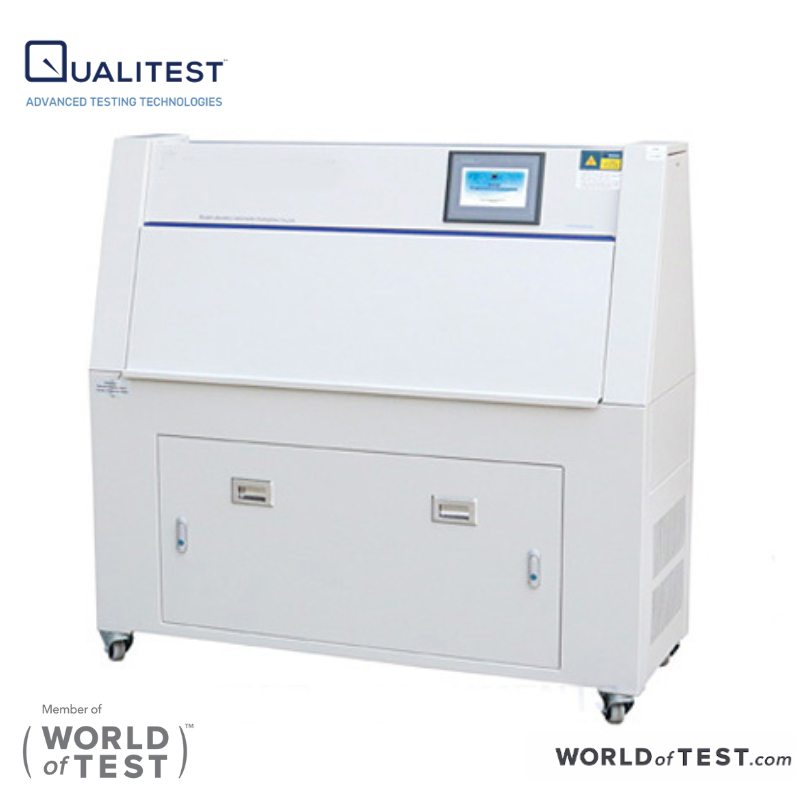

UV Light Accelerated Test Chamber - QualiUV™ 200
Request A Quote
Parent Product
UV Test Chambers – UV Accelerated Weathering Testers
Standards
ASTM D4329
ASTM D4587
ASTM G151
ASTM G154
BS 2782
ISO 11507
ISO 16474-1
ISO 16474-3
ISO 4892-1
ISO 4892-3
JIS D 0205
SAE J2020
View PDF
Download PDF Brochure
UV Light Accelerated Test Chamber - QualiUV™ 200 (PDF)

QualiUV™ 200 - UV Light Accelerated Test Chamber

UV Light Accelerated Test Chamber - Qualitest-UV200-

Test Methods & Standards

  • ISO 16474-1 Paints and varnishes--Methods of exposure to laboratory light sources -- Part 1: General guidance
  • ISO 16474-3 Paints and varnishes--Methods of exposure to laboratory light sources -- Part 3: Fluorescent UV lamps
  • ISO 11507 Paints and varnished--Exposure of coatings to artificial weathering- Exposure to fluorescent UV lamps and water
  • ISO 4892-1 Plastics-Methods of exposure to laboratory light sources-Part 1: General Guidance
  • ISO 4892-3 Methods of exposure to laboratory light sources-Part 3: Fluorescent UV lamps
  • ASTM D 4587 Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings
  • ASTM D 4329 Standard Practice S for Fluorescent UV Exposure of Plastic
  • ASTM G 151 Standard Practice for Exposing Non-metallic Materials in Accelerated Test Devices that use laboratory light
  • ASTM G 154 Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Non-Metallic Materials
  • BS 2782: Part5, Method 540B (Methods of Exposure to Lab Light Sources)
  • SAE J2020 Accelerated Exposure of Automotive Exterior Malts Using a Fluorescent UV/Condensation Apparatus
  • JIS D 0205 Test Method of Weather-ability for Automotive Parts
UV Light Accelerated Test Chamber - Qualitest-UV200



UV Light Accelerated Test Chamber - QualiUV™ 200 Features:

  • Original UVA or UVB lamps made in the USA ensure the comparability of test results.
    QualiUV™ 200 UV Light Accelerated Test Chamber utilize US-made fluorescent UV lamps as the light source for testing. Compared to other lamp types, including Xenon lamps, UV lamps offer greater stability. The power distribution of their spectrum remains constant, even after weathering for up to 6,000 hours. This results in more consistent test outcomes, reduces the frequency of lamp replacements, and lowers operational costs. These US-made lamps are the result of 40 years of experience and expertise in fluorescent technology. They are specially designed and rigorously tested to meet the highest quality standards.
  • Irradiance can be automatically controlled through a closed-loop system, ensuring precise and steady irradiance values.
    The QualiUV™ 200 UV Light Accelerated Test Chamber stands out due to its automatic control and adjustment capabilities during the testing process. As is widely recognized, energy plays a pivotal role in the aging of polymer materials during testing. To ensure the reproducibility and comparability of test results, UV energy serves as a critical technical indicator. The system continually monitors the energy value throughout the testing process. When the lamp's energy falls below the expected level, the system detects the variance and automatically replenishes the energy.
  • Irradiance can also be calibrated automatically.
    Similar to other lamps, the energy of QualiUV™ 200 UV lamps decreases with prolonged use. The control system compensates for this by increasing the voltage to the lamps. However, over time, the energy of the lamps diminishes continuously. For high setpoints of irradiance, QualiUV™ 200 may no longer maintain the desired irradiance, and the system will generate an error message indicating that the irradiance deviation is too significant, prompting the machine to shut down. In such cases, the operator should calibrate the chamber using a standard calibration radiometer. If the machine still doesn't achieve the setpoint after calibration, the user should replace the two lamps corresponding to the relative sensor and recalibrate.
UV Light Accelerated Test Chamber - Qualitest-UV200-7

UV Accelerated Test Chamber Model QualiUV™ 200 comes calibrated with the optional Calibration Radiometer, which can be used to calibrate multiple units. This radiometer can assess fluorescent UV lamps, calibrating both UVA and UVB lamps separately. The UVB lamps are calibrated at a wavelength of 313 nm with units of W/m²/nm, while the UVA lamps are calibrated at 340 nm with units of W/m²/nm.

The Calibration Radiometer consists of a radiometer and a sensor. The sensor is highly sensitive to ultraviolet rays but does not respond to visible light, and only exhibits minimal reactivity to infrared light, which can be disregarded. This makes the radiometer immune to the influence of other types of radiation.

UV Light Accelerated Test Chamber - QualiUV™ 200

Water Spray and Condensation Function

  • Water Spray: In certain applications, water spray can better simulate end-use environmental conditions. Water spray effectively mimics the effects of heat shock or mechanical erosion resulting from rapid temperature changes or rain. For instance, a sudden rainstorm on a sunny day can cause heat shock due to extreme temperature fluctuations, severely testing the properties of many materials. QualiUV™ 200's water spray system features 12 nozzles, with six on each side of the test chamber. The system can run for a few minutes before shutting down, rapidly cooling the samples and creating heat shock conditions.
  • Condensation: In many outdoor environments, materials are exposed to wet conditions for over 12 hours each day. Studies have revealed that this outdoor moisture exposure is primarily caused by dew, rather than rain. BUV simulates outdoor moisture erosion using its unique condensation capabilities. During the condensation cycle, water at the bottom of the chamber is heated to produce superheated steam that fills the test chamber. The hot steam maintains 100% relative humidity within the chamber, along with a relatively high temperature. Samples are affixed to the chamber's wall, with one side exposed to the ambient air inside the chamber and the other side exposed to the natural environment, creating a temperature difference. This temperature difference results in constant condensation, causing water droplets to form on the test surfaces.

Automatic Temperature Control with a High-Precision Pt 100 Temperature Sensor

In each cycle, the temperature can be precisely controlled at a set value. The black panel thermometer, consisting of a PT100 sensor and a metal panel coated in black paint, monitors the temperature of the test panels. Temperature adjustments can accelerate the aging process, and maintaining precise temperature control is crucial for test reproducibility. The BST Black panel thermometer allows users to set values according to their specific requirements, with automatic control throughout the test. Periodic calibration is also supported.

Compliance with Multiple Test Standards and User-Editable Test Programs

Operators can freely edit different test programs to meet various standards and test methods. Each program can consist of up to 10 segments, each with different work conditions related to irradiation, water spray, condensation, and finishing, along with relevant test parameters. QualiUV™ 200 allows operators to save up to six test programs for future use. Once a program is set and saved, users can easily select it for subsequent tests without the need for reconfiguration.

Touch Screen Control with User-Friendly Interface

UV Light Accelerated Test Chamber Model QualiUV™ 200 features an intuitive high-definition color touch screen for all controls and data displays. The menu operation interface is user-friendly, providing easy access for operators to operate and maintain the unit. During operation, all parameters are readily visible on the touch screen.

Real-Time Data Collection and Conversion to Excel Format

QualiUV™ 200 can collect and store data in real-time, and all testing data can be automatically converted into Excel format and saved. A USB interface on the QualiUV™ 200 UV Light Accelerated Test Chamber allows operators to export running parameters at any time, simplifying data retrieval and analysis. This feature enables unattended operation and data analysis.

TCP/IP Ethernet Interface for Remote Monitoring

With the TCP/IP Ethernet interface, users can remotely monitor QualiUV™ 200’s status through the internet.

UV Light Accelerated Test Chamber - Qualitest-UV200



UV Light Accelerated Test Chamber - QualiUV™ 200

Technical Specifications:

Light SourceUVA (wavelength 340 nm) or UVB (wave length 313 nm); 40W × 8 pcs (The normal use-life is 6,000 hours)
The range of Irradiance0.3 W/m2~ 1.55 W/m2
Temperature RangeBlack Panel temperature（BPT）：RT+10℃~80℃
Interior of cabinetStainless steel -SUS 304 material
Exterior of cabinetPowder coating on SUS 304
Insolating Area5,175cm2/828in2
Sample Capacity48 pieces of standard specimen（75mm×150mm standard samples）or 15 pieces of 100mm×300mm
Adjustable range for water supply 0-4LPM
Water Consumption7L/day（for condensation）,3L/minute（for spray）
Overall Size1,360mm×560mm×1,290mm（L×W×H）
Net Weight161 kg
Total Max. Power2kW
Power220VAC±10%/50Hz（110V/60Hz available as option. Please specify when ordering）;10A ( Max Electric Current )



Available Options:

  • UVB Lamp (40KW / 313nm)
  • UVA Lamp (40KW / 340nm)
  • Calibration Radiometer (310nm and 340nm)
  • Sample Shelf
