Vacuum Spin Coater QualiSC™ 100

Vacuum Spin Coater QualiSC™ 100 is designed for laboratory thin-film formation. Using high-speed rotation, it applies sol-gel and other high-viscosity solutions onto sample surfaces. This system is widely used in research laboratories, universities, and industrial facilities.

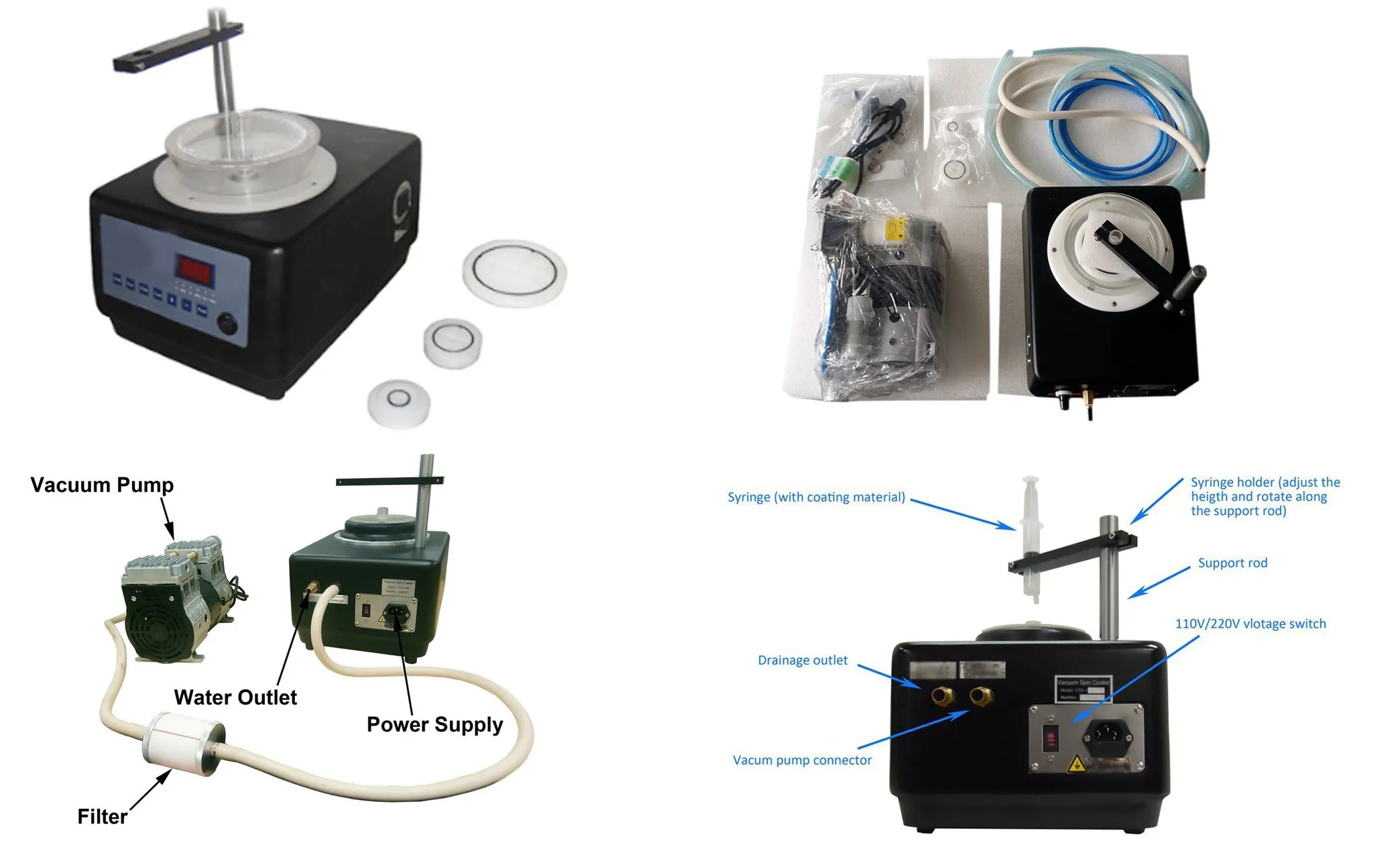

Vacuum Spin Coater QualiSC-100

Vacuum Spin Coater QualiSC™ 100 Main Features

  • Two-segment programmable speed control
  • Vacuum substrate fastening for easy operation
  • Durable aluminum cast structure with stable performance and low noise

Vacuum Spin Coater QualiSC™ 100 Technical Specifications

ParameterSpecification
Speed AdjustmentTwo segments adjustable between 500-8000rpm
Time AdjustmentTwo segments 1-600S
Vacuum Pump Flow SpeedMore than 60L/min
Power150W
VoltageAC220/110V 50/60Hz
Coating Procedure

A two-step coating procedure can be set up, and the rotational speed stability is (+1%) to make the coating more uniform.

SPD1 speed: 500-8000 RPM effective
T1 time: 1-600S effective
SPD2 speed: 500-8000 RPM effective
T2 time: 1-600S effective

Size400mm × 300mm × 200mm
Weight20kgs
Standard AccessoriesDia. 25mm, 50mm, 100mm (each one)
Slurry feeder: 1 pc
Power cord: 1 pc
120L/min Oil-less vacuum pump
Optional Equipment60L/min oil vacuum pump
Particular vacuum chuck
