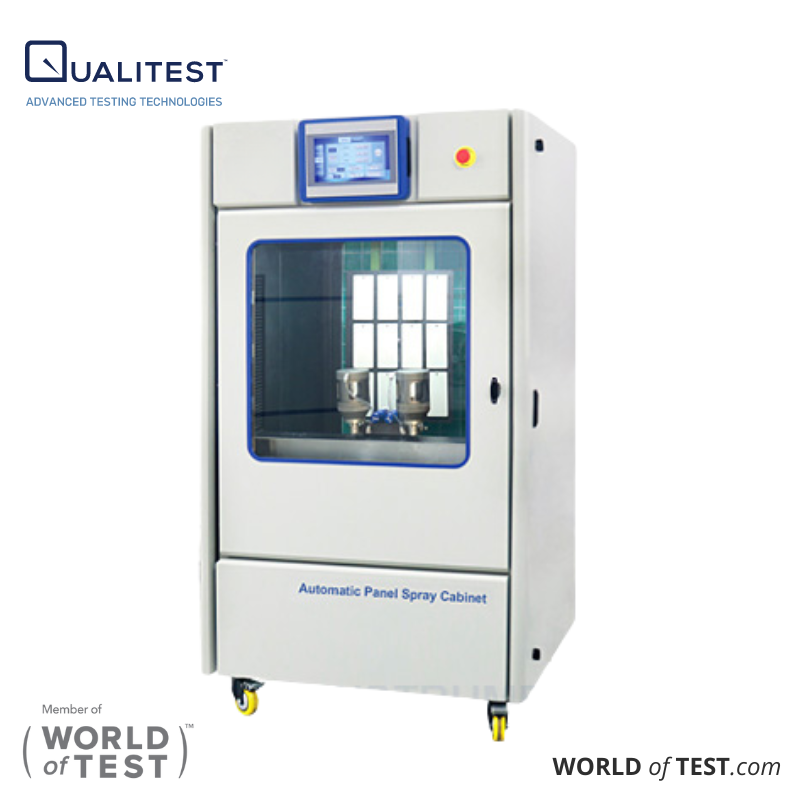

Vertical Automatic Panel Spray Cabinet
The paint laboratory always requires a large number of uniformly coated test panels to evaluate paint film performance. However, results from traditional manual spraying rely heavily on the operator's experience and skills. This not only makes it challenging to ensure coating uniformity, especially on large test panels, but also poses risks to operator health and the environment due to potential improper spraying techniques. In response to this, Qualitest offers the Vertical Automatic Panel Spray Cabinet, which offers several advantages:
- Features a 10-inch touch screen for intuitive operation.
- Uses a servo control system, allowing for horizontal, vertical, or cross spraying methods. The panel holder can rotate 90 degrees for enhanced coating uniformity. Users can freely set the spraying area, reducing waste and saving time.
- Users can adjust parameters such as spraying speed, pressure, atomization, feeding, and interval. Additionally, up to 8 spraying programs can be edited and pre-set, simplifying spraying operations for less experienced operators.
- The panel holder is easily disassembled, and panels can be quickly replaced. Equipped with both magnetic and vacuum panel holders, the machine accommodates substrates of different materials.
- Equipped with dual spray guns, featuring imported Graco LVMP automatic spray guns with a 1.0mm nozzle diameter.
- Automatic spray guns can be quickly assembled and disassembled, facilitating easy interchange between different spray guns.
- Uses disposable cups for sample spraying, offering simplicity, convenience, low cost, and no cleaning required.
- Easy-to-clean design with slide-out filter and scrap tray. The three-door cabinet structure allows for convenient cleaning, and disposable bottles are used for containment.
- Equipped with a working room air intake filter system, ensuring a clean spraying environment and filtering paint mist exhaust gases. This system also effectively separates operators from mist, promoting health and environmental friendliness.
- The instrument's inner wall is coated with Teflon non-stick coating for easy cleaning.
- Equipped with a flammable gas alarm system to enhance operational safety.
- Features a door limit switch function, automatically stopping the machine when the door is opened to protect operator safety.
- Optionally available with a customized special facility for setting required film thickness for spraying, with automatic and precise system control.
