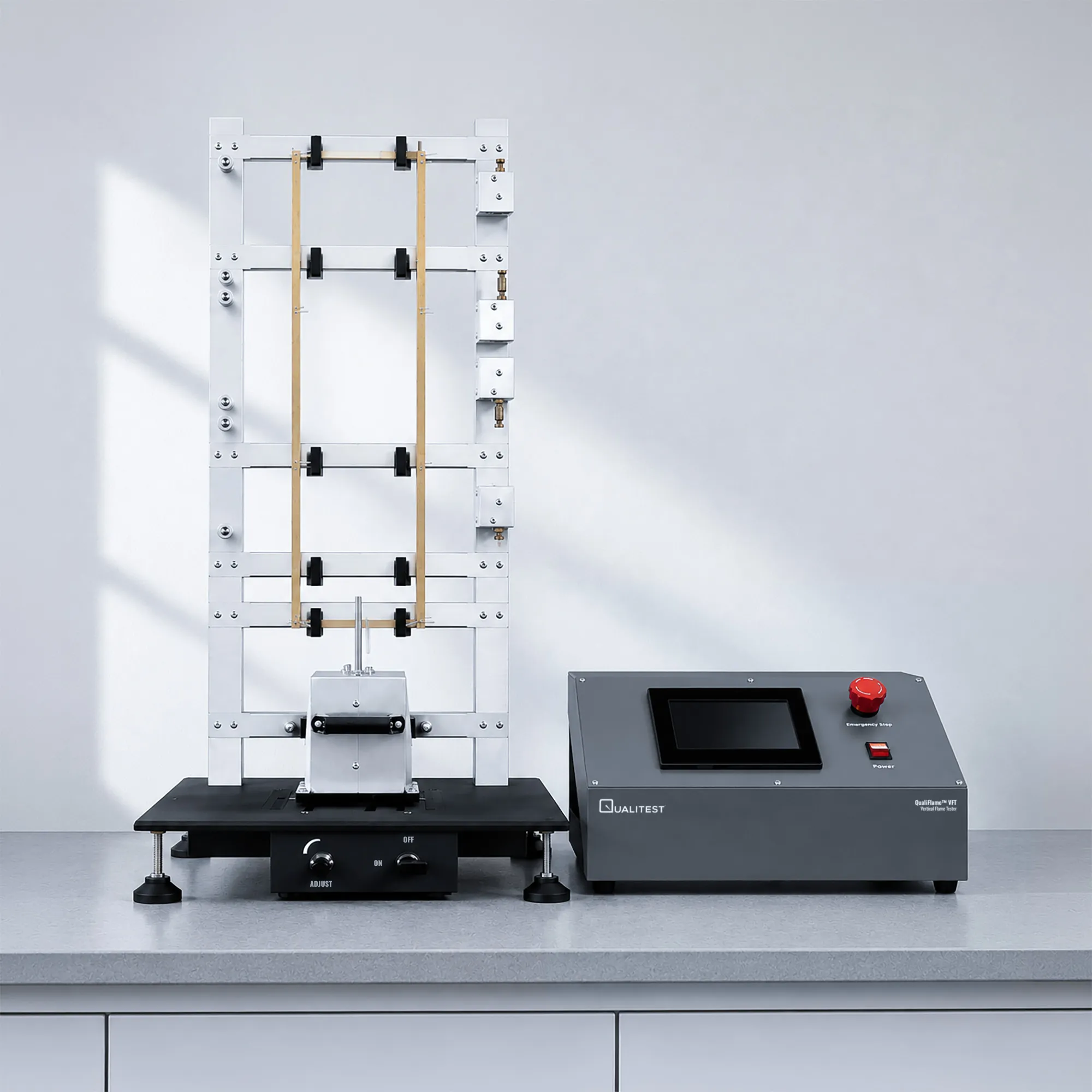

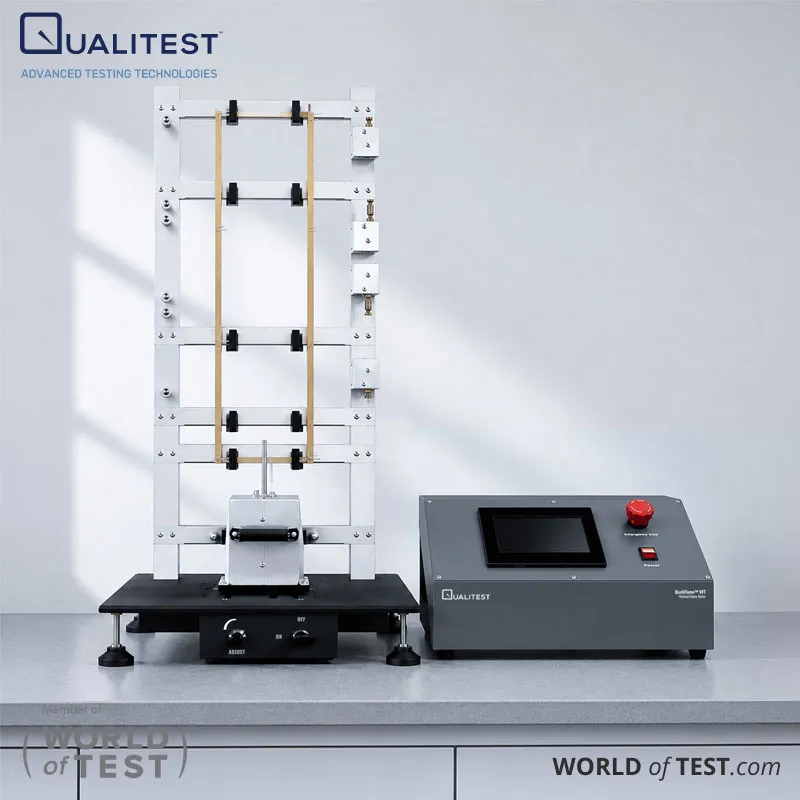

Fire and Flammability Tester for Automotive Hanging Interior Materials
QualiFlame™ VFT is a precision vertical flame tester designed for evaluating the flammability and fire resistance performance of curtains, sunshades, and other vertically hung interior materials used in Class M passenger vehicles carrying more than 22 occupants. As a purpose-built fire and flammability tester for the automotive interior materials market, the QualiFlame™ VFT delivers highly repeatable, standard-compliant vertical burning rate measurements in a compact, laboratory-ready platform.
This vertical flame tester operates by vertically securing a prepared specimen in a stainless steel specimen holder, exposing it to a calibrated flame from a brass burner for a precise 5-second interval, and automatically recording the time at which the flame extinguishes, the burned distance, and the resulting vertical burn rate. The entire test sequence — ignition, timing, flame extinction, and data calculation — is fully automated via PLC and touchscreen control, eliminating manual timing errors and ensuring result-to-result consistency.
The QualiFlame™ VFT is an essential flammability tester for automotive OEMs, Tier 1 suppliers, material testing laboratories, and regulatory compliance facilities across the United States and Canada that need to demonstrate conformance with ECE Regulation No. 118 (Annex 8) and equivalent international standards. Its robust stainless steel construction, high-voltage pulse auto-ignition, and sensor-based flame detection make it one of the most reliable vertical flame testers available for production QC and R&D environments.
