Vertical Heat Seal Tester QualiSeal-C

Vertical Heat Seal Tester QualiSeal-C
Parent Product
Heat Seal Tester
Standards
ASTM F2029
Download PDF Brochure
Vertical Heat Seal Tester QualiSeal-C (PDF)

The Vertical Heat Seal Tester QualiSeal-C is designed to accurately measure heat sealing parameters such as temperature, time, pressure, and other performance metrics crucial for plastic packaging vertical bags, paper-plastic composite vertical bags, and metal composite vertical bags (boxes). Different materials exhibit varying heat sealing capabilities, necessitating precise determination of optimal heat sealing conditions.

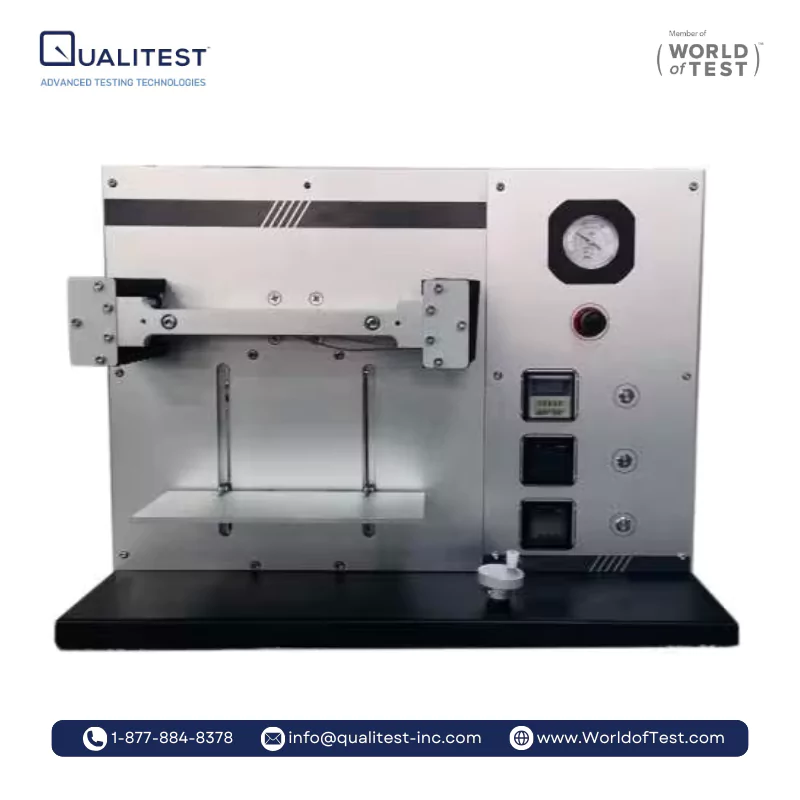

Vertical Heat Seal Tester QualiSeal-C

QualiSeal-C Vertical Heat Seal Tester

Testing Procedure:

  • Place the sample on the lower tray of the instrument and adjust the height accordingly based on the sample size.
  • Set the desired sealing temperature, time, and pressure.
  • Initiate the instrument with a single key press, prompting the fixture to heat seal the sample according to the set parameters.
  • In manual mode, activate the heat sealing knife by stepping on the foot switch. The sealing time is determined by the value set on the time control.
  • In automatic mode, the upper and lower heat sealing knives of the heat sealer automatically repeat the sealing process according to the preset time.

Standards:

ASTM F 2029

Applications:

Plastic stand up pouch



Paper plastic stand up pouch



Plastic stand up pouchPaper plastic stand up pouch
Aluminized stand up pouch



Milk Boxes



Aluminized stand up pouchMilk Boxes



Features of Vertical Heat Seal Tester QualiSeal-C

  • High-Performance Quality Sensor: Incorporates a world-class temperature sensor with a wide temperature control range, high sensitivity, and temperature control accuracy of ±1°C. It offers ultra-high stability and an exceptionally low failure rate.
  • Independent Control of Heat Sealing Temperature: Features a temperature sensor located at the back of the heat sealing knife, allowing for independent temperature control of the inner and outer sealing knives, which can be set separately.
  • Personalized Test Selection: Offers the flexibility to choose between manual and automatic testing. The automatic mode is time-saving and convenient, providing fully automated, repeatable heat sealing of the sample. In manual mode, a suitable foot switch is provided for activating the heat sealing knife, ensuring easy and safe operation.
  • New Air Drive System: The drive system comprises a pressure gauge, pressure regulating valve, and cylinder. Once compressed air is introduced, the pressure can be adjusted through the pressure valve, accurately locking the air pressure. The heat sealing clamp is pneumatically driven, ensuring convenience and efficiency.
  • Expanded Customization Options: The heat sealing knife can be upgraded with an anti-sticking function as required, enhancing user experience and facilitating intuitive determination of the best heat sealing conditions. Additionally, the shape, size, and smoothness of the sealing knife heat cover can be customized to meet various scientific research needs.

Technical Specifications of Vertical Heat Seal Tester QualiSeal-C

ItemTechnical parameters
Temperature rangeRoom temperature～250℃
Temperature ±1℃
Seal time range0.1s～99.99 h
Pressure range(0~1) MPa
Heat seal areaUpper and lower sealing knife 300×5.5 mm, slide lower bar
has a silicone pad as a buffer
Heat seal methodTwo ways: automatic or manual, external air cylinder
Air supplyCompressed air
Instrument size730(L) mm×400(B) mm×535(H) mm
Weight45 kg
Power1200 W
Power supplyAC 220V，50Hz (110V Also Available)

Customer to provide:

Air Compressor 2.5HP 8KG pressure, High pressure air pipe (Φ8mm plastic pipe), Air filter (dust filter, oil filter, water filter) for setup and installation
