VMS video measuring system

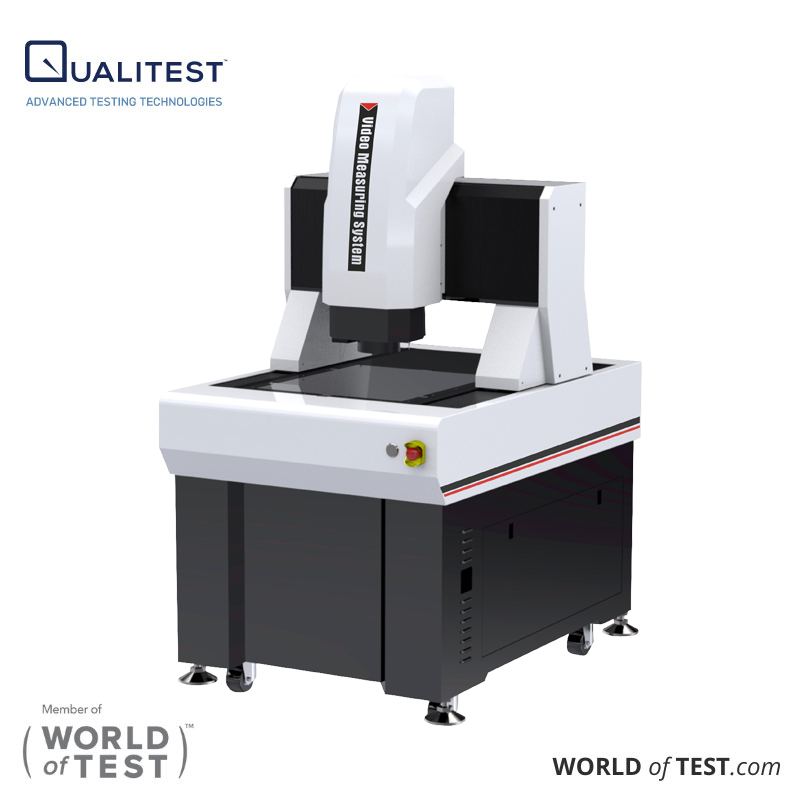

VMS video measuring system - Moving Bridge Automatic Video Measuring System - Automea Series
Parent Product
VMS video measuring system

VMS video measuring system - Moving Bridge Automatic Video Measuring System - Automea Series

The VMS Video Measuring System, part of the Automea Series. This cutting-edge system features a Moving Bridge Automatic design for precise measurements in various industries. With features such as four-axis CNC control, high-precision glass grating ruler, and iMeasuring software, the VMS ensures accuracy and reliability. Optional configurations like touch probes and laser probes cater to specific needs. Get the precision you need with the VMS Video Measuring System.

Automea is a cutting-edge, fully automated vision measuring device built for precise and extensive measurements. Featuring a movable bridge structure, it ensures steadfast accuracy and stability by keeping the workpiece stationary during measurement. Tailored for various industries including electronics, medical equipment, LCD, aerospace, and aviation, Automea stands as a reliable solution for high-precision measurement needs.

VMS video measuring system



Product Size (Example withAutoMea432）

VMS video measuring system

VMS video measuring system

VMS video measuring system - Moving Bridge Automatic Video Measuring System - Automea Series Features

  • Utilizes a moving bridge structure with a fixed workpiece for stability.
  • Equipped with four-axis CNC fully automatic closed-loop control for seamless measurement.
  • Built on a marble base and crossbeam for optimal stability and reliability.
  • Incorporates a 0.5μm high-precision glass grating ruler to ensure exceptional precision and stability.
  • Utilizes precision linear guide, ground ball screw, and AC servo motor for precise motion system positioning accuracy.
  • Features a high-resolution color camera for clear observation and consistent measurement.
  • Includes a 6.5X high-definition optical lens for precise automatic zooming with one-pixel calibration.
  • Equipped with a programmable 5-ring 8-zone LED surface light and parallel LED contour light system for intelligent 256-level brightness adjustment.
  • Comes with iMeasuring fully automatic image measurement software, known for its power and user-friendly interface.
  • Offers optional configurations such as touch probes, laser probes, and customizable features based on specific requirements.

VMS video measuring system - Moving Bridge Automatic Video Measuring System - Automea Series Technical Specifications

Commodity Moving Bridge Automatic Video Measuring System Automea Series
Model Automea432 Automea542 Automea652 Automea862
X/Y Axis Travel (400*300)mm (500*400)mm (600*500)mm (800*600)mm
Z Axis Travel 200mm
X/Y/Z-3 Axis Linear Scale Glass grating ruler, resolution: 0.5um
Guidance Mode Precision linear guide rail, dual track with double slider guidance
Operation Mode Joystick controller, Mouse operation, automatic detection program.
Accuracy* XY Axis：≤2.5+L/200(um)
Z Axis：≤5.0+L/200(um)
Repeatability 2um
Illumination
System | Contour		 LED parallel contour illumination
Illumination
System | Surface		 0~255 Stepless adjustable 5-ring 8-division LED surface illumination
Video System** 1/2.9”High-Definition Digital Color Camera
6.5X Manual Zoom Lens; Optical Magnification: 0.7X-4.5X, Video Magnification: 26X~172X (21.5“monitor)
Measuring Software iMeasuring
Operating System Support WIN10/11-32/64 bit operating system
Language English, Optional other language versions
Working Environment Temperature 20℃±2℃, temperature change<1℃/Hr; humidity 30%~80%RH; vibration<0.02g's, ≤15Hz.
Power Supply 220V/50Hz/10A
Dimension(WxDxH) (1195*832*1579)mm (1463*940*1591)mm (1568*1040*1591)mm (1818*1157*1590)mm
Packing Size(WxDxH) (1380*1170*1910)mm (1690*1300*2000)mm (1800*1400*2000)mm (2300*1700*2000)mm
Net Weight 650Kg 780Kg 1380Kg 2000Kg



Product Configuration Model Description (Example with Automea432）

Product Category 2.5D 3D 2.5D 3D
Commodity 2.5D Automatic Video Measuring System 3D Automatic Contact & Video Measuring
System		 2.5D Automatic Laser-Scan & Video Measuring
System		 3D Automatic Multisensory
Measuring Machine
Product Picture VMS video measuring system VMS video measuring system VMS video measuring system VMS video measuring system
Model Automea432A Automea432B Automea432C Automea432D
Type A B C D
Significance Optical Zoom-lens Sensor Zoom-lens Sensor and Contact
Probe Sensor		 Zoom-lens Sensor and Lazer Sensor Zoom-lens Sensor, Contact ProbeSensor and Lazer Sensor
Contact Probe Without MCP-Kit1 Without MCP-Kit1
Lazer Module Without Without Omron Lazer Omron Lazer
Software Version iMeasuring4.1 iMeasuring4.2 iMeasuring5.0 iMeasuring5.1



Moving Bridge Automatic Video Measuring System Measurement Space Guide Table

Travel Model Accuracy X Axis Travel mm Y Axis Travel mm Z Axis Standard
Travel mm		 Z Axis Maximum Custom Travel mm
E1x,y E1z
400X300X200 Automea432 2.5+L/200 5.0+L/200 300 400 200 400
500X400X200 Automea542 400 500 200 400
600X500X200 Automea652 500 600 200 400
800X600X200 Automea862 600 800 200 400
1000X800X200 Automea1082 3.0+L/200 5.0+L/200 800 1000 200 300
1200X1000X200 Automea12102 1000 1200 200 300
1500X1200X200 Automea15122 1200 1500 200 300
1800X1200X200 Automea18122 3.5+L/200 5.0+L/200 1200 1800 200 200
2000X1500X200 Automea20152 1500 2000 200 200
2600X1600X200 Automea26162 1600 2600 200 200
