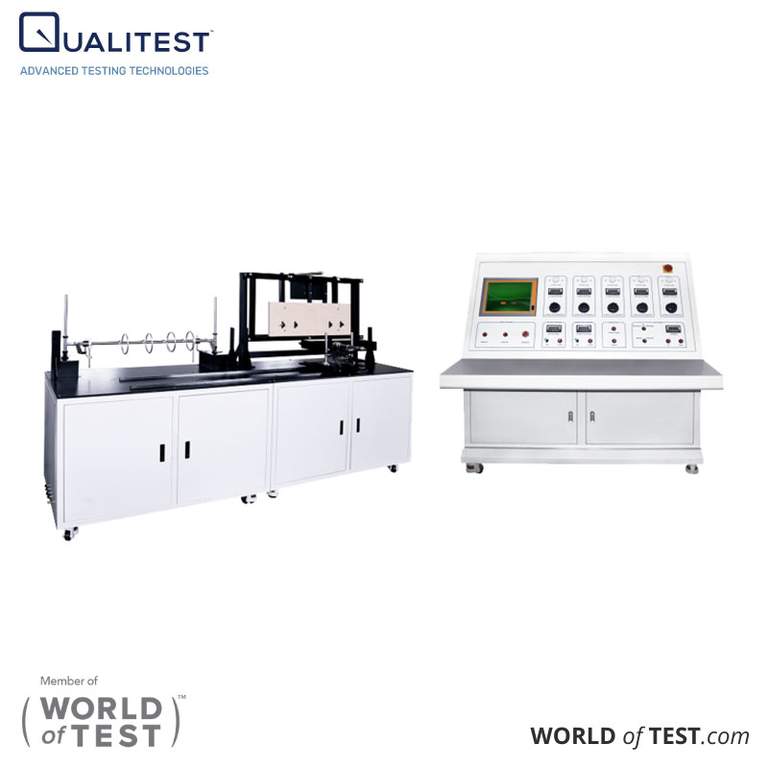

Wire & Cable Fire Resistance Tester

Wire & Cable Fire Resistance Tester Features

• Independent control and test bench design ensure control safety and reliability.
• Provides an adjustable transformer voltage to accommodate different product operating voltages and ensure sufficient test voltage in case of current leakage.
• Features five test channels, with transformer voltage in series with a fuse and circuit breaker for protection of each test circuit.
• The test benches are well-grounded and include fuse protection.
• 15" industrial touchscreen computer for easy operation and use.
• Standard operating software includes test control, data recording, data processing, and report generation.
• The standard specimen support frame, metal ring, and support structure are well-grounded. The gas supply system consists of a pressure-reducing valve, pressure gauge, mass flow meter, venturi mixer, and burner.
• Provides a standard 500mm ribbon-type gas burner, supplying a propane flame of 650°C ± 40°C, 750°C ± 50°C, or 950°C ± 40°C.
• (Optional) Provides a standard 610mm tube-type gas burner, supplying a propane flame of 950°C ± 40°C.
• The gas pressure-reducing valve ensures a stable 0.1 MPa ± 3 Pa outlet pressure.
• The pressure gauge displays pressure readings up to 200 kPa.
• The mass flow meter ensures a consistent propane gas supply with an accuracy of ±2%.
• Includes a flame calibration device with a K-type stainless steel insulated thermocouple, displaying calibration results directly in the software.
• The flame application time can be set and will automatically shut off when completed.

Independent Test Benches:

• Resistance to fire alone test bench.
• Resistance to fire with water test bench.
• Resistance to fire with mechanical shock test bench.
