The QualiXenon™ 400 is a multifunctional standard Xenon Arc Test Chamber, equipped with three US-made Xenon lamps. It offers a choice of daylight, window glass, or extended UV filters to meet all standard requirements.

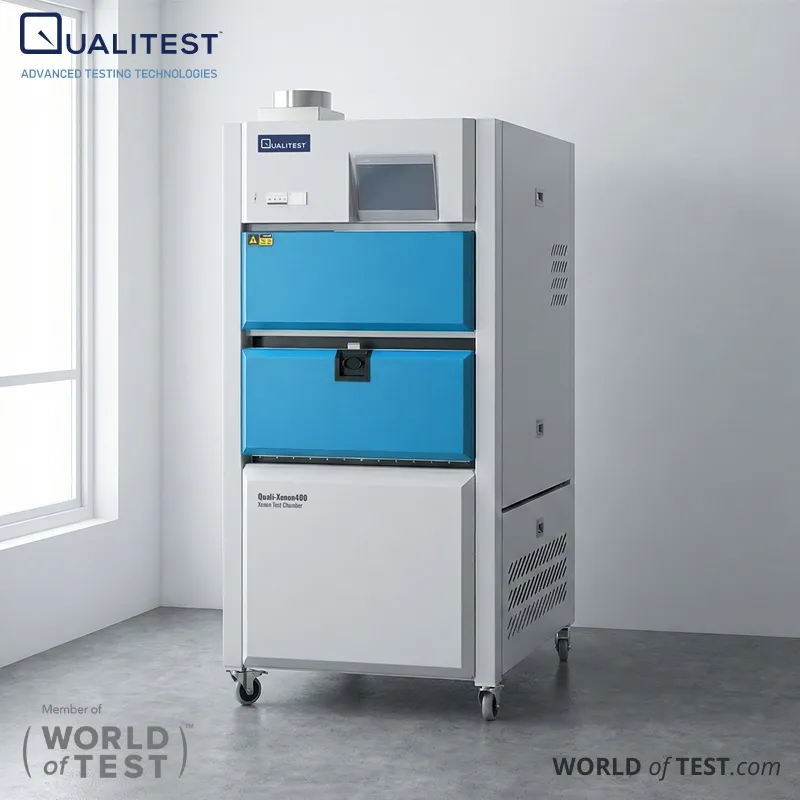

Xenon Arc Test Chamber QualiXenon™ 400

This Xenon Arc Test Chamber can accommodate up to 25 sample pieces and features not only a spray function but also the capability to control the relative humidity within the working space.

Operators can easily set all required test parameters (such as Irradiance, test time, BPT, etc.) via the touchscreen interface and monitor the Xenon chamber's running status in real time. Additionally, all operational parameters can be exported to a computer through the USB interface for further analysis or record-keeping.

Xenon Arc Test Chamber Quali-Xenon400

Xenon Arc Test Chamber Quali-Xenon400

Test Standards

ISO 12040 《Graphic Technology - Prints and Printing Inks - Assessment of Light Fastness Using Filtered Xenon Arc Light》
ISO 16474-2 《Paints and varnishes -- Methods of exposure to laboratory light sources -- Part 2: Xenon-arc lamps》
ASTM D3451 《Standard Guide for Testing Coating Powders and Powder Coatings》
ASTM D4303 《 Standard Test Methods for Lightfastness of Pigments Used in Artists' Paints》
ASTM D6577 《Standard Guide for Testing Industrial Protective Coatings》
ASTM D6695 《Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings》
ASTM G151《Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources》
ASTM G155《Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials》
ISO 4892-1 《Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance》
ISO 4892-2《Plastics - Methods of Exposure to Laboratory Light Sources - Part 2: Xenon-arc lamps》
SAE J2412 《Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus》
SAE J2527 《Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Xenon-Arc Apparatus》

Xenon Arc Test Chamber QualiXenon™ 400 Features:

Three US-made xenon lamps provide higher irradiance energy, fulfilling all test standard requirements.
The relative humidity of the working room can be automatically set and controlled.
Test procedures are fully programmable; up to 6 predetermined procedures can be stored simultaneously. Each procedure can include up to 10 segments of setting data.
The cumulative energy (total irradiance energy) required for a sample to complete a test procedure can be set.
Features a front spray function, allowing users to set spray duration and intervals.
Irradiance energy is precisely controlled through a "Closed-Loop" control system, which automatically compensates for changes in light intensity due to ageing or other factors.
Users can easily calibrate and adjust irradiance or the black panel temperature themselves.
Equipped with a high-precision Pt100 temperature sensor for auto-controlled black panel temperature throughout the process.
Includes an alarm function for protection against over-temperature of BPT or BST, significant irradiance difference, automatic shutdown protection upon door opening, water spray shortage, large humidity error, substantial deviation in working room temperature, and air pressure protection for lamp cooling.
The touch screen and user-friendly interface enable easy setting of test parameters and monitoring of the entire test process.
Specimen mounting and evaluation are quick and straightforward with the unique slide-out specimen tray.
Real-time data collection and recording. An incidental USB connector allows users to transfer test data to a USB drive for unattended operation.

Xenon Arc Test Chamber QualiXenon™ 400 Technical Specifications:

Xenon Lamp	Three 1.8 kW xenon lamps – US-made
Filter	Daylight filter (Also can choose extended UV filter or window glass filter)
Lamp Lifetime	Near 1,500 hours
Exposure Area	2,800 cm² (can put 25 standard samples 150mm×70mm)
Adjustable Irradiance Range	30 W/m²～90 W/m² (@ 300nm～400nm) 0.3 W/m²～0.75 W/m² (@ 340nm) 0.5 W/m²～1.35 W/m² (@ 420nm) 310 W/m²～780 W/m² (@ 300~800nm)
Controlling Irradiance Point	340nm or 420nm or 300nm～400nm
Adjustable Black Panel Temperature Range	RT～90℃
Adjustable Relative Humidity of Working Room	10%～75% (Light); 10%～95% (Dark)
Interior Material of Chamber	Aluminium profiles
Exterior Material of Chamber	Powder coating
Overall Size (W×D×H)	950mm×1200mm×2000mm
Net Weight	385 kg
Power Supply	Three-phase AC 380V, 50 or 60Hz; Max. Current: 32A; Rated Power: 7.5kW
Requirements of Compressed air	Clean, oilless compressed air with 0.5MPa pressure Max. air supply is near 60L/min. Average air consumption is 10L/min～30L/min (Depends on testing standard)
Ordering Information	QualiXenon™ 400 Xenon Arc Test Chamber Xenon Lamps (1.8 kW) US-made Daylight Filter Window Glass Filter Extended UV Filter Water Purifier (50L/h) Multifunctional Irradiance Radiometer for Xenon lamps (340nm) Multifunctional Irradiance Radiometer for Xenon lamps (420nm) Multifunctional Irradiance Radiometer for Xenon lamps (300nm~400nm)
