Introducing a compact, user-friendly, and cost-effective benchtop Xenon lamp weathering test chamber. This chamber utilizes a low-power air-cooled Xenon lamp to generate substantial irradiance energy within a confined space. Furthermore, a specialized optical system ensures even and consistent irradiance distribution to every exposed sample.

Equipped with extended UV filters, it allows ultraviolet (UV) radiation below the natural sunlight's typical cut-off to pass through, effectively simulating sunlight as it exists outside Earth's atmosphere. This feature accelerates testing, yielding quicker and more severe results, making it an "Artificial Accelerated Weathering Test."

Operators can easily configure all required test parameters (irradiance, test duration, black panel temperature, etc.) via the user-friendly touchscreen interface and monitor the chamber's status in real-time. Additionally, all operational parameters can be exported to a computer via the USB interface.

advantages of Xenon Test Chamber - Quali-Xenon100

Benchtop Xenon Test Chamber - Test Principle:

The benchtop Xenon lamp weathering test chamber performs artificial weathering of coatings or exposes coatings to filtered Xenon-Arc radiation to assess the degree of change in specific properties after a defined radiant exposure (H) and/or to determine the radiant exposure needed to induce a particular level of aging. These monitored properties should ideally be relevant to the practical application of the coatings.

The exposed coatings' properties are compared to those of unexposed coatings made from the same materials concurrently and under the same conditions (control specimens). Alternatively, comparisons can be made with coatings exposed simultaneously, whose behavior in exposure apparatus is already known (reference specimens).

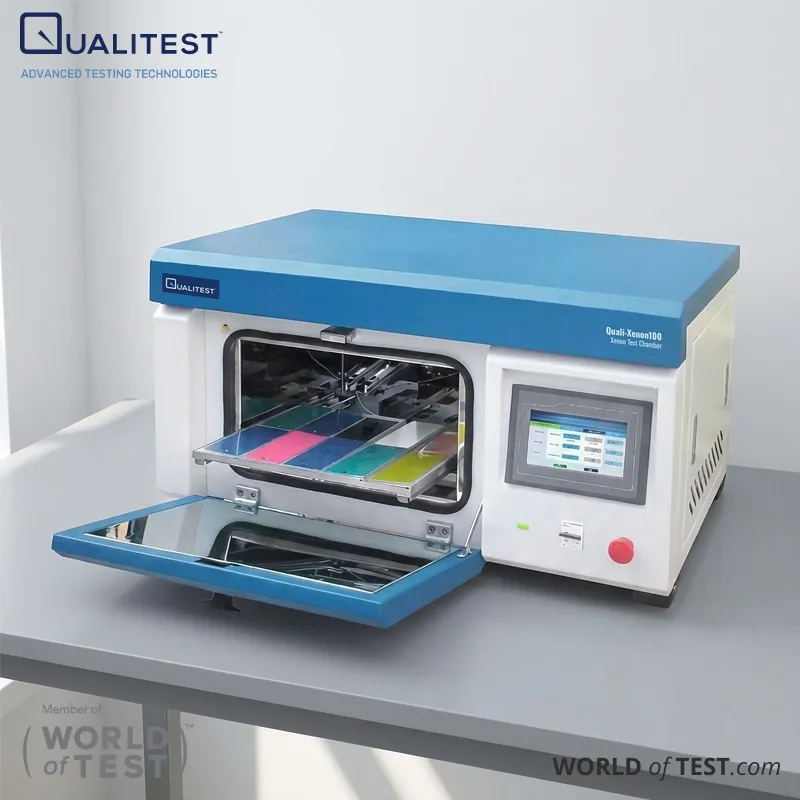

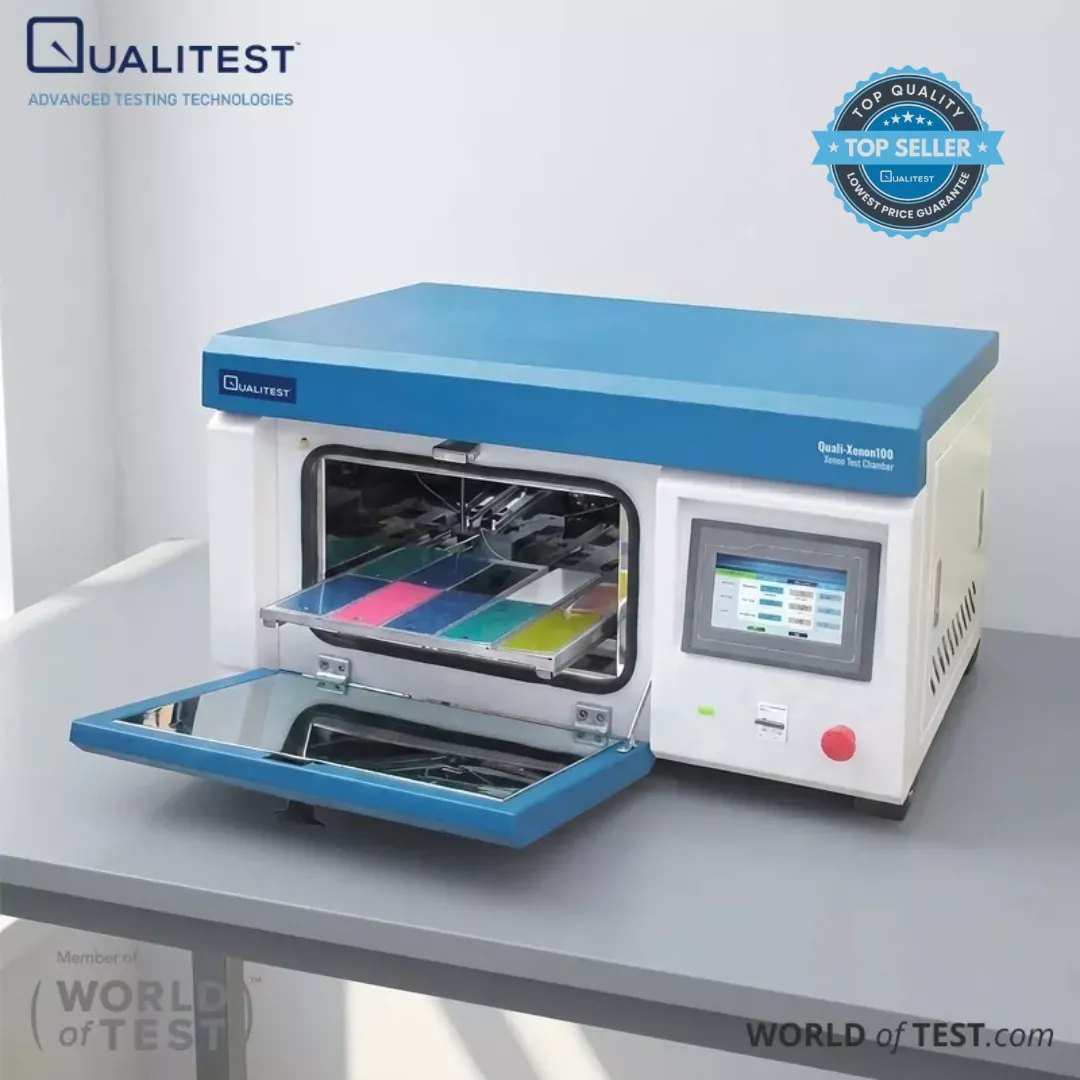

The QualiXenon™ 100 Benchtop Xenon Lamp Weathering Test Chamber uses a Xenon lamp as the light source to optimally simulate the full spectrum of sunlight. This chamber can assess damage effects on polymer materials, including fading, light loss, strength reduction, cracking, flaking, chalking, and oxidation.

This chamber finds typical applications in paint coating, the automotive industry, plastic products, wood products, adhesives, and more.

applications of Quali-Xenon100 Xenon Weathering Test Chamber

Key Features of Xenon Test Chamber - QualiXenon™ 100

Compact Size: Small in size, making it easy to install and use, with minimal maintenance requirements.
Xenon Light Source: The xenon light source conforms to international standards, ensuring the reproducibility and comparability of test results.
Accurate Irradiance Control: Precise control of irradiance energy is possible.
Closed-Loop Control System: The "Closed-Loop" control system can automatically compensate for changes in light intensity caused by aging or other factors.
User Calibration: Users can easily calibrate and adjust the irradiance or black panel temperature themselves.
High Precision Pt100 Temperature Sensor: Equipped with a high-precision Pt100 temperature sensor. The black panel temperature is automatically controlled throughout the process.
Protection Features: An alarm function is in place for protection, including over-temperature protection for the black panel, detection of significant errors in irradiance, and an auto shut-down feature when the door is opened or if there is too low air pressure.
User-Friendly Interface: The touch screen and user-friendly interface allow operators to set test parameters and easily monitor the entire testing process.
Efficient Specimen Handling: Specimen mounting and evaluation are fast and easy, thanks to the unique slide-out specimen tray.
Real-Time Data Collection: Real-time data can be collected and recorded. An incorporated USB interface allows users to conveniently copy test data to a USB drive, enabling unattended operation.
