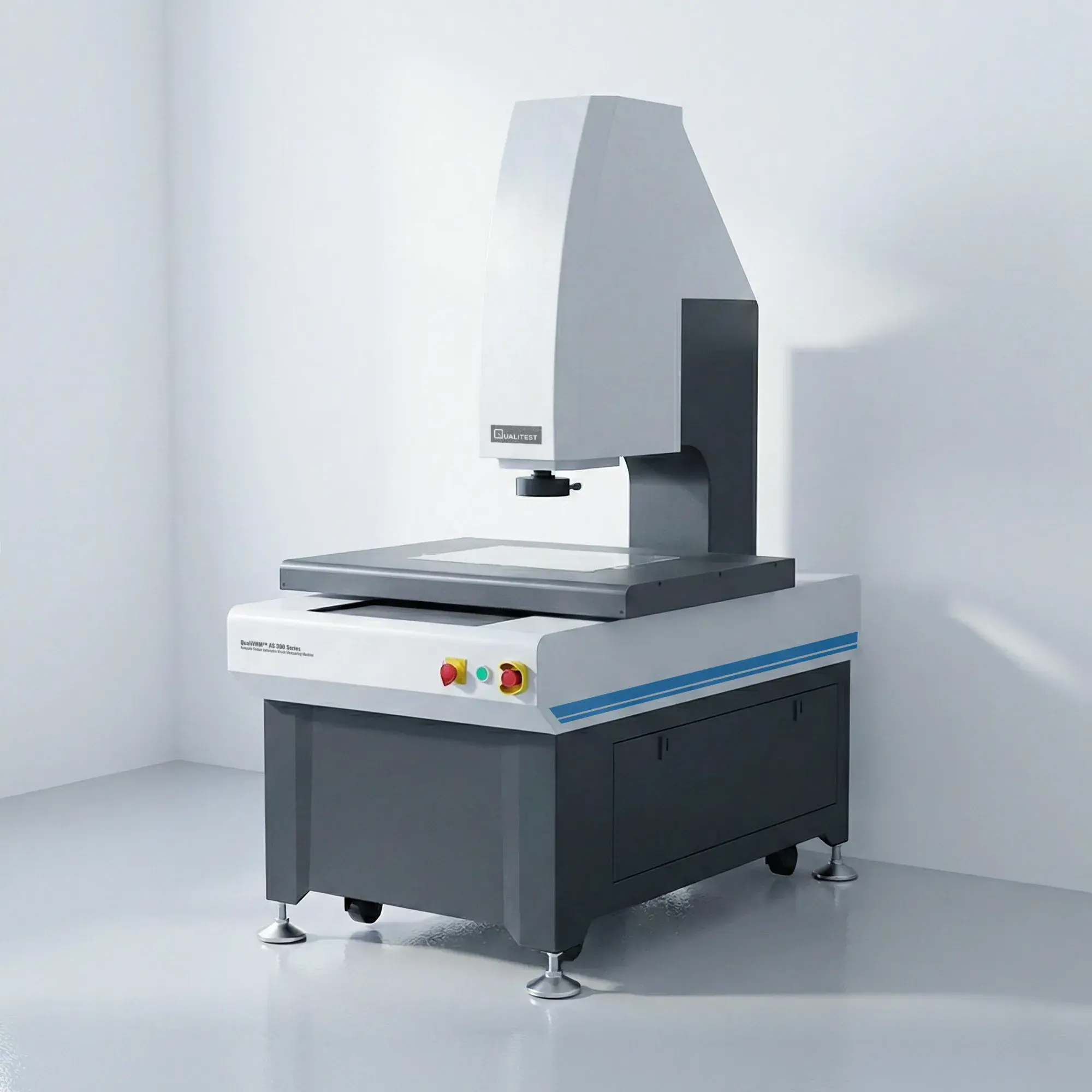

Accurate Sensor Automatic Vision Measuring Machine – QualiVMM™ AS 300 Series

Accurate Sensor Automatic Vision Measuring Machine – QualiVMM™ AS 300 Series Applications

• CNC dimensional inspection for machined and stamped parts
  • Run repeatable routines to measure lengths, radii, diameters, angles, and feature spacing based on optical edge capture. CNC motion helps reduce operator variation when the same part is checked repeatedly. This supports incoming inspection, in-process checks, and final QA documentation.
• Electronics and micro-feature inspection
  • Small components need stable positioning and clear imaging to define edges reliably. The camera and 8.3X zoom optics help with observation and measurement on fine features. Lighting control improves contrast on dark plastics, reflective metals, and textured surfaces.
• Flatness, thickness, and surface checks with sensor options
  • Some parts require height or surface information that is difficult to confirm with 2D imaging alone. The series supports optical measurement, touch probe measurement, and confocal laser measurement depending on the configuration. This is useful for flatness checks, subtle surface variation, and curved surface scanning.
• Batch measurement using fixtures and arrays
  • High-volume QA often needs consistent results with predictable cycle time. After the first program is created, the system can repeat operations and calculations automatically for efficient batch measurement. Array-style workflows support multiple features and multiple parts per setup.
• CAD and DXF-based workflows for documentation
  • Engineering teams often want results tied to drawings and coordinate systems. The software can import and export DXF and TXT files to build reference coordinates for automatic measurement. Scanned results can be saved as DXF for documentation or reverse engineering workflows.

Standards

• ISO/IEC 17025 for calibration competence and traceability practices in labs and QA programs.
• ISO 10360-7 for acceptance and reverification test concepts for Cartesian CMMs using imaging probing systems in discrete-point mode.
• ASME B89 series for dimensional metrology performance evaluation practices used widely in North America.
• ISO 1101 for GD&T interpretation under ISO GPS when reporting form, orientation, and position tolerances.
