Accurate Sensor Automatic Vision Measuring Machine Category – QualiVMM™ AS Series
Accurate Sensor Automatic Vision Measuaring Machine pages are built around one goal: reliable, non-contact inspection with repeatable results.
This Vision Measuring Machine category covers the QualiVMM™ AS Series, an automated platform that combines CNC motion control, stable construction, camera + zoom optics, programmable lighting, and iMeasuring software workflows.
Each series is optimized around a different measuring range, so you can match capacity to part size and throughput requirements without overbuying travel.
The lineup includes QualiVMM™ AS 300 Series, QualiVMM™ AS 400 Series, and QualiVMM™ AS 500 Series for 300×200, 400×300, and 500×400 class applications.
What the QualiVMM™ AS Series is designed to do
A Vision Measuring Machine in this category supports fast 2D measurement and upgraded 3D workflows when sensors are added. The platform uses CNC XYZ motion, high-resolution imaging, and lighting control to capture edges consistently across different operators and shifts.
The system supports optical-only measurement plus upgrade paths for contact probing and confocal measurement, depending on the model configuration. That flexibility makes the AS Series a fit for QC labs and production inspection where speed, repeatability, and documentation matter.
Product lineup

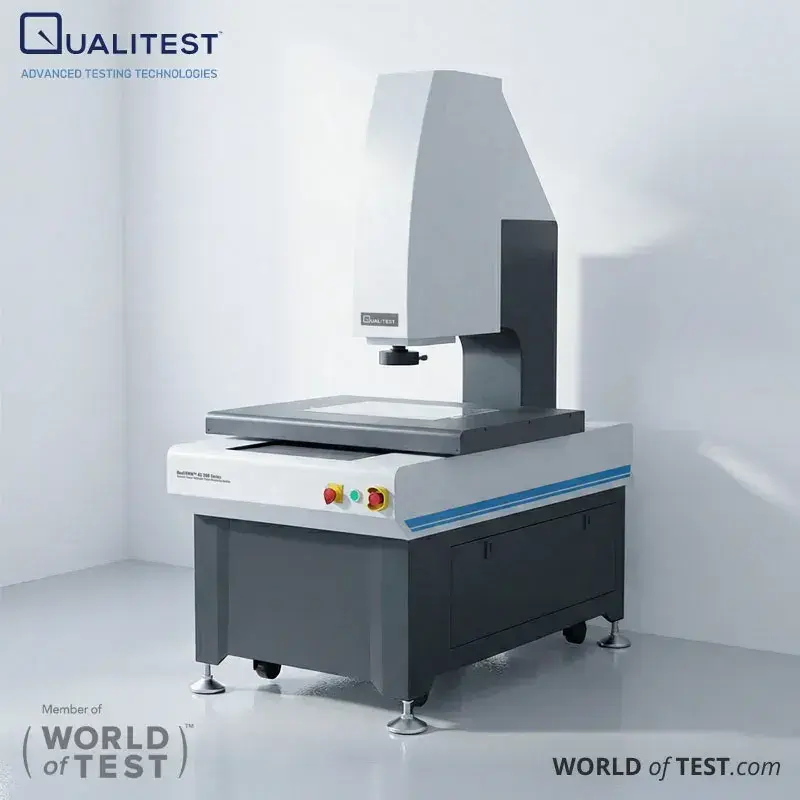

Accurate Sensor Automatic Vision Measuring Machine – QualiVMM™ AS 300 Series
- This series is built on the 300×200×200 mm class platform. It supports optical measurement and sensor-ready configurations for probe and confocal measurement options.
- It is commonly selected when bench space is limited and parts are smaller, but measurement requirements still demand stable automation and reporting.
Accurate Sensor Automatic Vision Measuring Machine – QualiVMM™ AS 400 Series
- This series moves up to the 400×300×200 mm measuring range. It keeps the same sensor configuration approach, while offering more capacity for larger fixtures or multi-part setups.
- It fits daily production inspection where you need room to scale without jumping to a larger footprint than necessary.
Accurate Sensor Automatic Vision Measuring Machine – QualiVMM™ AS 500 Series
- This series is based on the 500×400×200 mm class platform. It supports the same A/B/C/D sensor configurations and is positioned for larger parts, larger fixtures, and higher throughput inspection routines.
- Applications listed include electronics, automotive components, glass and panels, PCB/stencil work, rubber seals, and thread/gear features.
Common applications for the AS Series
- CNC dimensional inspection for production parts
- The QualiVMM™ AS Series supports programmed routines for repeatable dimensional checks. It helps reduce operator-to-operator variation when the same part is inspected across shifts and batches.
- Batch inspection with fixtures and arrays
- A single program can be reused for repeat jobs and batch checks. This approach supports predictable inspection cycle time for routine QA work.
- Mixed finishes and challenging edge contrast
- Programmable lighting improves edge visibility on reflective metals, dark plastics, textured surfaces, and coated parts. The platform uses multi-zone LED surface lighting plus contour illumination for contrast control.
- 2.5D and 3D measurement when sensors are added
- Configurations add probe measurement and confocal measurement capability, depending on the model type. This supports height checks, surface evaluation, and advanced measurement elements beyond basic 2D imaging.
How to choose the right QualiVMM™ AS Series model
Pick the series based on your part size and fixture strategy. QualiVMM™ AS 300 Series fits smaller parts and compact setups, QualiVMM™ AS 400 Series supports larger fixtures and more flexibility, and QualiVMM™ AS 500 Series is better when you need more work envelope for larger parts or higher batch density.Sensor needs matter too. Optical-only is best for routine 2D checks, while probe and confocal options are better when height, surface, or 3D elements must be verified consistently.
Quick comparison table
| Series | Measuring range (X×Y×Z) | XY accuracy | Z accuracy | Repeatability | Machine size (W×D×H) | Net weight |
|---|
| QualiVMM™ AS 300 Series | 300×200×200 mm | ≤ 2.0 + L/200 μm | ≤ 4.0 + L/200 μm | ±2 μm | 1146×720×1664 mm | 380 kg |
| QualiVMM™ AS 400 Series | 400×300×200 mm | ≤ 2.0 + L/200 μm | ≤ 4.0 + L/200 μm | ±2 μm | 1331×840×1664 mm | 450 kg |
| QualiVMM™ AS 500 Series | 500×400×200 mm | ≤ 2.5 + L/200 μm | ≤ 4.0 + L/200 μm | ±2 μm | 1257×920×1640 mm | 600 kg |
Sensor configurations available across the QualiVMM™ AS Series
You can standardize on one operating workflow while choosing the sensor package per application. These configurations are listed as A/B/C/D in the brochure sets.
- Type A: Optical zoom-lens measurement (2.5D vision)
- Type B: Optical + contact probe measurement (3D contact + vision)
- Type C: Optical + confocal measurement (laser/confocal + vision)
- Type D: Optical + probe + confocal (multi-sensor measurement)
