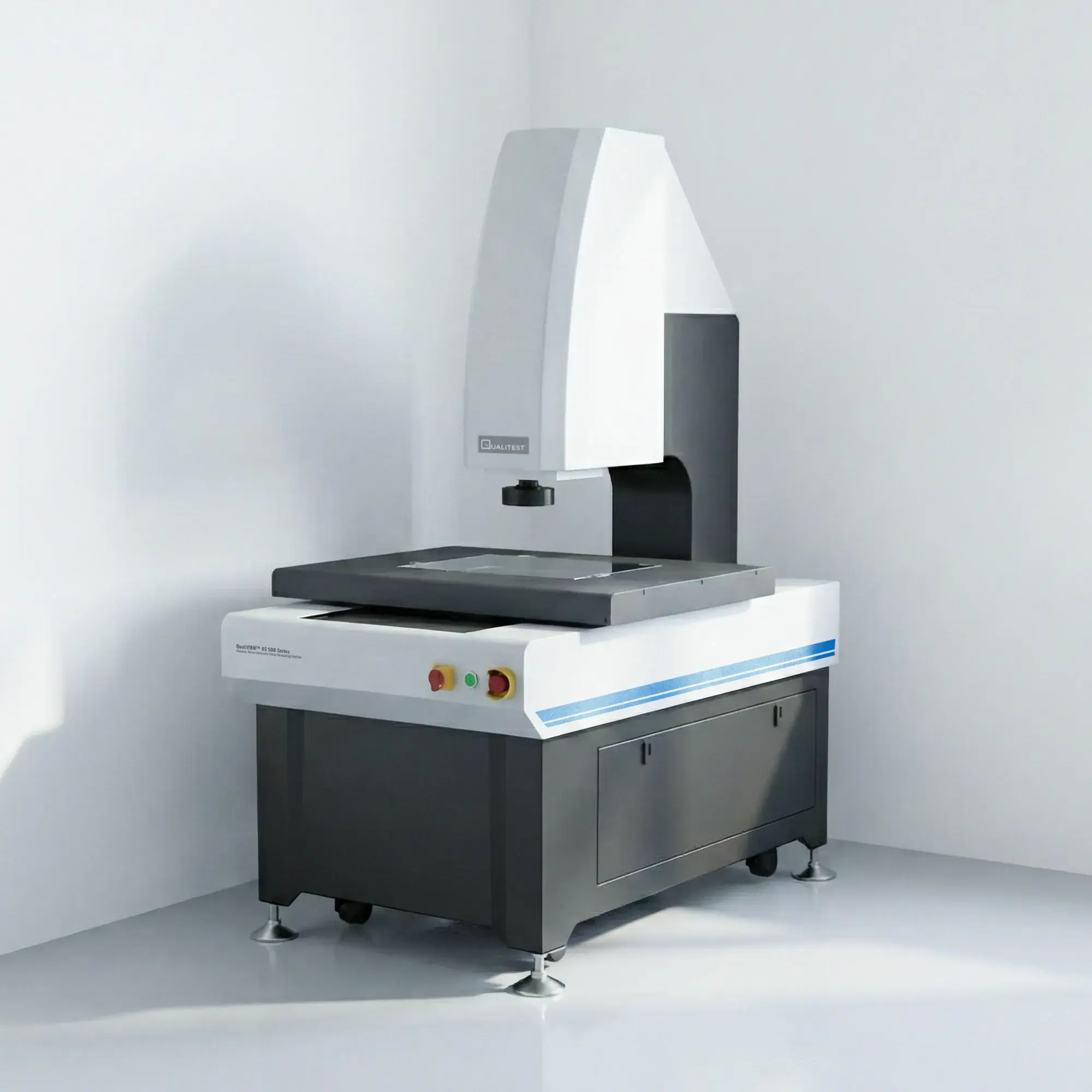

Accurate Sensor Automatic Vision Measuring Machine – QualiVMM™ AS 500 Series

Accurate Sensor Automatic Vision Measuring Machine – QualiVMM™ AS 500 Series Applications

• Mobile phone glass, touch panels, and housings
  • Measure flatness, warpage, thickness, and curved-surface geometry on glass and enclosures where contact tools can distort results. The non-contact optical method supports fast inspection of micro-features and cosmetic-critical surfaces.
• Automotive parts and metal components
  • Inspect die castings, cylinder heads, aluminum parts, stampings, and boxed components where many dimensions must be verified per part. Automated routines help maintain consistent results for in-process and final QA checks.
• Communication electronics and smart cards
  • Check flatness and critical dimensions on FPC circuits, backplanes, CF cards, SIM cards, and related precision products. Lighting control and stable motion help manage edge detection on varied finishes and fine geometries.
• Flatness inspection for plates, screens, lenses, and tempered glass
  • Evaluate flatness and dimensions on steel plates, aluminum plates, capacitive screens, LCD screens, lenses, and tempered glass. This supports micro inspection and quality control where measurement speed and consistent documentation are required.
• PCB, stencil, nameplate, and printing dimensional checks
  • Measure position, line width, hole size, and appearance-related dimensions on PCBs, glass stencils, touch panels, and screen-printing stencils. The system supports automated detection of complex part contours and repeated inspection programs.
• Soft cable and concentrated measurement areas
  • Cables are soft, thin, and easy to fold, which makes contact measurement difficult and slow. Optical image measurement supports two-dimensional size checks with simplified operation and improved throughput for production inspection.
• Rubber sealing rings and defect inspection
  • Inspect inner/outer diameters, groove sizes, and edge defects such as burrs, small holes, fractures, and material loss. This is useful for rubber products, sealing strips, and automotive sealing profiles where both size and edge condition affect performance.
• Thread and gear feature measurement
  • Measure thread geometry such as pitch, lead, thread angle, and tooth shape, plus gear tip/root circles and profile deviation. This supports manufacturing QA where complex geometry must be verified quickly and documented clearly.

Standards

• ISO/IEC 17025: traceable measurement and calibration practices for labs and QA programs
• ISO 10360-7: acceptance/reverification concepts for imaging probing systems (relevant to vision-based measurement)
• ASME B89 series: dimensional metrology guidance commonly used in North America
• ISO 1101 (ISO GPS): GD&T definitions for form, orientation, and position reporting
