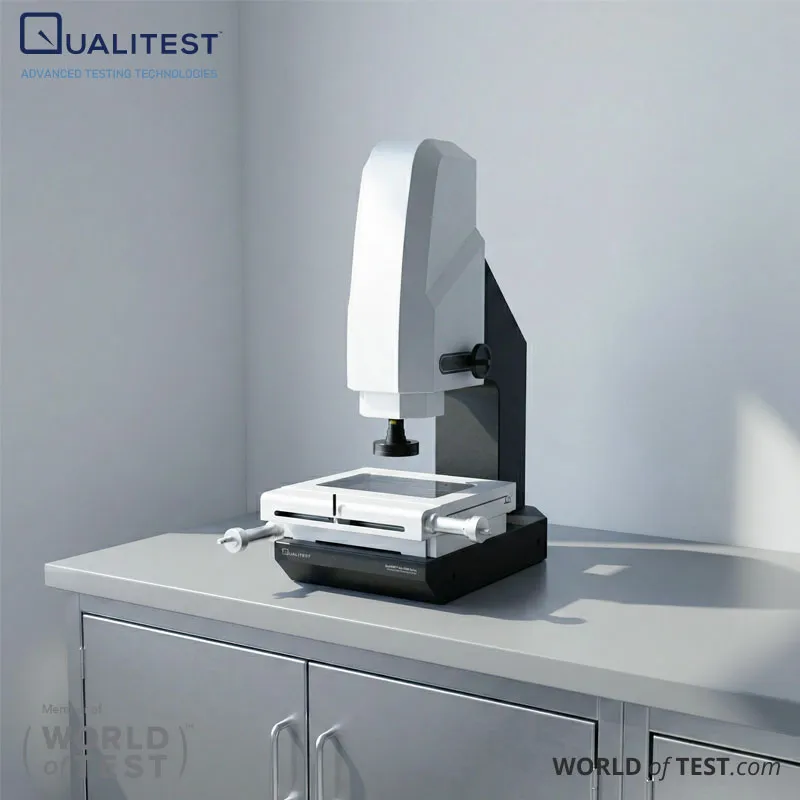

Advanced Video Measuring Projector – QualiVMP™ Adv 2500 Series

Advanced Video Measuring Projector – QualiVMP™ Adv 2500 Series
Parent Product
Advanced Video Measuring Projector
Standards
ASME B89
ISO 10360-7
ISO 10360-8
ISO 14978
View PDF

Advanced Video Measuring Projector – QualiVMP™ Adv 2500 Series

Video Measuring Projector systems combine high-resolution video capture, precision linear scales, and measurement software to inspect parts on-screen with fast, repeatable results. The QualiVMP™ Adv 2500 Series is built for dimensional inspection of machined components, stamped parts, molds, and electronics where clean edges and reliable XY measurements matter.

This platform supports 2.5D vision measurement and can be configured for 3D contact probing and Z-axis autofocus options. It uses iMeasuring software and supports Windows 10/11 for straightforward QC workflows and report output.

Advanced Video Measuring Projector – QualiVMP™ Adv 2500 Series Applications

  • Machined parts and toolrooms
    • Measure hole patterns, slots, radii, and center distances during incoming inspection or in-process checks.
  • Stamping, sheet metal, and fasteners
    • Verify feature positions, edge profiles, and go/no-go tendencies when tolerances are tight.
  • Molds, dies, and precision fixtures
    • Inspect critical geometry such as chamfers, contours, and mating features without time-consuming setup.
  • Electronics and small components
    • Support dimensional verification for connectors, housings, and fine features where clear imaging helps reduce operator variation.
  • General QA/QC and first-article inspection
    • Standardize measurement routines with software-based programs for consistent results across shifts.
Advanced Video Measuring Projector – QualiVMP™ Adv 2500 Series

Standards

  • ISO 10360-7 (CMMs equipped with imaging probing systems) – relevant for vision-based probing performance verification concepts.
  • ISO 10360-8 (CMMs with optical distance sensors) – useful when optical distance sensing is part of configuration/verification discussions.
  • ISO 14978 (GPS measuring equipment concepts/requirements) – supports terminology and general requirements around measuring equipment.
  • ASME B89 series (dimensional metrology standards family in the U.S.) – often referenced in American metrology programs alongside ISO practices.

Advanced Video Measuring Projector – QualiVMP™ Adv 2500 Series Key Features

  • Advanced video-based measurement workflow with iMeasuring software for routine inspection, data capture, and reporting.
  • High-resolution digital camera system designed for clear feature targeting and consistent edge detection.
  • 6.5X electronic feedback zoom lens with optical magnification 0.7X–4.5X and approximate video magnification up to ≈26X–172X (with a 21.5-inch monitor).
  • Precision scale feedback using 0.5 μm resolution linear scale system for stable XY measurements.
  • Granite structure (base and uprights) to help reduce drift and maintain mechanical stability in QC environments.
  • Software-controlled LED illumination including 4-ring / 8-zone adjustable surface lighting plus LED contour parallel illumination; coaxial light optional for reflective surfaces.
  • Configurable measurement capability: base optical (2.5D) with options for contact probing (3D) and Z-axis autofocus, depending on model type.
  • PC-friendly integration supporting Windows 10/11 (32/64-bit) and multi-language UI availability.

Advanced Video Measuring Projector – QualiVMP™ Adv 2500 Series Technical Specification

Measurement CategoryTypeDescriptionModel
2.5D Vision Measuring MachineAOptical zoom-lens sensorQualiVMP™ Adv 2500A Series
3D Contact & Vision Measuring MachineBZoom-lens sensor + contact probe sensorQualiVMP™ Adv 2500B Series
2.5D Semi-automatic Vision Measuring MachineCZoom-lens sensor + Z-axis autofocusQualiVMP™ Adv 2500C Series
3D Semi-automatic Contact & Vision Measuring MachineDZoom-lens sensor + contact probe + autofocusQualiVMP™ Adv 2500D Series

QualiVMP™ Adv 2500 Series core model

ItemSpecification
Measuring softwareiMeasuring
WorkbenchMetal workbench 408 × 308 mm
Glass workbench306 × 198 mm
X/Y travel250 × 150 mm
Z travel200 mm (high-precision linear guide)
Measurement accuracyXY: ≤ 2.5 + L/200 (μm); Z: ≤ 4.0 + L/200 (μm)
Repeatability2 µm
Camera1/2.9", 1.6 Mpixel high-resolution digital camera
Zoom lens6.5X electronic feedback zoom lens; optical 0.7X–4.5X
Video magnification≈26X–172X (21.5" monitor)
IlluminationSurface 4-ring / 8-zone LED (software adjustable); LED contour parallel; coaxial optional
Supported OSWindows 10/11 (32/64-bit)
LanguagesEnglish + additional language options
Machine dimensions (W×D×H)790 × 617 × 1000 mm
Weight (gross / net)242 / 175 kg
Recommended environment20°C ±2°C, humidity 30–80%RH, low vibration (per brochure conditions)

Notes :

  • L is the measured length (mm). Z-axis mechanical accuracy and focus accuracy depend strongly on the workpiece surface condition.
  • Magnification values are approximate and vary with monitor size and resolution.
  • Optional auxiliary objectives can be selected: 0.5× or 2×, which can extend video magnification to 13×–86× or 52×–344×.
  • Working environment: 20°C ±2°C, temperature change <1°C/hr, humidity 30–80% RH, vibration <0.02 g, ≤15 Hz.

Configuration

  • Type A: Optical zoom-lens sensor (2.5D vision)
  • Type B: Optical + contact probe (3D contact & vision)
  • Type C: Optical + Z-axis autofocus
  • Type D: Optical + contact probe + Z-axis autofocus

Model range (same QualiVMP™ Adv Series)

ModelEffective travel (X/Y/Z)Machine dimensions (L×W×H)Package dimensions (L×W×H)Installation dimensions (L×W×H)
QualiVMP™ Adv 2000 Series200 / 100 / 200 mm677 × 552 × 998 mm1030 × 780 × 1260 mm850 × 1400 × 1720 mm
QualiVMP™ Adv 2500 Series250 / 150 / 200 mm790 × 617 × 1000 mm1030 × 780 × 1260 mm850 × 1400 × 1720 mm
QualiVMP™ Adv 3000 Series300 / 200 / 200 mm838 × 667 × 1000 mm1030 × 780 × 1260 mm850 × 1400 × 1720 mm
QualiVMP™ Adv 4000 Series400 / 300 / 200 mm1002 × 817 × 1043 mm1130 × 1000 × 1270 mm1010 × 1460 × 1810 mm
QualiVMP™ Adv 5000 Series500 / 400 / 200 mm1002 × 852 × 1085 mm1280 × 1070 × 1470 mm1110 × 1500 × 1850 mm

Configuration

  • Type A: Optical zoom-lens sensor (2.5D vision)
  • Type B: Optical + contact probe (3D contact & vision)
  • Type C: Optical + Z-axis autofocus
  • Type D: Optical + contact probe + Z-axis autofocus

Configuration List

Standard Delivery (Included)

  • Measurement software
  • Electronic feedback zoom lens
  • Manual controller
  • 4-ring / 8-zone LED illumination
  • 0.5 µm enclosed grating ruler
  • Dust cover
  • 1/2.9" digital camera
  • Dongle
  • Optical calibration plate
  • Data cable
  • Contour LED parallel cold illumination
  • Documentation set: certificate, warranty card, instruction manual, and packing list

Optional Accessories (Add-Ons)

  • Instrument table
  • Electronic feedback coaxial optical lens
  • 3D touch probe
  • Calibration ball
  • Computer and monitor
  • 1/1.8" color camera
  • Block gauge
  • 0.5× additional objective
  • Foot switch
  • 2× additional objective
