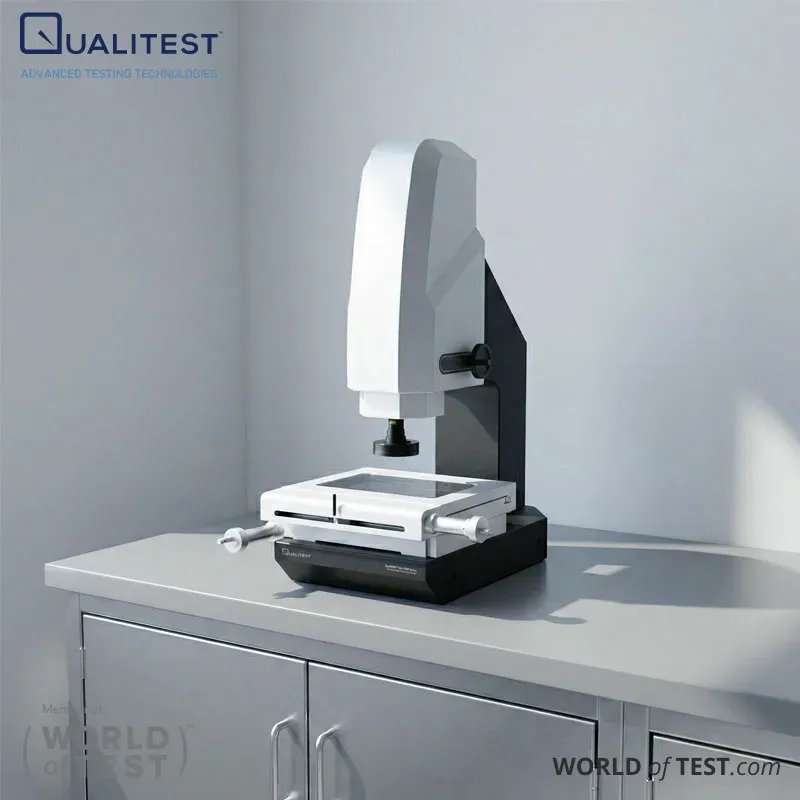

Advanced Video Measuring Projector – QualiVMP™ Adv Series
A Video Measuring Projector gives you fast, repeatable dimensional inspection using a live magnified image and software-driven measurement tools. QualiVMP™ Adv Series is built for production QC and inspection labs that need dependable accuracy, clear imaging, and flexible upgrades as requirements grow. Each series level expands the measuring envelope, helping you match travel range to your part size and throughput needs. The platform combines a rigid granite structure, programmable LED illumination, and iMeasuring software for consistent day-to-day inspection.
QualiVMP Adv Series includes five size options: QualiVMP™ Adv 2000 Series, QualiVMP™ Adv 2500 Series, QualiVMP™ Adv 3000 Series, QualiVMP™ 4000 Adv Series, and QualiVMP™ Adv 5000 Series. These models are often selected when teams want optical measurement speed without giving up traceable measurement discipline.
What a Video Measuring Projector Does
A Video Measuring Projector captures a sharp image of a part, detects edges, then converts those points into X-Y-Z measurements. This approach helps reduce operator variation compared to manual comparators, especially when parts have many features. Software tools can construct lines, circles, angles, and geometric elements from measured points. That makes it easier to inspect machined parts, stamped components, molded pieces, and precision assemblies. Results can be documented for QC records and outgoing inspection.
QualiVMP™ Adv Series Lineup
QualiVMP™ Adv 2000 Series
Compact measuring range for smaller parts and routine QC checks.
QualiVMP™ Adv 2500 Series
Adds more X/Y travel for medium-sized components and fixtures.
QualiVMP™ Adv 3000 Series
A popular “balanced” size for general-purpose inspection across many industries.
QualiVMP™ Adv 4000 Series
Built for larger parts, multi-feature layouts, and higher-volume inspection tasks.
QualiVMP™ Adv 5000 Series
Largest travel range in the lineup for bigger components and demanding QC coverage.
Typical Measuring Range by Series
| Series | Typical X/Y Travel (mm) | Typical Z Travel (mm) | Best Fit |
|---|
| QualiVMP™ Adv 2000 Series | 200 × 100 | 200 | Small components, fast checks |
| QualiVMP™ Adv 2500 Series | 250 × 150 | 200 | Medium parts, more fixture room |
| QualiVMP™ Adv 3000 Series | 300 × 200 | 200 | General-purpose QC and inspection |
| QualiVMP™ Adv 4000 Series | 400 × 300 | 200 | Larger parts, higher feature count |
| QualiVMP™ Adv 5000 Series | 500 × 400 | 200 | Large parts, maximum coverage |
Travel ranges can vary by configuration and options, so matching the envelope to your largest part and fixturing plan is key.
Key Features of QualiVMP Adv Series
- Rigid granite base and column support stable measurement performance.
- High-definition zoom optics and a digital color camera help deliver clear, low-distortion images.
- Software-controlled LED lighting supports both surface and contour inspection needs.
- Multi-zone illumination lets you tune contrast for reflective, matte, or mixed-finish parts.
- iMeasuring software supports measurement routines, feature construction, and reporting.
- Upgrade paths help you expand capability without replacing the platform.
Configuration Options
QualiVMP™ Adv Series can be configured to match how your team measures today and what you might add later.
- 2.5D Vision Measurement
- Vision-based measurement for X/Y features and many common inspection tasks.
- 3D Contact + Vision
- Add a touch probe when contact measurement is needed for selected 3D features.
- Semi-Automatic Measurement with Autofocus
- Autofocus improves repeatability when focus-sensitive features and Z workflows matter.
- Probe + Autofocus Combination
- This option targets teams that want the broadest measurement flexibility.
Applications
- Machined components
- Inspect holes, slots, radii, angles, and positions with fast optical workflows.
- Stamped and formed parts
- Check profiles, edge conditions, and feature locations without heavy contact force.
- Injection-molded parts
- Measure critical dimensions, parting lines, and feature alignment for production QC.
- Electronics and precision assemblies
- Support inspection of small geometries and dense feature layouts.
- Tooling, jigs, and fixtures
- Verify fixture dimensions and repeatability before releasing to production.
Why Choose QualiVMP™ Adv Series
Teams choose this series when measurement speed and repeatability need to stay consistent across shifts. Granite construction and controlled lighting support stable inspection routines. The lineup gives you a practical sizing path, from compact work to large-travel inspection. Upgrade options help you expand from vision-only work to probe and autofocus workflows. This makes the platform easier to standardize across multiple QC stations and facilities.
