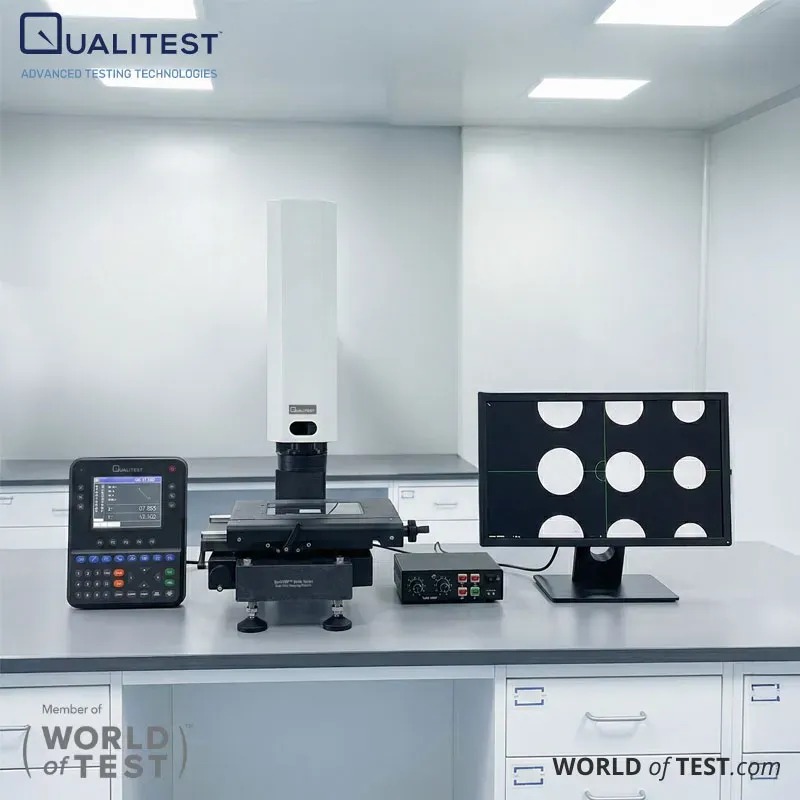

Video Measuring Projector - QualiVMP™ Series
Video Measuring Projector - QualiVMP™ Series solutions combine optical projection principles with modern digital imaging to support fast, consistent dimensional inspection. This Video Measuring Projector category is built for production QA, incoming inspection, and lab metrology where clear edge definition, stable lighting, and repeatable measurement results matter. The lineup ranges from compact benchtop units to higher-capability platforms designed for larger parts and more demanding inspection routines.
What a Video Measuring Projector Does?
A Video Measuring Projector magnifies a part on a screen or monitor so features can be measured without physical contact. Typical measurements include lengths, radii, diameters, angles, hole locations, profiles, and edge geometry. With camera-based viewing and software tools, a Video Measuring Projector supports faster checks than traditional manual methods, while keeping results consistent across operators and shifts.
QualiVMP™ Series Lineup
QualiVMP™ Basic Series
A practical entry-level platform for routine 2D inspection. The Basic Series is ideal for shops that need reliable video measurement for common part features without complex automation. It is often selected for first-article checks, small-batch inspection, and training environments.
Best fit for:
- Daily dimensional checks on machined parts and stamped components
- Simple profile measurement and go/no-go verification
- Budget-focused QC setups needing dependable results
QualiVMP™ Reg Series
A balanced choice for teams that need more flexibility than basic inspection, while keeping operation straightforward. The Reg Series supports broader day-to-day measurement tasks and is suited for QC stations that measure multiple part types each shift.
Best fit for:
- Mixed-part inspection with frequent changeovers
- More frequent reporting and traceability needs
- Consistent measurement across multiple operators
QualiVMP™ Pro Series
Designed for higher-throughput inspection and tighter process control. The Pro Series supports more advanced measurement workflows and is often used where inspection needs to scale, such as multi-feature checks and higher volume production QA.
Best fit for:
- Production environments with repeatable inspection routines
- Higher measurement frequency and reduced operator variability
- More complex 2D measurement tasks that need stable imaging and lighting
QualiVMP™ Adv Series
Built for advanced measurement requirements where accuracy targets are tighter and inspection tasks are more demanding. The Adv Series is typically selected for precision manufacturing, detailed profile evaluation, and applications that benefit from stronger measurement capability and expandability.
Best fit for:
- Precision components with tight tolerances
- Detailed profile and edge measurement requirements
- Workflows that may require upgrades such as autofocus or probing options
Common Applications
- Machined components: holes, slots, chamfers, radii, and feature locations
- Stamped and formed parts: profile checks and edge geometry verification
- Injection molded parts: dimensional inspection for fit and functional features
- Electronics and connectors: small features that need clear viewing and repeatability
- Tooling and fixtures: validation of critical dimensions during maintenance and setup
Why Choose QualiVMP™
- Non-contact measurement for delicate parts and finished surfaces
- Clear digital viewing for faster edge finding and reduced interpretation errors
- Stable illumination to keep contrast consistent across different materials
- Repeatable inspection workflows that support shift-to-shift consistency
- Scalable lineup so teams can start with Basic and move up as needs grow
How to Select the Right Series
- Choose Basic for straightforward daily measurements and cost-focused QC.
- Choose Reg for broader inspection needs and frequent part changeovers.
- Choose Pro for higher throughput and more consistent routine inspection.
- Choose Adv for tighter tolerances, complex profiles, and advanced capability needs.
