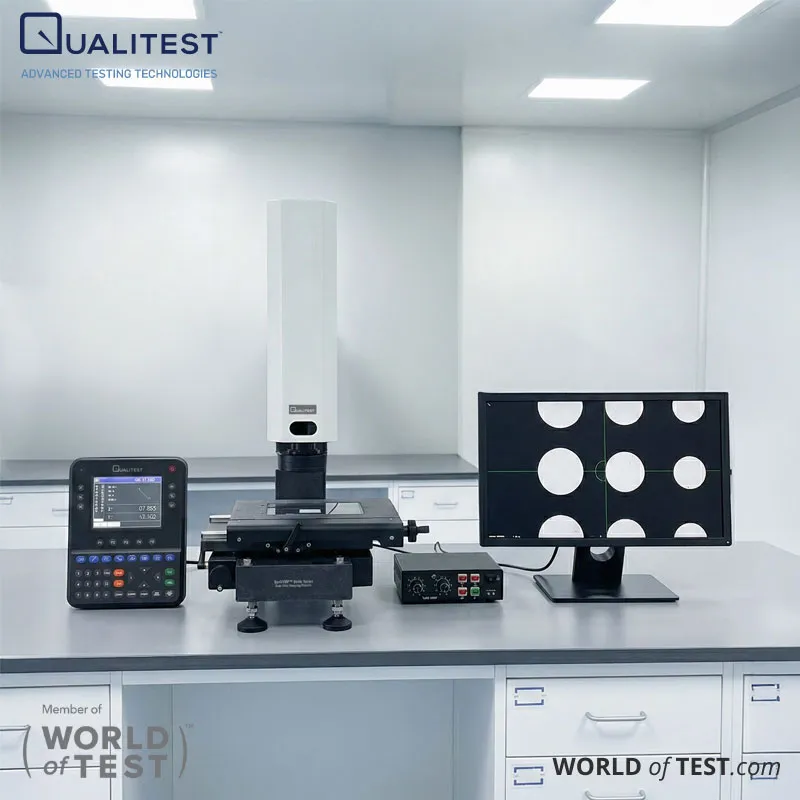

Basic Video Measuring Projector

Basic Video Measuring Projector – QualiVMP™ Basic Series Applications

• Machined parts and shop-floor inspection
  • Measure distances, radii, angles, and feature positions without touching the part. This is useful for quick checks on milled, turned, or ground components when speed matters.
• Stamped, laser-cut, and flat profiles
  • Project and measure outlines, slots, and contours where edge definition is key. Bottom parallel light helps improve contrast on thin parts and cut edges.
• Screws, threads, and small hardware
  • Use the on-screen crosshair and measurement functions to verify thread forms, pitch-related geometry, and small feature spacing. DP400 supports common geometry elements including threads, circles, lines, angles, and more.
• Incoming inspection for suppliers
  • Standardize checks across batches with consistent lighting and repeatable stage movement. This supports go/no-go style screening before parts enter assembly.

Standards

• ISO 14253-1 (decision rules for conformity/nonconformity considering measurement uncertainty).
• ISO 10360-7 (acceptance/reverification tests for CMMs with imaging probing systems; often referenced when documenting imaging-system performance concepts).
• ISO 9001 (quality management systems; relevant when you need supplier QMS alignment).
