Video Measuring Projector Pro – QualiVMP™ Adv 2000 Series

Video Measuring Projector Pro – QualiVMP™ Adv 2000 Series
Parent Product
Advanced Video Measuring Projector
Standards
ASME B89.4.1
ISO 10360-7
ISO 14253-1
ISO 14978
View PDF

Video Measuring Projector Pro – QualiVMP™ Adv 2000 Series

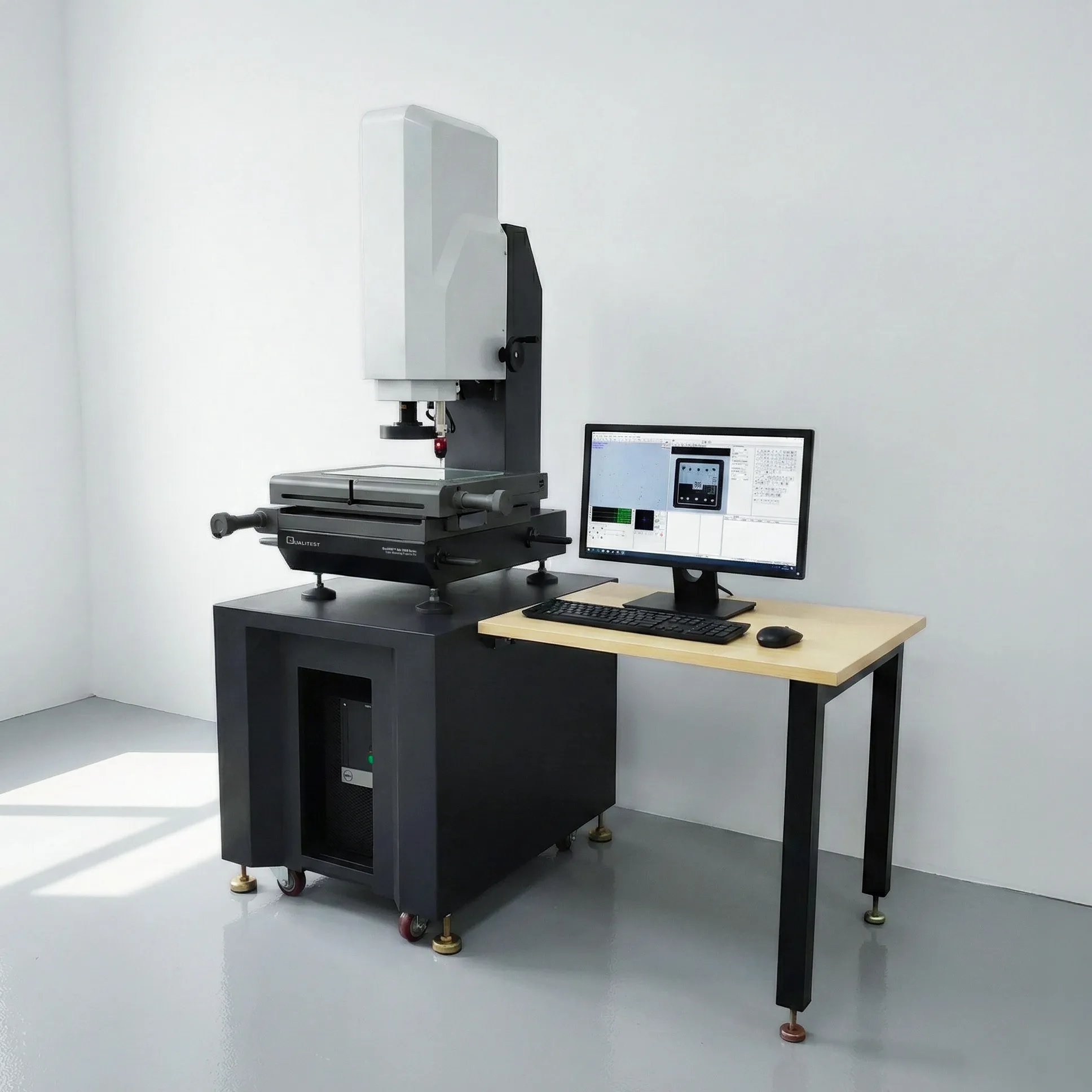

QualiVMP™ Adv 2000 Series Video Measuring Projector is a granite-based, video-assisted optical measuring system designed for fast, repeatable 2D inspection. It combines a precision X-Y stage, HDMI camera + monitor viewing, LED surface/contour lighting, and a DP400 multifunction digital readout for straightforward dimensional checks in QC and production environments.

Built on a high-stability granite base and column, the system is designed to help maintain measurement consistency, while a fast locking mechanism supports smooth staging and low return error performance.

Video Measuring Projector Pro – QualiVMP™ Adv 2000 Series Applications

  • Incoming inspection of machined parts
    • Quickly verify lengths, diameters, radii, hole locations, and edge geometry on small-to-medium components using video viewing and readout-based measurement functions.
  • In-process checks on production lines
    • Support faster go/no-go and dimensional verification without moving parts to a metrology lab, helping reduce rework and downtime.
  • Tooling, fixtures, and stamped parts measurement
    • Useful for checking profiles, slots, and formed features where consistent lighting (surface + contour illumination) improves edge definition.
  • Electronics and small-component dimensional inspection
    • Measure outlines, pitches, and small feature spacing where optical magnification and a stable stage help improve repeatability.
  • General QA documentation and reporting support
    • DP400 readout supports multi-function measurement routines (points, lines, circles, angles, distances, threads, slots, etc.) that help standardize shop-floor measurement workflows.
Video Measuring Projector Pro – QualiVMP™ Adv 2000 Series

Standards

  • ISO 10360-7 – Acceptance and reverification tests for coordinate measuring systems with imaging probing systems (useful as a reference for verifying imaging-based measurement performance).
  • ISO 14253-1 – Decision rules for proving conformance/nonconformance with specifications (helps when reporting pass/fail against tolerances).
  • ISO 14978 – General concepts and requirements for GPS measuring equipment (useful for metrology equipment selection and measurement system context).
  • ASME B89.4.1 – Performance evaluation guidance within the B89 dimensional metrology framework.

Video Measuring Projector Pro – QualiVMP™ Adv 2000 Series Key Features

  • Granite base and column for stability that helps maintain measurement consistency over time.
  • Precision X-Y stage with fast locking designed to support smooth movement and low return error performance.
  • 0.5 µm linear scale resolution for fine stage readout.
  • LED surface illumination + bottom parallel light, with optional coaxial light for difficult reflective parts and edges.
  • HDMI camera + 21-inch HDMI monitor viewing for clear, real-time measurement visualization.
  • DP400 multifunction digital readout with geometry measurement functions and compensation features to support consistent results.
  • Multi-language readout and flexible connectivity, including RS232 output and expansion options (printer, foot switch, edge finder).

Video Measuring Projector Pro – QualiVMP™ Adv 2000 Series Technical Specifications

System Types and Models

Measurement CategoryTypeDescriptionModel
2.5D Vision Measuring MachineAOptical zoom-lens sensorQualiVMP™ Adv 2000A Series
3D Contact & Vision Measuring MachineBZoom-lens sensor + contact probe sensorQualiVMP™ Adv 2000B Series
2.5D Semi-automatic Vision Measuring MachineCZoom-lens sensor + Z-axis autofocusQualiVMP™ Adv 2000C Series
3D Semi-automatic Contact & Vision Measuring MachineDZoom-lens sensor + contact probe + autofocusQualiVMP™ Adv 2000D Series

Core Specifications

SpecificationValue
Measuring softwareiMeasuring
Marble worktable (mm)270 × 350
Glass stage (mm)142 × 242
X/Y travel (mm)200 × 100
Z travelHigh-precision linear guide, effective travel 200 mm
X/Y/Z resolution0.5 µm
Accuracy (XY)*≤ 2.5 + L/200 (µm)
Accuracy (Z)*≤ 4.0 + L/200 (µm)
Repeatability2 µm
Base and columnHigh-precision granite
Illumination (software-controlled)4-ring / 8-zone LED cold surface light; contour LED parallel light; optional coaxial light
Camera1/2.9" high-resolution digital camera, 1.6 MP
Zoom lens6.5× electronic feedback zoom lens
MagnificationOptical: 0.7×–4.5×; Video: approx. 26×–172× (21.5" monitor)
Supported OSWindows 10/11 (32/64-bit)
LanguagesEnglish, Simplified Chinese, Traditional Chinese (other languages optional)
Machine size (W × D × H, mm)677 × 552 × 998
Weight (gross / net)220 / 150 kg

Notes :

  • L is the measured length (mm). Z-axis mechanical accuracy and focus accuracy depend strongly on the workpiece surface condition.
  • Magnification values are approximate and vary with monitor size and resolution.
  • Optional auxiliary objectives can be selected: 0.5× or 2×, which can extend video magnification to 13×–86× or 52×–344×.
  • Working environment: 20°C ±2°C, temperature change <1°C/hr, humidity 30–80% RH, vibration <0.02 g, ≤15 Hz.

Configuration

  • Type A: Optical zoom-lens sensor (2.5D vision)
  • Type B: Optical + contact probe (3D contact & vision)
  • Type C: Optical + Z-axis autofocus
  • Type D: Optical + contact probe + Z-axis autofocus

Model range (same QualiVMP™ Adv Series)

ModelEffective travel (X/Y/Z)Machine dimensions (L×W×H)Package dimensions (L×W×H)Installation dimensions (L×W×H)
QualiVMP™ Adv 2000 Series200 / 100 / 200 mm677 × 552 × 998 mm1030 × 780 × 1260 mm850 × 1400 × 1720 mm
QualiVMP™ Adv 2500 Series250 / 150 / 200 mm790 × 617 × 1000 mm1030 × 780 × 1260 mm850 × 1400 × 1720 mm
QualiVMP™ Adv 3000 Series300 / 200 / 200 mm838 × 667 × 1000 mm1030 × 780 × 1260 mm850 × 1400 × 1720 mm
QualiVMP™ Adv 4000 Series400 / 300 / 200 mm1002 × 817 × 1043 mm1130 × 1000 × 1270 mm1010 × 1460 × 1810 mm
QualiVMP™ Adv 5000 Series500 / 400 / 200 mm1002 × 852 × 1085 mm1280 × 1070 × 1470 mm1110 × 1500 × 1850 mm

Configuration List

Standard Delivery (Included)

  • Measurement softwareElectronic feedback zoom lens
  • Manual controller
  • 4-ring / 8-zone LED illumination
  • 0.5 µm enclosed grating ruler
  • Dust cover
  • 1/2.9" digital camera
  • Dongle
  • Optical calibration plate
  • Data cable
  • Contour LED parallel cold illumination
  • Documentation set: certificate, warranty card, instruction manual, and packing list

Optional Accessories (Add-Ons)

  • Instrument table
  • Electronic feedback coaxial optical lens
  • 3D touch probe
  • Calibration ball
  • Computer and monitor
  • 1/1.8" color camera
  • Block gauge
  • 0.5× additional objective
  • Foot switch
  • 2× additional objective
