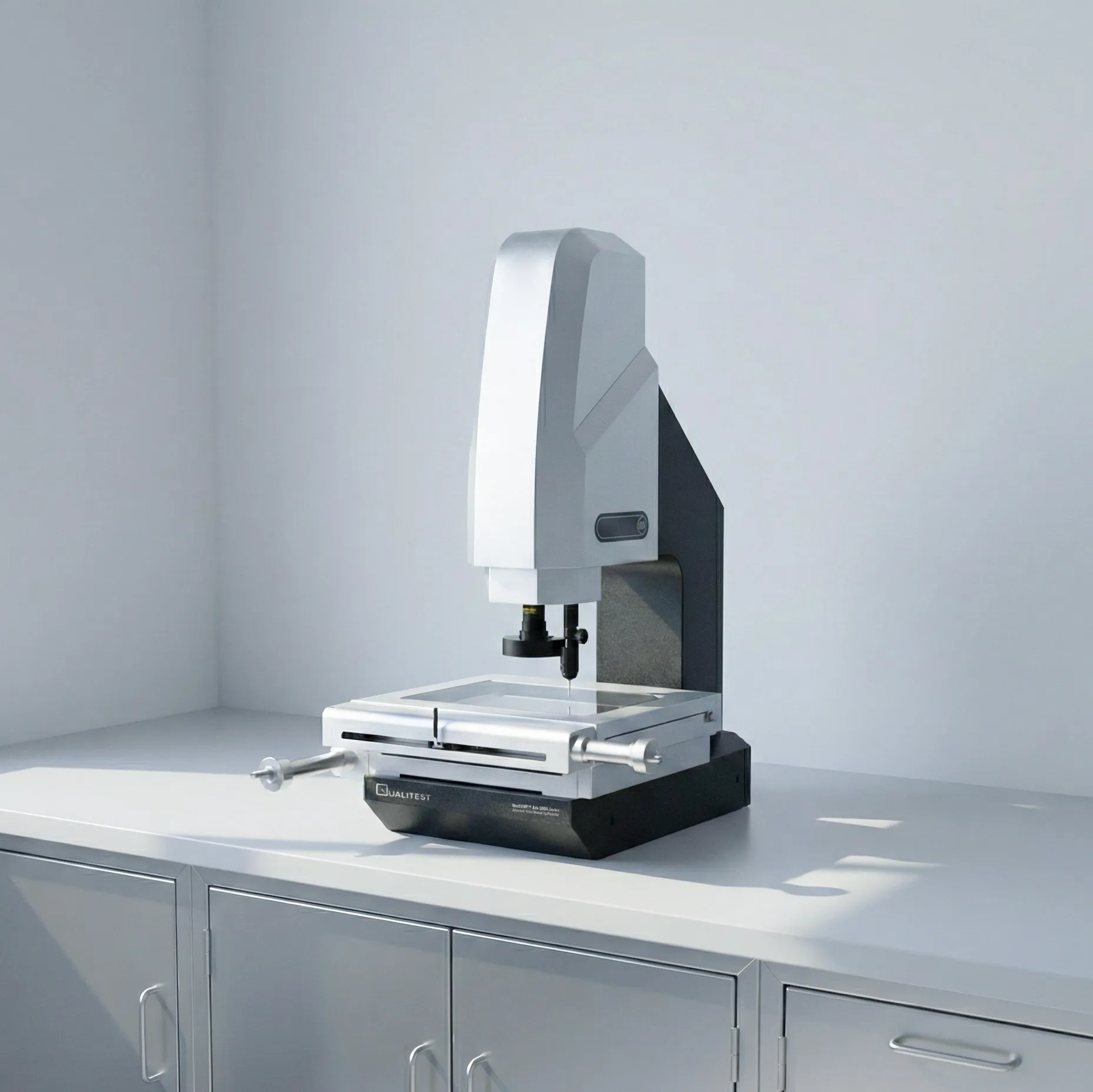

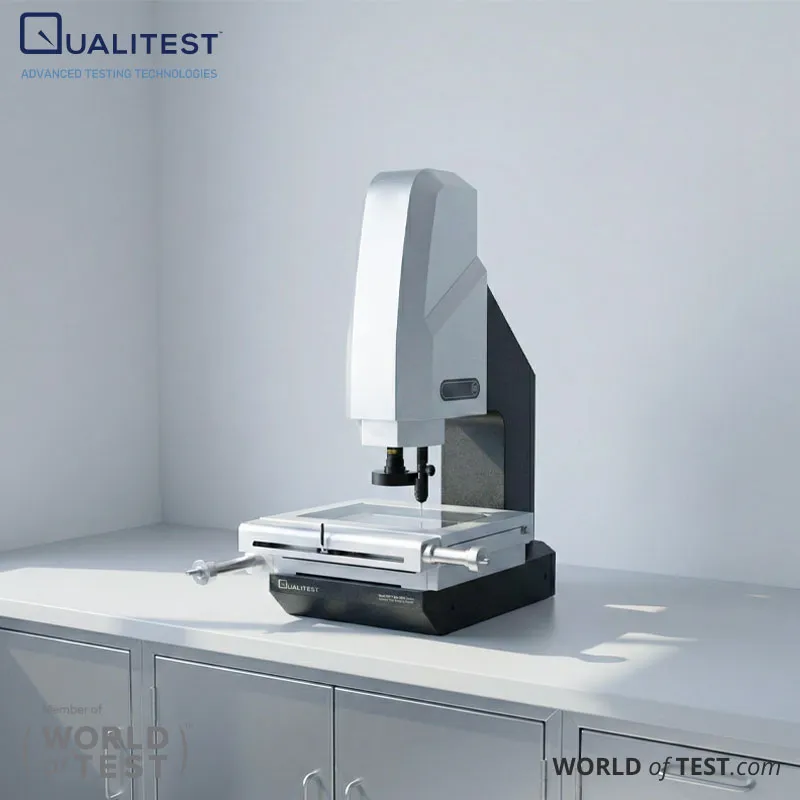

Advanced Video Measuring Projector – QualiVMP™ Adv 3000 Series

QualiVMP™ Adv 3000 Series Video Measuring Projector is a high-accuracy Vision Measuring Machine (VMM) platform designed for fast, repeatable dimensional inspection of precision parts. It combines a stable granite structure, high-resolution digital imaging, programmable LED lighting, and zoom optics to support 2D/2.5D measurement, with upgrade paths for Z-axis autofocus and 3D contact probing.

Built for metrology labs and production QC, the system helps reduce operator variation during edge detection and feature evaluation. The series supports multiple stage sizes and travels, so you can match measuring volume to your part mix while keeping consistent software workflows.

Advanced Video Measuring Projector – QualiVMP™ Adv 3000 Series Applications

  • Precision machined components
    • Measure holes, slots, radii, chamfers, and feature locations to verify parts against drawings and GD&T callouts.
  • Electronics and connector inspection
    • Check pin spacing, pad features, housing geometry, and critical distances where tight tolerances affect fit and function.
  • Mold, die, and tooling verification
    • Inspect contours, grooves, and profiles to confirm tool geometry before production runs and after rework.
  • Stamped and laser-cut parts
    • Validate 2D outlines, edge quality, and feature-to-feature relationships quickly using optimized lighting and zoom.
  • Medical device and small component QC
    • Support clean, non-contact measurement workflows for delicate parts, with optional probe upgrades for additional 3D needs.
Advanced Video Measuring Projector – QualiVMP™ Adv 3000 Series

Standards

  • ASME Y14.5 (GD&T) – Defines how geometric tolerances are specified and interpreted on drawings.
  • ISO 1101 (GPS / geometrical tolerancing) – International framework for geometrical product specifications and tolerancing.
  • ISO 10360-2 – Acceptance and reverification tests for CMMs (length measurement performance concepts often referenced in metrology programs).
  • ISO 10360-7 – Acceptance/reverification tests for CMMs equipped with imaging probing systems, relevant when optical measurement performance needs a recognized verification approach.
  • ISO 14978 – General concepts and requirements for coordinate measuring machines.

Advanced Video Measuring Projector – QualiVMP™ Adv 3000 Series Key Features

  • Granite base and column for stability
    • The high-rigidity granite structure helps maintain measurement consistency across shifts.
  • High-resolution imaging with zoom optics
    • A digital camera and 6.5X zoom lens provide clear, low-distortion images across a wide magnification range.
  • Software-controlled LED illumination
    • Multi-zone ring lighting plus contour lighting lets operators tune contrast for edges, holes, and surface features; coaxial light is available when needed.
  • Fine measurement resolution and repeatability
    • The system uses 0.5 μm scale resolution table for precision QC routines.
  • Configurable for 2.5D vision through 3D contact measurement
    • Choose optical-only configdd autofocus, or combine both depending on how you inspect height, depth, and 3D features.
  • Windows-compatible measurement software workflow
    • Environments and supports multilingual operation for global teams.

Advanced Video Measuring Projector – QualiVMP™ Adv 3000 Series Technical Specification

Models and Sensor Packages

Measurement CategoryTypeDescriptionModel
2.5D Vision Measuring MachineAOptical zoom-lens sensorQualiVMP™ Adv 3000A Series
3D Contact & Vision Measuring MachineBZoom-lens sensor + contact probe sensorQualiVMP™ Adv 3000B Series
2.5D Semi-automatic Vision Measuring MachineCZoom-lens sensor + Z-axis autofocusQualiVMP™ Adv 3000C Series
3D Semi-automatic Contact & Vision Measuring MachineDZoom-lens sensor + contact probe + autofocusQualiVMP™ Adv 3000D Series

QualiVMP™ Adv 3000 Series core model

SpecificationValue
Measuring softwareiMeasuring
Metal workbench458 × 358 mm
Glass stage356 × 248 mm
X/Y travel300 × 200 mm
Z travelHigh-precision linear guide, effective travel 200 mm
X/Y/Z resolution0.5 µm
Accuracy (XY)*≤ 2.5 + L/200 (µm)
Accuracy (Z)*≤ 4.0 + L/200 (µm)
Repeatability2 µm
Base and uprightsHigh-precision granite
Illumination (software-controlled)4-ring / 8-zone LED cold surface illumination; contour LED parallel illumination; optional coaxial light
Digital camera1/2.9" high-resolution digital camera, 1.6 MP
Zoom lens6.5× electronic feedback zoom lens
Magnification**Optical: 0.7×–4.5×; Video: approx. 26×–172× (21.5" monitor)
Supported OSWindows 10/11 (32/64-bit)
LanguagesEnglish, Simplified Chinese, Traditional Chinese (other languages optional)
Dimensions (W × D × H)838 × 667 × 1000 mm
Weight (gross / net)275 / 185 kg

Notes :

  • L is the measured length (mm). Z-axis mechanical accuracy and focus accuracy depend strongly on the workpiece surface condition.
  • Magnification values are approximate and vary with monitor size and resolution.
  • Optional auxiliary objectives can be selected: 0.5× or 2×, which can extend video magnification to 13×–86× or 52×–344×.
  • Working environment: 20°C ±2°C, temperature change <1°C/hr, humidity 30–80% RH, vibration <0.02 g, ≤15 Hz.

Configuration

  • Type A: Optical zoom-lens sensor (2.5D vision)
  • Type B: Optical + contact probe (3D contact & vision)
  • Type C: Optical + Z-axis autofocus
  • Type D: Optical + contact probe + Z-axis autofocus

Model range (same QualiVMP™ Adv Series)

ModelEffective travel (X/Y/Z)Machine dimensions (L×W×H)Package dimensions (L×W×H)Installation dimensions (L×W×H)
QualiVMP™ Adv 2000 Series200 / 100 / 200 mm677 × 552 × 998 mm1030 × 780 × 1260 mm850 × 1400 × 1720 mm
QualiVMP™ Adv 2500 Series250 / 150 / 200 mm790 × 617 × 1000 mm1030 × 780 × 1260 mm850 × 1400 × 1720 mm
QualiVMP™ Adv 3000 Series300 / 200 / 200 mm838 × 667 × 1000 mm1030 × 780 × 1260 mm850 × 1400 × 1720 mm
QualiVMP™ Adv 4000 Series400 / 300 / 200 mm1002 × 817 × 1043 mm1130 × 1000 × 1270 mm1010 × 1460 × 1810 mm
QualiVMP™ Adv 5000 Series500 / 400 / 200 mm1002 × 852 × 1085 mm1280 × 1070 × 1470 mm1110 × 1500 × 1850 mm

Configuration List

Standard Delivery (Included)

  • Measurement software
  • Electronic feedback zoom lens
  • Manual controller
  • 4-ring / 8-zone LED illumination
  • 0.5 µm enclosed grating ruler
  • Dust cover
  • 1/2.9" digital camera
  • Dongle
  • Optical calibration plate
  • Data cable
  • Contour LED parallel cold illumination
  • Documentation set: certificate, warranty card, instruction manual, and packing list

Optional Accessories (Add-Ons)

  • Instrument table
  • Electronic feedback coaxial optical lens
  • 3D touch probe
  • Calibration ball
  • Computer and monitor
  • 1/1.8" color camera
  • Block gauge
  • 0.5× additional objective
  • Foot switch
  • 2 × additional objective
