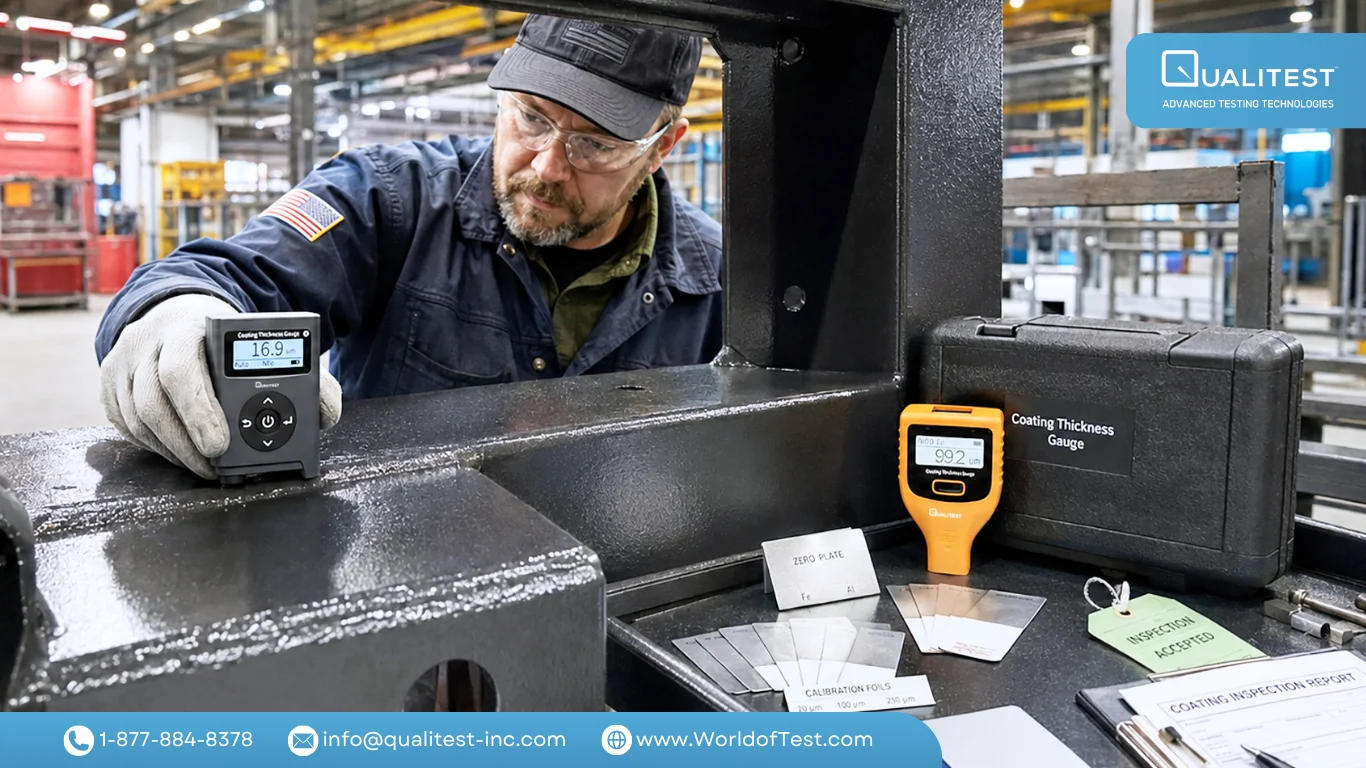

Compare Magnetic vs Eddy Current Coating Thickness Gauge

Are your protective coatings exactly the thickness your contracts demand, or are you hoping for the best?

Underfilled coatings risk premature rust. Overfilled coatings waste expensive raw materials. To secure compliance without damaging finished parts, selecting the correct non-destructive testing system is critical. The decision between magnetic vs eddy current coating thickness gauges dictates your entire inspection workflow.

Review the direct comparison below to choose the precise system for your metal surfaces.

Magnetic Induction Principle

Let's look at the magnetic method first. We are going to state it plainly. Magnetic testing is the absolute backbone of steel inspections. There is not a trace of guesswork involved (any seasoned quality manager who has ever struggled with a cheap instrument knows exactly what we mean), and the measurement process is highly straightforward.

How Magnetic Gauges Work:

• Magnetic Attraction: When you place the probe on a steel or iron surface, it measures the magnetic pull to the metal underneath.
• Signal Weakening: If there is a layer of paint in the way, that attraction gets weaker. The thicker the coating, the weaker the grip.
• Operational Efficiency: As recent engineering studies emphasize, this principle makes magnetic gauges highly efficient on ferromagnetic substrates. However, they become completely ineffective if the base metal lacks magnetic properties.

We believe this is one of the most dependable testing methods available. Because magnetic fields behave in a highly predictable manner when ferrous metal is present, these instruments maintain their calibration and stay dependable for the long haul.

Ideal Applications:

These instruments check non-magnetic coatings (paint, protective zinc galvanizing, chrome, tough epoxy) over metals that magnets naturally attract (carbon steel, cast iron, magnetic stainless steel).

Field Example: When validating the anti-corrosion barrier on heavy outdoor steel infrastructure (like highway guardrails), inspectors use magnetic induction to verify that the hot-dip galvanized zinc layer meets strict regional thickness specs without scratching off the protective finish.

If your facility primarily fabricates structural steel beams, a magnetic-capable system is the industry-standard way to keep your quality checks secure. For absolute precision, we offer industrial-grade dual-principle units like the QualiCTG-V. This specific model utilizes a unique gravity-based measurement design and a highly durable carbide probe tip to deliver stable readings over steel and iron.

Eddy Current Principle

Now, what if you are working with metals that magnets do not attract? We are going to state it clearly. This is where electrical current takes over the heavy lifting.

There is not a trace of magnetic pull involved here (and aluminum or copper fabricators know exactly why that matters), but the electrical field is highly active. Every single centimeter of your anodized or coated metal is inspected with impressive consistency.

How Eddy Current Gauges Work:

• Electrical Fields: The device feeds a high-frequency alternating current into a probe coil. When placed on a non-ferrous metal like aluminum, it induces tiny swirling electrical fields called eddy currents within the metal itself.
• Impedance Changes: The instrument measures thickness indirectly through coil impedance or inductance changes, which vary based on how far the probe is pushed away from the conductive base metal.
• Sensitivity Factors: While incredibly fast and non-destructive, their main practical limitation is a high sensitivity to probe lift-off, base metal conductivity variations, magnetic permeability, and tricky part geometries like sharp edges.

We often observe that measuring coatings on anodized aluminum requires extra care because different metal alloys conduct electricity slightly differently. Even so, we believe a well-engineered eddy current tool accounts for those minor differences with reliable consistency, provided the equipment is properly balanced and zeroed before you begin.

Ideal Applications:

These tools check non-conductive layers applied to metals that are electrically conductive but entirely non-magnetic. This means testing paint, anodizing, varnish, or plastic films on substrates like aluminum, copper, brass, or non-magnetic stainless steel.

Field Example: For the architectural anodizing of extruded aluminum window frames, quality control teams must regularly verify that the thin clear coat is thick enough to survive decades of salty seaside air.

For these particular non-conductive layers, advanced dual-principle models like the QualiCTG-II provide enhanced baseline accuracy up to ±(2% + 1 μm) and resolutions as tight as 0.1 μm. This unit features a dual-screen display (LCD on the front, OLED on top) ensuring you meet strict tolerances perfectly.

If your business produces lightweight aerospace components or precision electronics, these devices deliver results you can confidently present to your most demanding customers.

Dual-Technology and Advanced Thickness Testing

Deciding between magnetic vs eddy current thickness testers does not mean you are forced to purchase two separate pieces of equipment. Many high-capacity manufacturing facilities process both steel and aluminum on the very same production lines.

Furthermore, industrial engineering literature supports eddy current as a broad research frontier, specifically for difficult mixed cases. Advanced testing methods effectively manage cases where basic single-parameter gauges often struggle, such as conductive nonmagnetic coatings on ferromagnetic steels, weakly magnetic substrates, and complex multilayer thermal-barrier systems.

Key Advantages of Advanced Systems:

• Multi-Frequency & Pulsed Approaches: Modern equipment helps separate the actual thickness reading from tricky substrate effects. These phase-amplitude approaches keep errors well below standard thresholds depending on the coating difficulty.
• Reduced Lift-Off Errors: Specialized methods have successfully reduced practical lift-off errors down to a mere 1.5% to 3% in specific testing environments.
• Automatic Substrate Detection: A dual-probe system automatically identifies the underlying base metal, switching its active physics mode in less than 0.5 seconds.

For context, consider a high-throughput automotive assembly line where steel chassis frames and lightweight aluminum door panels move down the exact same conveyor belt. Rather than forcing technicians to stop and swap between two different hand-held units, a dual-probe system like the QualiCTG-I lets the worker check the paint thickness on a steel frame and instantly test an aluminum door panel back-to-back.

To further prevent errors on fast-paced lines, this entry-level model includes a red backlight limit alarm that flashes instantly if a measurement falls outside your pre-configured tolerances, alongside a ruby wear-resistant probe tip that prevents physical degradation over thousands of checks.

For mixed-metal environments, we consider a dual-probe system to be an invaluable operational asset. These instruments pack both measurement principles into a single smart probe, saving your technicians time and preventing operational errors.

Compliance with Global Standards (ASTM & ISO)

In industrial manufacturing, regulatory compliance is a major operational requirement. If you utilize magnetic vs eddy current coating thickness gauges, your measurements must align with strict international testing frameworks.

If you are inspecting magnetic materials, you will follow ISO 2178 to verify non-magnetic coatings on steel substrates. If you are using eddy current instruments, you will look to ISO 2360 for non-conductive coatings on non-magnetic metals. Both methods fall under the broad guidance of ASTM D7091, the overarching global standard practice for non-destructive dry film thickness testing.

While managing compliance documentation can sometimes feel like an administrative burden, we believe that aligning your inspection steps with these recognized ISO and ASTM standards is actually the fastest way to prove your technical credibility to major B2B contract buyers and turn demanding audits into a routine process.

Probe Configurations: Integrated vs. External

While you are evaluating different measurement systems, you also need to consider the physical form factor of the equipment. You will generally choose between two primary probe styles:

• Built-in (Integrated) Probes: The sensor is built directly into the base of the gauge. This is ideal for fast, one-handed measurements on wide, flat panels where you simply need to press and read.
• External (Separate) Probes: The sensor is connected to the hand-held unit by a flexible cable. This style provides significantly more maneuvering freedom, making it the clear choice for tight spaces, cylindrical geometries like pipes, or complex physical parts.

To illustrate this on the shop floor, checking flat commercial sheet metal or large steel panels is incredibly efficient with a built-in probe. However, if an operator is tasked with checking the protective epoxy lining inside the narrow, curved inner walls of an industrial fluid pipe, an integrated tool is physically impossible to use.

In that scenario, a testing system like the QualiCTG-III becomes mandatory. Outfitted with an external FN2.0 or FN3.0 probe on a flexible cable and a 2.4-inch color screen, it easily reaches constricted areas. Additionally, its highly anti-interferent design ensures accurate readings even inside complex electromagnetic environments, and it conveniently sends test results to a mobile app via Bluetooth.

We are going to state it clearly. We generally favor external probe designs for heavy industrial settings. While built-in sensors are highly convenient for rapid spot-checks, we believe separate probe cables offer superior long-term durability by keeping the sensitive electronics and display screen away from potential contaminants, impact, or heat on the shop floor.

Calibration Best Practices

Here is the straightforward truth. Even the most advanced testing instrument will yield inaccurate data if it is not calibrated correctly. Base metals feature varying shapes, surface roughness, and physical compositions that can easily throw off a sensor. To maintain measurement integrity, quality testing involves two main calibration steps:

• The Zero-Point Baseline: Teaching the instrument what "bare metal" looks like by testing it directly on an uncoated sample of the exact material you are about to inspect.
• The Calibration Foil Test: Placing high-precision calibration shims of a verified thickness on top of the bare metal to ensure the tool reads the exact target value.

Academic research confirms that measurement accuracy depends heavily on rigorous calibration and mathematical compensation for substrate material properties and exact sensor positioning.

A classic illustration of this occurs when measuring thin coatings on curved cylindrical shafts. If an operator calibrates their tool using a flat metal sheet and then immediately tries to measure a curved part, the geometric curve of the cylinder will distort the magnetic flux or eddy current fields.

This leads to a falsely inflated thickness reading on the screen. The gauge might display a comfortable "pass," while in reality, the protective coating is far too thin, paving the way for premature rust once the product is shipped to the customer.

We believe a reliable quality control system always begins with a disciplined calibration protocol. In our view, an instrument is only as reliable as its last verified baseline, which is why we consider a rapid calibration check at the start of every shift to be a critical best practice.

Choose Qualitest for Dependable Thickness Testing

At Qualitest, we believe that securing consistent quality control should not require straining your operating budget. We specialize in providing highly cost-effective, dependable testing instruments built to withstand demanding industrial environments. Our systems are engineered to keep your production lines moving with highly stable, standard-compliant metrics.

If you are currently selecting an inspection system for your facility, we are ready to assist you in finding the right model. Review our full range of Coating Thickness Gauges today, or contact our technical team to find a durable, reasonably priced solution that protects your output and keeps your reject rates low.
