Coating Thickness Gauge – QualiCTG-V

Coating Thickness Gauge – QualiCTG™ V
Request A Quote
Parent Product
Coating Thickness Gauge – Paint Thickness Gauge
View PDF

Coating Thickness Gauge – QualiCTG™ V

Coating Thickness Gauge – QualiCTG™ V measures non-magnetic coatings like paint, varnish, enamel, chrome, and galvanizing on ferromagnetic metals such as steel or iron. It also measures non-conductive coatings like paint, anodized layers, or ceramic on non-magnetic metals, including copper, aluminum, die-cast zinc, and brass. The gauge automatically detects the substrate and switches measurement modes accordingly. It is commonly used in manufacturing, metalworking, chemical processing, quality inspection, and related industries.

Coating Thickness Gauge – QualiCTG-V

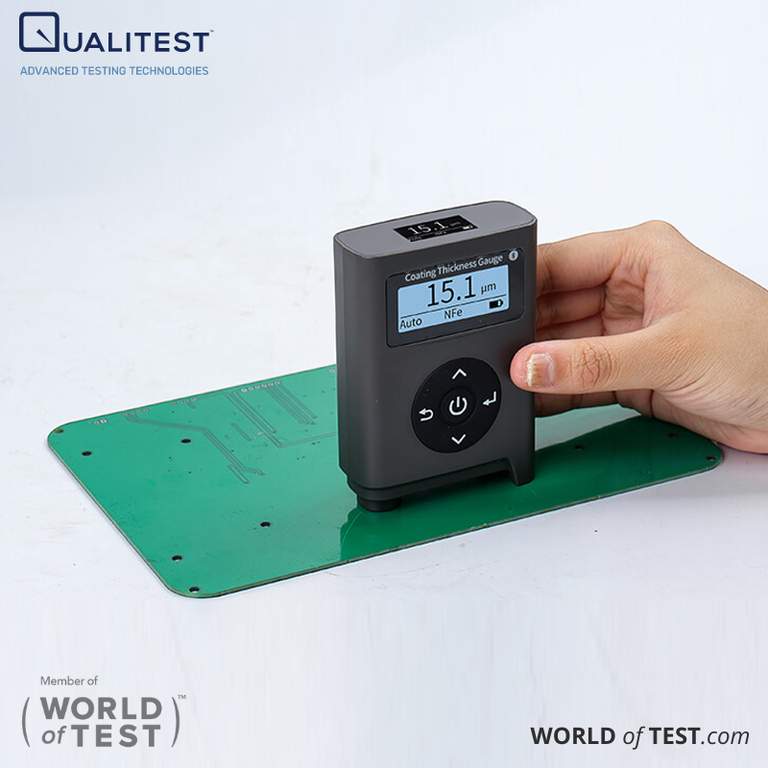

PCB board measurement

Coating Thickness Gauge – QualiCTG-V

Aluminum profile measurement

Coating Thickness Gauge – QualiCTG-V

Paint coating measurement

Coating Thickness Gauge – QualiCTG-V

Anodized layer measurement

Coating Thickness Gauge – QualiCTG-V

Copper foil measurement

Coating Thickness Gauge – QualiCTG-V

Car paint coating measurement

The instrument meets international testing standards for coating thickness measurement, including:

  • Magnetic Induction for non-magnetic coatings on ferrous metals

  • Eddy Current for non-conductive coatings on non-ferrous metals

  • Paints & Varnishes film thickness determination

Coating Thickness Gauge – QualiCTG™ V Features

Gravity-Based Measurement for Stable Positioning
The device uses its own weight to apply consistent pressure, ensuring uniform probe contact during each measurement. This minimizes operator influence, improves repeatability, and delivers more stable, reliable readings. Coating Thickness Gauge – QualiCTG-V

Dual-Screen Design for Easy Reading
The front and top display screens allow for quick, clear viewing of thickness measurements from any angle, enhancing efficiency and ease of use.

Coating Thickness Gauge – QualiCTG-V Coating Thickness Gauge – QualiCTG-V
Multi-Point Calibration for Precise Measurements
The gauge features zero adjustment and 1-5 point calibration, using included zero plates and standard sheets to maintain accuracy—even in demanding conditions. Coating Thickness Gauge – QualiCTG-V

Auto-Sensing Ferrous/Non-Ferrous Probe
The intelligent probe instantly identifies the base material type, delivering precise coating thickness measurements across all compatible metals without manual switching.

Coating Thickness Gauge – QualiCTG-V Coating Thickness Gauge – QualiCTG-V
Certified High-Precision Measurement
With measurement accuracy up to ±2%H+1μm, this instrument meets rigorous national metrology standards for reliable, lab-grade results.
Rapid Scanning for Large-Surface Analysis
Glides smoothly across surfaces while taking measurements every 0.1 seconds, with live max/min thickness tracking – perfect for fast, comprehensive area inspections. Coating Thickness Gauge – QualiCTG-V
Onboard Data Storage
The built-in memory stores up to 9 complete measurement sets, allowing instant recall and review of test results when needed. Coating Thickness Gauge – QualiCTG-V

Dual-Mode Flexibility
Easily toggle between standard measurement and QC inspection modes to match different testing requirements.

Coating Thickness Gauge – QualiCTG-V Coating Thickness Gauge – QualiCTG-V
Ultra-Thin Substrate Capability
Precisely measures coatings on materials as thin as 0.2mm (ferrous) and 0.05mm (non-ferrous), delivering reliable results for delicate or thin-walled components. Coating Thickness Gauge – QualiCTG-V
Laboratory-Grade Accuracy
Advanced digital probe technology and precision sensors deliver ±1% measurement repeatability, outperforming comparable international instruments in reliability tests. Coating Thickness Gauge – QualiCTG-V
Wireless Data Management via Bluetooth®
Built-in Bluetooth communication, can connect to mobile phone APP to realize multiple sets of data storage, analysis and measurement report sharing, improve data management efficiency. Coating Thickness Gauge – QualiCTG-V
Wear-Resistant Carbide Probe
The tungsten carbide-tipped probe withstands heavy use while maintaining precision, even on rough surfaces. Coating Thickness Gauge – QualiCTG-V
Compact and Handheld
The lightweight, one-handed design enables quick, non-destructive thickness measurements on most metal surfaces—anywhere, anytime. Coating Thickness Gauge – QualiCTG-V
  • Unit Flexibility: Instantly switch between μm and mil units
  • Rapid Readings: Measures in just 0.3 seconds
  • Zero Calibration: Negative display ensures precise baseline adjustment
  • Thermal Stability: Automatic temperature compensation maintains accuracy

Coating Thickness Gauge – QualiCTG™ V Technical Specifications

Parameter NameParameter Value
Probe tipCemented carbide
Measuring principleFe: Magnetic induction
NFe: Eddy current
Probe typeIntegrated probe
Measuring range0.0-2000μm
Resolution0.1μm:(0μm - 99.9μm)
1μm:(100μm - 2000μm)
Accuracy0-1000μm:≤±(2%H+1μm), H is the standard value
1000-2000μm:≤±3%H, H is the standard value
Unitμm / mil
Measuring interval0.3s
Minimum measuring areaØ = 15mm
Minimum substrate thicknessFe:0.2mm
NFe:0.05mm
Display128×48 dot matrix LCD
Power supply2pcs of 1.5V AA alkaline battery
Range of operation temperature0℃-50℃
Storage temperature range-20℃-60℃
Main unit Dimension90 x 65 x 28 mm
Weight(with battery)123g
Supply VoltageDC3V
Coating Thickness Gauge – QualiCTG-V

Front view

Coating Thickness Gauge – QualiCTG-V

Back view

Packaging

No.DescriptionQuantityUnit
1Coating Thickness Gauge1Set
2Fe zero-adjustment plate1pcs
3NFe zero-adjustment plate1pcs
4Standard film5pcs
5User manual1pcs
