Guide to Durometer Testing for Rubbers & Plastics

Precise stiffness testing on your flexible parts is the fastest path to securing perfect product performance and seamless compliance. While raw tensile strength gets all the flashy attention, reliable indentation measurements are your true quality guarantee because they correlate directly with material stiffness.

This guide breaks down exactly how these essential gauges perform, clears up the Shore versus IRHD confusion, and helps you select the high-precision setup your quality lab deserves.

Key Takeaways

• Precision Dictates Performance: Durometers deliver highly precise measurements of indentation resistance. This metric correlates directly with material stiffness, dictating exactly how your components survive physical wear.
• Choosing the Correct Scale: Selecting the right gauge is mandatory. We utilize Shore scales for flat surfaces and specialized IRHD methods to gather flawless data on curved parts.
• Non-Negotiable Compliance: Strict adherence to international procedures like ASTM D2240 and ISO 48-4 separates successful labs from those facing expensive product rejections.
• Automating Your Accuracy: Motorized test stands completely remove unpredictable human error. We view this as a necessary upgrade to guarantee highly consistent, audit-ready data.


What is a Durometer?

Let’s break it down: a durometer is a highly focused instrument built to tell you exactly how tough your plastics, stretchy rubbers, and polymer blends really are. When we say "hardness" in this specific context, we are talking directly about how much a material fights back when you try to press a permanent indentation into it.

It is completely different from flexibility or raw pull strength; this specific measurement tells your engineering crew exactly how well a product will survive when real-world objects press down on it day after day. People use the word "durometer" to mean both the actual physical gauge and the final score itself. Both the Shore and IRHD scales are often related to the elastic modulus of a material using advanced contact-mechanics models.

Now, pushing a tiny metal pin into a chunk of rubber sounds incredibly simple, but we honestly view the physical science behind this test as exceptionally tricky. Even a microscopic wiggle in the angle of the pin or a tiny change in hand pressure can completely throw off your numbers and leave you with totally useless data.

Core Mechanisms of Durometer Hardness Testers

The core mechanism behind a durometer depends entirely on three key parts working together like absolute clockwork:

• The Indenter Pin: A highly precise steel needle or tiny spherical metal ball that physically presses right into your sample.
• The Heavy-Duty Spring: A carefully calibrated spring that pushes down on that pin with a highly consistent, unwavering force.
• The Measurement Display (The Dial or Screen): This turns the physical depth of that tiny indentation into a clear, standardized score from 0 to 100. For both Shore and IRHD, the scale works on a straightforward principle where 0 equals zero modulus and 100 equals infinite modulus.

When you press the indenter flat against your material, the sample tries its hardest to push back. A highly yielding material will let that pin sink way down, giving you a very low number. A highly rigid material will block the pin completely, giving you a high, impressive score.

Comparing Hardness Scales: Shore vs. IRHD

To test everything from highly viscous industrial gels to stiff-as-a-board plastics, you need different rulers. The two prominent setups used across the globe are Shore and IRHD.

The Shore Scales

This setup uses over a dozen different lettered options.

• Shore A: The absolute go-to scale for soft-to-medium rubbers, flexible silicones, and bendy plastics. It uses a flat-topped, truncated cone pin.
• Shore D: The choice for tough materials like hard-hat plastics, heavy epoxies, and dense rubbers. It uses a sharp, needle-like tip and a much stiffer spring.
• Other options like Shore O, OO, B, and C exist for extremely soft or middle-of-the-road materials.


IRHD (International Rubber Hardness Degree)

While Shore is the darling of North American shops, IRHD is explicitly defined via an elastic contact equation and is the gold standard across Europe for high-accuracy rubber testing. We notice that tons of design shops ignore IRHD completely, but we genuinely believe it is the only way to go when dealing with rounded parts or tiny items.

IRHD uses a perfectly spherical ball (usually made of ruby) housed in an annular foot. It measures the difference in indentation depth between a light initial touch and a heavy final push, making it exceptionally repeatable.

A Quick Practical Example: Let's look at a common shop floor scenario. Imagine trying to measure a highly curved rubber O-ring. If an operator takes a standard Shore A tester with its flat-bottomed base and tries to press it directly against that rounded surface, the instrument will inevitably slip or compress the material at a totally skewed angle.

But swap that out for our highly specialized IRHD Micro Hardness Tester utilizing a perfectly spherical ruby ball and the optional Centring Device for Cylinders and Hoses (which securely grabs rounded parts up to 50 millimeters wide). The instrument smoothly engages the curve, delivering highly precise, repeatable data every single time.

A crucial warning for quality managers: Researchers strongly discourage attempting to mathematically convert between different hardness scales (like swapping Shore A for IRHD) due to complex viscoelastic and rate effects in polymers.

Reference Chart: Typical Hardness Values

To help you picture how these numbers look in real life, here is how common objects score:

Applications Across Industries

These testers are absolute must-haves for quality control, vulcanization assessment, and the specification of elastomer grades. From where we sit, getting a crystal-clear grip on exactly what physical wear your products face in the real world is an absolute requirement before you purchase any gear.

• Rubber & Elastomeric Parts: Testing heavy tires, tight seals, and vibration-absorbing mounts.
• Plastics & Synthetic Polymers: Scoring stiff PVC pipes and molded parts. Studies show that Shore hardness supports the ranking of these materials and shows a partial correlation with scratch hardness.
• Automotive Production: Ensuring dashboard covers and motor mounts have the exact right flexibility.
• Medical Devices: Proving that flexible tubes and prosthetics are safe and reliable. In silicone rubber production, in-mould Shore measurements can even monitor property development during casting.
• Aerospace & Defense: Double-checking critical seals and layered composites that absolutely cannot fail in freezing space or extreme heat.

The Cost of Failure: Consider what happens in high-altitude environments when stiffness ratings are off by just a couple of points. A rubber seal that passes a sloppy manual inspection on the ground might become dangerously brittle at freezing atmospheric temperatures and completely lose its ability to hold pressure.

That tiny measurement error quickly turns into a catastrophic pressure leak mid-flight. This industry has absolutely zero room for error, which makes fully automated testing a total non-negotiable requirement.

Compliance with ASTM D2240 and ISO 48-4 Standards

Staying on the right side of industry regulations means sticking strictly to global standards. If you are selling parts to other businesses, following these strict rules is 100% mandatory.

The absolute kings of standard testing are ASTM D2240 (the official standard for checking the indentation hardness of rubber) and ISO 48-4 (the global standard for vulcanized or thermoplastic rubbers). Additionally, ISO 7619, ISO 868, and ISO 18898 clearly define the specific equipment, procedures, and calibration requirements for elastomer testing.

From where we stand, attempting to estimate these official procedures is a massive gamble for your business. We strongly believe that securing a stamp of approval during intense buyer audits only happens when you invest in a testing setup officially built to satisfy these precise, unbending rules.

Need to pass those incredibly tough ASTM or ISO audits? Take a look at Qualitest’s complete lineup of Shore & IRHD Durometers for ultra-accurate, worry-free testing.

Types of Durometers for Quality Control

Finding the perfect tester depends entirely on how many parts you test a day, how perfect your numbers need to be, and how strict your auditors are.

Analog vs. Digital Durometers

Analog testers (like our incredibly popular HD-3000 and the confined-space-friendly HD-3000L with its ultra-slim probe) show your score with a traditional physical needle on a large, non-reflective round dial. They boast an exceptional half-point readability accuracy and are fantastic for quick, on-the-spot checks out on the active factory floor. You can even pair them with the OS-2 Operating Stand for shock-free, manual lever lowering to slash human error.

Digital testers swap out that physical needle for a clear screen, totally wiping out human reading mistakes. For modern quality labs, these digital versions are incredible because they save your data, average your scores automatically, and plug right into your computer systems.

We firmly believe the slightly higher price tag of a digital machine pays for itself almost instantly by keeping human error completely out of your records. Take our Digital Shore Durometer DRIVE Series. It features a massive 25-by-50-millimeter digital screen, instantly stores up to sixty different measurements, and even packs built-in ambient temperature and relative humidity sensors.

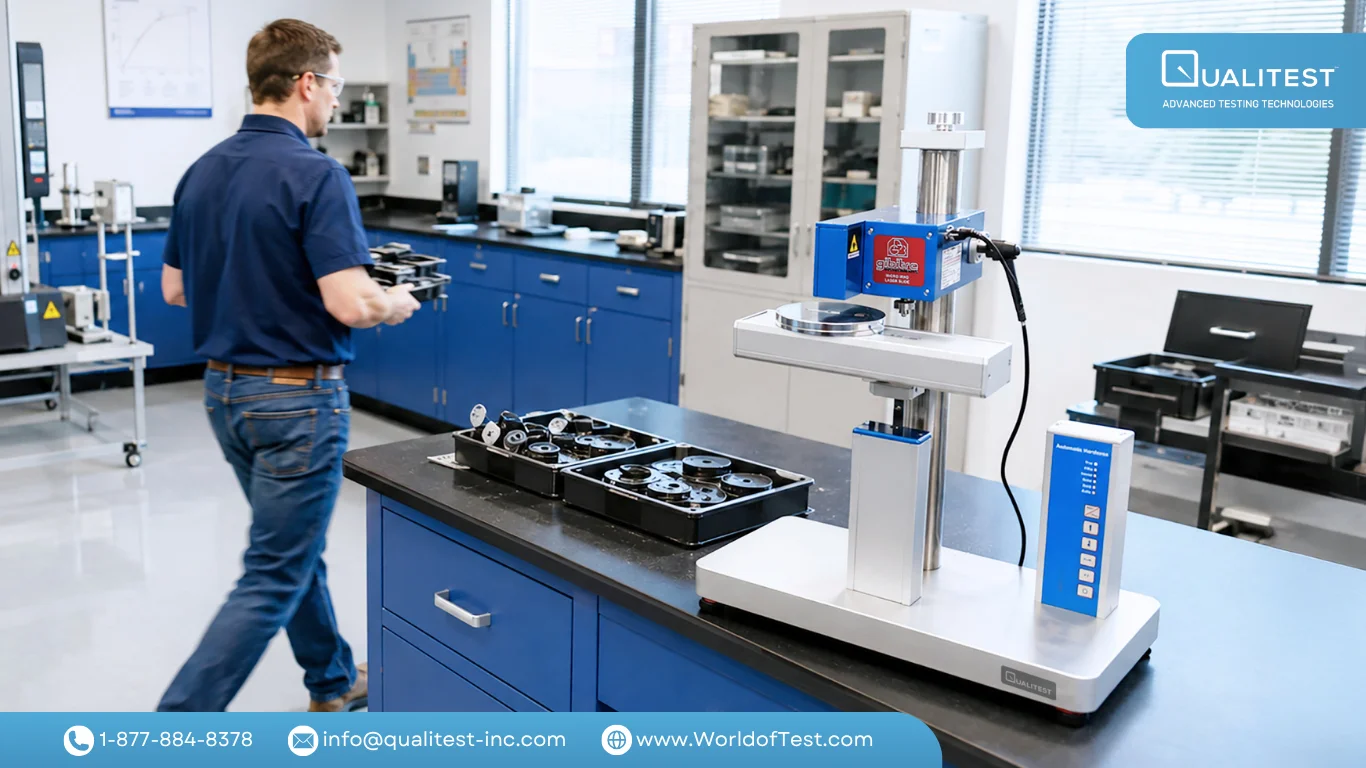

Automated and Motorized Test Stands

Extensive interlaboratory work on rubber hardness proves that operator influence is the absolute dominant source of variability, and automated, computerized testers markedly improve precision. Holding a tester by hand introduces a mountain of human variables. Different workers will press down at different speeds, weird angles, and varying pressures, which completely ruins your data.

The Real Payoff of Accuracy: Think about the raw financial impact of operator error. An automotive supplier could easily end up scrapping a highly expensive batch of molded dashboard components simply because a tired technician pressed down too forcefully with a handheld gauge late in their shift.

Motorized stands eliminate that highly expensive human variable entirely. If you want absolute perfection, look closely at our Automatic Durometer – Shore and IRHD Hardness Tester – DRIVE Series. It features lightning-fast interchangeable measuring heads, fully automatic specimen rotation, and Datagest software integration that prints highly customized, client-ready PDF reports.

Portable Durometers

For giant, heavy parts that you can't easily move (like massive tractor tires or aircraft wings), portable handheld units let your inspectors bring the test right to the product instead of chopping up incredibly expensive parts just to take a tiny sample.

Testing Procedures, Calibration, and Best Practices

Once you have selected the perfect gear, getting highly reliable numbers is all about strict control of test conditions. Results depend strongly on operator, temperature, load, and dwell time, and poor control gives poor repeatability.

Sample Preparation Guidelines

Good data starts before you even turn the machine on. The scientific literature and standard testing rules typically require your samples to be totally flat, smooth, and at least 6mm thick. If you are testing thin sheets, you can stack them up, but you absolutely must write that down in your final report.

Shore and IRHD Testing Procedures

1. Place your prepped sample on a completely flat, rigid surface that won't budge even a millimeter.
2. Line up the flat bottom of the tester so it is perfectly parallel with the top of your sample.
3. Push the tester down smoothly and without any sudden jerks until the flat bottom is pressed firmly against your material.
4. Write down your score at the exact second required by your standard.


Calibration and Verification Protocols

These are highly sensitive instruments that need constant attention. Research confirms that long-term stability and proper calibration are completely crucial to gathering usable data.

• The Big Annual Checkup: Make sure whoever sells you your machine offers official ACCREDIA Calibration Certificates (which are fully traceable to primary standards) or equivalent ISO 17025 paperwork.
• The Daily Quick Check: We consider checking your machine every single morning with calibrated Rubber Reference Materials and Test Blocks to be absolutely non-negotiable for any lab. Pressing your tester into a known block before every shift lets you catch a broken or bent needle immediately.


Common Testing Mistakes to Avoid

• Poking too close to the edge: Always stay at least 12mm away from the outer edge of your sample.
• Slamming the tester down: Dropping the pin too fast into the material creates falsely high numbers.
• Ignoring the weather: Rubber gets softer or harder depending on how warm or cold the room is. We strongly recommend keeping your lab temperature tightly controlled (which is exactly why we built those incredibly handy sensors directly into the lithium-battery-powered Digital DRIVE Series).


Equip Your Lab with a Qualitest Hardness Tester

Putting your money into the right testing setup is the ultimate way to stop product failures, breeze through highly stressful audits, and speed up your daily testing line. Browse our complete Shore & IRHD Hardness Tester Lineup today or reach out to our team of global experts for a quick chat and a custom price quote.
