Verifiable testing data beats second-guessing your setup every single time. Indenting flexible elastomers to verify structural stiffness requires absolute precision by measuring how effectively a rubber sample resists penetration when a hard pin presses into its surface under specific loads.
DIRECT MECHANICAL CHECKS INDIRECT SYSTEM VALIDATION
+------------------------------------+ +-----------------------------------+
| - Verifying spring push-force | | - Pressing certified reference |
| - Measuring pin geometry | + | rubber test blocks | = 100% Audit-Ready
| - Verifying depth dial sensors | | - Catching machine drift early | Lab Results
+------------------------------------+ +-----------------------------------+
Direct vs. Indirect Verification
When verifying hardness testing instruments, two distinct approaches ensure complete measurement accuracy:
- Verifying individual mechanical components (Direct Verification): Measuring spring push-force, inspecting indenter pin geometry, and checking digital depth sensors piece by piece.
- Testing certified reference materials (Indirect Verification): Pressing your machine into a known, certified rubber reference block to confirm that the full testing system operates seamlessly as a whole.
Qualitest Hardness Reference Block Specifications
| Testing Scale | Applicable Standards | Product Options & Practical Scope |
|---|

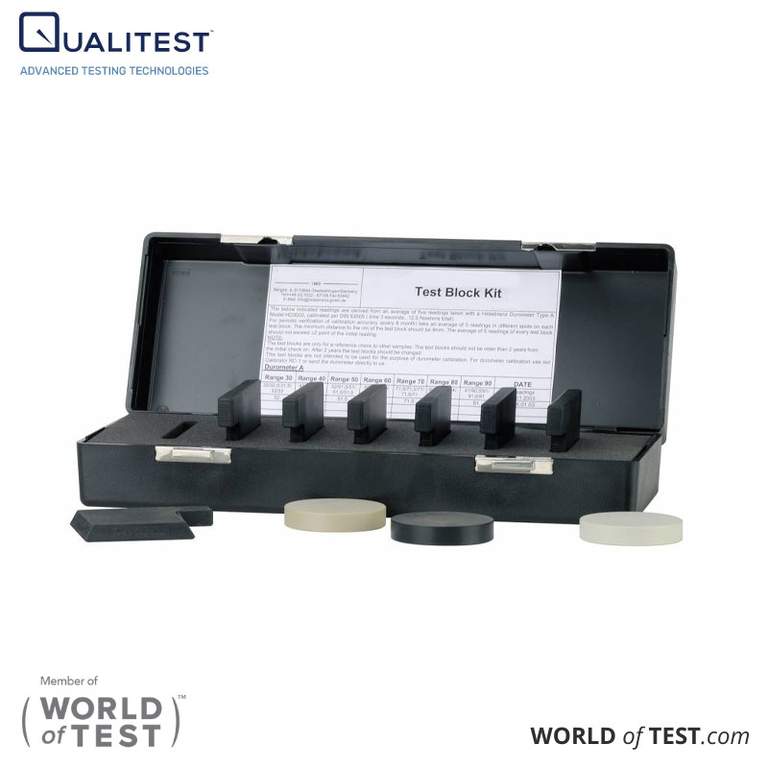

| Shore Hardness Sets | ISO 48-4, ASTM D2240, DIN 53505 | Shore A, D, OO, O, and M scales. Supplied as individual blocks or multi-piece test sets covering 40 to 90 Shore points for verifying durometer spring calibration. |
| IRHD Macro Sets | ISO 48-2, ASTM D1415, DIN 53519 | Dead-weight spherical indenter scale covering 40 to 90 IRHD for verifying macro-hardness instruments on gaskets and curved parts. |
| IRHD Micro Sets | ISO 48-2, ASTM D1415, BS 903 Pt A26 | High-precision micro-scale reference blocks for verifying micro-IRHD testers on thin films, O-rings, and miniature seals. |
Eliminating Operator Variation
Manual force application naturally introduces human variability. Pressing down on a durometer too quickly, tilting the instrument off-center, or miscounting dwell seconds creates unwanted measurement scatter.
Pairing Qualitest reference blocks with motorized test stands, such as the OS-2 Series Operating Stands or the fully automated DRIVE Series Shore & IRHD Hardness Testers, removes human influence entirely. Automated systems apply loads with uniform downward velocity and maintain dwell times down to the exact second, yielding exceptional repeatability across every test cycle.
DIN Abrasion Calibration & BAM Reference Sheet Theory
+-----------------------------------------------------------------------+
| ISO 4649 / DIN ABRASION CALIBRATION |
+-----------------------------------------------------------------------+
| Abrasive Paper Wear BAM Standard Reference Sheet |
| - Grit sharpness varies -> - Certified, known wear rate |
| - Changes friction force - Determines correction factor |
| - Normalizes test specimen results |
+-----------------------------------------------------------------------+
Calibration Mechanics for ISO 4649 and DIN 53516
Rotary drum abraders measure volume loss by rubbing rubber samples across fixed abrasive paper. Because abrasive paper wears down and loses sharpness over consecutive runs, raw mass loss numbers cannot be compared directly without calibration.
- Role of BAM Standard Reference Rubber Sheets: Specially formulated reference compound sheets conforming to ISO 4649 Annex B.2, DIN 53516, and ASTM D5963 provide a certified, known wear rate.
- Calculating Abrasive Paper Aggressiveness: Running a BAM reference sheet before and after sample testing determines the exact mass loss of the abrasive paper. This yields a mathematical correction factor that normalizes all test sample readings to a standard 200 mg wear loss rating.
- Equipment Compatibility: Essential for calibrating rotary drum abraders like the QualiDIN 1000 Series and GB-DIN Abrasion Tester.
| Reference Material | Governed Standard | Purpose & Operational Function |
|---|
| BAM Reference Rubber Sheet | ISO 4649 Annex B.2, DIN 53516 | Determines abrasive paper wear factor to adjust specimen mass loss calculations. |
| Shore & IRHD Reference Blocks | ISO 18898, ISO 48-2, ISO 48-4 | Verifies indenter depth measurement and force balance across durometers and IRHD gauges. |
Metrological Care & Aging Physics of Reference Materials
Standardized reference blocks and BAM sheets do not remain static indefinitely. Chemical cross-linking, ambient light, and temperature fluctuations slowly alter rubber properties over extended storage periods.
To safeguard measurement accuracy:
- Track reference block values through periodic annual recalibrations to identify subtle hardness drift before it impacts laboratory operations.
- Store reference materials in dark, climate-controlled environments at 23 ± 2 °C inside their original protective wooden storage boxes, keeping them lightly dusted with talc away from oils and solvents.
