Shore Hardness Testing: Durometer Method & Formula

Are you willing to risk a catastrophic production failure by skipping basic polymer hardness checks? Skipping these tests turns finished parts to mush or fractures them under stress, creating highly expensive delays.

To prevent this, engineers require a dependable, highly accurate durometer setup. We dissect Shore vs. IRHD systems, sample preparation, and how to choose the right gear for your laboratory bench.

Key Takeaways

• Skipping hardness testing on industrial polymers leads directly to highly expensive structural failures and completely ruined manufacturing runs.
• Shore A handles highly flexible elastomers, Shore D evaluates thoroughly rigid plastics, and IRHD is the absolute requirement for curved surfaces like O-rings.
• Passing strict ASTM D2240 and ISO compliance requires highly specific sample preparation, including a strict 6.0 mm minimum thickness rule.
• High-volume laboratories rely heavily on fully motorized test stands and multi-scale digital durometers to completely eliminate human operator error.


What is a Durometer and Shore Hardness Testing?

First things first: what actually is a durometer? Put simply, it is a highly practical measuring device that assesses exactly how much a material resists permanent deformation when a calibrated indenter tip presses firmly into its surface. You will frequently hear engineers swap the term "durometer" with Shore hardness (named after Albert F. Shore, who created the scale in the 1920s).

How does the testing procedure work? It is remarkably straightforward. A highly tensioned, spring-loaded indenter presses directly into your specimen's surface, and the maximum depth of that indentation generates a numerical rating from 0 to 100. Elevated numbers point to a highly rigid material that completely refuses to yield, while lower numbers indicate the material is highly flexible.

Interestingly, while Shore hardness provides a fantastic baseline and correlates reasonably well with a material's elastic modulus, it does not fully describe complex sliding friction or long-term wear behaviors on its own, meaning you will still need complementary mechanical tests to get the full picture.

Shore A, Shore D, and Beyond: Understanding the Scales

Because flexible elastomers and rigid plastics behave as completely different materials, one single mathematical scale is never going to be enough. To solve this engineering problem, developers established a wide range of distinct Shore scales, each utilizing remarkably different indenter shapes and downward forces.

Shore A

This is built specifically for the flexible, yielding group. It utilizes a flat-tipped cone and a relatively moderate spring force. Think soft casting rubbers, highly flexible silicones, and pliable denture liners. To put this into perspective, think about everyday items. A standard rubber band sits right around a highly yielding 20 on the Shore A scale. A typical car tire tread hits closer to a firm 70 Shore A.

Shore D

This is for the highly rigid options. It swaps in a sharp, 30-degree point and a heavily forceful spring. You use this for rigid thermoplastics, heavy-duty epoxies, and dense PVC to compare surface properties. If you grab a protective construction hard hat, you are looking at a thoroughly unyielding 80 on the Shore D scale.

Shore 00 (The Specialty Scale)

While A and D do the heavy lifting for industrial parts, Shore 00 is your go-to option for highly pliable, almost squishy items like memory foam, soft medical gels, and cellular rubber. We also see this scale used extensively to match the biomechanical feel of soft tissues for 3D-printed medical training devices.

Our Quick Rule of Thumb: If a specimen scores over 90 on Shore A, we tell you right now: pack it up and switch directly to Shore D to get a mathematically reliable reading. Flip that around: if you are getting under 20 on Shore D, step back to Shore A. If you are dealing with confined spaces or tight geometries during these checks, an instrument like the Shore Durometer Model HD3000L, with its highly specialized slim probe, becomes absolutely essential.

Shore Hardness vs. IRHD: Which Testing Method Do You Need?

Even though Shore is the big name everyone throws around the factory floor, IRHD (International Rubber Hardness Degrees) is equally critical, especially for high-precision molded components.

• Shore Hardness: Excellent for flat, thick test slabs. It is highly efficient and delivers a solid pass-fail indication on raw material batches.
• IRHD: The ultimate choice for finished components featuring curved geometries, complex profiles, or remarkably thin cross-sections. It utilizes a highly precise spherical indenter and applies two separate, highly controlled loads, making it incredibly consistent for non-flat manufactured parts.


Precision Testing: Micro-IRHD for O-Rings

One of the most frequent operational issues we observe in commercial testing labs is dealing with tiny O-rings and highly sensitive circular seals. Because regular Shore testers demand a perfectly flat, highly stable surface, trying to test a curved O-ring with one is a complete recipe for disaster.

Consider a standard laboratory scenario: a technician tries to measure a tightly curved 3 mm cross-section seal using a flat-bottomed Shore tester. The specimen constantly slips, bows, and compresses unevenly, leading to entirely erratic, completely useless data. Swap that exact same seal over to an IRHD Micro Hardness Tester equipped with perfectly spherical ruby ball indenters, and the data instantly becomes incredibly stable and perfectly repeatable.

Common Applications for Rubber and Plastic Hardness Testing

Getting your hardness testing mathematically spot-on is an absolute requirement across multiple high-stakes, highly regulated industries. Here is how different commercial sectors utilize these instruments:

Automotive Components

Car engineers rely heavily on these testers for heavy-duty tires, weather-stripping door seals, dense engine mounts, and critical fluid O-rings. If the hardness falls out of acceptable spec, your cabin will rattle loudly and the high-pressure fluid seals will leak everywhere.

Medical Devices

Hospital-grade silicones and advanced orthodontic polymers have absolutely zero room for error. We are going to call it: the medical sector operates with the absolute tightest safety margins globally. You need highly precise testers for flexible IV tubes, pliable catheters, and syringe seals to keep patients completely safe, and we frequently see engineers ranking orthodontic polymers by their exact surface hardness.

Aerospace and Defense

Up in the sky, rubber seals must survive extreme temperature swings and massive, highly sudden pressure drops. A tiny manufacturing slip-up in hardness can cause massive fluid leaks or catastrophic engine failures, making high-precision IRHD and Shore testing a literal matter of life and death.

Construction and Infrastructure

From giant, highly flexible expansion joints in suspension bridges to commercial window weatherproofing and highly durable roof membranes, polymers hold modern buildings together. Because these parts face baking hot sun and pouring acidic rain, regular hardness tests act as the most dependable way to estimate exactly how many decades they will last before cracking.

Consumer Electronics and Wearables

The deeply satisfying click of a tactile keyboard button, the highly flexible feel of a premium smartwatch strap, and exactly how well a rigid phone case survives a concrete drop all come down to how tightly the manufacturer controls the polymer hardness.

Crucial Testing Standards: ASTM D2240 and ISO Guidelines

If you sell B2B industrial components, playing strictly by the rules is highly mandatory. Just purchasing a generic tester is not enough; the analytical equipment has to follow exact global compliance standards, or you will quickly end up in incredibly difficult, highly expensive disputes with your commercial clients.

• ASTM D2240: The primary North American standard for checking rubber hardness.
• ISO 7619-1 / ISO 868: The international rules for testing rubbers and plastics with portable, hand-operated meters.
• ISO 48: The strict international guidelines for checking hardness utilizing the highly precise IRHD ball method.


Sample Preparation Guidelines for Accurate Results

Even an incredibly expensive, highly automated tester will spit out completely useless numbers if your laboratory specimen is prepared poorly. Bad sample preparation is where a massive percentage of testing errors actually happen.

• Minimum Thickness: According to standard documentation, your sample needs to be at least 6.0 mm (0.24 inches) thick. If it is too thin, the indenter tip will feel the hard metal support table underneath, giving you a falsely elevated reading. In fact, peer-reviewed research shows that testing a highly thin 1 mm sheet can make the material appear almost twice as hard as it truly is.
• Stacking (Plying): If your material is unfortunately too thin, you can stack a few layers together to hit that required 6.0 mm mark. But here is a massive warning: no single layer should be thinner than 2.0 mm, and you absolutely must squeeze out any trapped air bubbles between them! For instance, if a manufacturing run produces industrial gaskets that are only 2.5 mm thick, testing a single layer will just measure the highly hard steel table. A technician simply needs to take three of those exact same gaskets and carefully press them together to create a completely valid 7.5 mm testing block.
• Edge Distance: Stay at least 12.0 mm away from any outer boundary so the material does not flow sideways and completely ruin your measurement.


How to Measure Shore Hardness: Method and Formula

Getting a highly accurate hardness reading is incredibly easy, as long as the machine operator strictly follows the rules to keep human error completely out of the equation. Also keep in mind that testing highly soft materials is heavily dependent on operator technique, meaning inter-rater reliability can be entirely poor if you do not control your testing methodology tightly.

Standardized Force Application

The entire testing procedure relies entirely on a highly calibrated spring pressing the indenter tip firmly into the target material. A technician must press perfectly straight down and apply the mathematically correct amount of downward pressure. To give you a highly transparent look at the exact mechanical requirements, we laid out the complete breakdown of spring forces and acceptable error margins across the major durometer scales:

As you can clearly see, Shore A demands a relatively moderate 8.05 Newtons (roughly 1 kg of weight) to reach maximum displacement, while Shore D requires a highly forceful 44.45 Newtons (roughly 5 kg) to properly evaluate rigid polymers.

Numerical Readings and Mathematical Calculation

Exactly how deep the highly calibrated tip sinks tells you precisely how hard the material is. For Shore A, the mathematical formula is officially written like this:

Hardness = 100 minus (Depth of indentation in mm / 0.025)

Let's run a quick theoretical calculation to see this perfectly in action. If the tensioned spring pushes the indenter tip exactly 1.25 mm deep into a highly pliable material, the math looks like this: 100 minus (1.25 / 0.025). That calculates out to exactly 50, giving you a perfectly middle-of-the-road Shore A reading.

Ultimately, a reading of 100 means the indenter tip did not sink in at all, while a reading of 0 means the indenter buried itself completely into the material.

Maintaining Compliance: Calibration and Test Blocks

To make absolutely sure your testing gear stays completely compliant year after year, regular validation checks are an absolute must. We firmly believe a highly expensive tester is only as good as the last time it was officially verified.

• Reference Test Blocks: Quality control teams should run a quick physical test at the start of every single shift utilizing standardized Rubber Reference Materials. Think of these highly specific, color-coded rubber blocks as a quick sanity check to ensure the spring tension and indenter tip are performing flawlessly.
• Annual Factory Maintenance: Beyond daily bench checks, your testers absolutely need to travel to an accredited lab once a year for a full calibration overhaul, giving you the official ACCREDIA Calibration Certificates you need to easily pass your next major facility audit.


Key Features to Look for in a Durometer (Technical Buyer's Guide)

When your laboratory is ready to upgrade its testing setup, picking a high-end machine is about way more than just selecting a measurement scale. Here are the highly essential features you should heavily scrutinize:

1. Multi-Scale Support (Shore A, D, and IRHD)

If your manufacturing plant produces a highly wide mix of polymer products, acquiring a highly modular system that handles Shore A, D, and IRHD is vastly superior for your corporate budget than buying three completely separate, standalone machines. The highly advanced Automatic Durometer DRIVE Series features fully interchangeable measuring heads, allowing a technician to seamlessly swap between Shore A, D, 00, and IRHD setups in a matter of seconds.

2. Stand vs. Handheld

While highly portable handheld meters (like the Shore Durometer Model HD3000) are highly convenient for quick factory floor checks, they are notoriously easy for human operators to influence because everyone applies downward pressure at a slightly different angle or physical speed.

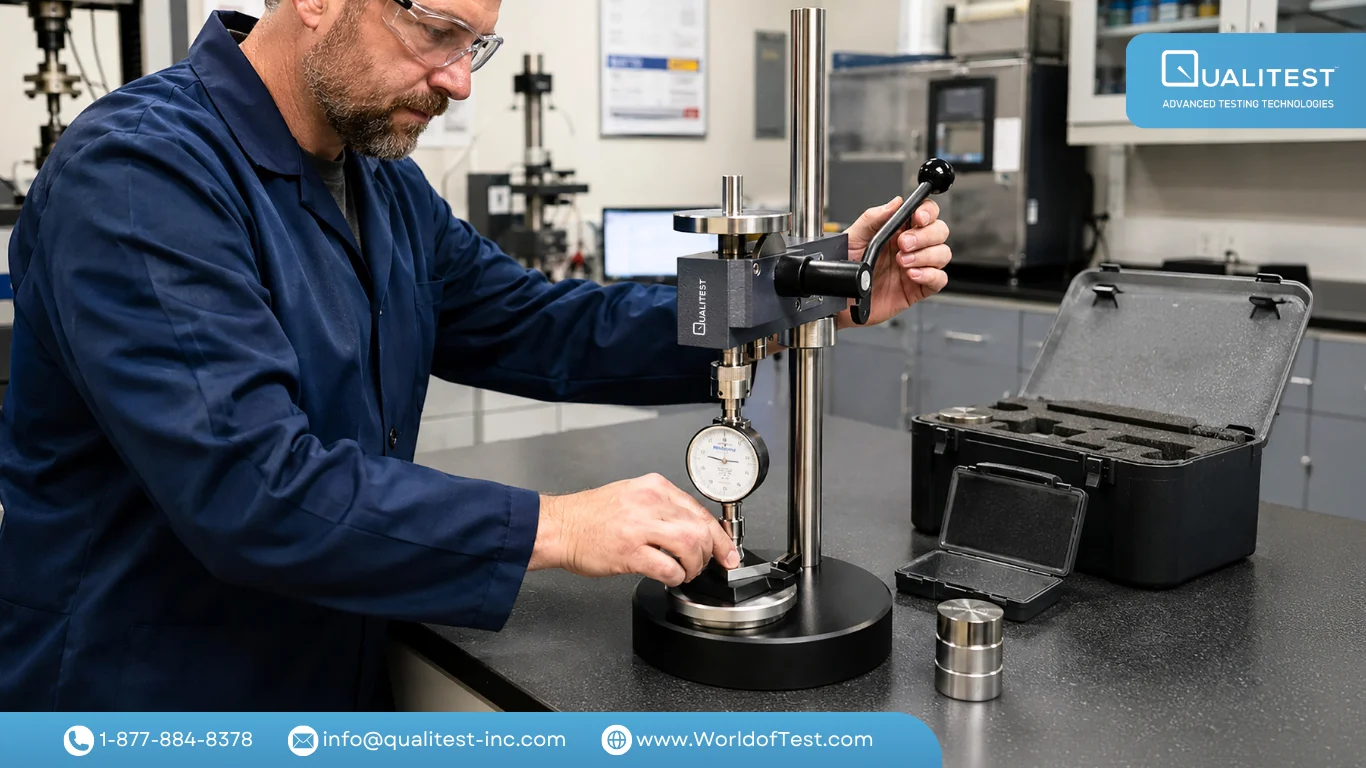

For a proper analytical laboratory, automated durometer test stands (like the highly heavy-duty Operating Stands OS-2 series) are absolutely necessary. Featuring highly precise motor-controlled displacement, they press down at the exact same speed and weight every single time, giving you incredibly repeatable, perfectly clean results.

The motorized spring tension is satisfyingly spot on: highly strong but not outrageously overpowering, and the structural metal frame is incredibly sturdy all the way through, meaning the deep, rock-solid consistency is sheer perfection.

3. Clear Displays and Data Export

High-contrast digital screens win hands down every single time. High-resolution digital screens (reading accurately to 0.1 units), automatic mathematical averaging, and simple USB export to send raw data straight to your laboratory computer are modern features you shouldn't even think about living without in a high-volume testing environment.
