Is your high-end testing frame effectively just a heavy decoration? We see this scenario constantly.
Companies allocate a significant budget for a massive, high-tech universal testing machine, yet treat the fixtures like a minor accessory picked up as an afterthought. Without the proper hardware clamping down, even the most premium setup will yield numbers that are utterly unreliable.
For the engineers and quality leads trying to keep things legitimate, getting a handle on this hardware is non-negotiable. Here is our unfiltered perspective on what these components actually do, how to select the ones that won’t fail you, and how to keep them operating correctly.
Key Takeaways
- Your testing frame is only as good as your grips. A weak hold leads to invalid data regardless of how expensive your machine is.
- Stop guessing and check the standards. Protocols like ASTM E8 and ISO 6892 provide clear rules on which fixtures are required for compliance.
- Match the mechanism to the material. Wedge grips are the standard for metals, while pneumatic grips are essential for plastics to prevent slipping.
- Maintenance is often the solution. Slippage is frequently caused by dirty jaw faces rather than broken equipment, so clean your gear regularly.
- Don't ignore the environment. High-temperature testing requires specialized stainless steel or alloy fixtures to prevent corrosion and seizing.
The Hardware Lowdown: Definition of Grips for Tensile Testing
Let’s get the dry technicalities out of the way. The technical definition of grips for tensile testing refers to devices designed to securely hold specimens during tests to ensure accurate measurement of mechanical properties without premature failure at the gripping points (Arboleda et al., 2016; Focacci et al., 2022).
But we find that description a bit sterile. Think of the grip as the "handshake" of the test. It needs to be firm, but it can’t be aggressive.
- Lock it down: It has to clamp onto that sample tight enough that it doesn’t shift a single millimeter when the pulling begins.
- Be gentle: It cannot squeeze so hard that it crushes the material or causes a "jaw break" right at the teeth. That invalidates the entire test.
The Selection Process: How to Choose Grips for Tensile Test Setups
Staring at a catalog with hundreds of metal options is enough to cause a headache. But figuring out how to choose grips for tensile test protocols doesn’t have to be a struggle. From our experience supplying labs that genuinely care about data integrity, the decision works best if you stick to this logic:
1. Check the Official Rules (The Standards)
Don’t try to guess. Seriously, look at the documents. The industry authorities (like ASTM E8, ASTM D638, or ISO 6892) provide specific instructions on what mechanisms to employ.
If you are testing aerospace aluminum or structural steel bars, ASTM E8 is your bible. If you are validating rigid plastic pipes or consumer packaging, ASTM D638 is the rulebook. We always tell clients that using the right gear isn't just about holding the item; it's about ensuring you don't fail your next audit.
2. Match the Claws to the Material
Different materials behave strictly when you apply pressure. Instead of a one-size-fits-all approach, you need to select the mechanism that compliments the sample (Azimi et al., 2023; Wan et al., 2022).
Wedge Grips (The Heavy Hitters)
These are the industry workhorses for metals and hard composites. The mechanism is brilliant because it self-tightens. The harder the machine pulls, the tighter the wedges bite into the sample. We see these utilized most often on our hydraulic QT-HW2 Series for high-strength rebar, thick metal sheets, or rigid automotive components where slippage is not an option.
However, nuance matters here. For specific applications like fabric-reinforced composites, the design of the grip—such as bolted-clamping versus hinged grips—can significantly affect tensile responses by changing the interfacial bond (Truong et al., 2021).
Pneumatic Grips (The Consistent Choice)
We highly recommend these for high-volume rubber and plastic testing. They utilize air pressure to maintain a constant squeeze. This is critical because as materials like latex gloves, biomedical tubing, or thin plastic films stretch, they get thinner (necking). A standard grip might lose its hold, but a pneumatic grip on a single-column QE-Series frame closes the gap automatically.
Screw Action Grips (The Manual Option)
This is the sensible, cost-effective route. You crank it, it holds. These are perfect for basic flat or round specimens where you don't require the self-tightening feature or an external air supply. We often deploy these for basic copper wire testing, simple textile strips, or introductory lab teaching environments.
3. Critical Constraints: Geometry, Load, and Environment
Once you have the mechanism sorted, you need to check the physical constraints.

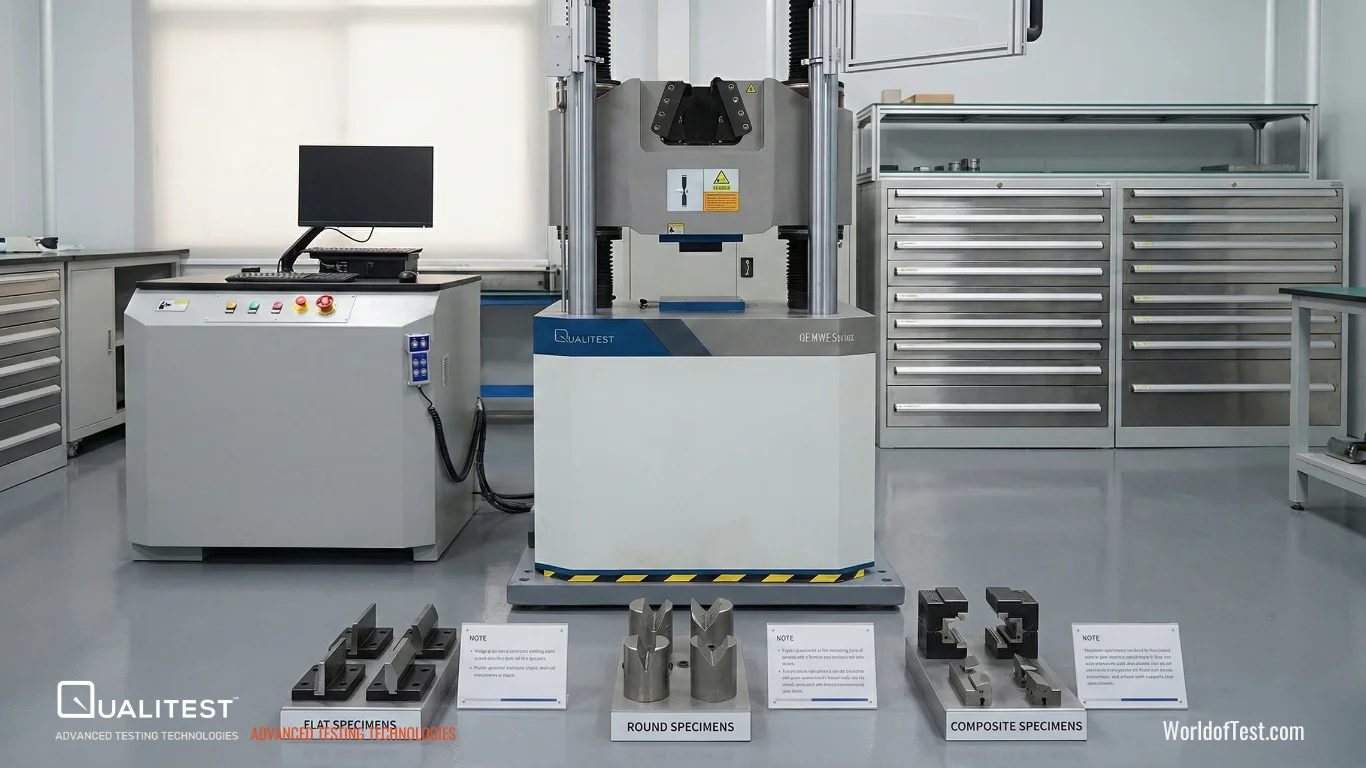

First, look at the shape. Flat samples need flat jaws, while round items (like wire or rebar) need V-notched jaws to cradle them. Don't try to force a round sample into a flat jaw because it rarely works.
Next, respect the force capacity. We cannot emphasize this enough. Never select a grip that is rated lower than your machine or the material you are breaking. If you are running a heavy-duty QTM-3000 at maximum capacity, using a standard fixture is dangerous and will damage your tooling.
Finally, check your environment. Are you testing inside a thermal chamber? We have seen too many standard steel grips rust shut or seize because the humidity was ignored. If your test involves high heat or salt spray, you absolutely require stainless steel or special alloys like Inconel.
Stop the Slide: Improving Grip on Tensile Testing
Nothing ruins a morning faster than watching your sample drift out of the jaws. That jagged "stair-step" mess on your graph is unacceptable. Improving grip on tensile testing usually involves examining the interaction between the jaw face and the specimen.
If you are seeing slippage, here is what we suggest checking before you purchase new equipment:
- Swap the Face: Standard serrated teeth are excellent for metals, but they will chew right through soft plastic. Conversely, rubber-coated faces are ideal for films but will turn into a slippery mess on rigid steel.
- Use Advanced Coatings: Sometimes standard faces aren't enough. Improving grip performance can involve using polymer coatings or novel materials like engineering plastics to reduce stress concentrations (Başaran et al., 2020; Chevallier et al., 2024). This prevents slippage or crushing and enables specimens to reach their true tensile capacity.
- Check Specimen Design: If the grip isn't the problem, look at the sample. Advanced specimen designs, such as arrow-shaped or continuous end tabs, can minimize geometric discontinuities near the grips to reduce premature failure (Fazlali et al., 2023).
- Check the Line: If your load string is crooked, you are going to have issues. Ensuring everything is perfectly vertical is the secret to obtaining valid data.
Pro-Tip: Clean Your Equipment!
We are going to state something obvious but often ignored. Your grips likely aren't broken; they are just covered in debris. Residue, mill scale, and oils clog up the serrations until they are smooth. Scrub the grime off! It improves the friction instantly and doesn't cost a cent.
Get the Right Gear from Qualitest
We know that acquiring reliable gear shouldn't require a massive capital expenditure. We are focused on helping you filter through the noise with high-quality, cost-effective products that perform exactly as required.
Whether you are looking for a compact QTens-Series benchtop tester for a small lab, need specialized fixtures for high-temp testing, or are upgrading your current setup, we have the inventory to get you sorted.
Check out our full lineup of frames and compatible fixtures on our Universal Testing Machine & Tensile Tester page right now. Why settle for questionable data?
References
- Arboleda, D., Carozzi, F., Nanni, A., & Poggi, C. (2016). Testing Procedures for the Uniaxial Tensile Characterization of Fabric-Reinforced Cementitious Matrix Composites. Journal of Composites for Construction, 20, 04015063.
- Azimi, N., Dalalbashi, A., Oliveira, D., Ghiassi, B., & Lourenço, P. (2023). Tensile behavior of textile-reinforced mortar: Influence of test setup and layer arrangement. Construction and Building Materials.
- Başaran, B., Yaka, H., & Kalkan, I. (2020). Engineering plastic gripping mechanism for tension testing of FRP bars. Journal of Composite Materials, 54, 4427 - 4440.
- Chevallier, A., Zarei, A., Tanhuanpää, O., Kakkonen, M., Sukki, L., Boutenel, F., Guicheret, V., Placet, V., Kallio, P., & Clévy, C. (2024). Assessment of Direct Microrobotic Gripping for Single Flax Fibre Tensile Tests. 2024 International Conference on Manipulation, Automation and Robotics at Small Scales (MARSS), 1-6.
- Fazlali, B., Upadhyay, S., Ashodia, S., Mesquita, F., Lomov, S., Carvelli, V., & Swolfs, Y. (2023). Specimen designs for accurate tensile testing of unidirectional composite laminates. Composites Part A: Applied Science and Manufacturing.
- Focacci, F., D’Antino, T., & Carloni, C. (2022). Tensile Testing of FRCM Coupons for Material Characterization: Discussion of Critical Aspects. Journal of Composites for Construction.
- Truong, V., Lee, D., & Kim, D. (2021). Effects of different grips and surface treatments of textile on measured direct tensile response of textile reinforced cementitious composites. Composite Structures.
- Wan, C., Wang, J., Wang, S., Ji, X., Peng, Y., & Zhang, H. (2022). Tensile Behavior of Basalt Textile Reinforced Concrete: Effect of Test Setups and Textile Ratios. Materials, 15.
