Knowing how to do Marshall mix design is one of the most reliable ways to develop an asphalt mix that meets both structural and surface requirements. This method offers clear insights into asphalt formulations that perform well under real-world pavement conditions.
In this article, Qualitest will walk you through everything you need to know, from the objectives of the Marshall Mix Design to a step-by-step guide on how to do it properly. Of course, we’ll also share common mistakes to avoid when analyzing your asphalt mix along the way.
What Is Marshall Mix Design?
The method of Marshall Mix Design has been around since the 1930s, and it’s still trusted today by engineers and road builders everywhere. It gives a repeatable and structured way to design an asphalt mix that’s both tough and reliable.
If you’re learning how to do Marshall mix design, it starts with one simple goal: finding the ideal amount of asphalt binder that keeps everything in place without cracking or deforming. That means putting different mix samples to the test until you land on the one that performs best.
Objectives of the Marshall Mix Design
By learning how to do Marshall mix design, you will know that this method was built with a clear goal. That goal is to handle the increasing demands of heavy traffic and changing environments. Underlying this core objective, Marshall Mix Design is expected to:
- Find the optimal asphalt content: Ensuring it’s enough to coat and bind the aggregates, but not so much that it causes bleeding or deformation.
- Ensure high stability: Prepare the pavement to handle heavy loads without rutting or shifting.
- Maintain adequate flexibility: It allows the surface to bend slightly without cracking under stress or temperature changes.
- Control void content: Making sure there’s the right amount of air space for durability and to resist moisture damage.
- Match lab results with real-world conditions: Confirming what works in testing also works out on the road.

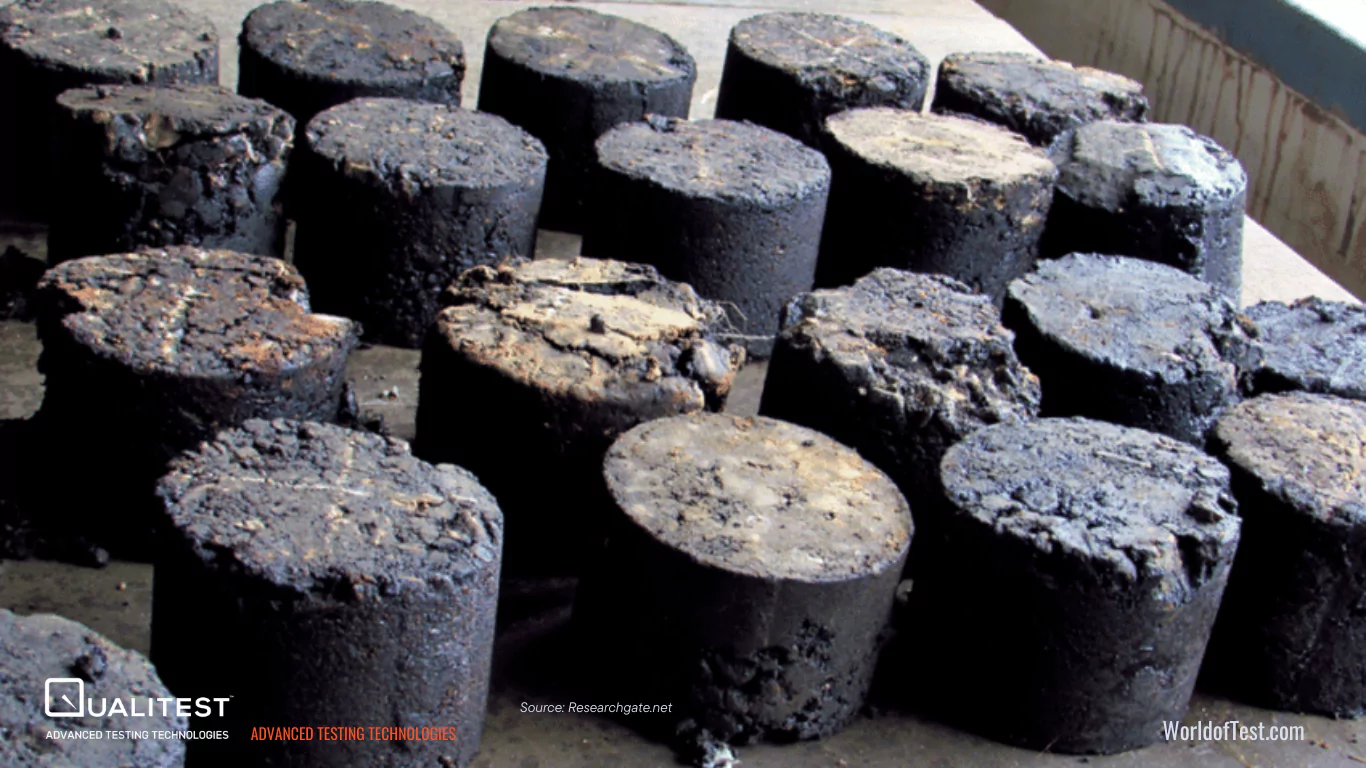

Source: ResearchGate
Materials:
- Aggregates: Choose your aggregates carefully. Their size, shape, and gradation directly impact how well the mix holds up. A balanced blend ensures stability and proper compaction.
- Asphalt binder: This is what holds everything together. The binder should match the climate and expected load conditions of the project. Most labs follow PG (Performance Grade) specifications to select the right one.
- Trial blends: You’ll need multiple mixes, typically five blends with different asphalt contents, to test a range and find the sweet spot. It’s standard to go above and below your estimated optimum binder content to see what really performs best.
Equipment:
- Marshall Hammer: This compactor simulates field compaction. It can be manual or automatic, both ways apply a set number of blows on both sides of the sample to shape a standard-size test specimen.
- Molds and tamper foot: You’ll use a 4-inch diameter mold, and the tamper foot should match standard specs for consistent pressure distribution.
- Heating tools: The asphalt mix must be heated to the right temperature before compaction, so a reliable oven or hot plate is a must.
Related Content to Read: The Best Way to Perform Asphalt Compaction Test
Step-by-Step: How to Do Marshall Mix Design
Once you’ve got your materials and equipment ready, it’s time to jump into the process of how to do Marshall mix design. Here’s how it typically works:
1. Material Selection and Preparation
Begin by selecting your aggregates (a mix of coarse, fine, and mineral filler) and an asphalt binder that suits the project’s climate and traffic conditions (e.g., PG 64-22). Make sure all materials meet specification requirements for cleanliness, gradation, and strength.
- Blend Aggregates: Gradation should meet target specifications and fall within allowable tolerance bands.
- Estimate Initial Asphalt Content: This can be based on experience, prior projects, or formulas. Typically starting around 5% ± 0.5% by total mix weight.
- Prepare Trial Mixes: Create a minimum of five batches with varying asphalt contents, commonly at 0.5% increments (e.g., 4.5%, 5.0%, 5.5%, 6.0%, 6.5%).
2. Mixing and Compaction
- Heating: Heat aggregates and asphalt binder separately to appropriate mixing temperatures (around 150 - 160°C for aggregates and binder).
- Mixing: Combine the heated materials thoroughly until all aggregate particles are uniformly coated.
- Molding: Pour the mixture into a preheated Marshall mold (4-inch diameter).
- Compaction: Compact each specimen with a Marshall hammer, typically 75 blows per side for high-traffic applications (or 50 for medium traffic), to simulate in-field roller compaction.
- Compaction setup: 4-inch diameter x ~2.5-inch height specimen
- Hammer weight: 10 lb (4.536 kg)
- Drop height: 18 inches (457.2 mm)

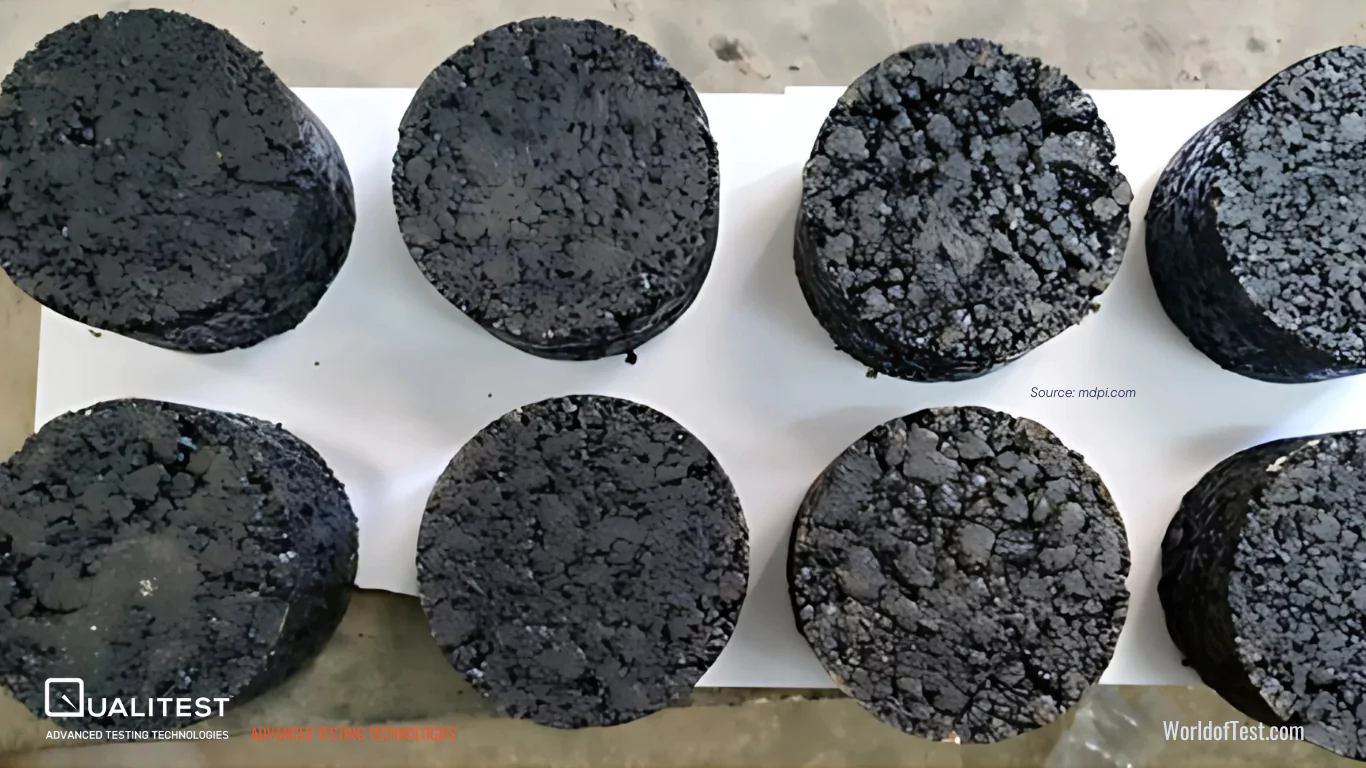

3. Testing Compacted Specimens
Source: mdpi.com
Once the samples are cooled and cured, proceed to test them for:
- Bulk Specific Gravity (Gmb): Measure using a saturated surface-dry method.
- Theoretical Maximum Specific Gravity (Gmm): Determine using a vacuum pycnometer method.
- Air Voids (Va): = {1- (Gmb/Gmm ) } X 100
- Voids in Mineral Aggregate (VMA): = { (Vtotal–Vbinder) / Vtotal } X 100
- Voids Filled with Asphalt (VFA): { (VMA- Va) / VMA } X 100
Also conduct:
- Marshall Stability Test: Place the specimen in the Marshall Stability machine and load it at a rate of 50.8 mm/min (2 in/min) until failure. Record the peak load (in kN or lbs).
- Flow Test: Measure the deformation at maximum load (in mm), which reflects the material’s ability to deform under stress.
4. Determine Optimum Asphalt Content
Plot graphs of asphalt content versus:
- Stability
- Flow
- Air voids
- VMA
- VFA
Identify the binder content that:
- Produces maximum stability
- Keeps flow within 2 - 4 mm
- Maintains air voids between 3% - 5%
- Satisfies minimum VMA (typically ≥ 13%)
- Keeps VFA within 65% - 75%
Example: A mix with 5.5% binder may show:
- Stability = 11.2 kN
- Air Voids = 4.4%
- Flow = 3 mm
- VMA = 14%
- VFA = 68.8%
5. Verification and Finalization
- Reproduce Samples: Prepare additional specimens at the selected optimum binder content to confirm consistency.
- Validate Properties: Ensure test results fall within specification.
- Adjust If Needed: If any value is out of range, tweak the aggregate gradation or binder percentage.
6. Documentation and Field Implementation
- Report Findings: Final mix design should include all raw data, graphs, selected materials, binder content, and test results.
- Specify for Construction: Prepare clear guidelines for mixing, compaction, and field quality control based on lab performance.
Common Mistakes and Troubleshooting Tips
If you’re figuring out how to do Marshall mix design for the first time, it helps to know where things commonly go off track. One of the biggest missteps often lies in poor material selection. Sometimes it can be an aggregate that doesn’t meet gradation specs or a binder that’s mismatched to your climate.
Even though it results in a mix that might look good on paper, it definitely won’t perform on the road. So, remember to always double-check your materials before beginning the blending process.
Another frequent issue is improper compaction. Since lab compaction doesn’t always reflect field conditions, it's easy to over- or under-compact your specimens. This affects your air voids and stability numbers, and if not caught early, could throw off your entire mix design.
To avoid that, make sure your Marshall hammer settings (blows, temperature, and weight) are calibrated and consistent with the design specs. Also, follow extra tips from Qualitest below:
- Don’t skip trial batches: Maximize to test a full range of asphalt contents.
- Double-check temperature control during mixing and compaction. Small deviations can impact coating quality and test results.
- Keep an eye on your VMA and VFA values; they will tell you about mix durability and binder compatibility.

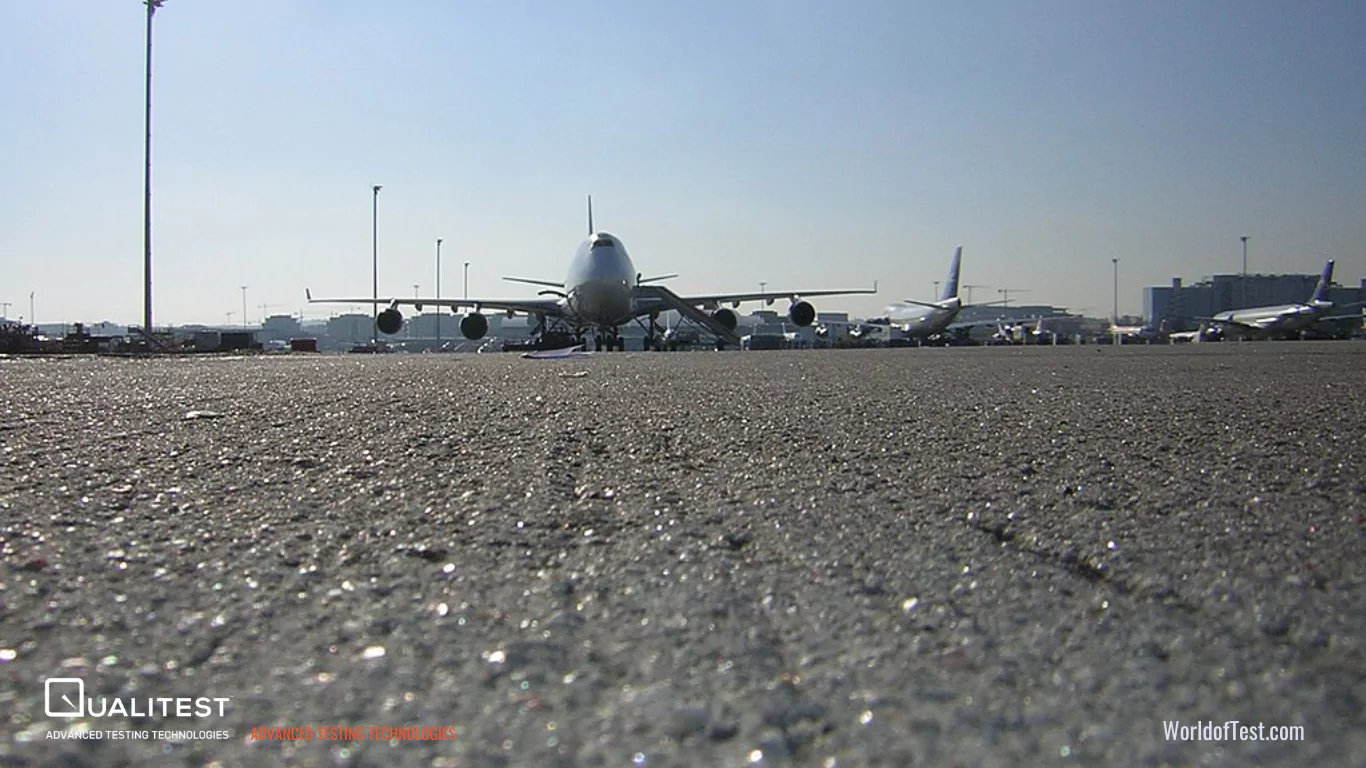

Why Marshall Mix Design Still Matters
In learning how to do Marshall mix design, you’re using a method that’s been trusted for decades because it consistently delivers results that road engineers can rely on. The process is straightforward enough for most labs, but still gives you all the essential data, like stability, flow, and air voids.
Marshall Mix Design is a dependable way to create pavement that lasts, even under heavy loads and unpredictable weather. The fact that today it’s still relevant in about 38 states shows the consistency that’s undisplaced.
Recommended Testing Equipment
- Marshall Compactor
The compactor applies a controlled number of blows (typically 75 per side) using a 10-lb hammer dropped from a standard height. It mimics the way traffic compacts pavement in the real world. - Marshall Stability Testing Frame
Once your specimen is compacted, this device helps you evaluate how much load the mix can handle before it deforms. It applies force until the sample fails, allowing you to measure the stability value.
Check our Marshal Stability Tester that has been trusted for its reliability here.
- Flow Meter
Attached to the stability frame, the flow meter tracks how much the specimen deforms before breaking. The measurement (usually in mm) gives insight into the mix’s flexibility. Too much or too little flow could signal issues in your asphalt formulation. - Water Bath (Conditioning Bath)
Before testing, Marshall specimens need to be conditioned in a water bath. This simulates the temperature asphalt would typically reach in service and ensures consistent testing conditions across all samples. - Specific Gravity Bench (for Gmb and Gmm Testing)
Understanding how to do Marshall mix design also involves checking densities and air voids. It typically includes a digital balance, water tank, and suspension frame to measure bulk and theoretical maximum specific gravities. - Asphalt Mixer & Oven
To prep your samples, you’ll need to heat and mix the aggregates and binder at controlled temperatures. A lab-grade asphalt mixer and oven help maintain consistency in material properties before compaction. - Aggregate Sieves & Gradation Set
A proper gradation of aggregates is the backbone of any good mix. Having a complete sieve set allows you to perform gradation analysis and ensure your blend aligns with design specifications.
Final Thoughts
Now we’ve got the idea of how to do Marshall mix design properly. Getting the mix right can make all the difference in how that pavement performs over time.
