Knowing how to do Marshall mix design is one of the most reliable ways to develop an asphalt mix that meets both structural and surface requirements. This method offers clear insights into asphalt formulations that perform well under real-world pavement conditions.
In this article, Qualitest will walk you through everything you need to know, from the objectives of the Marshall Mix Design to a step-by-step guide on how to do it properly. Of course, we’ll also share common mistakes to avoid when analyzing your asphalt mix along the way.
What Is Marshall Mix Design?
The method of Marshall Mix Design has been around since the 1930s, and it’s still trusted today by engineers and road builders everywhere. It gives a repeatable and structured way to design an asphalt mix that’s both tough and reliable.
If you’re learning how to do Marshall mix design, it starts with one simple goal: finding the ideal amount of asphalt binder that keeps everything in place without cracking or deforming. That means putting different mix samples to the test until you land on the one that performs best.
Objectives of the Marshall Mix Design
By learning how to do Marshall mix design, you will know that this method was built with a clear goal. That goal is to handle the increasing demands of heavy traffic and changing environments. Underlying this core objective, Marshall Mix Design is expected to:
- Find the optimal asphalt content: Ensuring it’s enough to coat and bind the aggregates, but not so much that it causes bleeding or deformation.
- Ensure high stability: Prepare the pavement to handle heavy loads without rutting or shifting.
- Maintain adequate flexibility: It allows the surface to bend slightly without cracking under stress or temperature changes.
- Control void content: Making sure there’s the right amount of air space for durability and to resist moisture damage.
- Match lab results with real-world conditions: Confirming what works in testing also works out on the road.
Source: ResearchGate
Materials:
- Aggregates: Choose your aggregates carefully. Their size, shape, and gradation directly impact how well the mix holds up. A balanced blend ensures stability and proper compaction.
- Asphalt binder: This is what holds everything together. The binder should match the climate and expected load conditions of the project. Most labs follow PG (Performance Grade) specifications to select the right one.
- Trial blends: You’ll need multiple mixes, typically five blends with different asphalt contents, to test a range and find the sweet spot. It’s standard to go above and below your estimated optimum binder content to see what really performs best.
Equipment:
- Marshall Hammer: This compactor simulates field compaction. It can be manual or automatic, both ways apply a set number of blows on both sides of the sample to shape a standard-size test specimen.
- Molds and tamper foot: You’ll use a 4-inch diameter mold, and the tamper foot should match standard specs for consistent pressure distribution.
- Heating tools: The asphalt mix must be heated to the right temperature before compaction, so a reliable oven or hot plate is a must.
Related Content to Read: The Best Way to Perform Asphalt Compaction Test
Step-by-Step: How to Do Marshall Mix Design
Once you’ve got your materials and equipment ready, it’s time to jump into the process of how to do Marshall mix design. Here’s how it typically works:
1. Material Selection and Preparation
Begin by selecting your aggregates (a mix of coarse, fine, and mineral filler) and an asphalt binder that suits the project’s climate and traffic conditions (e.g., PG 64-22). Make sure all materials meet specification requirements for cleanliness, gradation, and strength.
- Blend Aggregates: Gradation should meet target specifications and fall within allowable tolerance bands.
- Estimate Initial Asphalt Content: This can be based on experience, prior projects, or formulas. Typically starting around 5% ± 0.5% by total mix weight.
- Prepare Trial Mixes: Create a minimum of five batches with varying asphalt contents, commonly at 0.5% increments (e.g., 4.5%, 5.0%, 5.5%, 6.0%, 6.5%).
2. Mixing and Compaction
- Heating: Heat aggregates and asphalt binder separately to appropriate mixing temperatures (around 150 - 160°C for aggregates and binder).
- Mixing: Combine the heated materials thoroughly until all aggregate particles are uniformly coated.
- Molding: Pour the mixture into a preheated Marshall mold (4-inch diameter).
- Compaction: Compact each specimen with a Marshall hammer, typically 75 blows per side for high-traffic applications (or 50 for medium traffic), to simulate in-field roller compaction.
- Compaction setup: 4-inch diameter x ~2.5-inch height specimen
- Hammer weight: 10 lb (4.536 kg)
- Drop height: 18 inches (457.2 mm)

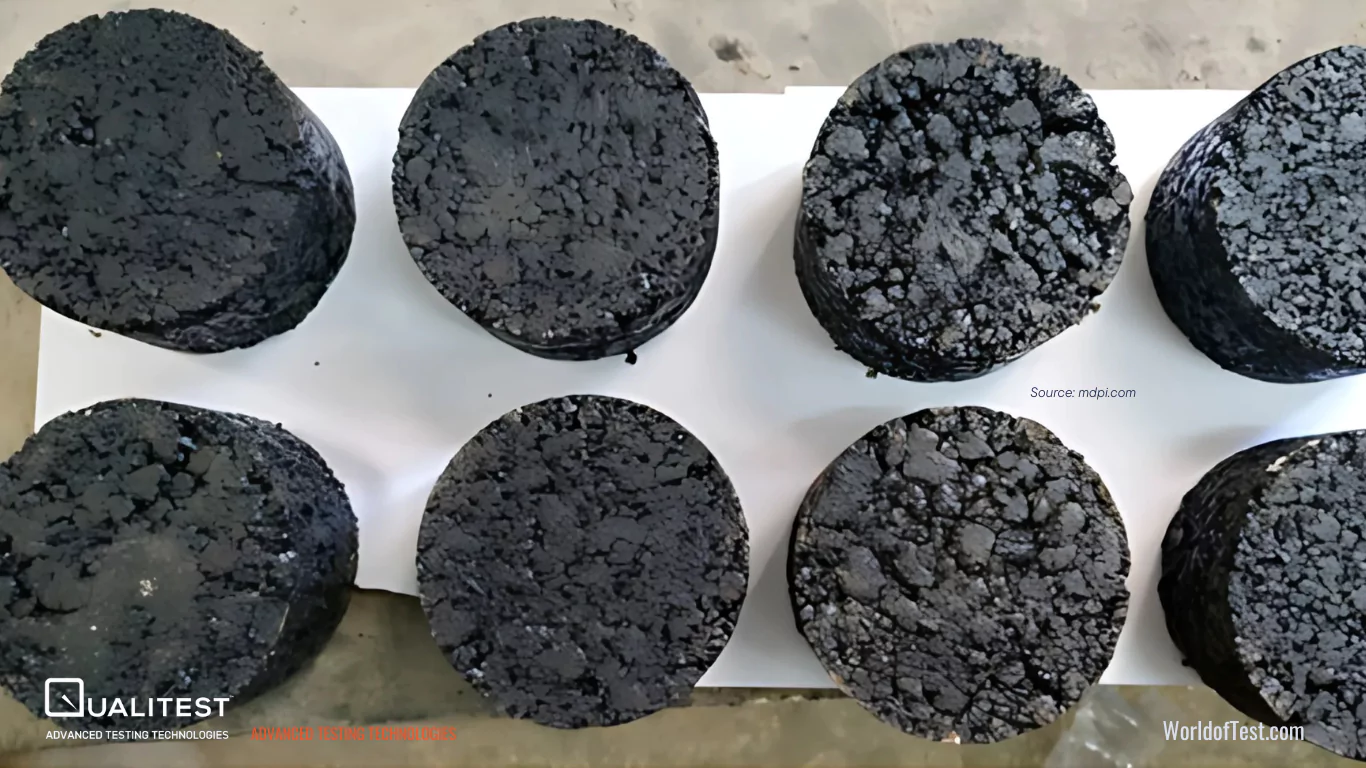

3. Testing Compacted Specimens
Source: mdpi.com
Once the samples are cooled and cured, proceed to test them for:
- Bulk Specific Gravity (Gmb): Measure using a saturated surface-dry method.
- Theoretical Maximum Specific Gravity (Gmm): Determine using a vacuum pycnometer method.
- Air Voids (Va): = {1- (Gmb/Gmm ) } X 100
- Voids in Mineral Aggregate (VMA): = { (Vtotal–Vbinder) / Vtotal } X 100
- Voids Filled with Asphalt (VFA): { (VMA- Va) / VMA } X 100
Also conduct:
- Marshall Stability Test: Place the specimen in the Marshall Stability machine and load it at a rate of 50.8 mm/min (2 in/min) until failure. Record the peak load (in kN or lbs).
- Flow Test: Measure the deformation at maximum load (in mm), which reflects the material’s ability to deform under stress.
4. Determine Optimum Asphalt Content
Plot graphs of asphalt content versus:
- Stability
- Flow
- Air voids
- VMA
- VFA
Identify the binder content that:
- Produces maximum stability
- Keeps flow within 2 - 4 mm
- Maintains air voids between 3% - 5%
- Satisfies minimum VMA (typically ≥ 13%)
- Keeps VFA within 65% - 75%
Example: A mix with 5.5% binder may show:
- Stability = 11.2 kN
- Air Voids = 4.4%
- Flow = 3 mm
- VMA = 14%
- VFA = 68.8%
5. Verification and Finalization
- Reproduce Samples: Prepare additional specimens at the selected optimum binder content to confirm consistency.
- Validate Properties: Ensure test results fall within specification.
- Adjust If Needed: If any value is out of range, tweak the aggregate gradation or binder percentage.
6. Documentation and Field Implementation
- Report Findings: Final mix design should include all raw data, graphs, selected materials, binder content, and test results.
- Specify for Construction: Prepare clear guidelines for mixing, compaction, and field quality control based on lab performance.
Common Mistakes and Troubleshooting Tips
If you’re figuring out how to do Marshall mix design for the first time, it helps to know where things commonly go off track. One of the biggest missteps often lies in poor material selection. Sometimes it can be an aggregate that doesn’t meet gradation specs or a binder that’s mismatched to your climate.
Even though it results in a mix that might look good on paper, it definitely won’t perform on the road. So, remember to always double-check your materials before beginning the blending process.
Another frequent issue is improper compaction. Since lab compaction doesn’t always reflect field conditions, it's easy to over- or under-compact your specimens. This affects your air voids and stability numbers, and if not caught early, could throw off your entire mix design.
To avoid that, make sure your Marshall hammer settings (blows, temperature, and weight) are calibrated and consistent with the design specs. Also, follow extra tips from Qualitest below:
- Don’t skip trial batches: Maximize to test a full range of asphalt contents.
- Double-check temperature control during mixing and compaction. Small deviations can impact coating quality and test results.
- Keep an eye on your VMA and VFA values; they will tell you about mix durability and binder compatibility.
Why Marshall Mix Design Still Matters
In learning how to do Marshall mix design, you’re using a method that’s been trusted for decades because it consistently delivers results that road engineers can rely on. The process is straightforward enough for most labs, but still gives you all the essential data, like stability, flow, and air voids.
Marshall Mix Design is a dependable way to create pavement that lasts, even under heavy loads and unpredictable weather. The fact that today it’s still relevant in about 38 states shows the consistency that’s undisplaced.
Recommended Testing Equipment
- Marshall Compactor
The compactor applies a controlled number of blows (typically 75 per side) using a 10-lb hammer dropped from a standard height. It mimics the way traffic compacts pavement in the real world. - Marshall Stability Testing Frame
Once your specimen is compacted, this device helps you evaluate how much load the mix can handle before it deforms. It applies force until the sample fails, allowing you to measure the stability value.
Check our Marshal Stability Tester that has been trusted for its reliability here.
- Flow Meter
Attached to the stability frame, the flow meter tracks how much the specimen deforms before breaking. The measurement (usually in mm) gives insight into the mix’s flexibility. Too much or too little flow could signal issues in your asphalt formulation. - Water Bath (Conditioning Bath)
Before testing, Marshall specimens need to be conditioned in a water bath. This simulates the temperature asphalt would typically reach in service and ensures consistent testing conditions across all samples. - Specific Gravity Bench (for Gmb and Gmm Testing)
Understanding how to do Marshall mix design also involves checking densities and air voids. It typically includes a digital balance, water tank, and suspension frame to measure bulk and theoretical maximum specific gravities. - Asphalt Mixer & Oven
To prep your samples, you’ll need to heat and mix the aggregates and binder at controlled temperatures. A lab-grade asphalt mixer and oven help maintain consistency in material properties before compaction. - Aggregate Sieves & Gradation Set
A proper gradation of aggregates is the backbone of any good mix. Having a complete sieve set allows you to perform gradation analysis and ensure your blend aligns with design specifications.
Final Thoughts
Now we’ve got the idea of how to do Marshall mix design properly. Getting the mix right can make all the difference in how that pavement performs over time.
However, to make it more reliable, ensure you’re working with the best equipment. We’ve got a full line of asphalt testing equipment that’s built to keep up with today’s demands. Check our collection, or book an online consultation to help you figure out your most suitable testers.
Marshall Method vs Superpave - Deciding which one is more reliable and effective for long-lasting pavement often sparks endless debate. But once you understand the core objectives of each method, it becomes much easier to determine which one fits your project needs.
In this article, Qualitest will help clear up the confusion between the Marshall method and Superpave. Let’s take a closer look at these two widely used asphalt mix design methods and explore what sets them apart.
What Is the Marshall Method?
In the debate of Marshall Method vs Superpave, the Marshall approach has held its ground for decades. Developed in the late 1930s by Bruce Marshall and later refined by the U.S. Army Corps of Engineers, this method is widely respected for its simplicity, reliability, and cost-effectiveness.
Here’s how the Marshall method works in practice:
- Aggregate & Binder Selection
It starts by selecting high-quality aggregates and an appropriate asphalt binder. Aggregates are combined to meet specific size and gradation requirements, while the binder is chosen based on expected traffic loads and climate.
Multiple trial mixes are prepared with varying asphalt contents. These mixes are then compacted using a drop hammer (manual or automatic) into standard cylindrical molds.
Once compacted, each specimen undergoes stability and flow testing using Marshall testing equipment (per ASTM D6927 or AASHTO T 245). Additional checks (density, air voids, and indirect tensile strength) are often performed to analyze mix performance.
What Is the Superpave Method?
When we talk about Marshall Method vs Superpave, Superpave is often seen as the more modern, performance-based approach. This method was developed in the 1980s under the Strategic Highway Research Program (SHRP).
Superpave or Superior Performing Asphalt Pavements was designed to overcome the limitations of earlier mix design methods by directly tying pavement performance to real-world traffic and climate conditions. This method tailors the mix design based on where the road will be built and how it will be used.
Here's how it works:
Superpave sets strict criteria for angularity, flat and elongated particles, clay content, and other properties that affect how well aggregates interlock and perform under stress.
Unlike Marshall, which often relies on local standards, Superpave uses Performance Grading (PG) to choose the right binder based on expected high and low pavement temperatures.
Once materials are selected, trial blends are compacted using a Superpave Gyratory Compactor (SGC). This simulates real traffic loading more accurately than a Marshall hammer.

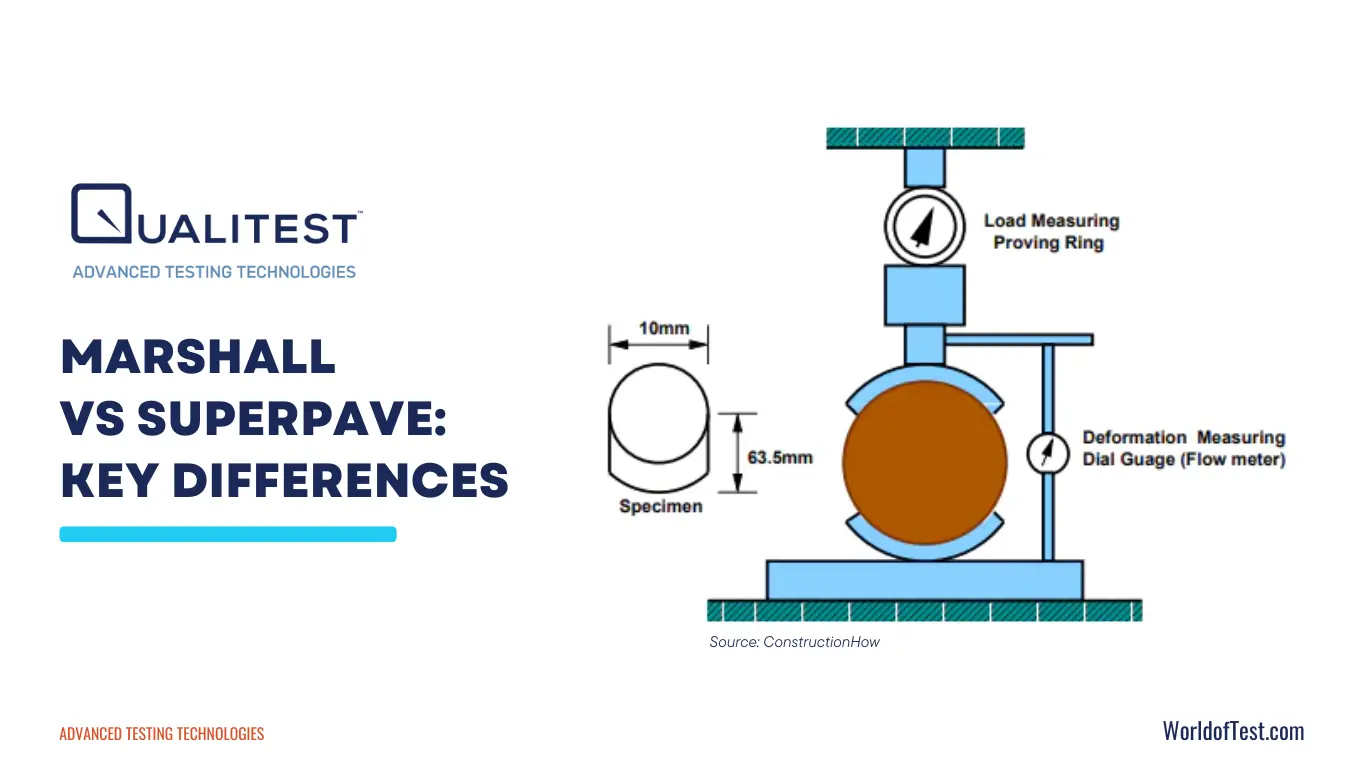

Marshall vs Superpave: Key Differences
Comparing the Marshall Method vs Superpave helps to line up their differences side by side. Here’s how the two stack up across the most critical aspects of asphalt mix design:
Aspect | Marshall Mix Design | Superpave Mix Design |
1. Approach to Design | Empirical method focused on stability and flow values; emphasizes simplicity and standardization. | Performance-based approach considering climate, traffic loading, and long-term material behavior. |
2. Equipment Used | Manual or automatic drop hammers for compaction; standard load frames for testing. | Superpave Gyratory Compactor (SGC) simulates field compaction and traffic-induced stress. |
3. Binder Selection | Binder selected based on local practices or experience. | Uses PG (Performance Grade) system based on temperature extremes and expected pavement conditions. |
4. Aggregate Criteria | Basic gradation and quality control based on standard specifications. | Detailed criteria: includes angularity, flat/elongated particles, and moisture sensitivity. |
5. Compaction Method | Drop hammer compaction that may not reflect field conditions. | Gyratory compaction replicates kneading action from actual traffic loads. |
6. Data Output & Analysis | Measures stability, flow, air voids, VMA, and VFA. | Includes volumetric data plus predictive performance tests for rutting, fatigue, and thermal cracking. |
7. Intended Application | Suited for moderate traffic and stable climates; widely used in developing regions. | Designed for high-performance pavements—ideal for highways, heavy loads, and variable climate conditions. |
Related Content to Read: Step-by-Step to Do Marshall Mix Design for Asphalt
Pros and Cons of Each Method
In deciding Marshall Method vs Superpave, remember to weigh each own strengths and limitations. Depending on the project scale, budget, and performance needs, one might be more practical than the other. Here's a quick breakdown:
1. Pros and Cons of Marshall Method
Pros of the Marshall Method
- Easy to perform with straightforward procedures, it’s suitable for smaller labs and routine testing.
- Requires less advanced equipment, especially for developing regions or municipal-level projects.
- Backed by decades of use and standardized protocols (like AASHTO T 245) for consistency and familiarity.
- Less setup and analysis time compared to Superpave, so it allows faster decision-making during early design stages.
- Performs well for roads with standard loads and predictable environmental conditions.
Cons of the Marshall Method
- Doesn’t factor in long-term pavement performance under varied climates or heavy traffic.
- May fall short when dealing with modified binders or high-performance aggregates.
- Based on observed outcomes rather than material behavior models.
- Hammer compaction doesn’t closely mimic what actually happens under traffic loading on real pavements.
2. Pros and Cons of Superpave Method
Pros of the Superpave Method
- Designed to predict how asphalt behaves over time under actual loading and climate scenarios.
- Uses PG (Performance Grading) system to ensure the binder matches environmental demands.
- Requires thorough evaluation of aggregate properties (for example like angularity and moisture resistance).
- Gyratory compactor closely simulates the kneading action from vehicle traffic, improving the accuracy of lab-to-field performance.
- Perfect for highways, airports, or high-load roads where longevity and durability matter most.
Cons of the Superpave Method
- Involves multiple layers of testing and analysis, which can be overwhelming for new users.
- Equipment like the Superpave Gyratory Compactor and PG binder tests require larger investment.
- Technicians need proper training to correctly implement and interpret results.
- For local roads or low-volume traffic areas, the benefits of Superpave may outweigh actual project needs.
Which Method Should You Use?
If you're working on a standard road with predictable traffic and climate conditions, the Marshall Method might be all you need. It’s cost-effective, straightforward, and still widely accepted for many municipal and regional projects. Plus, if your lab is already equipped with a Marshall compactor, you can move fast without investing in more complex setups.
But if your project involves high-traffic highways, extreme weather zones, or performance-based contracts, then Superpave is the smarter choice. It offers better control over material behavior, long-term performance, and field simulation.
Recommended Testing Equipment
Regardless of whether you’re using the Marshall method vs Superpave, never skip to choose the right testing tools. Here are the essential ones to keep your asphalt mix design process reliable and up to spec:
- Marshall Stability Tester
This device is crucial for evaluating the strength and deformation behavior of asphalt specimens under load. Marshall Stability Tester gives you both stability (load-carrying capacity) and flow (deformation) readings.
This compactor prepares cylindrical asphalt specimens by applying controlled blows, simulating field compaction. Take notes that consistency in compaction is critical, especially when you're determining the optimum asphalt content.
If you're working with Superpave, this tester is non-negotiable. The gyratory compactor replicates the kneading action of traffic over time that allows you to produce specimens that reflect real-world density and performance. It also provides densification curves used in advanced performance analysis.
For both methods, Asphalt Content Tester helps you accurately determine how much binder is present in your mix. Either in your refining trial batches or confirmation of final content, precise binder measurement is the foundation of any successful asphalt mix design.
Final Thoughts
Choosing between the Marshall Method and Superpave should be based on your project goals, traffic conditions, and performance expectations. The Marshall method is straightforward, cost-effective, and widely trusted for conventional road designs. Superpave, on the other hand, offers greater precision, especially when dealing with high-traffic volumes or extreme weather.
Whichever method you choose, the right testing equipment is just as important as the mix design itself. Explore a full range of asphalt testers from Qualitest, that has been globally trusted and fully compliant with international standards.
Contact us here to check the tester’s availability here.
