Lab vs field asphalt testing tools are often mentioned in the same breath, yet they serve very different purposes. While both are critical in ensuring pavement quality, using them interchangeably without understanding their roles can lead to gaps in data, or worse, flawed decision-making in construction or maintenance.
In this article, we’ll break down what makes each testing method unique and where it fits in your project timeline. You'll get a clear comparison of lab vs field asphalt testing tools, learn when to use one over the other, and explore recommended equipment from trusted names in testing.

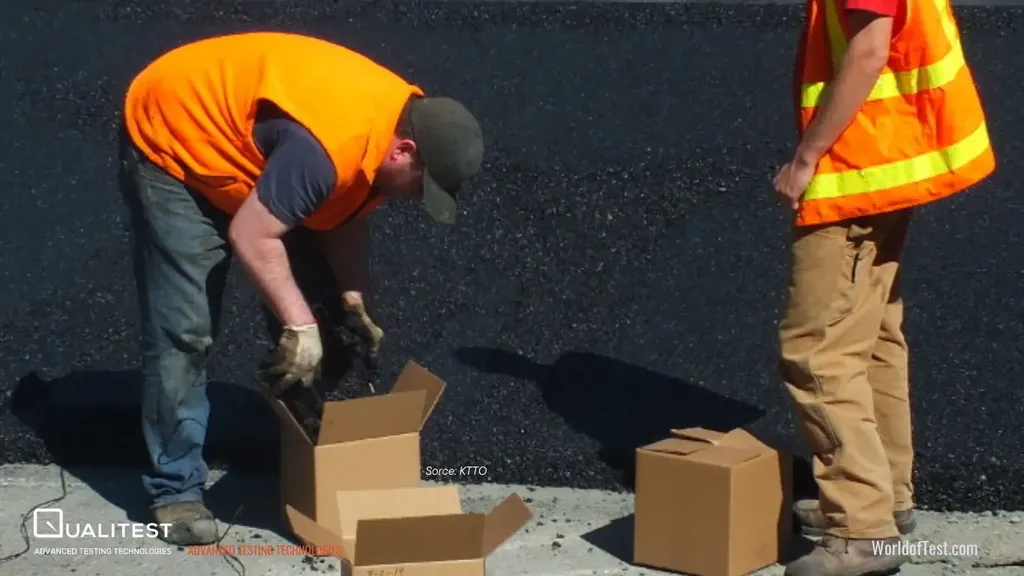

Overview of Asphalt Testing
What is Asphalt Testing?
Asphalt testing refers to a range of procedures used to evaluate the physical and mechanical properties of asphalt mixtures and compacted pavement. These tests help engineers determine if the material meets project specs.
Tests are typically performed at different stages:
- Before construction, to design the mix and optimize material properties.
- During paving, to control quality in real time.
- After construction, to verify long-term durability.
Why Both Lab and Field Testing Are Important
Relying solely on lab or field data can be misleading. Each approach serves a distinct purpose, and together, they give you a complete view of how an asphalt mix performs.
Lab testing offers a controlled environment where variables like temperature, compaction force, and mix proportions are carefully managed. This is where you measure the potential of your asphalt, like its maximum strength, resilient modulus, and moisture resistance
In fact, studies have shown that lab-prepared Marshall samples often outperform field cores in standardized tests. For example, indirect tensile strength values from lab specimens were 1.22 to 1.30 times higher than field samples, and resilient modulus was up to 1.47 times greater. These results highlight that lab compaction is precise and repeatable, which creates denser, more uniform specimens.
But lab testing doesn’t account for the messiness of real-world conditions. That’s where field testing comes in. Out on-site, materials are exposed to fluctuating temperatures, moisture, and the very human factor of varying compaction techniques.
The same study showed that field cores subjected to repeated creep tests failed structurally and exhibited tertiary creep, while lab specimens maintained their shape. This highlights the field’s vulnerability to environmental stress, water damage, and construction inconsistencies.
So, in short, lab testing helps you design and refine the mix, while field testing confirms that your design holds up once it’s in place. One evaluates the promise, the other validates the performance.
Lab Asphalt Testing Tools
- Marshall Stability Tester: Measures the stability and flow of asphalt specimens prepared using the Marshall mix design method.
- Superpave Gyratory Compactor (SGC): Simulates field compaction under controlled conditions by determining the volumetric properties of asphalt mixtures.
- Asphalt Content Furnace / Ignition Oven: Burns off binder from asphalt samples to measure the exact asphalt content and verify mix proportions.
- Indirect Tensile Strength (ITS) Tester: Evaluates the tensile strength of asphalt mixtures and their ability to resist cracking under indirect loads, especially in cold temperatures.
- Resilient Modulus Tester: Measures the elastic response of asphalt under cyclic loading, which is a strong indicator of pavement durability and flexibility.
- Moisture Susceptibility Tester (AASHTO T 283): Assesses how well an asphalt mix resists moisture-induced damage.
Field Asphalt Testing Tools
- Nuclear Density Gauge: Measures in-place density and moisture content of compacted asphalt using nuclear technology.
- Non-Nuclear Density Gauge: Uses electromagnetic or dielectric properties to assess density without the regulatory burden of nuclear tools.
- Core Drills and Extractors: Collects cylindrical core samples from the finished pavement, this often applied to complement lab testing.
- Pavement Profilers (Straightedge or Laser-Based): Measures smoothness, surface irregularities, and rutting to ensure pavement meets ride quality standards.
- Thermometers and Infrared Temperature Guns: Critical for checking mix temperature during lay down and compaction.
- Handheld Moisture Meters: Evaluate surface and subsurface moisture levels which can affect compaction quality.

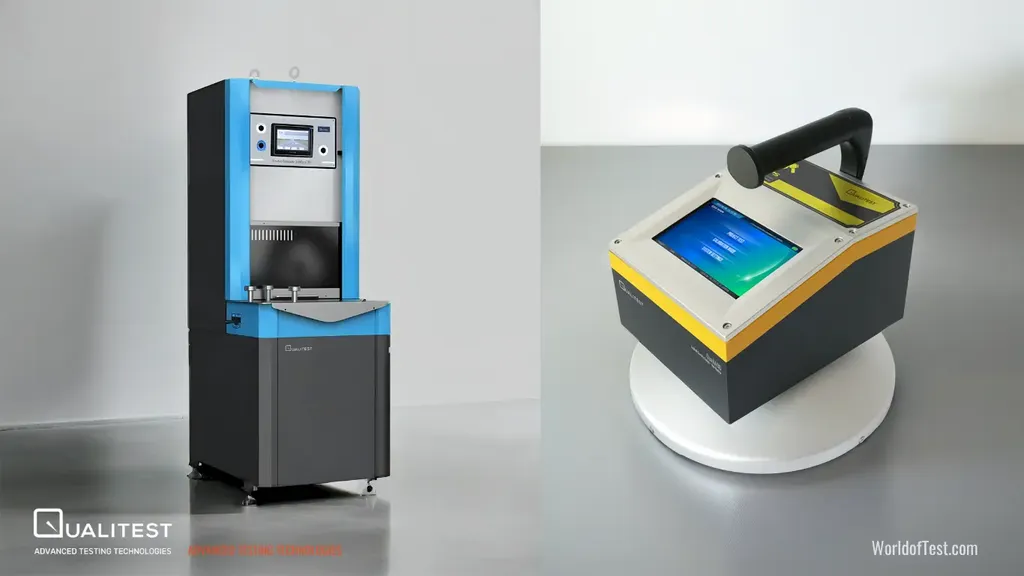

Comparison: Lab vs Field Asphalt Testing Tools
Deciding lab vs field asphalt testing tools involves an understanding that they’re actually built for very different realities. In the lab, testing happens in a controlled environment where everything from temperature to aggregate gradation is carefully managed.
Meanwhile, in the field you’re dealing with the real world and its complexity, such as extreme weather, timing, traffic, and all the unpredictability that comes with it. Here’s a breakdown of their comparison:
Asphalt Binder Aging
In the lab, binder aging is simulated using tools like the Thin Film Oven (TFO), Rolling Thin Film Oven (RTFO), or Pressure Aging Vessel (PAV). While useful, they’re still just approximations.
In the field, on the other hand, binder aging happens naturally and is influenced by temperature, air exposure, and construction quality. This highlights how the performance can vary over time.
Aggregate Conditions
Lab aggregates are bone-dry and uniformly heated, ensuring consistent gradation and performance. But in field production, aggregates may still retain a bit of moisture and experience subtle shifts in gradation as they move through dryers, feeders, and mixers. Even the temperature between coarse and fine particles can differ, which affects compaction and uniformity.
Mixing Process
Mixing in the lab uses controlled conditions and unaged (or mildly aged) asphalt binders. In contrast, field mixing often accelerates binder aging, for instance just 45 seconds of real-world mixing can significantly raise binder viscosity. Not to mention, fine particles in the mix can be partially lost during processing at the plant if not properly recaptured from the baghouse.
Compaction Differences
In the lab, compaction is fast and consistent, using compactors like the Marshall or gyratory models on small cylindrical samples. This keeps the temperature steady and simulates ideal particle orientation.
But out in the field, compaction takes longer and is influenced by roller type, speed, pass count, surface temperature, and even wind. Plus, unlike a lab’s rigid setup, the foundation in the field can vary from stiff pavement, soft subgrade, or anything in between.
Related Content to Read: Factors Affecting Asphalt Compaction and How to Control Them

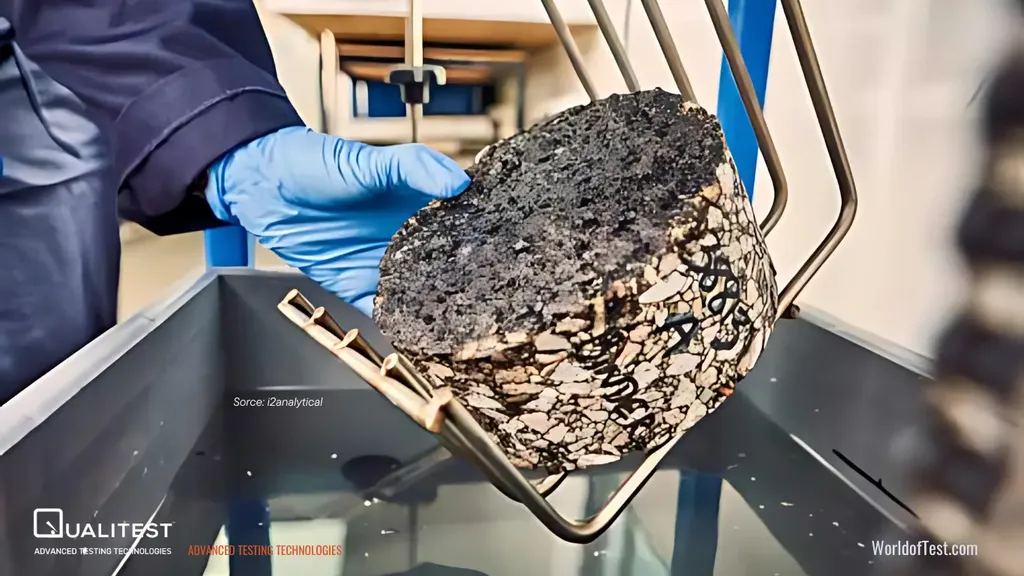

When to Use Lab Testing Tools vs Field Testing Tools
Use Lab Testing Tools When:
- In the design or pre-construction phase: This is where mix designs are developed, tested, and fine-tuned. Lab tools like the Marshall Compactor, Gyratory Compactor, and Asphalt Content Tester help simulate expected performance under ideal conditions.
- Need controlled comparisons: Labs allow you to test variables like aggregate gradation, asphalt binder type, or compaction effort one at a time without environmental noise messing with the data.
- Evaluating material compliance: Whether you’re verifying specs from a supplier or checking if a new mix meets international standards, lab tools give you repeatable and precise results.
Use Field Testing Tools When:
- During or after construction: Field tools like nuclear density gauges, core drills, or portable compaction testers are crucial for real-time decision-making on the job site.
- Verifying in-place performance: Conditions in the lab don’t always translate 1:1 to the field. Field testing tools help confirm whether the mix is compacted properly and holding up as expected.
- Need to adjust on the fly: If compaction isn’t hitting the mark or moisture content is off, field testing lets crews pivot quickly, without waiting for lab results.
Recommended Testing Equipment from World of Test
At Qualitest, we’ve developed solutions for both the consideration of lab vs field asphalt testing tools, so you can focus on its performance. Here are two standout pieces of equipment to consider when working with asphalt:
- QualiACIO Asphalt Content Ignition Oven
If you're looking to determine asphalt content accurately without the mess of solvents or chemical residue, this one's for you. The QualiACIO uses electric ignition to burn off asphalt binder and leaves behind only the aggregate.
It comes with an internal electronic balance that tracks sample weight in real-time as the test runs. That means faster results with less manual work.
Check QualiACIO Asphalt Content Ignition Oven Features and Specs here.
- QualiRTFO Rolling Thin-Film Oven
Aging simulation is a critical step in lab testing, especially when you're evaluating how asphalt will perform over time. The QualiRTFO is purpose-built to test mass loss and changes in properties like viscosity, penetration, ductility, and breaking point.
With space for up to eight bottles at once, automatic temperature control, and durable electric components, our QualiRTFO Rolling Thin-Film Oven is reliable for short-term aging studies.
Check QualiRTFO Rolling Thin-Film Oven Features and Specs here.
Final Thoughts
So, which one is between lab vs field asphalt testing tools? In short, lab testing gives you control and precision required for design validation and material analysis. Field testing, on the other hand, brings real-time insights that help ensure the pavement performs as expected under actual conditions.
Both environments determine the pavement quality. But one thing should not be set aside is the right testing equipment. Qualitest’s range of advanced asphalt testing takes the guesswork out of every stage.
Explore our full asphalt testing equipment here.
Reference:
1. Erol Iskender a., et al. (2011). Field and laboratory performance comparison for asphalt mixtures with different moisture conditioning systems.
