Manual vs Automated Gelatine Capsule Testing Comparison

Flawless capsule integrity guarantees product stability, smooth packaging, and fast batch releases. Beyond physical durability, shell hardness directly controls drug efficacy: a shell that is too soft risks premature rupture, while an overly hard shell delays dissolution and reduces bioavailability.

Deciding between manual vs automated capsule hardness testing: or selecting an automatic vs manual capsule hardness tester: comes down to balancing upfront cost against laboratory throughput. This guide evaluates material behavior, dissolution impact, financial return, and regulatory standards to help you select the optimal system.

Key Takeaways

• Eliminates Operator Bias: Automated testing applies constant motorized pressure, removing human technique variations and creep deformation errors common in manual testing.
• Secures Regulatory Compliance: Motorized systems automatically log test curves into secure SQL databases, supporting traceable data record-keeping aligned with cGMP and FDA 21 CFR Part 11 guidelines.
• Accommodates All Capsule Types: Swappable compartment plates support softgel, hard gelatin, and vegetarian HPMC formulations across oval, spherical, and oblong shapes.
• Delivers Strong ROI: Upgrading to automated testing saves technician labor, eliminates costly false Out-of-Specification (OOS) investigations, and accelerates batch releases.


Manual Gelatine Capsule Hardness Testing

Historically, early gelatin capsule testing relied on subjective manual assessment, hand-cranked tools, or basic compression gauges. Technicians place the capsule by hand, turn a dial or lever, and read the resulting force off a display screen.

Advantages of Manual Testing

Low Initial Purchase Price

These basic setups require minimal upfront capital investment, making them appealing for startup facilities or infrequent spot-checks.

Straightforward Operation

They feature simple mechanical levers with no software setup or complex menu navigation to manage.

Limitations of Manual Testing

High Operator Variability

Human force application is notoriously inconsistent. Consider a typical scenario on a production floor: Operator A applies manual pressure quickly at 15 mm/sec, while Operator B applies force slowly at 5 mm/sec on the exact same softgel batch. Because gelatin experiences creep deformation under sustained force, Operator B's slower compression causes the shell to yield at a lower recorded force, creating an artificial 20% measurement discrepancy between two technician shifts on a single batch.

Workflow Bottlenecks

Hand-loading, hand-cranking, and writing down measurements one sample at a time is painfully slow.

Compliance and Audit Risks

Handwritten logbooks offer no traceable proof of testing conditions, turning routine regulatory audits into an unnecessary stress test.

Automated Gelatine Capsule Hardness Testing

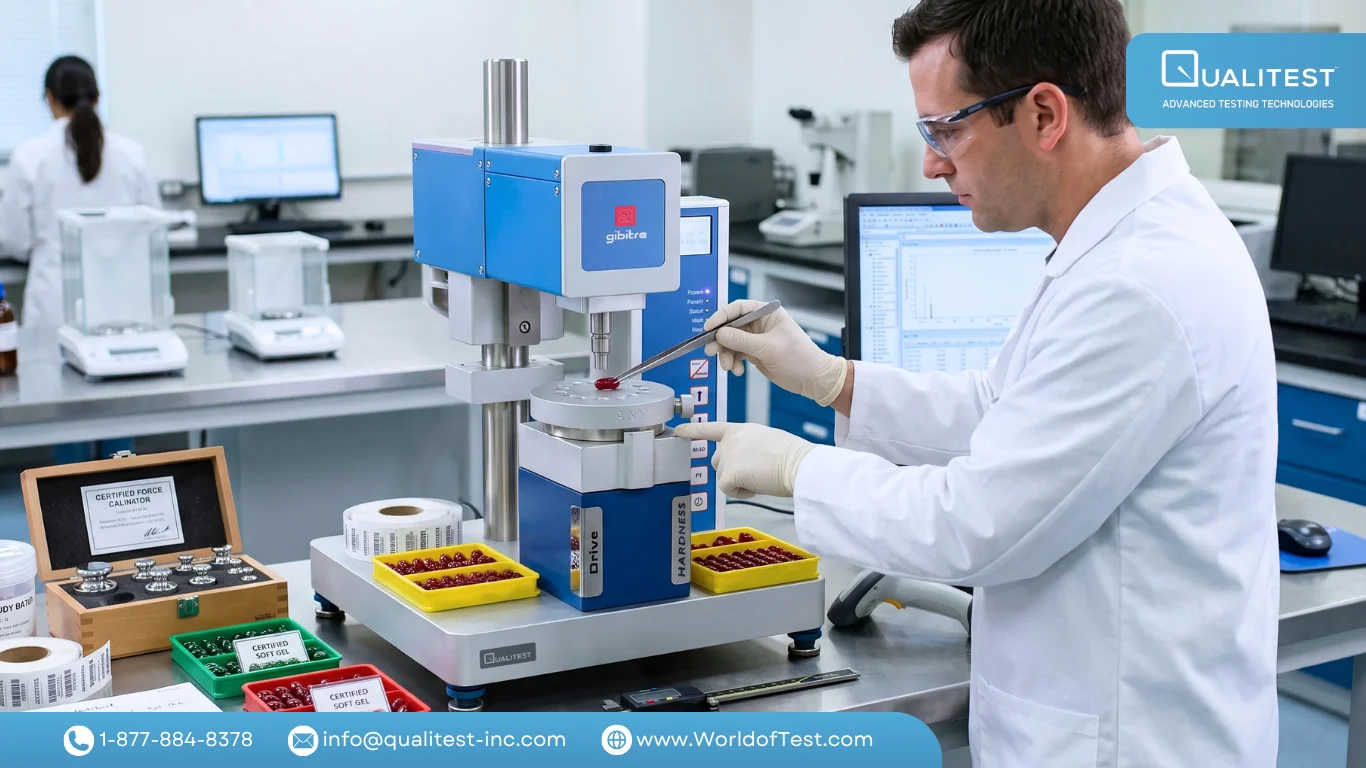

Automated capsule testing replaces manual hand levers with precision motor drives, highly sensitive force sensors, and integrated software tracking. Instruments in this category: such as our Gelatine Capsule and Soft Gel Hardness Tester – Auto PharmaCheck (developed in collaboration with Gibitre Instruments): use a motorized ball-screw system with a 50 mm stroke, speeds up to 85 mm/min, and a 10 mm magnetic force application tool.

In our opinion, the true advantage here isn't just operational speed: it is eliminating human operator error while accommodating complex capsule formulations.

Key Advantages and Operational Features

Consistent Motorized Repeatability

Motorized ball-screw drives compress capsules at the exact same velocity every single time (moving with a microscopic displacement resolution of 0.0001 mm), completely removing operator technique variables.

High-Sensitivity Micro-Load Cells

Precision micro-load sensors (60 N capacity with 0.001 N force resolution) detect subtle structural resistance changes that manual force gauges miss completely.

Multi-Material Formulation Flexibility

Software-driven compression profiling easily handles softgels, hard gelatin, and vegetarian HPMC formulations. For example, it evaluates softgel flexibility at a set 2 mm compression depth (preventing oil leaks in products like Omega-3 softgels), measures peak fracture load on hard gelatin capsules, and maps exact load curves for moisture-sensitive HPMC probiotic shells.

Swappable Geometry Plates

Motorized revolving sample plates utilize interchangeable holder plates specifically scaled for Oval (sizes 1 to 30), Spherical (sizes 1 to 40), and Oblong (sizes 3 to 24) capsule profiles, ensuring proper alignment across multi-compartment test runs.

IPQC Drying Line Integration

Automated testing provides rapid firmness feedback during softgel drying tunnel cycles, preventing sticky, under-dried capsules from clumping or bursting at seam joints later.

Comprehensive Force-Displacement Analytics

Integrated software tracks compressive load against deformation distance continuously, automatically plotting multi-colored load curves, X-Charts, and Gaussian distribution graphs while calculating process capability metrics (Cp, Cpk) on the fly.

Direct Database Audit Tracking

Test curves, product barcodes, and batch metadata upload directly into an integrated SQL database, supporting data integrity and traceable record-keeping aligned with cGMP and 21 CFR Part 11 frameworks.

Direct Comparison Matrix

When you compare manual vs automated capsule hardness testing side-by-side, the contrast in data accuracy and everyday efficiency becomes obvious:

Environmental Impact and Moisture Sensitivity

We frequently remind clients that gelatin acts much like a sponge: it reacts continuously to ambient relative humidity and room temperature. Gelatin shells are typically formulated to maintain roughly 12% to 16% equilibrium moisture. Venture outside that target window in either direction, and the capsule's mechanical resistance shifts accordingly.

When ambient humidity rises, gelatin shells absorb airborne water, leading to excessive plasticization, softer shells, and lower force resistance readings. Conversely, in dry environments, capsules lose internal moisture, causing dehydration and brittle shell cracking.

When air conditions shift throughout the day, manual testing cannot distinguish between a capsule that is naturally softer due to ambient room moisture versus one with a defective shell formulation.

Consider an illustrative manufacturing scenario: during humid summer months, ambient moisture transfers into softgels during tray handling, causing temporary shell softness on manual force gauges. Conversely, during cold winter months with low indoor humidity, dehydrated shells become brittle.

Advanced automated testers like the Auto PharmaCheck allow quality teams to configure customizable test cycles (holding deformation for set durations or repeating force-time compressions alongside standard 2 mm deformation routines). Pairing a 60 N load cell (0.001 N resolution) with microscopic probe displacement (0.0001 mm) isolates true structural shell strength from temporary atmospheric softness, preventing unnecessary batch rejections.

Regulatory Standards and Compliance Frameworks

In our view, keeping up with global regulatory bodies is where old-fashioned handwritten logs turn into a major headache for your compliance team:

• Pharmacopeia Guidelines (USP, EP, JP): While raw gelatin bloom strength gets tested under guidelines like USP General Chapter <1081>, finished filled capsules need dedicated mechanical deformation and fracture testing under official pharmacopeial guidelines.
• cGMP & GLP Directives: Current Good Manufacturing Practice rules demand fully repeatable test routines that guarantee every batch gets measured under identical conditions.
• FDA 21 CFR Part 11 Compliance: Digital directives demand verifiable data integrity and traceable records. Automated testers like Auto PharmaCheck support barcode scanner product identification, automated tolerance verification against pre-set product limits, and secure SQL database storage to support regulatory audit readiness. Built-in report editing tools allow quality teams to format and export summaries directly into PDF, Word, or Excel, while the underlying SQL database preserves raw test data traceability.


Total Cost of Ownership (TCO) and ROI Analysis

We strongly believe that judging an automatic vs manual capsule hardness tester purely by its initial purchase price is a major oversight. When you evaluate total operational costs, manual testing carries substantial hidden expenses:

Hidden Expenses of Manual Testing

• Unnecessary Out-of-Specification (OOS) Investigations: Inconsistent manual force application often triggers false test failures. Investigating a false OOS failure burns dozens of technical labor hours, halts production schedules, and generates extensive paperwork.
• Inefficient Technician Labor: Assigning qualified lab staff to manually squeeze individual capsules is an inefficient use of skilled payroll.
• Product Material Waste: Applying uneven pressure during manual tests damages samples and leads to unnecessary batch rejections.


Why Automation Delivers Measurable ROI

Investing in an automated testing system delivers clear financial and operational value across your quality control workflow:

• Reallocated Technician Labor: Automated multi-sample rotation allows lab staff to initiate testing sequences and step away to focus on higher-value analytical tasks, optimizing laboratory payroll.
• Elimination of False OOS Costs: Removing human operator variability prevents false Out-of-Specification (OOS) investigations, saving significant technical labor, documentation overhead, and machine downtime.
• Accelerated Batch Release: Automated statistical calculations (Cp, Cpk) and instant report exports allow quality managers to approve IPQC and final batch releases faster, directly supporting dosage form stability assessments.
• Reduced Material Waste: Precise, controlled force application prevents premature capsule crushing, preserving product samples and lowering ongoing testing expenses.


Which System Is Right for Your Operations?

Our advice for lab leaders choosing an automatic vs manual capsule hardness tester comes down to a practical operational framework:

Select a manual capsule hardness tester if:

• You manage a small-scale facility with minimal daily sample volumes.
• You only require quick informal bench checks without strict 21 CFR Part 11 digital record mandates.

Select an automatic capsule hardness tester if:

• You operate a commercial production line, an active IPQC drying tunnel, or a contract manufacturing facility.
• You require rapid multi-sample testing, instant statistical analysis, and tamper-proof SQL database storage.
• You manufacture diverse capsule geometries (oval, spherical, oblong) or process varied formulations (softgel, hard gelatin, HPMC).


Partner with Qualitest for Cost-Effective Lab Automation

When evaluating manual vs automated capsule hardness testing, switching to automation is the smartest move for long-term accuracy and cost efficiency.

At Qualitest, we provide cost-effective testing equipment that maximizes laboratory performance without straining your budget. Our Gelatine Capsule and Soft Gel Hardness Tester – Auto PharmaCheck delivers repeatable, automated testing in one budget-friendly package.

Contact Qualitest today to request a quote or discuss your laboratory requirements with our technical team!
