One leaky soft gel can destroy an entire batch and trigger costly recalls. Maintaining shell elasticity is critical across pharma, nutra, and cosmetic lines, yet gelatin stays sensitive to humidity and temperature shifts. The right physical testing equipment catches formulation defects early and guarantees audit readiness.

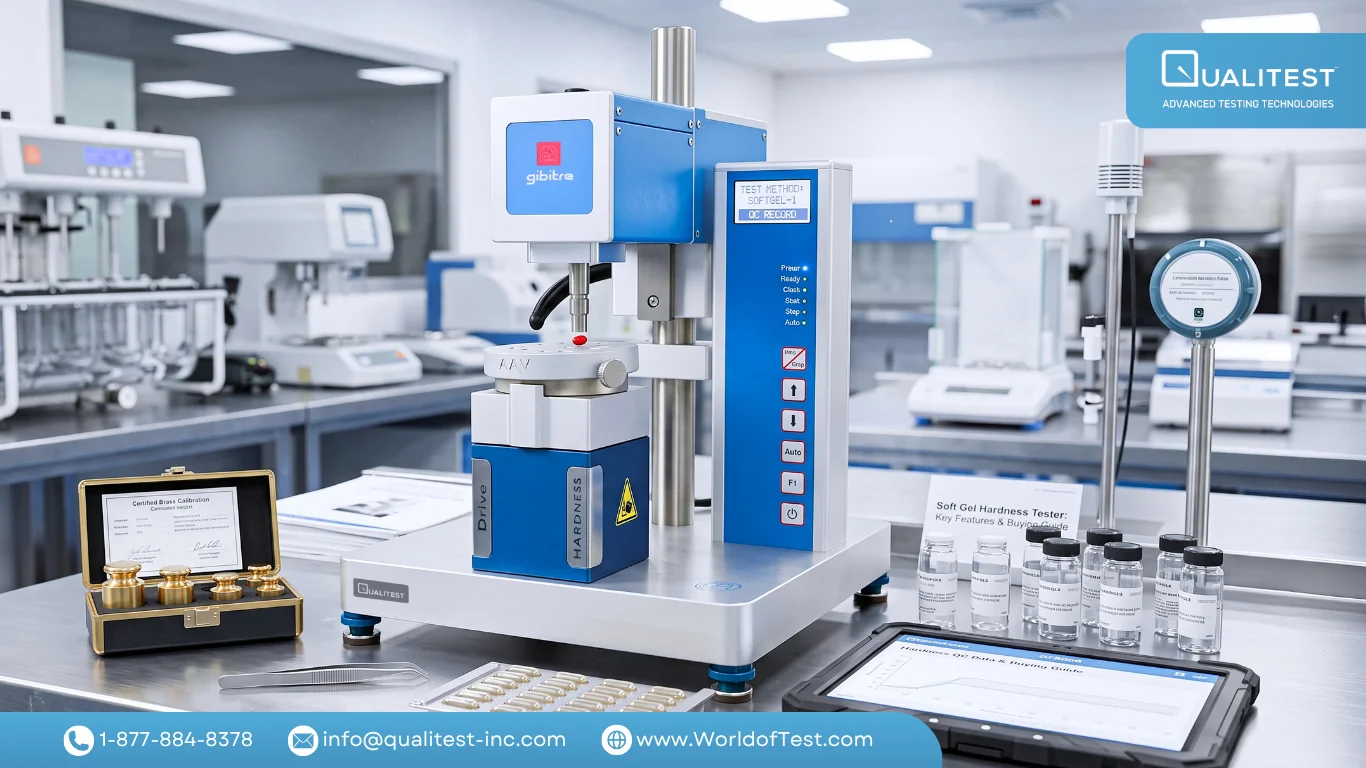

Engineered with Gibitre Instruments, our Gelatine Capsule and Soft Gel Hardness Tester – Auto PharmaCheck secures daily batch release. Read on for the primary soft gel hardness tester key features to prioritize in your soft gel hardness tester buying guide.
Industry Applications & Defect Analysis
Different commercial sectors encapsulate different fills into soft gels, so testing priorities shift depending on the product type. Knowing these operational differences helps you evaluate equipment against your specific manufacturing demands:
Sector Overview
- Pharmaceuticals: Prescription soft gels (such as liquid Progesterone or Cyclosporine formulations) demand zero leakage and tight seam integrity, where even microscopic weeping leads to dangerous dosage loss. Testing teams rely on precise compression runs paired with USP General Chapter <2040> rupture testing in immersion media to monitor shell cross-linking over time.
- Nutraceuticals & Dietary Supplements: Concentrated Omega-3 EPA/DHA fish oil capsules transported in warm cargo containers frequently suffer from plasticizer interaction, making them prone to softening and sticking inside retail bottles. Testing multiple samples per batch verifies shell recovery after stress.
- Cosmetics & Personal Care: Single-dose Vitamin C facial serum capsules or bath oil pearls must resist deformation during bulk shipping, yet remain pliable enough for consumers to pop open cleanly between two fingers.
Root-Cause Defect Analysis
Getting physical hardness numbers early on gives your team a direct look into hidden recipe flaws. Studies show that gelatin capsule shells exhibit higher elastic modulus and structural hardness than hypromellose (HPMC) alternatives, making precise force monitoring essential.
| Measured Defect | Potential Root Cause | Manufacturing Impact |
|---|
| Capsules Too Soft / Sticky | Excess plasticizer, formulation water content, or high relative humidity above 60%. | Capsules stick together in bulk containers, deform inside blister packs, or leak liquid fill. |
| Capsules Too Brittle / Cracking | Over-dried shells, insufficient plasticizers, or interactions with volatile solvents like ethanol. | Shells snap under minor pressure, spilling liquid payload and shortening product shelf life. |
| Inconsistent Compression Resistance | Non-uniform gelatin ribbon thickness or weak seam welds from rotary dies. | Unpredictable burst pressure and non-uniform dosage delivery. |
Production Defect Scenarios
- Scenario A (Packaging Line Deformation): A manufacturing run subjected to rushed drying tray cycles may show acceptable visual appearance initially, but routine hardness testing reveals a 30% reduction in resistance force. Catching this early prevents capsules from flattening or sticking when fed through high-speed automated blister packaging machinery.
- Scenario B (Winter Transit Cracking): During cold weather shipping, plasticizer migration combined with dry air can lower shell moisture below target levels. Compression testing under controlled conditions allows labs to verify whether a batch retains sufficient elasticity to avoid cracking under stacked carton loads.
Testing Methodologies & Equipment Tiers
Before evaluating specific specifications, it helps to review how mechanical compression compares with other capsule analysis methods validated across the industry:
- Compression & Universal Testing: Measures axial force (in Newtons) required to deform or fracture capsules. Universal testing machines and automated motorized test stands provide reliable, quantitative data for quality control and FDA stability files.
- Texture Analysis: Uses custom indenters or tension fixtures to measure multi-parameter properties like elasticity, tensile strength, and gel firmness.
- Non-Destructive & Thermal Approaches: Emerging methods like time-domain 1H NMR correlate bound water with stiffness, non-contact airflow-laser systems evaluate texture, and thermal analysis (MDSC) tracks gel-sol phase shifts.
While non-destructive and thermal methods offer valuable R&D insight, high-output production facilities rely on motorized compression testers for daily batch release:
| Feature | Manual / Entry-Level Testers | Automated Hardness Testers (e.g., Auto PharmaCheck) |
|---|
| Throughput Capacity | Low (Manual sample loading one capsule at a time) | High (Motorized rotation plate tests multiple capsules automatically) |
| Displacement Accuracy | Variable / Limited by mechanical gauges | Precision ball-screw drive system (resolution: 0.0001 mm) |
| Load Cell Resolution | Standard (0.01 N) | Ultra-fine full scale (60 N capacity / 0.001 N resolution) |
| Data Integrity & Audit Trail | Paper logs / Basic file exports | Integrated SQL database, 21 CFR Part 11 ready, auto Cp/Cpk |
| Human Error Risk | Moderate to High | Minimal |
Buying Guide: Key Features & Selection Criteria
Selecting the right testing instrument requires evaluating critical specifications against your facility's daily volume, compliance rules, and equipment budget. Use these core selection criteria and soft gel hardness tester key features to guide your procurement decision:
1. Match Automation to Your Facility Profile
Your operational structure determines whether manual or automated testing fits best:
- R&D / Formulation Lab Profile: A facility conducting low-volume trial runs on experimental biopolymer shells benefits from custom cycle programming and manual sample placement, focusing on detailed elastic behavior rather than continuous output speed.
- Commercial CMO Facility Profile: A contract manufacturing organization running round-the-clock packaging lines requires automated sample rotation, motorized ball-screw drives, and barcode-driven SQL database integration to release batches without delay. Automated systems like the Auto PharmaCheck feature motorized specimen holder plates with controlled angle rotation, allowing continuous capsule series to process without constant supervision.
2. Force & Displacement Precision
Soft gels require a gentle touch combined with hyper-accurate force tracking. Look for instruments featuring motor-controlled ball-screw drives that deliver smooth displacement. While some testing systems require operators to swap separate low-force (0–2 N) and high-force (0–20 N) measuring heads for different product lines, the Auto PharmaCheck utilizes a single 60 N load cell with 0.001 N force resolution.
Paired with a 50 mm stroke, 85 mm/min travel speed, 0.0001 mm displacement resolution, and a 10 mm magnetic probe, this broad dynamic range evaluates delicate cosmetic beads and firm prescription softgels without sensor changeovers or recalibration downtime.
3. Evaluate Tooling Flexibility and Custom Plate Options
Capsule dimensions vary across product categories, from small round liquid beads to large oblong supplement capsules. We consider modular tooling one of the wisest equipment investments a multi-product lab can make. The Auto PharmaCheck accepts quick-swap holder plates for distinct capsule profiles:
- Oval Capsule Plates: Sizes 1, 2, 3, 4, 5, 6, 7.5, 8.5, 10, 12, 16, 20, and 30.
- Spherical Capsule Plates: Sizes 1, 2, 4, 5, 6, 7, 9, 15, 20, 28, and 40.
- Oblong Capsule Plates: Sizes 3, 4, 6, 8, 9.5, 11, 14, 16, 20, 22, and 24.
Operational Example: In a facility running diverse product schedules, technicians can swap a holder plate from a Size 20 Oblong fish oil setting to a Size 6 Spherical Vitamin D3 configuration in under two minutes using quick-release magnetic mounts. Custom holder plates can also be produced for non-standard capsule dimensions.
4. Require Flexible Test Cycle Programming
Different gel formulations require unique stress profiles. Standard test cycles apply compression to a fixed distance (such as a standard 2 mm displacement) to measure peak force resistance. However, software should also allow technicians to construct custom test cycles, giving operators freedom to adjust displacement depth, hold force over time to evaluate shell relaxation, or execute multi-compression routines.
Test Cycle Example: Quality control teams can run a standard 2 mm fixed deformation cycle for rapid batch release, then switch to a 10-second sustained load hold cycle during R&D stability studies to measure how the shell relaxes under prolonged stress.
5. Software Compliance & Data Integrity
Pharmacopoeial guidelines and FDA stability expectations make traceable data generation essential. Testing hardware requires software equipped with:
- 21 CFR Part 11 & Annex 11 Readiness: Secure electronic records, multi-level user permissions, and tamper-proof audit trails.
- Automated Statistical Analysis: Live multi-color Force-versus-Displacement graphics, calculations for Force at Set Displacement or Displacement at Set Force, Cp, Cpk, Mean, Standard Deviation, X-Bar Charts, and Gaussian distribution curves.
- Central Data Management: Integrated SQL database storage, barcode product identification, and customizable report exports to PDF, Word, or Excel in multiple selectable languages.
6. Total Cost of Ownership & Support
Look beyond the initial purchase price. Inquire about calibration services, software updates, spare parts availability, and responsive technical support.
Additionally, verify whether your vendor provides IQ/OQ/PQ (Installation, Operational, and Performance Qualification) documentation packages to support your facility's GMP equipment validation requirements. Choosing well-engineered, fully documented equipment keeps unexpected downtime low and maintains predictable operating costs over time.
Partner with Qualitest for Reliable Capsule Quality Control
Choosing the right testing equipment does not need to be complicated. At Qualitest, we build reliable, cost-effective products like our Gelatine Capsule and Soft Gel Hardness Tester – Auto PharmaCheck to safeguard product quality while keeping capital expenses low.
Ready to improve your soft gel testing routine? Contact our technical team today to discuss your testing requirements and request a personalized quote!
References (Click to expand)
- Cantor, S. L., & Dutta, A. (2017). Analytical Testing and Evaluation of Capsules. Pharmaceutical Capsules, 345-372.
- Damian, F., Harati, M., Schwartzenhauer, J., Van Cauwenberghe, O., & Wettig, S. (2021). Challenges of Dissolution Methods Development for Soft Gelatin Capsules. Pharmaceutics, 13(2), 214.
- Kovaleva, E. L., Matveeva, O. A., Shelestova, V. V., & Balatskaya, K. A. (2024). Pharmacopoeias’ and manufacturers’ requirements for the quality of hard gelatin capsule shells. Regulatory Research and Medicine Evaluation, 14(6), 620-633.
- Kuentz, M., Rothenhäusler, B., & Röthlisberger, D. (2006). Time Domain 1H NMR as a New Method to Monitor Softening of Gelatin and HPMC Capsule Shells. Drug Development and Industrial Pharmacy, 32(10), 1165-1173.
- Liebowitz, S., Vadino, W. A., & Ambrosio, T. (1990). Determination of Hard Gelatin Capsule Brittleness Using a Motorized Compression Test Stand. Drug Development and Industrial Pharmacy, 16(6), 995-1010.
- Magramane, S., Kállai-Szabó, N., Farkas, D., Süvegh, K., Zelkó, R., & Antal, I. (2025). Comparative Evaluation of Gelatin and HPMC Inhalation Capsule Shells Exposed to Simulated Humidity Conditions. Pharmaceutics, 17(7), 877.
- Mei, X., Etzler, F., & Wang, Z. (2006). Use of texture analysis to study hydrophilic solvent effects on the mechanical properties of hard gelatin capsules. International Journal of Pharmaceutics, 324(2), 128-135.
- Naharros‐Molinero, A., Caballo‐González, M. Á., De La Mata, F. J., & García‐Gallego, S. (2023). Shell Formulation in Soft Gelatin Capsules: Design and Characterization. Advanced Healthcare Materials, 13(1), 2302250.
- Nazzal, S., & Wang, Y. (2001). Characterization of soft gelatin capsules by thermal analysis. International Journal of Pharmaceutics, 230(1-2), 35-45.
- Vemuri, S. (1984). Measurement of Soft Elastic Gelatin Capsule Firmness with a Universal Testing Machine. Drug Development and Industrial Pharmacy, 10(3), 409-423.
- Yu, H., Yu, S., He, M., & Tang, X. (2026). Non-Contact Characterization of TPA-like Texture Properties of Gel-Based Soft Foods Using a Controlled Airflow–Laser System. Foods, 15(7), 1166.
- Zilhadia, Z., Harahap, Y., Jaswir, I., & Anwar, E. (2022). Evaluation and Characterization of Hard-Shell Capsules Formulated by Using Goatskin Gelatin. Polymers, 14(20), 4416.
